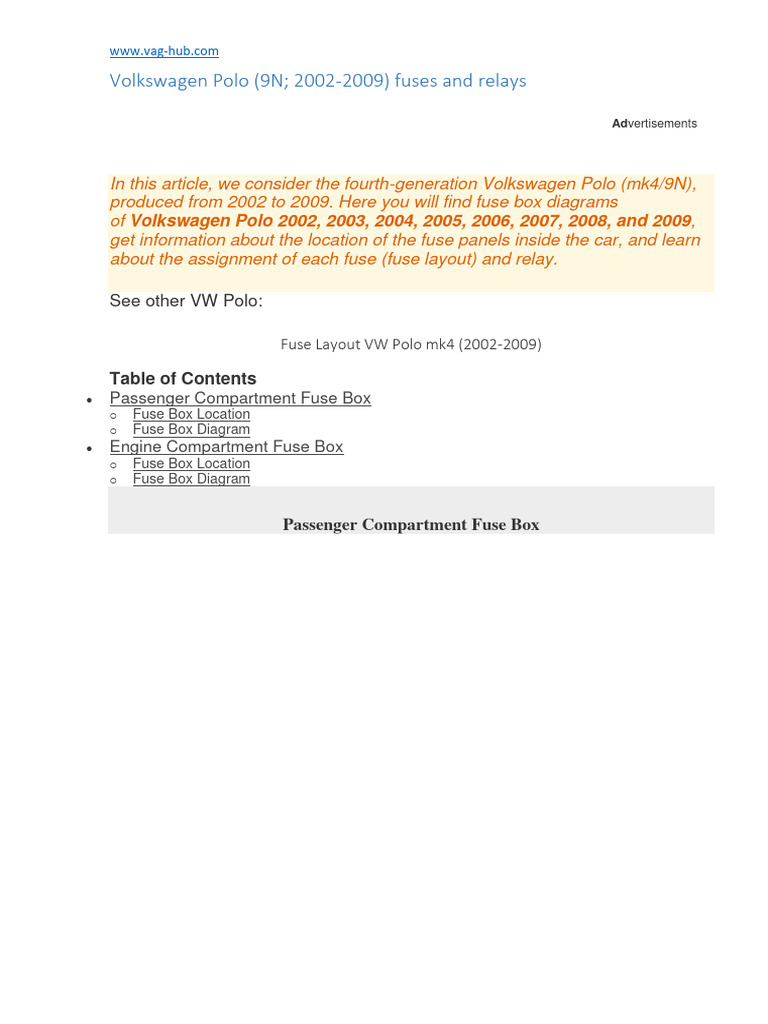

Volkswagen Polo (9N; 2002-2009) fuses and relays

Advertisements

In this article, we consider the fourth-generation Volkswagen Polo (mk4/9N),

produced from 2002 to 2009. Here you will find fuse box diagrams
of Volkswagen Polo 2002, 2003, 2004, 2005, 2006, 2007, 2008, and 2009,
get information about the location of the fuse panels inside the car, and learn
about the assignment of each fuse (fuse layout) and relay.

See other VW Polo:

Fuse Layout VW Polo mk4 (2002-2009)

Table of Contents
 Passenger Compartment Fuse Box
o Fuse Box Location
o Fuse Box Diagram
 Engine Compartment Fuse Box
o Fuse Box Location
o Fuse Box Diagram

Passenger Compartment Fuse Box

www.vag-hub.com
Fuse Box Location

The fuse panel is located behind an access panel on driver’s side edge of the
instrument panel.
www.vag-hub.com
Fuse Box Diagram

Assignment of the fuses in the instrument panel

№ Amps Function/component

1 10A Rear window wiper motor

2 5A Licence plate light

www.vag-hub.com

№ Amps Function/component

3 5A Rear left fog light bulb

Trailer socket, rear fog light

4 5A Cruise control system switch

Clutch pedal switch
Brake pedal switch
Radiator fan relay
Fuel pump control unit

5 5A Engine control unit

Exhaust gas recirculation

6 5A Headlight range control regulator

7 7.5A/5A 2002-2004:
Exhaust gas recirculation
Air-mass meter
Oil level sensor
Electrohydraulic steering
Crankcase breather heater element
2005-2009:
Oil level and oil temperature sender
Power steering control unit
Crankcase breather heater element

8 5A Onboard power supply control unit

Mirror heating

9 10A 2002-2004 (FSI):

Lambda probe
Crankcase heater
Pressure regulating valve

10 5A Mobile telephone operating electronics control unit (2006-2009)

Control unit with display for radio and navigation system
Onboard power supply control unit
Radio

11 5A Mirror adjustment switch

Folding exterior mirror control unit
www.vag-hub.com

№ Amps Function/component

12 5A Right tail light bulb

Right side light bulb

13 5A Left side light bulb

Left tail light bulb

14 10A Crankcase breather heater

Secondary air pump relay
Exhaust gas recirculation
Intake manifold flap
Hall sender

15 10A Multi-function switch

Automatic gearbox control unit

16 10A lntermittent wiper switch

Onboard power supply control unit
Rear window wiper motor
Windscreen and rear window washer pump

17 5A Engine control unit

18 5A Climatic, Climatronic, radiator fan control unit, navigation, circulation

pump, illumination of functions, interior monitor sensor, mirror

19 10A Reversing light switch

Parking aid control unit
Left washer jet heater element
Right washer jet heater element
Selector lever illumination (2002-2004)

20 5A Control unit in dash panel insert

21 10A Right main beam bulb

22 10A Left main beam bulb

www.vag-hub.com

№ Amps Function/component

23 10A Traction control system switch

TCS and ESP button
Tyre pressure monitor display button
Steering angle sender, only models with ESP
ABS control unit

24 10A/15A 2002-2006:
Onboard supply control unit, tank filler flap locking motor
Onboard supply control unit, central locking motor in rear lid
2006-2009:
Heated driver seat regulator
Heated front passenger seat regulator
Heated front seats control unit

25 10A Injectors
Camshaft adjuster
Thermostat heater
Fuel purging valve

26 10A 2002-2004: Brake lights

2005-2009: Coolant pump relay (only BJX)

27 5A Steering angle sender

Control unit in dash panel insert

28 10A Onboard supply control unit, relay for interior lights

Door warning lamp relay

29 5A Climatronic control unit

Air conditioning system control unit
Mobile telephone operating electronics control unit
16-pin connector, diagnostics connection

30 5A Onboard power supply control unit, shift lock, rain sensor

31 25A Driver door control unit

Driver side window regulator motor

32 15A 2002-2004:
Seat heating
www.vag-hub.com

№ Amps Function/component

2005-2009:
Brake light switch
Brake light suppression relay

33 15A Alarm horn

34 15A/20A 2002-2004:
Socket in luggage compartment (Variant)
2005-2006:
12V socket
2006-2009:
Cigarette lighter
12V socket
Blocking diode

35 20A Sliding sunroof adjustment control unit

36 25A Fresh air blower switch

Fresh air blower control unit

37 15A/20A Ignition transformer

38 25A Rear left door control unit

39 25A Front passenger side door control unit

40 10A/20A/30A Engine control unit

41 15A Fuel pump

42 15A/20A NOx regulator, Lambda probe, exhaust gas cooling

43 15A Right headlight dipped beam bulb

Right headlight range control motor

44 15A Left fog light bulb

Right fog light bulb
www.vag-hub.com

№ Amps Function/component

45 15A Engine control unit

46 20A Onboard power supply control unit

Automatic intermittent wash and wipe relay

47 20A/30A Onboard power supply control unit

Heated rear window

48 15A Onboard power supply control unit, Turn signals

49 10A/15A 2002-2006:
Cigarette lighter
2006-2009:
Onboard supply control unit, tank filler flap locking motor
Onboard supply control unit, central locking motor in rear lid

50 15A 2002-2004:
Central locking
2005-2009:
Anti-theft alarm ultrasonic sensor
Comfort system central control unit

51 15A Control unit with display for radio and navigation system
Dipped headlight control unit, on/off for Coming home system
Radio

52 20A Headlight washer system relay

Onboard supply control unit
Treble tone horn, Bass tone horn

53 25A Rear right door control unit

54 15A Left headlight dipped beam bulb

Headlight range control motor

Advertisements
www.vag-hub.com
Relay panel

The relay panel is located under the driver’s side of the instrument panel.
www.vag-hub.com

№ Amps Description

1 2002-2004:
Driving school mode relay
2005-2009:
Secondary air pump relay (engine code BJX)
Folding exterior mirror control unit

2 2005-2009:
Folding exterior mirror control unit
Driving school mode relay

3 Glow plug relay (Diesel engines)

Motronic current supply relay (2002-2007)

4 Fuel pump relay

5 2002-2004:
Warning lamps relay
2005-2007:
Door warning lamps relay
Brake light suppression relay

6 Headlight washer system relay

7 2002-2004: Starter inhibitor relay

2005-2009: Dipped headlight control unit, on/off (coming home system)

8 Low heat output relay (Diesel engines)

Coolant pump relay (2005-2007, engine code BJX)

9 High heat output relay (Diesel engines)

10 Motronic current supply relay

Radiator fan relay (engine codes ASZ, BLT)
Current supply relay (2002-2004)

11 X-contact relief relay

12 Fuel supply relay

www.vag-hub.com

№ Amps Description

13 Fuel pump relay (Petrol engines)

14 40A Diesel engines fuses:

Heater element fuse 1
Heater element fuse 2
Heater element fuse 3

15 2002-2004:
Diesel direct injection system relay
2005-2009:
Terminal 30 voltage supply relay (Diesel engines)
Motronic current supply relay (Petrol engines, not engine codes BUD, BTS)
Fuel pump relay (2005-2007, engine codes BMD, BME)

F1 10A Trailer socket

F2 15A Heated driver seat regulator

Heated front passenger seat regulator
Heated driver seat control unit
Heated front passenger seat control unit

F3 10A/5A Driving school mode

Footwell light switch
Warning buzzer switch
Control unit in dash panel insert (South Africa, from 2006, 5A)

F4 10A Driving school mode

12V socket

Engine Compartment Fuse Box

www.vag-hub.com
Fuse Box Location

The main fuse box located on top of the battery in the engine compartment.
www.vag-hub.com
Fuse Box Diagram

Version 1

№ Amps Function/component

S162 175A Alternator

S163 110A Fuse holder B

S164 50A Power steering control unit

S176 50A Glow plug activation control unit

Engine glow plugs
Secondary air pump motor

S177 40A Radiator fan (models with air conditioning system or Climatronic)

S178 40A ABS control unit

www.vag-hub.com

№ Amps Function/component

S179 25A ABS control unit

S180 30A Radiator fan

S267 - -

S268 5A Onboard power supply control unit

S269 5A Radiator fan control unit

S270 - -

S271 5A Automatic gearbox control unit

S272 - -

S273 - -

S274 - -
www.vag-hub.com
Version 2

№ Amps Function/component

S162 175A Alternator

S163 110A Fuse holder B

S164 40A Radiator fan (models with air conditioning system or Climatronic)

S176 40A ABS control unit

S177 50A Power steering control unit

www.vag-hub.com

№ Amps Function/component

S178 50A Glow plug activation control unit

Engine glow plugs
Secondary air pump motor

S179 25A ABS control unit

S180 30A Radiator fan

S267 5A Radiator fan control unit

S268 10A ABS control unit

S269 5A Onboard power supply control unit

S270 5A Diesel direct injection system control unit (models with engine code BMT)
