Appendix C

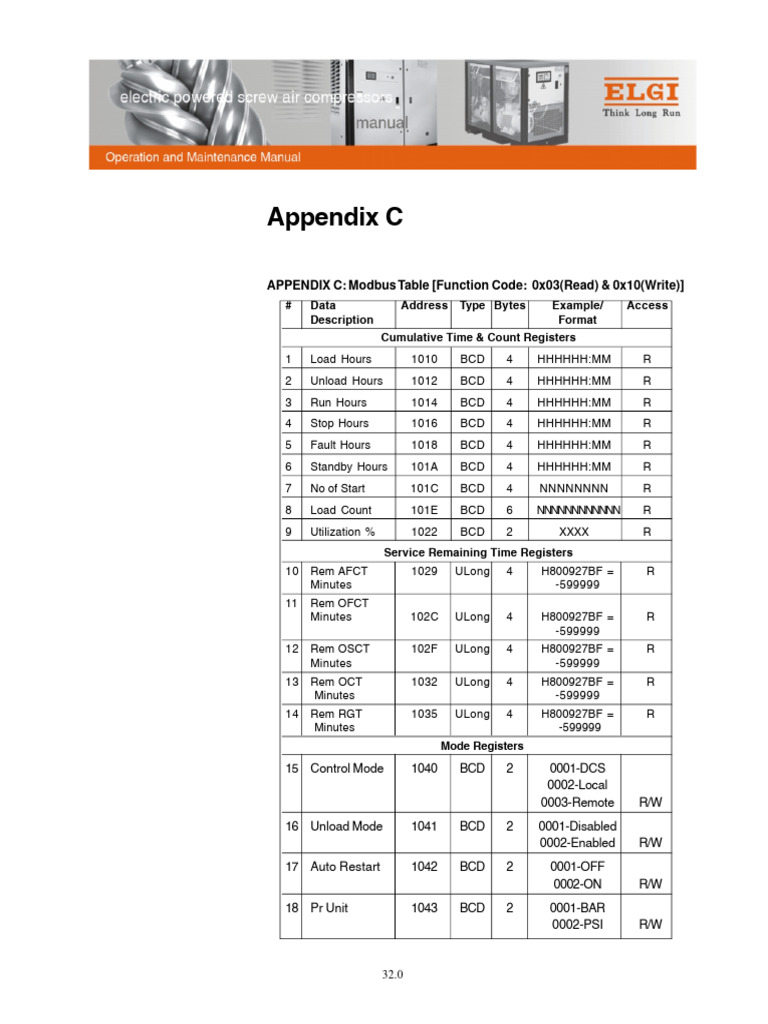

APPENDIX C: Modbus Table [Function Code: 0x03(Read) & 0x10(Write)]

# Data Address Type Bytes Example/ Access
Description Format
Cumulative Time & Count Registers
1 Load Hours 1010 BCD 4 HHHHHH:MM R
2 Unload Hours 1012 BCD 4 HHHHHH:MM R
3 Run Hours 1014 BCD 4 HHHHHH:MM R
4 Stop Hours 1016 BCD 4 HHHHHH:MM R
5 Fault Hours 1018 BCD 4 HHHHHH:MM R
6 Standby Hours 101A BCD 4 HHHHHH:MM R
7 No of Start 101C BCD 4 NNNNNNNN R
8 Load Count 101E BCD 6 NNNNNNNNNNNN R
9 Utilization % 1022 BCD 2 XXXX R
Service Remaining Time Registers
10 Rem AFCT 1029 ULong 4 H800927BF = R
Minutes -599999
11 Rem OFCT
Minutes 102C ULong 4 H800927BF = R
-599999
12 Rem OSCT 102F ULong 4 H800927BF = R
Minutes -599999
13 Rem OCT 1032 ULong 4 H800927BF = R
Minutes -599999
14 Rem RGT 1035 ULong 4 H800927BF = R
Minutes -599999
Mode Registers

15 Control Mode 1040 BCD 2 0001-DCS

0002-Local
0003-Remote R/W
16 Unload Mode 1041 BCD 2 0001-Disabled
0002-Enabled R/W
17 Auto Restart 1042 BCD 2 0001-OFF
0002-ON R/W
18 Pr Unit 1043 BCD 2 0001-BAR
0002-PSI R/W

32.0
Appendix C

# Data Address Type Bytes Example/ Access

Description Format
19 Tr unit 1044 BCD 2 0001-Centi
0002-Farhen R/W
20 Pr. Schdl 1045 BCD 2 0001-OFF
(on/off) 0002-ON R
Analog Registers
27 Dis. Pressure 104A BCD 2 1200 (/100) =
12.0 bar R
28 Dis. 104B BCD 2 1100 (/10) =
Temperature 110 C R
29 Dew Point /
Ambient
Temperature 104C BCD 2 MSB 01 = +
MSB 02 = -
LSB = 30 R
30 Sump Pressure 104D BCD 2 1200 (/100) =
12.0 bar R
31 Diff Pressure 104E BCD 2 0100 (/100)
=1.0 bar R
32 Set Unload 104F BCD 2 0120 (/10)
Pressure = 12.0 bar R/W
33 Set Load 1050 BCD 2 0080 (/10) =
Pressure 8.0 bar R/W
34 Set Diff 1051 BCD 2 0010 (/10) = R/W
Pressure 1.0 bar
35 Trip Temp 1052 BCD 2 0110 = 110 C R
36 Warn Temp 1053 BCD 2 0105 = 105 C R/W
37 Low Dew Point 1054 BCD 2 MSB 01 = +
MSB 02 = -
LSB = 30 R/W
38 High Dew Point 1055 BCD 2 MSB 01 = +
MSB 02 = -
LSB = 30 R/W
39 Fan Temp 1056 BCD 2 0070 = 70 C R/W

32.1
Appendix C

# Data Address Type Bytes Example/ Access

Description Format
21 Auto Restart 1060 BCD 2 0100 R/W
Delay (Sec)
22 Star Delay (Sec) 1061 BCD 2 0005 R/W
23 DTR Delay (Sec) 1062 BCD 2 0010 R/W
24 RTS Delay (Sec) 1063 BCD 2 0010 R/W
25 Standby Time 1064 BCD 2 0005 R/W
(Min)
26 Max. No of Start 1065 BCD 2 0005 R/W
per hour
RTC Registers

40 Hour 106A BCD 2 0023 R

41 Minutes 106B BCD 2 0059 R
42 Seconds 106C BCD 2 0059 R
43 Date 106D BCD 2 0031 R
44 Month 106E BCD 2 0012 R
45 Year 106F BCD 2 0009 R
46 Day 1070 BCD 2 0001Sunday -1 R
Status Registers
47 General Status 1071 UInt 2 Refer table R
48 Warning Status 1072 UInt 2 Refer table R
49 Fault Status 1073 UInt 2 Refer table R

32.2
Appendix C

Function Code: 0x01(Read Coil) & 0x05(Write Coil)

0x01 Read Coil (Start / Stop)
Frame Type ID Function Address Quantity of Data
Code coils
Request XX 01 2000 0001 —
Response XX 01 — Byte count: 01 ON  0x01
OFF 0x00

0x05 Write Coil (Start / Stop)

Frame Type ID Function Address Quantity of Data
Code coils

Request XX 01 2000 0xFF00  Start

0x0000  Stop
Response XX 01 2000 0xFF00  Start
0x0000  Stop

32.3
Appendix C

Note: Function Code 0x10 (Write), 0x05 (Start/Stop) and 0x01 (read Start/Stop)
will function only if “Control Mode” is set to “DCS”. Refer: Operator/Machine/
Mode (Chapter 5.2.1)
On improper master request, any one of the following exception response
is sent
Code 01: Illegal function
Code 02: Illegal data address
Code 03: Illegal data value
Status Register Bit Definition:

Bit Position General Warning Fault

0 Ready DPAF HSP
1 Star DPOF Cooler
2 Run Dryer probe failure Main motor
overload
3 Run load Low dew point Reverse rotation
4 Run unload High dew point Pressure probe
failure
5 Stop busy High differential Temperature probe
pressure Failure
6 Idle Warn temperature Trip temperature
7 Emergency Change air filter Sump pressure not
stop developing
8 Start inhibit Change oil Sump pressure
filter probe failure
9 Start Change oil Power failure
ack wait separator
10 Standby Change oil Reserved
11 Reserved Change grease Reserved
12 Reserved Reserved Reserved
13 Reserved Reserved Reserved
14 Reserved Reserved Reserved
15 Reserved Reserved Reserved

32.4
