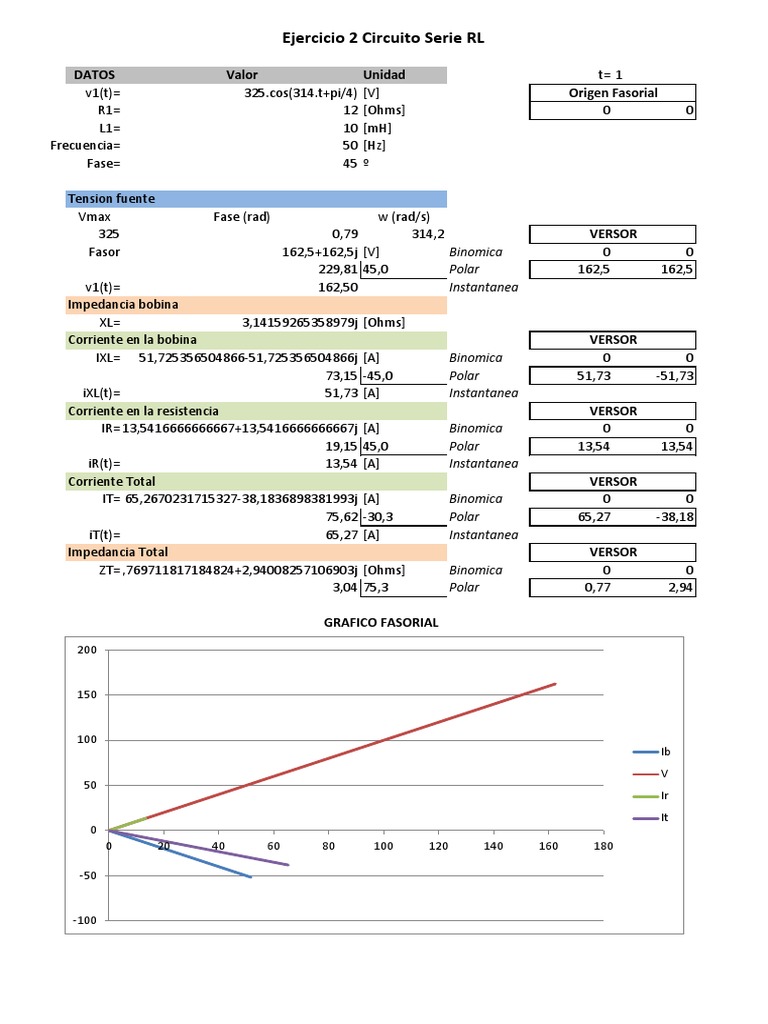

Ejercicio 2 Circuito Serie RL

DATOS Valor Unidad t= 1

v1(t)= 325.cos(314.t+pi/4) [V] Origen Fasorial
R1= 12 [Ohms] 0 0
L1= 10 [mH]
Frecuencia= 50 [Hz]
Fase= 45 º

Tension fuente
Vmax Fase (rad) w (rad/s)
325 0,79 314,2 VERSOR
Fasor 162,5+162,5j [V] Binomica 0 0
229,81 45,0 Polar 162,5 162,5
v1(t)= 162,50 Instantanea
Impedancia bobina
XL= 3,14159265358979j [Ohms]
Corriente en la bobina VERSOR
IXL= 51,725356504866-51,725356504866j [A] Binomica 0 0
73,15 -45,0 Polar 51,73 -51,73
iXL(t)= 51,73 [A] Instantanea
Corriente en la resistencia VERSOR
IR= 13,5416666666667+13,5416666666667j [A] Binomica 0 0
19,15 45,0 Polar 13,54 13,54
iR(t)= 13,54 [A] Instantanea
Corriente Total VERSOR
IT= 65,2670231715327-38,1836898381993j [A] Binomica 0 0
75,62 -30,3 Polar 65,27 -38,18
iT(t)= 65,27 [A] Instantanea
Impedancia Total VERSOR
ZT=0,769711817184824+2,94008257106903j [Ohms] Binomica 0 0
3,04 75,3 Polar 0,77 2,94

GRAFICO FASORIAL
200

150

100
Ib
V
50
Ir
It
0
0 20 40 60 80 100 120 140 160 180

-50

-100
 Ejercicio 2 Circuito Serie RL

DATOS Valor Unidad

v1(t)= 120.2^1/2.cos(377.t-pi/3) [V]
R2= 5 [Ohms]
L2= 25 [mH]
