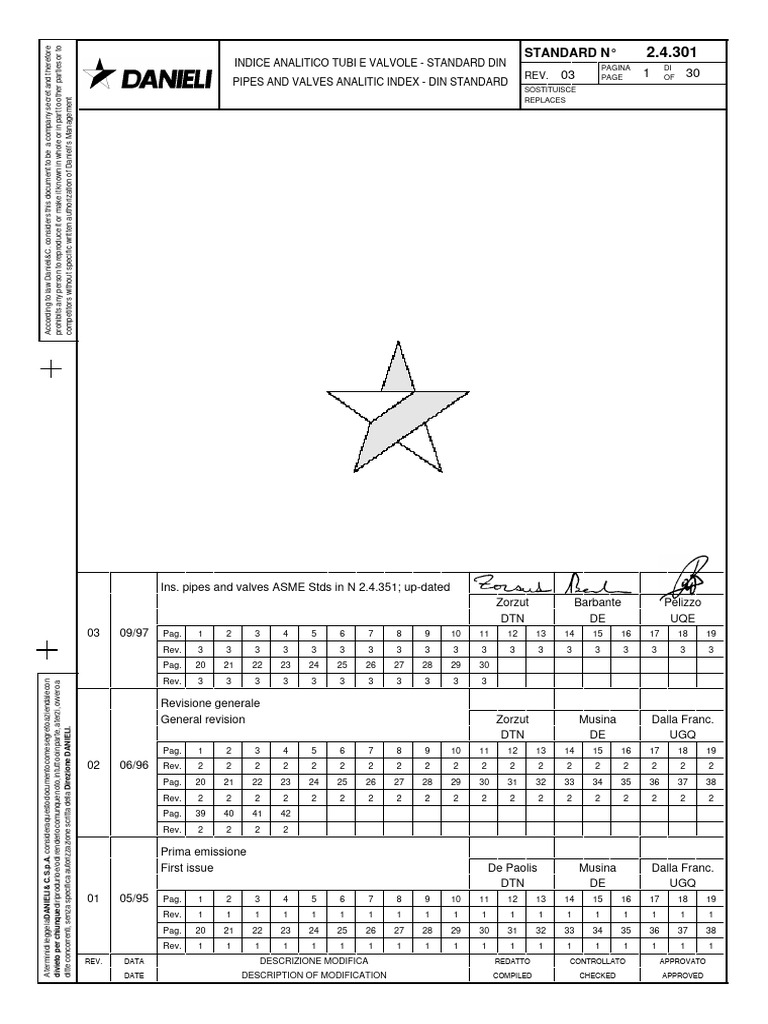

REPLACES
Revisione generale
General revision Zorzut Musina Dalla Franc.
ditte concorrenti, senza specifica autorizzazione scritta della Direzione DANIELI.
DTN DE UGQ
Pag. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
02 06/96 Rev. 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Pag. 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38
Rev. 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Pag. 39 40 41 42
Rev. 2 2 2 2
Prima emissione
First issue De Paolis Musina Dalla Franc.
DTN DE UGQ
01 05/95 Pag. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Rev. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Pag. 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38
Rev. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
REV. DATA DESCRIZIONE MODIFICA REDATTO CONTROLLATO APPROVATO
DATE DESCRIPTION OF MODIFICATION COMPILED CHECKED APPROVED
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 2 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
INDICE: CONTENT:
1 - Chiave di lettura siglatura tubi....................Pag. 3 1 - Reading key of pipes record ........................Pag. 3
Tubi in acciaio al carb. senza saldatura ..............Pag. 4-6 Seamless carbon steel pipes ...............................Pag. 4-6
Tubi in acciaio al carbonio saldati .......................Pag. 7 Welded carbon steel pipes ...................................Pag. 7
Tubi in acc. al C senza saldatura bitumati ..........Pag. 8 Seamless bitumed carbon steel pipes..................Pag. 8
Tubi in acciaio al carbonio saldati bitumati..........Pag. 9 Welded bitumed carbon steel pipes .....................Pag. 9
Tubi in acciaio inossidabili senza saldat. ............Pag. 10 Seamless stainless steel pipes. ...........................Pag. 10
Tubi in acciaio inossidabili saldati .......................Pag. 11 Welded stainless steel pipes ................................Pag. 11
Tubi metrici in acc. al C - Serie pesante e legg...Pag. 12 C steel metric pipes - Heavy and light series .......Pag. 12
Tubi metrici acc. inoss. - Serie pesante e legg. ..Pag. 13 Stainless steel metric pipes - Heavy - light ser. ...Pag. 13
Tubi in plastica ....................................................Pag. 14 Plastic pipes .........................................................Pag. 14
Tubi in ghisa rivestiti int./est. inn. a bicchiere ......Pag. 15 Ductile iron lined and coated socketed pipes .......Pag. 15
2 - Chiave di lettura siglatura valvole ..............Pag. 16 2 - Reading key of valves record ......................Pag. 16
Valvole a sfera filettate ........................................Pag. 17 Screwed ball valves..............................................Pag. 17
Valvole a sfera saldare di testa ...........................Pag. 18 BW ball valves ......................................................Pag. 18
Valvole a sfera flangiate ......................................Pag. 19-20 Flanged ball valves...............................................Pag. 19-20
Valvole a membrana flangiate.............................Pag. 20 Flanged diaphragm valves ...................................Pag. 20
Valvole a farfalla wafer ........................................Pag. 21 Wafer butterfly valves ...........................................Pag. 21
Valvole a farfalla flangiate ...................................Pag. 21 Flanged butterfly valves .......................................Pag. 21
Valvole a saracinesca filettate.............................Pag. 22 Screwed gate valves ............................................Pag. 22
Valvole a saracinesca flangiate...........................Pag. 22 Flanged gate valves .............................................Pag. 22
Valvole a pinza flangiate .....................................Pag. 23 Flanged pinch valves............................................Pag. 23
Valvole di ritegno filettate ....................................Pag. 23 Screwed check valves ..........................................Pag. 23
Valvole di ritegno wafer .......................................Pag. 24 Wafer check valves ..............................................Pag. 24
Valvole di ritegno flangiate ..................................Pag. 25 Flanged check valves ...........................................Pag. 25
Valvole a ghigliottina wafer .................................Pag. 25 Wafer slide valves ................................................Pag. 25
Scaricatori di condensa e valvole di sfiato filett...Pag. 26 Screwed traps and air vents .................................Pag. 26
Scaricatori di condensa saldare di testa .............Pag. 26 BW traps...............................................................Pag. 26
Scaricatori di condensa flangiati .........................Pag. 26 Flanged traps .......................................................Pag. 26
Valvole a disco filettate .......................................Pag. 27 Screwed globe valves ..........................................Pag. 27
Valvole a disco flangiate .....................................Pag. 28 Flanged globe valves ...........................................Pag. 28
Valvole di respirazione ........................................Pag. 28 Flanged breacking valves.....................................Pag. 28
Filtri a Y filettati....................................................Pag. 29 Screwed Y strainers .............................................Pag. 29
Filtri a Y flangiati..................................................Pag. 29 Flanged Y strainers ..............................................Pag. 29
Valvole a sfera in plastica ...................................Pag. 30 Plastic Ball valves.................................................Pag. 30
Valvole a membrana in plastica ..........................Pag. 30 Plastic Diaphragm valves .....................................Pag. 30
Valvole a farfalla in plastica.................................Pag. 30 Plastic Butterfly valves .........................................Pag. 30
Valvole di ritegno in plastica................................Pag. 30 Plastic Check valves ............................................Pag. 30
Valvole a sede inclinata in plastica .....................Pag. 30 Plastic Angle seat valves......................................Pag. 30
Raccoglitori di impurità in plastica .......................Pag. 30 Plastic Strainers ...................................................Pag. 30
Descrizione - Description
09/97 General revision
06/96 General revision
Date
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 3 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
P W 1 3 00
(sottoclassi mater. = 36 ÷ 39
sottoclassi spess.) = 40 ÷ 49
OTHER DATA DECAPATO E TAPPATO - PICKLED AND PLUGGED = 50 ÷ 59
(Subclasses mater. DECAPATO E OLIATO - PICKLED AND OILED = 60 ÷ 69
subclasses thick.) ZINCATO E FILETT. - ZINC COATED AND SCREWED = 70 ÷ 79
BITUMATO ESTERN.- EXTERNALLY BITUMINIZED = 80 ÷ 89
LINER INTERNO - INTERNAL LINER = 90 ÷ 99
09/97 General revision
06/96 General revision
Es. di design.: PW 1300 = Tubo saldato (norma DIN), in acciaio al Carbonio, estremità cianfrinate
Ex. of design.: PW 1300 = Welded pipe (DIN Standard), Carbon steel, bevelled ends
Date
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 4 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
Dimensioni in mm
Dimensions in mm
DN PS 1300 PS 1335 PS 1500 PS 1535
Tubo PS 1305 PS 1361 PS 1505 PS 1510 PS 1551
PS 1330 PS 1536 PS 1600 PS 1601
Pipe PS 1360 PS 1370 PS 1506 PS 1515 PS 1570
mm PS 1372
10 1,8 2,35 2,35 2,9 2,9 3,6
15 2 2,65 2,65 3,2 3,25 3,2 4
20 2,3 2,65 2,65 3,2 3,25 3,2 4,5
25 2,6 3,25 3,25 4 4,05 3,6 5
32 2,6 3,25 3,25 4 4,05 4 5
40 2,6 3,25 3,25 4 4,05 4,5 5,6
50 2,9 3,65 3,65 4,5 3,2 4 4,5 5,6 5,6
65 2,9 3,65 3,65 4,5 3,2 4,5 4,5 7,1 7,1
80 3,2 4,05 4,05 5 3,6 5 4,85 8 8
100 3,6 4,5 4,5 5,6 4 6,3 5,4 8,8 8,8
125 4 4,85 5,6 4,5 6,3 5,4 11 11
150 4,5 4,85 6,3 5 7,1 5,4 12,5 12,5
200 6,3 6,3 7,1 8 12,5 12,5
250 6,3 6,3 7,1 8,8 12,5 12,5
300 7,1 7,1 8 10 12,5 12,5
350 8 8 8,8 11 12,5 12,5
400 8,8 8,8 10 11 12,5 12,5
450 10 10 11 12,5 12,5
500 11 11 12,5 14,2 14,2
600 12,5 12,5 14,2 16 16
DN
Tubo
PS 1860 PS 1960 PS 1961 PS 1962 PS 1963
Pipe
mm
25 3,2 4 4,5 5,6 7,1
32 3,6 4,5 5,6 7,1 8,8
40 4 5 6,3 8 10
50 5,6 6,3 8 10 12,5
65 7,1 8 10 12,5
80 8 8,8 12,5 14,2
100 8,8 12,5 14,2 17,5
Descrizione - Description
125 10 14,2
150 12,5 16
200 16
250
300
350
09/97 General revision
06/96 General revision
400
450
500
600
Date
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 5 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
CLASSE
SIGLA TUBO DESCRIZIONE - DESCRIPTION RANGE DANIELI TUBAZIONE
PIPE ITEM DN STD PIPE CLASS
D16JS
D25JS
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 nero EN 10204/2.2
D16PR
PS 1300 Butt welding seamless pipe DIN 2448 St 37.0 black EN 10204/2.2 10 ÷ 600 2.000.100 D16PS
D25PS
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 nero EN 10204/3.1B D16AC
PS 1305 Butt welding seamless pipe DIN 2448 St 37.0 black EN 10204/3.1B 10 ÷ 600 2.000.100 D16FS
D16HL
D16JS
D25JS
D16JV
Tubo senza sald. filett. DIN 2440 St 33.2 estr. piane nero EN 10204/2.2 D16JZ
PS 1330 Sml screwing pipe DIN 2440 St 33.2 plain ends black EN 10204/2.2 10 ÷ 100 2.000.201
D16PR
D16PS
D25PS
D16US
D16AC
Tubo senza sald. filett. DIN 2440 St 33.2 estr. piane nero EN 10204/3.1B D16FS
PS 1335 Sml screwing pipe DIN 2440 St 33.2 plain ends black EN 10204/3.1B 10 ÷ 150 2.000.201 D16HL
D16UF
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 decap. EN 10204/2.2
PS 1360 Butt welding seamless pipe DIN 2448 St 37.0 pickled EN 10204/2.2 10 ÷ 600 2.000.100 D16HM
Tubo senza sald. filett. DIN 2440 St 33.2 estr. piane decap. EN 10204/2.2
PS 1361 Sml. screwing pipe DIN 2440 St 33.2 plain ends pickled EN 10204/2.2 10 ÷ 150 2.000.201 D16HM
Tubo senza sald. DIN 2440 St 33.2 filett. zinc. manicotto EN 10204/2.2 D16ES
PS 1370 Seamless pipe DIN 2440 St 33.2 scr. zinc coat. socket EN 10204/2.2 10 ÷ 150 2.000.201 D16UE
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 zinc. EN 10204/2.2
PS 1372 Butt welding seamless pipe DIN 2448 St 37.0 zinc coat. EN 10204/2.2 10 ÷ 600 2.000.100
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 nero EN 10204/2.2
PS 1500 Butt welding seamless pipe DIN 2448 St 37.0 black EN 10204/2.2 50 ÷ 600 2.000.100 D40PS
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 nero EN 10204/3.1B D25FS
PS 1505 Butt welding seamless pipe DIN 2448 St 37.0 black EN 10204/3.1B 50 ÷ 600 2.000.100 D25XS
Tubo senza sald. a sald. di testa DIN 2448 St 35.8 nero EN 10204/3.1B
PS 1506 Butt welding seamless pipe DIN 2448 St 35.8 black EN 10204/3.1B 50 ÷ 600 2.000.100 D25PR
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 nero EN 10204/2.2
PS 1510 Butt welding seamless pipe DIN 2448 St 37.0 black EN 10204/2.2 50 ÷ 400 2.000.100
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 nero EN 10204/3.1B
PS 1515 Butt welding seamless pipe DIN 2448 St 37.0 black EN 10204/3.1B 50 ÷ 400 2.000.100
D25FS
D16PF
Tubo senza sald. filett. DIN 2441 St 33.2 estr. piane nero EN 10204/3.1B D40PS
PS 1535 10 ÷ 150 2.000.201
Sml screwing pipe DIN 2441 St 33.2 plain ends black EN 10204/3.1B D25UF
Descrizione - Description
D25XS
D40XS
Tubo senza sald. a sald. di testa DIN 2448 St 35.8 nero EN 10204/3.1B
PS 1536 Butt welding seamless pipe DIN 2448 St 35.8 black EN 10204/3.1B 10 ÷ 600 2.000.100 D25PR
Tubo senza sald. filett. DIN 2441 St 33.2 decapato Servizio Ossigeno
PS 1551 EN 10204/3.1B 10 ÷ 150 2.000.211
09/97 General revision
06/96 General revision
Sml. screwing pipe DIN 2441 St 33.2 pickled Oxyg. serv. EN 10204/3.1B
Date
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 6 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
Dimensioni in mm
Dimensions in mm
CLASSE
SIGLA TUBO DESCRIZIONE - DESCRIPTION RANGE DANIELI TUBAZIONE
PIPE ITEM DN STD PIPE CLASS
Tubo senza sald. filett. DIN2441 St 33.2 zincato manicotto EN 10204/2.2
PS 1570 Sml screwing pipe DIN 2441 St 33.2 zinc coated socket EN 10204/2.2 10 ÷ 150 2.000.201
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 nero EN 10204/2.2 D16JV
PS 1600 Butt welding seamless pipe DIN 2448 St 37.0 black EN 10204/2.2 15 ÷ 600 2.000.100 D16JZ
Tubo senza sald. a sald. di testa DIN 2448 St 37.0 nero EN 10204/3.1B
PS 1601 Butt welding seamless pipe DIN 2448 St 37.0 black EN 10204/3.1B 10 ÷ 600 2.000.100 D16PF
Tubo senza saldatura DIN 2448 St 44.0 decapato EN 10204/3.1B
PS 1860 Seamless pipe DIN 2448 St 44.0 pickled EN 10204/3.1B 25 ÷ 200 2.200.110
Tubo senza saldatura DIN 2448 St 44.0 decapato EN 10204/3.1B
PS 1960 Seamless pipe DIN 2448 St 44.0 pickled EN 10204/3.1B 25 ÷ 150 2.200.111
Tubo senza saldatura DIN 2448 St 44.0 decapato EN 10204/3.1B
PS 1961 Seamless pipe DIN 2448 St 44.0 pickled EN 10204/3.1B 25 ÷ 100 2.200.112
Tubo senza saldatura DIN 2448 St 44.0 decapato EN 10204/3.1B
PS 1962 Seamless pipe DIN 2448 St 44.0 pickled EN 10204/3.1B 25 ÷ 100 2.200.113
Tubo senza saldatura DIN 2448 decapato EN 10204/3.1B
PS 1963 Seamless pipe DIN 2448 pickled EN 10204/3.1B 25 ÷ 50 2.200.114
Descrizione - Description
09/97 General revision
06/96 General revision
Date
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 7 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
Dimensioni in mm
Dimensions in mm
DN
Tubo PW 1300 PW 1305 PW 1500 PW 1505 PW 1510 PW 1600
Pipe PW 1360 PW 1515
mm
15 2 2 3,2
20 2 2 3,2
25 2 2 3,6
32 2,3 2,3 4
40 2,3 2,3 4,5
50 2,3 2,3 3,2 3,2 4,5 5,6
65 2,6 2,6 3,2 3,2 5 7,01
80 2,9 2,9 3,6 3,6 5,6 7,01
100 3,2 3,2 4 4 6,3 8
125 3,6 3,6 4,5 4,5 6,3 8,8
150 4 4 5 5 7,1 11
200 4,5 4,5 6,3 6,3 8 12,5
250 6,3 6,3 7,1 7,1 8,8 12,5
300 6,3 6,3 8 8 10 12,5
350 6,3 6,3 8,8 8,8 11 12,5
400 6,3 6,3 10 10 11 12,5
450 6,3 6,3 11 11 12,5
500 6,3 6,3 12,5 12,5 14,2
600 6,3 6,3 12,5 12,5 14,2
700 7,1 12,5 14,2
800 8 14,2 16
900 10 16 17,5
1000 10 16 17,5
CLASSE
SIGLA TUBO DESCRIZIONE - DESCRIPTION RANGE DANIELI TUBAZIONE
PIPE ITEM DN STD PIPE CLASS
Tubo saldato a sald. di testa DIN 2458 St 37.0 nero EN 10204/2.2 D16JS
PW 1300 Butt welding welded pipe DIN 2458 St 37.0 black EN 10204/2.2 15 ÷ 1000 2.000.150 D16PS
D25PS
Descrizione - Description
PW 1505 Butt welding welded pipe DIN 2458 St 37.0 black EN 10204/3.1B 50 ÷ 600 2.000.150
Tubo saldato a sald. di testa DIN 2458 St 37.0 nero EN 10204/2.2
PW 1510 Butt welding welded pipe DIN 2458 St 37.0 black EN 10204/2.2 50 ÷ 400 2.000.150
Tubo saldato a sald. di testa DIN 2458 St 37.0 nero EN 10204/3.1B
PW 1515 Butt welding welded pipe DIN 2458 St 37.0 black EN 10204/3.1B 50 ÷ 350 2.000.150
Tubo saldato a sald. di testa DIN 2458 St 37.0 nero EN 10204/2.2 D16JV
Date
PW 1600 Butt welding welded pipe DIN 2458 St 37.0 black EN 10204/2.2 15 ÷ 1000 2.000.150 D16JZ
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 8 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
Dimensioni in mm
Dimensions in mm
DN PS 1380
Tubo PS 1382 PS 1381 PS 1585
Pipe PS 1385
25 3,25
32 3,25
40 3,25
50 2,9 3,65 3,2
65 2,9 3,65 3,2
80 3,2 4,05 3,6
100 3,6 4,5 4
125 4 4,85 4,5
150 4,5 4,85 5
200 6,3 7,1
250 6,3 7,1
300 7,1 8
350 8 8,8
400 8,8 10
450 10 11
500 11 12,5
600 12,5 14,2
REPLACES
CLASSE
SIGLA TUBO DESCRIZIONE - DESCRIPTION RANGE DANIELI TUBAZIONE
PIPE ITEM DN STD PIPE CLASS
Tubo saldato a sald. di testa DIN 2458 St 37.0 bitumato EN 10204/2.2
PW 1380 Butt welding welded pipe DIN 2458 St 37.0 bituminized EN 10204/2.2 50÷1000 2.500.005 D16US
Tubo saldato a sald. di testa DIN 2458 bitumato EN 10204/3.1B
PW 1385 Butt welding welded pipe DIN 2458 bituminized EN 10204/3.1B 50 ÷ 600 2.500.006
Tubo saldato a sald. di testa DIN 2458 bitumato EN 10204/3.1B
PW 1585 Butt welding welded pipe DIN 2458 bituminized EN 10204/3.1B 50 ÷ 600 2.500.011
Descrizione - Description
09/97 General revision
06/96 General revision
Date
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 10 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
Dimensioni in mm
Dimensions in mm
DN PS 3400 PS 3505
Tubo PS 3405 PS 4505
Pipe PS 4411
8 2,3
10 2,3
15 2,6 3,2
20 2,6 3,2
25 3,2 4
32 3,2 4
40 3,2 4
50 3,6 4,5
65 3,6 4,5
80 4 5
100 4,5 6,3
125 5 6,3
150 7,1
200 8
250 8,8
300 10
350 11
400 12,5
REPLACES
Dimensioni in mm
Dimensions in mm
DN
Tubo PW 3300 PW 3400
Pipe PW 4311 PW 4411
10 1,6 2
15 2 2,6
20 2 2,6
25 2 2,6
32 2 2,6
40 2 2,6
50 2,6 3,2
65 2,6 3,6
80 3,2 4
100 3,2 4,5
125 3,2 5
150 3,6 5
200 3,6 5
250 4 6,3
300 4 6,3
350 4,5 6,3
400 5 6,3
450 5 6,3
500 5 6,3
PW 4411 Butt welding welded pipe DIN 2463 AISI 316 EN 10204/2.2 10 ÷ 500 2.000.350 S25CH
09/97 General revision
06/96 General revision
Date
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 12 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
REPLACES
CLASSE
SIGLA TUBO DESCRIZIONE - DESCRIPTION RANGE DANIELI TUBAZIONE
PIPE ITEM DN STD PIPE CLASS
Tubo di precisione senza saldatura DIN 2391 Gr. B AISI 316 Ti Serie S16YT
pesante EN 10204/3.1B S210YT
PP 4965 Sml precision tube DIN 2391 Gr. B AISI 316 Ti Heavy series OD 6÷38 2.200.201 S400YT
EN 10204/3.1B
Descrizione - Description
CLASSE
SIGLA TUBO DESCRIZIONE - DESCRIPTION RANGE DANIELI TUBAZIONE
09/97 General revision
06/96 General revision
REPLACES
Dimensioni in mm
Dimensions in mm
DN De
Tubo Tubo PE 9200
Pipe Pipe
8 12 1
10 16 1,2
15 20 1,5
20 25 1,5
25 32 1,8
32 40 1,9
40 50 2,4
50 63 3
65 75 3,6
80 90 4,3
100 110 5,3
125 140 6,7
150 160 7,7
200 225 10,8
250 280 13,4
300 315 15
REPLACES
Dimensioni in mm
Dimensions in mm
DN
Tubo PC 8385
Pipe
80 6
100 6
125 6
150 6
200 6,3
250 6,8
300 7,2
350 7,7
400 8,1
500 9
600 9,9
700 10,8
800 11,7
900 12,6
1000 13,5
REPLACES
D G 0 3 13
NORMA DI DIN = D
E COSTRUZIONE: UNI = U
CONSTRUCT. STD ASME - API - BS = A
PN 64 400 = 6
PN 100 600 = 7
PN 160 800-900 = 8
≥ PN 250 ≥ 1500 = 9
FILETTATO - SCREWED = 70 ÷ 79
TASCA A SALDARE - SOCKET WELDING = 80 ÷ 89
SALDARE DI TESTA - BUTT WELDING = 90 ÷ 99
Date
Es. di design.: 100 DG 0313 = Valvola a saracinesca (Norma DIN) in ghisa, DN 100 flangiata PN 16RF, Trim 13% Cr
Ex. of design.: 100 DG 0313 = Gate valve (DIN Standard) cast iron, DN 100 flanged PN 16RF Trim 13% Cr
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 17 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
DB 4871 Ball valve scr. ISO7/1 Cl.800 AISI 316/AISI 316/PTFE glass integ. 8÷50 2.000.500 S16CH
full bore (NaOH service)
Valvola sfera filett. ISO7/1 Cl.800 AISI 316/AISI 316/PTFE D25XS
A105vetro passaggio totale Servizio Ossigeno D40XS
DB 4879 Ball valve scr. ISO7/1 Cl.800 AISI 316/AISI 316/PTFE A105 glass 8÷50 2.000.500 S25XS
full bore Oxygen service S40XS
Date
REPLACES
REPLACES
Valvola sfera flang. PN16 AISI 304/AISI 304/PTFE vetro corpo piatto
DB 3300 passaggio totale 15÷200 2.000.502 S16PS
Flg. ball valve PN16 AISI 304/AISI 304/PTFE flat body full bore
Valvola sfera flang. PN25RF AISI 304/AISI 304/PTFE vetro corpo
DB 3400 piatto passaggio totale 15÷200 2.000.502 S25PS
Flg. ball valve PN25RF AISI 304/AISI 304/PTFE glass flat body full bore
Date
Valvola sfera flang. PN16 AISI 316/AISI 316/PTFE vetro corpo piatto
DB 4300 passaggio totale 15÷200 2.000.502 S16CH
Flg. ball valve PN16 AISI 316/AISI 316/PTFE glass flat body full bore
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 20 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
REPLACES
REPLACES
DG 3404 Flg gate valve oval body PN25RF AISI 304/AISI 304 Flex wedge 50÷600 2.000.512 S25PS
Saracin. flang. corpo ovale PN16RF AISI 316/AISI 316 Cuneo mass.
DG 4304 Flg gate valve oval body PN16RF AISI 316/AISI 316 Solid wedge 50÷500 2.000.512
Saracin. flang. corpo ovale PN25RF AISI 316/AISI 316 Cuneo fless.
DG 4404 Flg gate valve oval body PN25RF AISI 316/AISI 316 Flex wedge 50÷600 2.000.512 S25CH
Saracin. flang. corpo ovale PN25RF AISI 316/AISI 316 Cuneo fless. 3.1B D25XS
DG 4409 Flg gate valve oval body PN25RF AISI 316/AISI 316 Flex wedge 3.1B 50÷600 2.000.512 S25XS
09/97 General revision
06/96 General revision
Saracin. flang. corpo ovale PN40RF AISI 316/AISI 316 Cuneo fless.
3.1B decapata Servizio Ossigeno D40XS
DG 4509 Flg. gate valve oval body PN40RFAISI 316/AISI 316 Flex wedge 50÷600 2.000.512 S40XS
3.1B pickled Oxygen service
Saracin. flang. corpo ovale PN40RF Bronzo/Ottone/PTFE Cuneo
fless. 3.1B decapata Servizio Ossigeno
Date
DG 7509 Flg. gate valve oval body PN40RF BronzeBrass/PTFE Flex wedge 50÷600 2.000.512
3.1B pickled Oxygen service
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 23 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
DR 4874 Scr. ISO 7/1 check valve 800 Lb AISI 316/AISI 316 Red. bore Piston 15÷50 2.000.540 S25CH
09/97 General revision
06/96 General revision
Date
Rev.
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 24 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
D25XS
Valvola di ritegno wafer PN40 AISI 316/AISI 316 Ten. metall. Battente D40XS
DR 4529 Wafer check valve PN40 AISI 316/AISI 316 Metal seat Swing 50÷300 2.000.542 S25XS
Rev.
S40XS
03
02
According to law Danieli&C. considers this document to be a company secret and therefore
prohibits any person to reproduce it or make it known in whole or in part to other parties or to STANDARD N° 2.4.301
INDICE ANALITICO TUBI E VALVOLE - STANDARD DIN PAGINA DI
REV. 03 PAGE 25 OF 30
PIPES AND VALVES ANALITIC INDEX - DIN STANDARD SOSTITUISCE
competitors without specific written authorization of Danieli's Management
REPLACES
SIGLA CLASSE
VALVOLA DESCRIZIONE - DESCRIPTION RANGE DANIELI TUBAZIONE
VALVE ITEM DN STD PIPE CLASS
Valvola di ritegno flang. PN16RF GG25/13% Cr Pistone
DR 0314 Flg. check valve PN16RF GG25/13% Cr Piston 15÷300 2.000.543 D16PR
Valvola di ritegno PN16RF GG25/AISI 304 corpo a fuso ugello Venturi
DR 0340 Check valve PN16RF GG25*/AISI 304 slim shutter Venturi port 50÷400 2.000.543 D16JS
Valvola di ritegno flang. PN16 C 25/13% Cr Battente
DR 1313 Flg. check valve PN16 C 25/13% Cr Swing type 40÷400 2.000.543
Valvola di ritegno flang. PN16 C 25/13% Cr Battente Contrappeso
DR 1320 Flg. check valve PN16 C 25/13% Cr Swing Counterweight 40÷400 2.000.543 D16JV
Valvola di ritegno flang. PN25 C 25/13% Cr+St 6 Battente 3.1B
DR 1416 Flg. check valve PN25 C 25/13% Cr+St 6 Disc 3.1B 40÷400 2.000.543 D25PR
Valvola di ritegno flang. PN64 C 25/13% Cr+St 6 Battente 3.1B
DR 1516 Flg. check valve PN64 C 25/13% Cr+St 6 Swing 3.1B 40÷400 2.000.543
Valvole di ritegno flang. PN25 AISI 316/AISI 316 Pistone
DR 4409 Servizio Ossigeno 3.1B 15÷300 2.000.543
Flg. check valve PN25 AISI 316/AISI 316 Piston Oxygen service 3.1B
Valvola di ritegno flang. flusso avviato PN40 AISI 316/AISI 316
Pistone Decapate Servizio Ossigeno 3.1B
DR 4509 15÷300 2.000.543
Flg. check valve PN40 AISI 316/AISI 316 Piston pickled 3.1B
Oxygen service
Valvola di ritegno flang. PN10 A126 Gr.B vetrificata/battenteViton
DR 8200 Check valve PN10 A126 Gr.B/Glass lined/Viton swing type 25÷150 2.000.543 L10CH
REPLACES
REPLACES
REPLACES
Oxygen service
Valvola a disco flang. PN40 Bronzo/Viton Parabolico 3.1B
Decapata Servizio Ossigeno
DV 7509 Flg. globe valve PN40 Bronze/Viton Parabolic 3.1B Pickled 15÷300 2.000.532
Oxygen service
09/97 General revision
06/96 General revision
REPLACES
DY 1405 Flg Y strainer PN25RF C 25/AISI 316 3.1B 40÷300 2.000.562 D25PR
D25UF
Filtro a Y flangiato PN40RF C 25/AISI 316
DY 1500 40÷300 2.000.562 D40PS
Flg Y strainer PN40RF C 25/AISI 316
Filtro a Y flangiato PN64RF C 25/AISI 316
DY 1600 40÷300 2.000.562
Flg Y strainer PN64RF C 25/AISI 316
09/97 General revision
06/96 General revision
REPLACES
DESCRIZIONE - DESCRIPTION
VALVE ITEM DN STD PIPE CLASS
Valvola a sede inclinata PVC-U PN10
DV 9290 PVC-U Angle seat valve PN10 10÷80 2.000.533
SIGLA CLASSE
VALVOLA DESCRIZIONE - DESCRIPTION RANGE DANIELI TUBAZIONE
VALVE ITEM DN STD PIPE CLASS
Raccoglitore di impurità flangiato PVC-U PN10
DY 9200 PVC-U Flg. strainer PN10 10÷100 2.000.563 L10CH
Date
