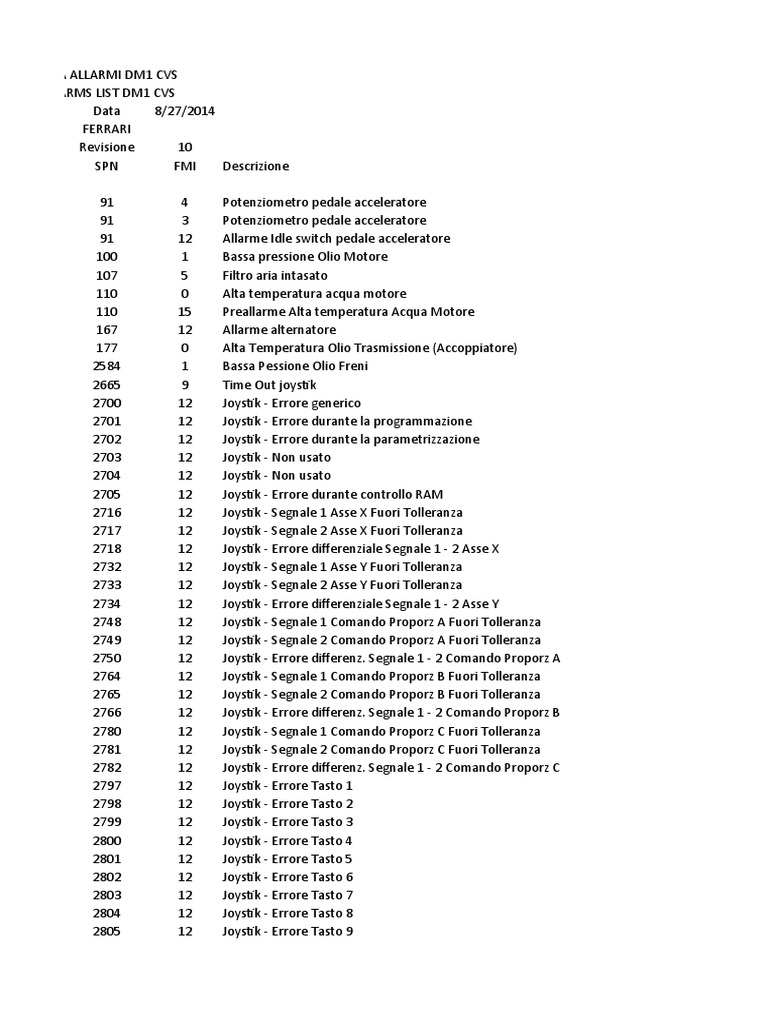

LISTA ALLARMI DM1 CVS

ALLARMS LIST DM1 CVS

Data 8/27/2014
FERRARI
Revisione 10
SPN FMI Descrizione

91 4 Potenziometro pedale acceleratore

91 3 Potenziometro pedale acceleratore
91 12 Allarme Idle switch pedale acceleratore
100 1 Bassa pressione Olio Motore
107 5 Filtro aria intasato
110 0 Alta temperatura acqua motore
110 15 Preallarme Alta temperatura Acqua Motore
167 12 Allarme alternatore
177 0 Alta Temperatura Olio Trasmissione (Accoppiatore)
2584 1 Bassa Pessione Olio Freni
2665 9 Time Out joystik
2700 12 Joystik - Errore generico
2701 12 Joystik - Errore durante la programmazione
2702 12 Joystik - Errore durante la parametrizzazione
2703 12 Joystik - Non usato
2704 12 Joystik - Non usato
2705 12 Joystik - Errore durante controllo RAM
2716 12 Joystik - Segnale 1 Asse X Fuori Tolleranza
2717 12 Joystik - Segnale 2 Asse X Fuori Tolleranza
2718 12 Joystik - Errore differenziale Segnale 1 - 2 Asse X
2732 12 Joystik - Segnale 1 Asse Y Fuori Tolleranza
2733 12 Joystik - Segnale 2 Asse Y Fuori Tolleranza
2734 12 Joystik - Errore differenziale Segnale 1 - 2 Asse Y
2748 12 Joystik - Segnale 1 Comando Proporz A Fuori Tolleranza
2749 12 Joystik - Segnale 2 Comando Proporz A Fuori Tolleranza
2750 12 Joystik - Errore differenz. Segnale 1 - 2 Comando Proporz A
2764 12 Joystik - Segnale 1 Comando Proporz B Fuori Tolleranza
2765 12 Joystik - Segnale 2 Comando Proporz B Fuori Tolleranza
2766 12 Joystik - Errore differenz. Segnale 1 - 2 Comando Proporz B
2780 12 Joystik - Segnale 1 Comando Proporz C Fuori Tolleranza
2781 12 Joystik - Segnale 2 Comando Proporz C Fuori Tolleranza
2782 12 Joystik - Errore differenz. Segnale 1 - 2 Comando Proporz C
2797 12 Joystik - Errore Tasto 1
2798 12 Joystik - Errore Tasto 2
2799 12 Joystik - Errore Tasto 3
2800 12 Joystik - Errore Tasto 4
2801 12 Joystik - Errore Tasto 5
2802 12 Joystik - Errore Tasto 6
2803 12 Joystik - Errore Tasto 7
2804 12 Joystik - Errore Tasto 8
2805 12 Joystik - Errore Tasto 9
2806 12 Joystik - Errore Tasto 10
2807 12 Joystik - Errore Tasto 11
3127 12 Basso livello olio trasmissione (accoppiatore)
3202 12 Basso livello acqua motore
3209 12 Bulbo Filtro Olio Freni
3210 0 Alta temperatura olio Idraulico
3211 0 Alta temperatura olio Freni
3216 12 Bulbo Filtro olio Idraulico (ritorno)
3221 12 By-pass Limitatore attivo
3222 12 By-pass Sollevamento attivo
3223 12 By-pass twist attivo
3224 12 By-pass PGB attivo
3240 12 By-pass spegnimento Motore
3241 12 Basso livello Carburante
3261 12 Manutenzione 1 scaduta
3262 12 Manutenzione 2 scaduta
3263 12 Manutenzione 3 scaduta
3264 12 Manutenzione 4 scaduta
3347 3 Emergenza sterzo attiva
3401 12 Spegnimento motore per basso livello Carburante
3402 12 Spegnimento motore per motore in IDLE
4000 13 Errore da centralina Cambio
4001 0 Velocità macchina superiore a limite imposto
4021 12 Sbilanciamento carico oltre soglia 1
4022 12 Sbilanciamento carico oltre soglia 2
4450 3 Errore Encoder Flexxaire

4450 4 Errore Encoder Flexxaire

4451 12 Incongruenza tra pilotaggio e feedback Flexxaire
5001 3 Errore Cella di carico SX
5001 4 Errore Cella di carico SX
5002 3 Errore Cella di carico DX
5002 4 Errore Cella di carico DX
5555 7 MODALITA LIMP HOME
6000 12 Centralina Master Time Out
6001 12 Centralina Cabina0 Time Out
6002 12 Centralina Cabina1 Time Out
6003 12 Centralina Spreader Time Out
6004 12 Centralina Telaio Time Out
6005 12 Centralina Braccio Time Out
6006 12 Centralina PGB Time Out
6007 12 Time Out Centralina Motore
6008 12 Time Out Centralina Limitarore di carico
6009 12 Time Out Centralina Cambio
6010 12 Time Out Centralina Celle di Carico
6011 12 Time Out Centralina Espansione Spreader (WTP)
6223 12 Allarme Cabina NON Agganciata
6224 12 Allarme fine corsa salita Braccio
 6241 12 Allarme Tastatore Anteriore destro
6242 12 Allarme Tastatore Anteriore sinistro
6243 12 Allarme Tastatore Posteriore destro
6244 12 Allarme Tastatore Posteriore sinistro
6255 12 Allarme sensore Twistlock anteriore destro
6256 12 Allarme sensore Twistlock anteriore sinistro
6257 12 Allarme sensore Twistlock posteriore destro
6258 12 Allarme sensore Twistlock posteriore sinistro
6259 12 Allarme sensore Twistunlock anteriore destro
6260 12 Allarme sensore Twistunlock anteriore sinistro
6261 12 Allarme sensore Twistunlock posteriore destro
6262 12 Allarme sensore Twistunlock posteriore sinistro
6263 12 Allarme Sensore Tastatore posteriore destro
6264 12 Allarme Sensore Tastatore anteriore destro
6265 12 Allarme Sensore Tastatore anteriore sinistro
6266 12 Allarme Sensore Tastatore posteriore sinistro
6267 12 Allarme integrità proxy stabilizzatore destro appoggiato
6268 12 Allarme integrità proxy stabilizzatore sinistro appoggiato
6280 12 Tool Changer non agganciato
10200-10455 0 Cortocircuito master out 0-7
10500-10755 0 Cortocircuito master out 8-15
10800-11055 0 Cortocircuito master out 16-23
11200-11455 0 Cortocircuito master out 24-29
12200-12455 0 Cortocircuito espansione master out 0-7
12500-12755 0 Cortocircuito espansione master out 8-15
12800-13055 0 Cortocircuito espansione master out 16-23
13200-13455 0 Cortocircuito espansionemaster out 24-29
14200-14455 0 Cortocircuito Cabina 0 out 0-7
14500-14755 0 Cortocircuito Cabina 0 out 8-15
14800-15055 0 Cortocircuito Cabina 0 out 16-23
15200-15455 0 Cortocircuito Cabina 0 out 24-29
16200-16455 0 Cortocircuito Cabina 1 out 0-7
16500-16755 0 Cortocircuito Cabina 1 out 8-15
16800-17055 0 Cortocircuito Cabina 1 out 16-23
17200-17455 0 Cortocircuito Cabina 1 out 24-29
18200-18455 0 Cortocircuito Spreader out 0-7
18500-18755 0 Cortocircuito Spreader out 8-15
18800-19055 0 Cortocircuito Spreader out 16-23
19200-19455 0 Cortocircuito Spreader out 24-29
20200-20455 0 Cortocircuito PGB out 0-7
20500-20755 0 Cortocircuito PGB out 8-15
20800-21055 0 Cortocircuito PGB out 16-23
21200-21455 0 Cortocircuito PGB out 24-29
22200-22455 0 Cortocircuito Braccio out 0-7
22500-22755 0 Cortocircuito Braccio out 8-11
22800-23055 0 Disponibili Braccio
23200-23455 0 Disponibili Braccio
Description

Potentiometer - Accelerator pedal

Potentiometer - Accelerator pedal
Iddle switch alarm - Accelerator pedal
Engine oil low pressure
Air intake filter clogged
Engine water high temperature
Prealarm - Engine water high temperature
Generator alarm
Transmission oil high temperature (coupling gear)
Brake oil low pressure
Time Out joystik
Joystik - No Manufacturer Specific Error Code
Joystik - Application Program Checksum Error CRC32
Joystik - Parameter Checksum Error CRC32
Joystik - Not used.
Joystik - Not used.
Joystik - RAM Test Error Not supported
Joystik - X Axis, Signal 1, Out Of Range
Joystik - X Axis, Signal 2, Out Of Range
Joystik - X Axis, Signal Difference Too High Value
Joystik - Y Axis, Signal 1, Out Of Range
Joystik - Y Axis, Signal 2, Out Of Range
Joystik - Y Axis, Signal Difference Too High Value
Joystik - Thumb Wheel A, Signal 1, Out Of Range
Joystik - Thumb Wheel A, Signal 2, Out Of Range
Joystik - Thumb Wheel A, Signal Difference Too High Value
Joystik - Thumb Wheel B, Signal 1, Out Of Range
Joystik - Thumb Wheel B, Signal 2, Out Of Range
Joystik - Thumb Wheel B, Signal Difference Too High Value
Joystik - Thumb Wheel C, Signal 1, Out Of Range
Joystik - Thumb Wheel C, Signal 2, Out Of Range
Joystik - Thumb Wheel C, Signal Difference Too High Value
Joystik - 0x0061 Button 1 Timeout Refer to object 0x2100.8
Joystik - 0x0062 Button 2 Timeout Refer to object 0x2100.8
Joystik - 0x0063 Button 3 Timeout Refer to object 0x2100.8
Joystik - 0x0064 Button 4 Timeout Refer to object 0x2100.8
Joystik - 0x0065 Button 5 Timeout Refer to object 0x2100.8
Joystik - 0x0066 Button 6 Timeout Refer to object 0x2100.8
Joystik - 0x0067 Button 7 Timeout Refer to object 0x2100.8
Joystik - 0x0068 Button 8 Timeout Refer to object 0x2100.8
Joystik - 0x0069 Button 9 Timeout Refer to object 0x2100.8
Joystik - 0x006A Button 10 Timeout Refer to object 0x2100.8
Joystik - 0x006B Button 11 Timeout Refer to object 0x2100.8
Transmission oil low level (coupling gear)
Engine water low level
Brake oil filter sensor
Hydraulic oil high temperature
Brake oil high temperature
Hydraulic oil filter sensor (return line)
By-pass - Limiting device active
By-pass - Lifting active
By-pass - Twist active
By-pass - Piggy-Back active
By-pass - Engine shutdown
Low fuel level
Maintenance interval 1 expired
Maintenance interval 2 expired
Maintenance interval 3 expired
Maintenance interval 4 expired
Emergency steering active
Engine shutdown - Low fuel level
Engine shutdown - Engine idle
Error from gearbox control unit
Machine speed exceeds the limit imposed
unbalanced load - threshold 1
unbalanced load - threshold 2
Error - Encoder Flexxaire

Error - Encoder Flexxaire

Incongruity between pilot system and feedback Flexxaire
Error - L.H. Load Cell
Error - L.H. Load Cell
Error - R.H. Load Cell
Error - R.H. Load Cell
LIMP HOME MODE
Time Out - Master control unit
Time Out - Driver's Cab0 control unit
Time Out - Driver's Cab1 control unit
Time Out - Spreader control unit
Time Out - Frame control unit
Time Out - Boom control unit
Time Out - Piggy-Back control unit
Time Out - Engine control unit
Time Out - Load limiting control unit
Time Out - Transmission (gearbox) control unit
Time Out - Load Cell Control Unit
Time Out - Spreader WTP control unit
Alarm - Driver's Cab NOT engaged
Alarm - Boom lifting end stroke
Alarm - R.H. front feeler pin (spreader)
Alarm - L.H. front feeler pin (spreader)
Alarm - R.H. rear feeler pin (spreader)
Alarm - L.H. rear feeler pin (spreader)
Alarm - R.H. front Twist-lock sensor
Alarm - L.H. front Twist-lock sensor
Alarm - R.H. rear Twist-lock sensor
Alarm - L.H. rear Twist-lock sensor
Alarm - R.H. front Twist-Unlock sensor
Alarm - L.H. front Twist-Unlock sensor
Alarm - R.H. rear Twist-Unlock sensor
Alarm - L.H. rear Twist-Unlock sensor
Alarm - R.H. rear feeler pin sensor (spreader)
Alarm - R.H. front feeler pin sensor (spreader)
Alarm - L.H. front feeler pin sensor (spreader)
Alarm - L.H. rear feeler pin sensor (spreader)
Alarm integrity proximity - R.H. stabilizer resting
Alarm integrity proximity - L.H. stabilizer resting
Tool Changer Unlock
Short circuit - out 0-7 Master control unit
Short circuit - out 8-15 Master control unit
Short circuit - out 16-23 Master control unit
Short circuit - out 24-29 Master control unit
Short circuit - out 0-7 Additional Master control unit
Short circuit - out 8-15 Additional Master control unit
Short circuit - out 16-23 Additional Master control unit
Short circuit - out 24-29 Additional Master control unit
Short circuit - out 0-7 Driver's Cab0 control unit
Short circuit - out 8-15 Driver's Cab0 control unit
Short circuit - out 16-23 Driver's Cab0 control unit
Short circuit - out 24-29 Driver's Cab0 control unit
Short circuit - out 0-7 Driver's Cab1 control unit
Short circuit - out 8-15 Driver's Cab1 control unit
Short circuit - out 16-23 Driver's Cab1 control unit
Short circuit - out 24-29 Driver's Cab1 control unit
Short circuit - out 0-7 Spreader control unit
Short circuit - out 8-15 Spreader control unit
Short circuit - out 16-23 Spreader control unit
Short circuit - out 24-29 Spreader control unit
Short circuit - out 0-7 Piggy-Back control unit
Short circuit - out 8-15 Piggy-Back control unit
Short circuit - out 16-23 Piggy-Back control unit
Short circuit - out 24-29 Piggy-Back control unit
Short circuit - out 0-7 Boom control unit
Short circuit - out 8-11 Boom control unit
Availables - Boom
Availables - Boom
