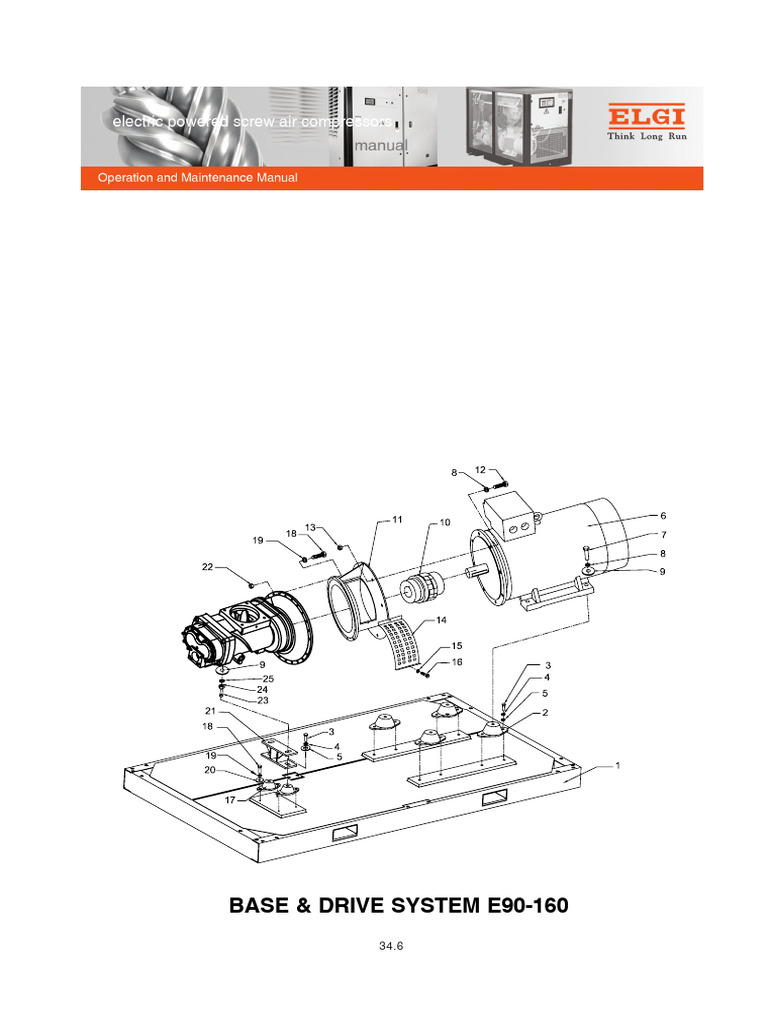

BASE & DRIVE SYSTEM E90-160

34.6
Base and Drive System Part list (E90-160)

SL.
Description Part Code Qty.
No.
1 Base Frame Assy 015302458 1
2 Anti Vibration Mount -E132-E160 B141429 4
AVM PC 182 B WITH M24xM20 STUD E90-E110 B141432 4
3 Hex.Head Bolt M16 x 35 000906213 10
4 Spring washer M16 0009 96116 14
5 Plain washer M16 0009 96016 14
6 EM 180HP AC 415 3PH50 4P FB3/5 (E160-5.5) 10*492549 1
EM 160KW SF1.15 4P 415V/50Hz (E160-HP) B005100950084 1
EM 132KW SF1.2 4P 50HZ (E132-HP) B005100950005 1
EM 110KW SF1.2 4P 50HZ (E132-5.5 & 110-HP) B005100950006 1
EM 90KW SF1.2 4P 50HZ (E90 & E110-5.5) B005100950007 1
7 Hex.Head Bolt M20 x 90 000906251 4
8 Spring washer M20 000996120 12
9 Plain washer M20 000996020 12
10 DRIVE COUPLING,DIA 80/60 (E160) B548313 1
DRIVE COUPLING (E90-132) B005400990004 1
11 Adapter Ring (E160) 22027341B 1
Adapter Ring (E90-132) 015301084 1
12 Hex.Head Bolt M20 x 75 000906248 8
13 Hex.nut M20 000948020 8
14 Guard ,Coupling 01038004D 1
15 Hex.Head Bolt M8 x 20 0009 06 115 2
16 Plain washer M8 000996008 2
17 Anti Vibration Mount B141433 2
18 Hex.Head Bolt M12 x 55 000906188 12
19 Spring washer M12 000996112 12
20 Plain washer M12 000996012 12
21 Hex.nut M12 000948008 12
22 Bracket-airend (E160) 015302573 1
Bracket Airend (E90-132) 015302808 1
23 Hex.head bolt M20x50 000906243 2
24 Washer punched M20 000996062 2
25 Hex.nut M20 000948020 2

34.7
