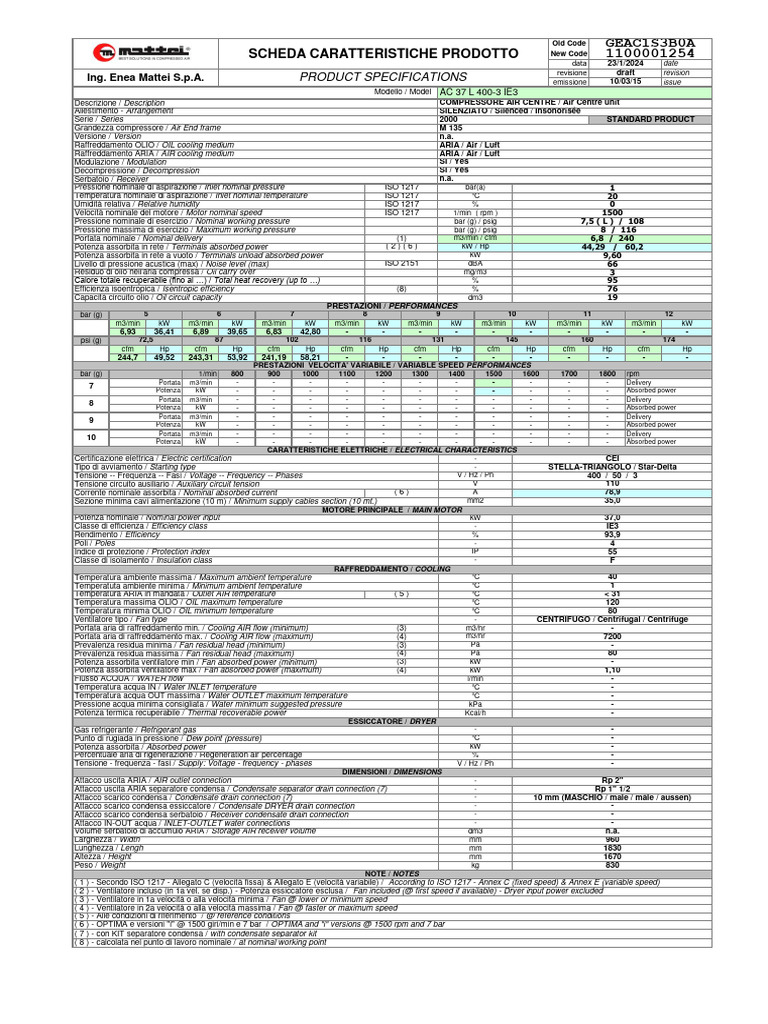

SCHEDA CARATTERISTICHE PRODOTTO New Code 1100001254
data 23/1/2024 date revisione draft revision Ing. Enea Mattei S.p.A. PRODUCT SPECIFICATIONS emissione 10/03/15 issue Modello / Model AC 37 L 400-3 IE3 Descrizione / Description COMPRESSORE AIR CENTRE / Air Centre unit Allestimento - Arrangement SILENZIATO / Silenced / Insonorisée Serie / Series 2000 STANDARD PRODUCT Grandezza compressore / Air End frame M 135 Versione / Version n.a. Raffreddamento OLIO / OIL cooling medium ARIA / Air / Luft Raffreddamento ARIA / AIR cooling medium ARIA / Air / Luft Modulazione / Modulation SI / Yes Decompressione / Decompression SI / Yes Serbatoio / Receiver n.a. Pressione nominale di aspirazione / Inlet nominal pressure ISO 1217 bar(a) 1 Temperatura nominale di aspirazione / Inlet nominal temperature ISO 1217 °C 20 Umidità relativa / Relative humidity ISO 1217 % 0 Velocità nominale del motore / Motor nominal speed ISO 1217 1/min ( rpm ) 1500 Pressione nominale di esercizio / Nominal working pressure bar (g) / psig 7,5 ( L ) / 108 Pressione massima di esercizio / Maximum working pressure bar (g) / psig 8 / 116 Portata nominale / Nominal delivery (1) m3/min / cfm 6,8 / 240 Potenza assorbita in rete / Terminals absorbed power (2)(6) kW / Hp 44,29 / 60,2 Potenza assorbita in rete a vuoto / Terminals unload absorbed power kW 9,60 Livello di pressione acustica (max) / Noise level (max) ISO 2151 dBA 66 Residuo di olio nell'aria compressa / Oil carry over mg/m3 3 Calore totale recuperabile (fino al …) / Total heat recovery (up to …) % 95 Efficienza isoentropica / Isentropic efficiency (8) % 76 Capacità circuito olio / Oil circuit capacity dm3 19 PRESTAZIONI / PERFORMANCES bar (g) 5 6 7 8 9 10 11 12 m3/min kW m3/min kW m3/min kW m3/min kW m3/min kW m3/min kW m3/min kW m3/min kW 6,93 36,41 6,89 39,65 6,83 42,80 - - - - - - - - - - psi (g) 72,5 87 102 116 131 145 160 174 cfm Hp cfm Hp cfm Hp cfm Hp cfm Hp cfm Hp cfm Hp cfm Hp 244,7 49,52 243,31 53,92 241,19 58,21 - - - - - - - - - - PRESTAZIONI VELOCITA' VARIABILE / VARIABLE SPEED PERFORMANCES bar (g) 1/min 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 rpm 7 Portata m3/min - - - - - - - - - - - Delivery Potenza kW - - - - - - - - - - - Absorbed power
8 Portata m3/min - - - - - - - - - - - Delivery
Potenza kW - - - - - - - - - - - Absorbed power
9 Portata m3/min - - - - - - - - - - - Delivery
Potenza kW - - - - - - - - - - - Absorbed power
10 Portata m3/min - - - - - - - - - - - Delivery
Potenza kW - - - - - - - - - - - Absorbed power CARATTERISTICHE ELETTRICHE / ELECTRICAL CHARACTERISTICS Certificazione elettrica / Electric certification - CEI Tipo di avviamento / Starting type - STELLA-TRIANGOLO / Star-Delta Tensione -- Frequenza -- Fasi / Voltage -- Frequency -- Phases V / Hz / Ph 400 / 50 / 3 Tensione circuito ausiliario / Auxiliary circuit tension V 110 Corrente nominale assorbita / Nominal absorbed current (6) A 78,9 Sezione minima cavi alimentazione (10 m) / Minimum supply cables section (10 mt.) mm2 35,0 MOTORE PRINCIPALE / MAIN MOTOR Potenza nominale / Nominal power input kW 37,0 Classe di efficienza / Efficiency class - IE3 Rendimento / Efficiency % 93,9 Poli / Poles - 4 Indice di protezione / Protection index IP 55 Classe di isolamento / Insulation class - F RAFFREDDAMENTO / COOLING Temperatura ambiente massima / Maximum ambient temperature °C 40 Temperatuta ambiente minima / Minimum ambient temperature °C 1 Temperatura ARIA in mandata / Outlet AIR temperature (5) °C < 31 Temperatura massima OLIO / OIL maximum temperature °C 120 Temperatura minima OLIO / OIL minimum temperature °C 80 Ventilatore tipo / Fan type - CENTRIFUGO / Centrifugal / Centrifuge Portata aria di raffreddamento min. / Cooling AIR flow (minimum) (3) m3/hr - Portata aria di raffreddamento max. / Cooling AIR flow (maximum) (4) m3/hr 7200 Prevalenza residua minima / Fan residual head (minimum) (3) Pa - Prevalenza residua massima / Fan residual head (maximum) (4) Pa 80 Potenza assorbita ventilatore min / Fan absorbed power (minimum) (3) kW - Potenza assorbita ventilatore max / Fan absorbed power (maximum) (4) kW 1,10 Flusso ACQUA / WATER flow l/min - Temperatura acqua IN / Water INLET temperature °C - Temperatura acqua OUT massima / Water OUTLET maximum temperature °C - Pressione acqua minima consigliata / Water minimum suggested pressure kPa - Potenza termica recuperabile / Thermal recoverable power Kcal/h - ESSICCATORE / DRYER Gas refrigerante / Refrigerant gas - - Punto di rugiada in pressione / Dew point (pressure) °C - Potenza assorbita / Absorbed power kW - Percentuale aria di rigenerazione / Regeneration air percentage % - Tensione - frequenza - fasi / Supply: Voltage - frequency - phases V / Hz / Ph - DIMENSIONI / DIMENSIONS Attacco uscita ARIA / AIR outlet connection - Rp 2" Attacco uscita ARIA separatore condensa / Condensate separator drain connection (7) - Rp 1" 1/2 Attacco scarico condensa / Condensate drain connection (7) - 10 mm (MASCHIO / male / mâle / aussen) Attacco scarico condensa essiccatore / Condensate DRYER drain connection - - Attacco scarico condensa serbatoio / Receiver condensate drain connection - - Attacco IN-OUT acqua / INLET-OUTLET water connections - - Volume serbatoio di accumulo ARIA / Storage AIR receiver volume dm3 n.a. Larghezza / Width mm 960 Lunghezza / Lengh mm 1830 Altezza / Height mm 1670 Peso / Weight kg 830 NOTE / NOTES ( 1 ) - Secondo ISO 1217 - Allegato C (velocità fissa) & Allegato E (velocità variabile) / According to ISO 1217 - Annex C (fixed speed) & Annex E (variable speed) ( 2 ) - Ventilatore incluso (in 1a vel. se disp.) - Potenza essiccatore esclusa / Fan included (@ first speed if available) - Dryer input power excluded ( 3 ) - Ventilatore in 1a velocità o alla velocità minima / Fan @ lower or minimum speed ( 4 ) - Ventilatore in 2a velocità o alla velocità massima / Fan @ faster or maximum speed ( 5 ) - Alle condizioni di riferimento / @ reference conditions ( 6 ) - OPTIMA e versioni "i" @ 1500 giri/min e 7 bar / OPTIMA and "i" versions @ 1500 rpm and 7 bar ( 7 ) - con KIT separatore condensa / with condensate separator kit ( 8 ) - calcolata nel punto di lavoro nominale / at nominal working point
