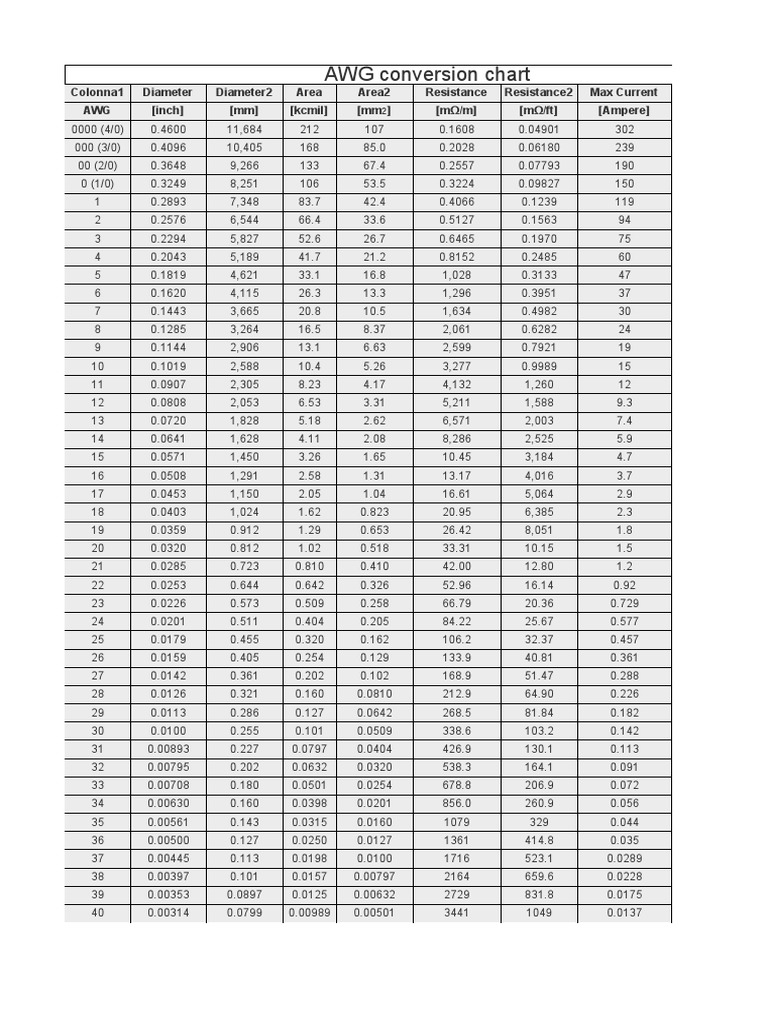

AWG conversion chart

Colonna1 Diameter Diameter2 Area Area2 Resistance Resistance2 Max Current

AWG [inch] [mm] [kcmil] [mm2] [mΩ/m] [mΩ/ft] [Ampere]
0000 (4/0) 0.4600 11,684 212 107 0.1608 0.04901 302
000 (3/0) 0.4096 10,405 168 85.0 0.2028 0.06180 239
00 (2/0) 0.3648 9,266 133 67.4 0.2557 0.07793 190
0 (1/0) 0.3249 8,251 106 53.5 0.3224 0.09827 150
1 0.2893 7,348 83.7 42.4 0.4066 0.1239 119
2 0.2576 6,544 66.4 33.6 0.5127 0.1563 94
3 0.2294 5,827 52.6 26.7 0.6465 0.1970 75
4 0.2043 5,189 41.7 21.2 0.8152 0.2485 60
5 0.1819 4,621 33.1 16.8 1,028 0.3133 47
6 0.1620 4,115 26.3 13.3 1,296 0.3951 37
7 0.1443 3,665 20.8 10.5 1,634 0.4982 30
8 0.1285 3,264 16.5 8.37 2,061 0.6282 24
9 0.1144 2,906 13.1 6.63 2,599 0.7921 19
10 0.1019 2,588 10.4 5.26 3,277 0.9989 15
11 0.0907 2,305 8.23 4.17 4,132 1,260 12
12 0.0808 2,053 6.53 3.31 5,211 1,588 9.3
13 0.0720 1,828 5.18 2.62 6,571 2,003 7.4
14 0.0641 1,628 4.11 2.08 8,286 2,525 5.9
15 0.0571 1,450 3.26 1.65 10.45 3,184 4.7
16 0.0508 1,291 2.58 1.31 13.17 4,016 3.7
17 0.0453 1,150 2.05 1.04 16.61 5,064 2.9
18 0.0403 1,024 1.62 0.823 20.95 6,385 2.3
19 0.0359 0.912 1.29 0.653 26.42 8,051 1.8
20 0.0320 0.812 1.02 0.518 33.31 10.15 1.5
21 0.0285 0.723 0.810 0.410 42.00 12.80 1.2
22 0.0253 0.644 0.642 0.326 52.96 16.14 0.92
23 0.0226 0.573 0.509 0.258 66.79 20.36 0.729
24 0.0201 0.511 0.404 0.205 84.22 25.67 0.577
25 0.0179 0.455 0.320 0.162 106.2 32.37 0.457
26 0.0159 0.405 0.254 0.129 133.9 40.81 0.361
27 0.0142 0.361 0.202 0.102 168.9 51.47 0.288
28 0.0126 0.321 0.160 0.0810 212.9 64.90 0.226
29 0.0113 0.286 0.127 0.0642 268.5 81.84 0.182
30 0.0100 0.255 0.101 0.0509 338.6 103.2 0.142
31 0.00893 0.227 0.0797 0.0404 426.9 130.1 0.113
32 0.00795 0.202 0.0632 0.0320 538.3 164.1 0.091
33 0.00708 0.180 0.0501 0.0254 678.8 206.9 0.072
34 0.00630 0.160 0.0398 0.0201 856.0 260.9 0.056
35 0.00561 0.143 0.0315 0.0160 1079 329 0.044
36 0.00500 0.127 0.0250 0.0127 1361 414.8 0.035
37 0.00445 0.113 0.0198 0.0100 1716 523.1 0.0289
38 0.00397 0.101 0.0157 0.00797 2164 659.6 0.0228
39 0.00353 0.0897 0.0125 0.00632 2729 831.8 0.0175
40 0.00314 0.0799 0.00989 0.00501 3441 1049 0.0137
 Max Frequency
for 100% skin depth
125 Hz
160 Hz
200 Hz
250 Hz
225 Hz
410 Hz
500 Hz
650 Hz
810 Hz
1100 Hz
1300 Hz
1650 Hz
2050 Hz
2600 Hz
3200 Hz
4150 Hz
5300 Hz
6700 Hz
8250 Hz
11 K Hz
13 K Hz
17 K Hz
21 K Hz
27 K Hz
33 K Hz
42 K Hz
53 K Hz
68 K Hz
85 K Hz
107 K Hz
130 K Hz
170 K Hz
210 K Hz
270 K Hz
340 K Hz
430 K Hz
540 K Hz
690 K Hz
870 K Hz
1100 K Hz
1350 K Hz
1750 K Hz
2250 K Hz
2900 K Hz
AWG Diam. mm Sez.AWG-mmq Sez.mmq Res. mOHM/m Corr. Max A
0 8.25100 53.50000 50 0.3224 150
1 7.34800 42.40000 0.4066 119
2 6.54400 33.60000 35 0.5127 94
3 5.82700 26.70000 0.6465 75
4 5.18900 21.20000 25 0.8152 60
5 4.62100 16.80000 1.028 47
6 4.11500 13.30000 16 1.296 37
7 3.66500 10.50000 1.634 30
8 3.26400 8.37000 10 2.061 24
9 2.90600 6.63000 2.599 19
10 2.58800 5.26000 6 3.277 15
11 2.30500 4.17000 4.132 12
12 2.05300 3.31000 4 5.211 9.3
13 1.82800 2.62000 6.571 7.4
14 1.62800 2.08000 2.5 8.286 5.9
15 1.45000 1.65000 1.5 10.45 4.7
16 1.29100 1.31000 1 13.17 3.7
17 1.15000 1.04000 16.61 2.9
18 1.02400 0.82300 0.75 20.95 2.3
19 0.91200 0.65300 26.42 1.8
20 0.81200 0.51800 0.5 33.31 1.5
21 0.72300 0.41000 42 1.2
22 0.64400 0.32600 0.35 52.96 0.92
23 0.57300 0.25800 66.79 0.729
24 0.51100 0.20500 0.22 84.22 0.577
25 0.46500 0.16200 106.2 0.457
26 0.40500 0.12900 0.12 133.9 0.361
27 0.36100 0.10200 168.9 0.288
28 0.32100 0.08100 0.08 212.9 0.226
29 0.28600 0.06420 268.5 0.182
30 0.25500 0.05090 0.05 338.6 0.142
31 0.22700 0.04040 426.9 0.113
32 0.20200 0.03200 538.3 0.091
33 0.18000 0.02540 678.8 0.072
34 0.16000 0.02010 856 0.056
35 0.14300 0.01600 1079 0.044
36 0.12700 0.01270 1361 0.035
37 0.11300 0.01000 1716 0.0289
38 0.10100 0.00790 2164 0.0228
39 0.08970 0.06320 2729 0.0175
40 0.07990 0.00501 3441 0.0137
Max Feq Hz Sez_min Sez_max
250 Hz 50.00000 53.50000
225 Hz 42.40000 42.40000
410 Hz 33.60000 35.00000
500 Hz 26.70000 26.70000
650 Hz 21.20000 25.00000
810 Hz 16.80000 16.80000
1100 Hz 13.30000 16.00000
1300 Hz 10.50000 10.50000
1650 Hz 8.37000 10.00000
2050 Hz 6.63000 6.63000
2600 Hz 5.26000 6.00000
3200 Hz 4.17000 4.17000
4150 Hz 3.31000 4.00000
5300 Hz 2.62000 2.62000
6700 Hz 2.08000 2.50000
8250 Hz 1.50000 1.65000
11 K Hz 1.00000 1.31000
13 K Hz 1.04000 1.04000
17 K Hz 0.75000 0.82300
21 K Hz 0.65300 0.65300
27 K Hz 0.50000 0.51800
33 K Hz 0.41000 0.41000
42 K Hz 0.32600 0.35000
53 K Hz 0.25800 0.25800
68 K Hz 0.20500 0.22000
85 K Hz 0.16200 0.16200
107 K Hz 0.12000 0.12900
130 K Hz 0.10200 0.10200
170 K Hz 0.08000 0.08100
210 K Hz 0.06420 0.06420
270 K Hz 0.05000 0.05090
340 K Hz 0.04040 0.04040
430 K Hz 0.03200 0.03200
540 K Hz 0.02540 0.02540
690 K Hz 0.02010 0.02010
870 K Hz 0.01600 0.01600
1100 K Hz 0.01270 0.01270
1350 K Hz 0.01000 0.01000
1750 K Hz 0.00790 0.00790
2250 K Hz 0.06320 0.06320
2900 K Hz 0.00501 0.00501
