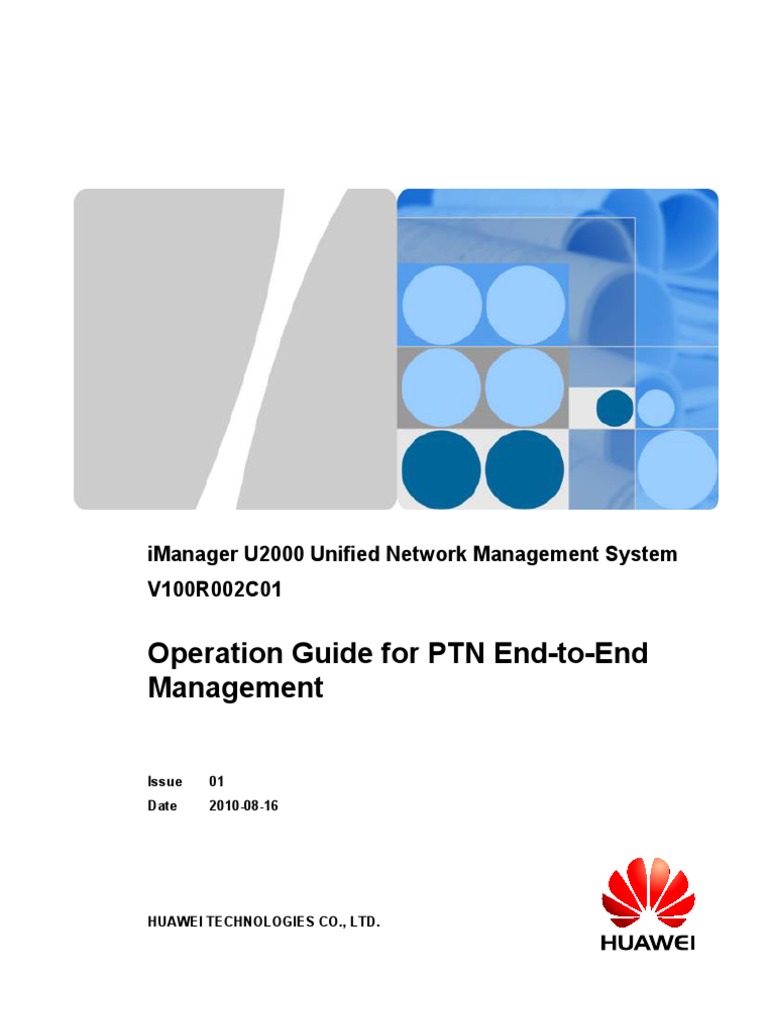

iManager U2000 Unified Network Management System V100R002C01
Operation Guide for PTN End-to-End Management

Issue Date 01 2010-08-16
HUAWEI TECHNOLOGIES CO., LTD.
Copyright Huawei Technologies Co., Ltd. 2010. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd. All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied. The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base Bantian, Longgang Shenzhen 518129 People's Republic of China http://www.huawei.com support@huawei.com
Website: Email:
Issue 01 (2010-08-16)
Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.
iManager U2000 Operation Guide for PTN End-to-End Management
About This Document
About This Document

Related Versions
The following table lists the product versions related to this document. Product Name iManager U2000 Version V100R002C01
Intended Audience
The Manager U2000 Operation Guide for PTN End-to-End Management describes the operations, such as how to configure the communication, clock and service of the PTN equipment on the U2000. This document also provides the acronyms and abbreviations. This document guides the user to understand basic operations of the U2000. The intended audiences of this document are:
l l l l
Network Monitoring Engineer Data Configuration Engineer NM Administrator System Maintenance Engineer
Symbol Conventions
The symbols that may be found in this document are defined as follows. Symbol Description
DANGER
Indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury. Indicates a hazard with a medium or low level of risk which, if not avoided, could result in minor or moderate injury.
iii
WARNING
Issue 01 (2010-08-16)
About This Document
Symbol
Description
CAUTION
NOTE
Indicates a potentially hazardous situation that, if not avoided, could cause equipment damage, data loss, and performance degradation, or unexpected results. Provides additional information to emphasize or supplement important points of the main text. Indicates a tip that may help you solve a problem or save you time.
TIP
Command Conventions
The command conventions that may be found in this document are defined as follows. Convention Boldface Italic [] { x | y | ... } [ x | y | ... ] Description The keywords of a command line are in boldface. Command arguments are in italic. Items (keywords or arguments) in square brackets [ ] are optional. Alternative items are grouped in braces and separated by vertical bars. One is selected. Optional alternative items are grouped in square brackets and separated by vertical bars. One or none is selected. Alternative items are grouped in braces and separated by vertical bars. A minimum of one or a maximum of all can be selected. Optional alternative items are grouped in square brackets and separated by vertical bars. A maximum of all or none can be selected.
{ x | y | ... } *
[ x | y | ... ] *
iv
Issue 01 (2010-08-16)
About This Document
GUI Conventions
Convention Boldface Description Buttons, menus, parameters, tabs, window, and dialog titles are in boldface. For example, click OK. Multi-level menus are in boldface and separated by the ">" signs. For example, choose File > Create > Folder.
>
Change History
Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions.
Updates in Issue 01 (2010-08-16) Based on Product Version V100R002C01

The first release.
Updates in Issue 01 (2010-04-15) Based on Product Version V100R002C00

The first release.
Issue 01 (2010-08-16)
Contents
Contents
About This Document...................................................................................................................iii 1 Process of Configuring PTN Services....................................................................................1-1 2 Automatically Searching PTN Services.................................................................................2-1 3 Managing Tunnel.......................................................................................................................3-1
3.1 Introduction to the Tunnel...............................................................................................................................3-2 3.1.1 Introduction to the Tunnel......................................................................................................................3-2 3.1.2 Standards and Protocols Compliance of the Tunnel..............................................................................3-3 3.1.3 Principles................................................................................................................................................3-5 3.2 Tunnel Configuration Flow...........................................................................................................................3-11 3.3 Configuring a Tunnel....................................................................................................................................3-12 3.3.1 Creating a Tunnel.................................................................................................................................3-13 3.3.2 Creating Tunnels in Batches................................................................................................................3-16 3.3.3 Creating a Protection Group.................................................................................................................3-17 3.3.4 Automatic Search for Protection Groups.............................................................................................3-19 3.3.5 Deploying a Tunnel..............................................................................................................................3-20 3.3.6 Reoptimizing an RSVP TE Tunnel......................................................................................................3-21 3.3.7 Viewing a Discrete Tunnel...................................................................................................................3-21 3.3.8 Checking the Correctness of the Tunnel Configuration.......................................................................3-22 3.3.9 Perform Tunnel Protection Group Switching.......................................................................................3-22 3.4 Monitoring a Tunnel......................................................................................................................................3-23 3.4.1 Configuring OAM for a Tunnel...........................................................................................................3-24 3.4.2 Viewing the VPN Service Carried on a Tunnel...................................................................................3-25 3.4.3 Viewing the Topology of a Tunnel......................................................................................................3-26 3.4.4 Viewing the Performance of a Tunnel.................................................................................................3-26 3.4.5 Viewing the Alarms of a Tunnel..........................................................................................................3-27 3.4.6 Monitoring the Running Status of a Tunnel.........................................................................................3-27 3.4.7 Viewing the LSP Topology of a Tunnel..............................................................................................3-28 3.4.8 Diagnosing a Tunnel............................................................................................................................3-28 3.5 Tunnel Configuration Example.....................................................................................................................3-29 3.5.1 Configuration Example (Static CR Tunnel).........................................................................................3-30 3.5.2 Configuration Example (RSVP TE Tunnel)........................................................................................3-40 3.5.3 Configuration Example (IP and LDP Tunnels)....................................................................................3-52 Issue 01 (2010-08-16) Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. vii
Contents
4 Configuring a Service Template.............................................................................................4-1

4.1 Creating a Service Template...........................................................................................................................4-2 4.2 Creating a Service by Using a Template.........................................................................................................4-2
5 Viewing a Service Resource.....................................................................................................5-1

5.1 Querying Public Resources.............................................................................................................................5-2 5.2 Querying SAI Resources.................................................................................................................................5-2
6 Managing PWE3 Services.........................................................................................................6-1

6.1 Overview of PWE3.........................................................................................................................................6-2 6.1.1 Introduction............................................................................................................................................6-2 6.1.2 Reference Standards and Protocols........................................................................................................6-3 6.1.3 Principle.................................................................................................................................................6-4 6.1.4 Overview of IP Line.............................................................................................................................6-20 6.1.5 Principle of IP Line..............................................................................................................................6-21 6.1.6 The Application of PWE3 Service.......................................................................................................6-24 6.2 PWE3 Configuration Process........................................................................................................................6-25 6.3 Configuration Flow for the PWE3 Service Protection..................................................................................6-32 6.4 PWE3 Operation Tasks.................................................................................................................................6-38 6.4.1 Creating a CES Service........................................................................................................................6-39 6.4.2 Creating an ETH Service......................................................................................................................6-43 6.4.3 Creating an ATM Service....................................................................................................................6-47 6.4.4 Creating an IP Line Service.................................................................................................................6-52 6.4.5 Creating a PWE3 Service Through Duplication..................................................................................6-54 6.4.6 Deploying a PWE3 Service..................................................................................................................6-56 6.4.7 Adjusting a Discrete PWE3 Service.....................................................................................................6-57 6.4.8 Configure PWE3 Protection Service....................................................................................................6-58 6.4.9 Checking the Correctness of the Service Configuration......................................................................6-60 6.4.10 Performing a PW APS Protection Switching.....................................................................................6-60 6.4.11 Managing ATM Connections.............................................................................................................6-61 6.5 PWE3 Service Monitoring............................................................................................................................6-62 6.5.1 Configuring Ethernet OAM.................................................................................................................6-63 6.5.2 Configuring PW OAM.........................................................................................................................6-64 6.5.3 Viewing the PWE3 Service Topology.................................................................................................6-64 6.5.4 Monitoring Performance of a PWE3 Service.......................................................................................6-65 6.5.5 Monitoring Alarms of a PWE3 Service...............................................................................................6-66 6.5.6 Viewing the Alarms of a PWE3 Service..............................................................................................6-67 6.5.7 Diagnosing a PWE3 Service................................................................................................................6-67 6.6 Managing PWE3 Service Authority..............................................................................................................6-69 6.6.1 Configuring the Rights of a User on PWE3 Services..........................................................................6-69 6.6.2 Viewing the Rights of a User on PWE3 Services................................................................................6-70 6.7 Examples for Configuring PWE3 Services...................................................................................................6-70 6.7.1 Example for Configuring a CES Emulation Service............................................................................6-70 6.7.2 Example for Configuring an ATM Service..........................................................................................6-93 viii Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. Issue 01 (2010-08-16)
Contents
6.7.3 Example for Configuring an Ethernet Private Line Service...............................................................6-121 6.7.4 Example of Configuring an End-to-End IP Line Service...................................................................6-139
7 Managing VPLS Services..........................................................................................................7-1

7.1 VPLS Overview.............................................................................................................................................. 7-2 7.1.1 Introduction to VPLS.............................................................................................................................7-2 7.1.2 Reference Standards and Protocols........................................................................................................7-2 7.1.3 VPLS Principle.......................................................................................................................................7-3 7.1.4 VPLS Application..................................................................................................................................7-6 7.2 Configuration Flow for a VPLS Service.........................................................................................................7-7 7.3 VPLS Operation Tasks....................................................................................................................................7-9 7.3.1 Creating a VPLS Service......................................................................................................................7-10 7.3.2 Deploying a VPLS Service..................................................................................................................7-12 7.3.3 Adjusting the VSI Resource.................................................................................................................7-12 7.3.4 Checking the Correctness of the Service Configuration......................................................................7-13 7.4 Monitoring a VPLS Service..........................................................................................................................7-14 7.4.1 Configuring Ethernet OAM.................................................................................................................7-15 7.4.2 Viewing the Topology of a VPLS Service...........................................................................................7-16 7.4.3 Monitoring the Performance of a VPLS Service.................................................................................7-17 7.4.4 Monitoring the Alarms of a VPLS Service..........................................................................................7-18 7.4.5 Viewing the Alarms of a VPLS Service...............................................................................................7-18 7.4.6 Diagnosing a VPLS Service.................................................................................................................7-19 7.5 Managing VPLS Service Authority..............................................................................................................7-20 7.5.1 Configuring the Rights of a User on VPLS Services...........................................................................7-20 7.5.2 Viewing the Rights of a User on VPLS Services.................................................................................7-21 7.6 Configuration Case of the VPLS Service......................................................................................................7-21 7.6.1 Configuration Networking Diagram....................................................................................................7-22 7.6.2 Service Planning...................................................................................................................................7-22 7.6.3 Configuration Process..........................................................................................................................7-23
8 Managing an L3VPN Service...................................................................................................8-1

8.1 Introduction to L3VPN....................................................................................................................................8-2 8.2 Basic Concepts................................................................................................................................................8-3 8.2.1 Basic Concepts of L3VPN..................................................................................................................... 8-4 8.2.2 MP-BGP...............................................................................................................................................8-10 8.2.3 Label Allocation of MP-BGP...............................................................................................................8-15 8.2.4 VPN Route Selection on PEs...............................................................................................................8-15 8.2.5 Advertisement of VPNv4 Routes.........................................................................................................8-16 8.2.6 Route Advertisement of a Basic L3VPN.............................................................................................8-17 8.2.7 Packet Forwarding in a Basic L3VPN.................................................................................................8-19 8.2.8 IP DSCP Overview...............................................................................................................................8-20 8.2.9 Introduction to DHCP Relay................................................................................................................8-21 8.2.10 Principle of DHCP Relay...................................................................................................................8-24 8.3 Application of the L3VPN............................................................................................................................8-28 Issue 01 (2010-08-16) Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. ix
Contents
8.4 Configuration Flow of L3VPN Services.......................................................................................................8-32 8.5 L3VPN Operation Tasks...............................................................................................................................8-34 8.5.1 Creating the L3VPN Service................................................................................................................8-35 8.5.2 Deploying the L3VPN Service.............................................................................................................8-37 8.5.3 Adjusting the Discrete L3VPN Service...............................................................................................8-38 8.5.4 Checking the Correctness of the Service Configuration......................................................................8-39 8.5.5 Configuring DHCP Relay....................................................................................................................8-40 8.6 L3VPN Service Monitoring..........................................................................................................................8-41 8.6.1 Viewing the L3VPN Service Topology...............................................................................................8-42 8.6.2 Monitoring Performance of the L3VPN Service..................................................................................8-43 8.6.3 Monitoring Alarms of the L3VPN Service..........................................................................................8-43 8.6.4 Viewing the Alarms of an L3VPN Service..........................................................................................8-44 8.6.5 Diagnosing an L3VPN Service............................................................................................................8-45 8.7 Managing L3VPN Service Authority............................................................................................................8-45 8.7.1 Configuring the Rights of a User on L3VPN Services........................................................................8-46 8.7.2 Viewing the Rights of a User on L3VPN Services..............................................................................8-46 8.8 Example for Configuring the L3VPN Service..............................................................................................8-47 8.8.1 Example for Configuring an Intranet VPN Service.............................................................................8-47 8.8.2 Example for Configuring the Hub&Spoke VPN Service.....................................................................8-77
9 Configuring Dual-Homing Protection...................................................................................9-1

9.1 Configuration Flow of Dual-Homing Protection............................................................................................9-2 9.2 Operation Tasks for Configuring the Dual-Homing Protection......................................................................9-4 9.2.1 Configuring the MC-LAG......................................................................................................................9-5 9.2.2 Operation Tasks for Configuring MC-PW APS..................................................................................9-15 9.3 Example of Dual-Homing Protection with 1:1 MC-PW APS and MC-LAG...............................................9-17 9.3.1 Example Description............................................................................................................................9-18 9.3.2 Configuration Process..........................................................................................................................9-22
10 Configuring VRRP.................................................................................................................10-1
10.1 Overview of VRRP.....................................................................................................................................10-2 10.2 Configuration Flow for VRRP....................................................................................................................10-3 10.3 Operation Tasks of Configuring VRRP......................................................................................................10-3 10.3.1 Configuring and Deploying an L3VPN Service................................................................................10-3 10.3.2 Configuring VRRP VR Information..................................................................................................10-5 10.3.3 Configuring Information About Objects Under Tracking of a VRRP VR .......................................10-6 10.4 Testing VRRP.............................................................................................................................................10-7 10.5 Configuration Case of VRRP......................................................................................................................10-8 10.5.1 Example Description..........................................................................................................................10-8 10.5.2 Configuration Process......................................................................................................................10-10
11 Composite Service Management.........................................................................................11-1

11.1 Composite Service Overview......................................................................................................................11-2 11.1.1 Composite Service Functions.............................................................................................................11-2 x Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. Issue 01 (2010-08-16)
Contents
11.1.2 Basic Concepts...................................................................................................................................11-3 11.1.3 Application of Composite Services....................................................................................................11-3 11.2 Process of Configuring a Composite Service..............................................................................................11-6 11.3 Operation Tasks of Composite Services.....................................................................................................11-7 11.3.1 Automatically Discovering Composite Services................................................................................11-8 11.3.2 Creating a Composite Service............................................................................................................11-8 11.3.3 Deploying a Composite Service.........................................................................................................11-9 11.4 Monitoring a Composite Service...............................................................................................................11-10 11.4.1 Viewing the Status of a Composite Service.....................................................................................11-10 11.4.2 Viewing the Topology of a Composite Service...............................................................................11-11 11.5 Example for Configuring Composite Services..........................................................................................11-12 11.5.1 Example for Configuring the PWE3+VPLS Composite Service.....................................................11-12 11.5.2 Example for Configuring the PWE3+PWE3 Composite Service....................................................11-20
12 Modifying Configurations...................................................................................................12-1
12.1 Modifying the Basic Information About Services in Batches.....................................................................12-2 12.2 Modifying Tunnel Attributes......................................................................................................................12-2 12.2.1 Modifying a Tunnel............................................................................................................................12-3 12.2.2 Deleting a Tunnel...............................................................................................................................12-3 12.2.3 Deleting a tunnel from the network Side...........................................................................................12-4 12.2.4 Undeploying a tunnel.........................................................................................................................12-4 12.3 Modifying PWE3 Attributes.......................................................................................................................12-5 12.3.1 Modifying a PWE3 Service................................................................................................................12-5 12.3.2 Modifying the Tunnel Carrying PWE3 Services...............................................................................12-6 12.3.3 Deleting a PWE3 Service...................................................................................................................12-6 12.3.4 Deleting a PWE3 Service on the Network Side.................................................................................12-7 12.3.5 Undeploying a PWE3 Service............................................................................................................12-7 12.4 Modifying VPLS Attributes........................................................................................................................12-8 12.4.1 Modifying a VPLS Service................................................................................................................12-8 12.4.2 Modifying the Tunnel Carrying VPLS Services................................................................................12-9 12.4.3 Deleting a VPLS Service....................................................................................................................12-9 12.4.4 Deleting a VPLS Service from the U2000 Side...............................................................................12-10 12.4.5 Undeploying a VPLS Service..........................................................................................................12-10 12.5 Modifying the Attributes of a L3VPN Service.........................................................................................12-11 12.5.1 Modifying a L3VPN Service............................................................................................................12-11 12.5.2 Deleting an L3VPN Service.............................................................................................................12-12 12.5.3 Deleting a L3VPN Service from the Network.................................................................................12-12 12.5.4 Undeploying a L3VPN Service........................................................................................................12-13
Index.................................................................................................................................................i-1
Issue 01 (2010-08-16)
xi
Figures
Figures
Figure 1-1 Process of configuring PTN services..................................................................................................1-1 Figure 3-1 MPLS tunnel on the MPLS network..................................................................................................3-2 Figure 3-2 ATM PWE3 over IP tunnel................................................................................................................3-3 Figure 3-3 Process of creating a tunnel................................................................................................................3-7 Figure 3-4 Working process of a tunnel...............................................................................................................3-7 Figure 3-5 Principles of the tunnel protection......................................................................................................3-9 Figure 3-6 Transparent transmission of point-to-point data packets..................................................................3-10 Figure 3-7 Tunnel configuration flow................................................................................................................3-11 Figure 3-8 The figure of tunnel protection group...............................................................................................3-18 Figure 3-9 Networking diagram of an MPLS tunnel.........................................................................................3-30 Figure 3-10 NE planning....................................................................................................................................3-31 Figure 3-11 Networking diagram of an RSVP TE tunnel..................................................................................3-40 Figure 3-12 NE planning....................................................................................................................................3-41 Figure 3-13 NE planning....................................................................................................................................3-53 Figure 6-1 Basic transmission components of the PWE3....................................................................................6-4 Figure 6-2 PWE3 single-hop topology.................................................................................................................6-5 Figure 6-3 PWE3 multi-hop topology..................................................................................................................6-6 Figure 6-4 Network of the static and dynamic hybrid multi-hop PW..................................................................6-8 Figure 6-5 PW redundancy protection.................................................................................................................6-9 Figure 6-6 CE symmetrical access dual-homing protection.................................................................................6-9 Figure 6-7 Backup protection.............................................................................................................................6-10 Figure 6-8 PW APS protection...........................................................................................................................6-10 Figure 6-9 Ethernet raw mode (with user VLAN tags)......................................................................................6-15 Figure 6-10 Ethernet tagged mode (with user VLAN tags)...............................................................................6-16 Figure 6-11 VLAN raw mode (with service VLAN tags)..................................................................................6-18 Figure 6-12 VLAN tagged mode (with service VLAN tags).............................................................................6-19 Figure 6-13 Deployment of IP line services.......................................................................................................6-20 Figure 6-14 Encapsulation process of IP line services.......................................................................................6-21 Figure 6-15 Dual-homing protection for IP line services...................................................................................6-22 Figure 6-16 Dual-homing protection switching for IP line services in case of an equipment fault...................6-22 Figure 6-17 Dual-homing protection switching for IP line services in case of a link fault...............................6-23 Figure 6-18 Application of the PWE3................................................................................................................6-24 Figure 6-19 CES service configuration process.................................................................................................6-25 Issue 01 (2010-08-16) Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. xiii
Figures
iManager U2000 Operation Guide for PTN End-to-End Management Figure 6-20 ATM service configuration process................................................................................................6-27 Figure 6-21 E-Line service configuration process............................................................................................. 6-29 Figure 6-22 Flow of configuring an IP line service........................................................................................... 6-31 Figure 6-23 Single source and dual sink............................................................................................................6-32
Figure 6-24 Dual source and single sink............................................................................................................6-33 Figure 6-25 Process of configuring PW redundancy dual-homing protection...................................................6-33 Figure 6-26 Dual-Homing protection for CEs symmetric access...................................................................... 6-34 Figure 6-27 Process of configuring the dual-Homing protection for CEs symmetric access............................6-35 Figure 6-28 PW Backup Protection....................................................................................................................6-35 Figure 6-29 Process of configuring the PW backup protection......................................................................... 6-36 Figure 6-30 Single source and dual sink............................................................................................................6-36 Figure 6-31 Dual source and single sink............................................................................................................6-37 Figure 6-32 Process of configuring the PW APS protection..............................................................................6-37 Figure 6-33 Network of the CES service........................................................................................................... 6-71 Figure 6-34 NE planning....................................................................................................................................6-72 Figure 6-35 Network of the ATM services........................................................................................................6-94 Figure 6-36 NE planning diagram......................................................................................................................6-95 Figure 6-37 Network of the Ethernet private line service................................................................................6-121 Figure 6-38 Network where an IP line service is deployed..............................................................................6-140 Figure 7-1 VPLS forwarding model.....................................................................................................................7-3 Figure 7-2 Basic VPLS transport components.....................................................................................................7-4 Figure 7-3 Typical VPLS networking..................................................................................................................7-7 Figure 7-4 Flowchart for configuring a VPLS service.........................................................................................7-8 Figure 7-5 Networking diagram for the VPLS service...................................................................................... 7-22 Figure 8-1 Model of a L3VPN.............................................................................................................................8-2 Figure 8-2 Schematic diagram of sites.................................................................................................................8-4 Figure 8-3 One site belonging to multiple VPNs.................................................................................................8-5 Figure 8-4 Schematic diagram of VPN instances.................................................................................................8-6 Figure 8-5 VPN-IPv4 address structure...............................................................................................................8-7 Figure 8-6 Format of a VPN target......................................................................................................................8-9 Figure 8-7 BGP running mode...........................................................................................................................8-11 Figure 8-8 Format of MP_REACH_NLRI.........................................................................................................8-11 Figure 8-9 Format of the NLRI field with a Label subfield...............................................................................8-12 Figure 8-10 Format of MP_UNREACH_NLRI.................................................................................................8-12 Figure 8-11 Format of BGP capability parameters............................................................................................8-13 Figure 8-12 Format of the Capability Value field in MP-BGP..........................................................................8-13 Figure 8-13 Advertisement of a route from CE2 to CE1...................................................................................8-19 Figure 8-14 Forwarding of a VPN packet from CE1 to CE2.............................................................................8-20 Figure 8-15 Structure of the IPv4 packet head...................................................................................................8-21 Figure 8-16 Application of DHCP relay............................................................................................................ 8-22 Figure 8-17 Application scenario of DHCP relay on a Layer 2 network...........................................................8-22 Figure 8-18 Application scenario of DHCP relay on a Layer 3 network...........................................................8-23 xiv Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. Issue 01 (2010-08-16)
Figures
Figure 8-19 Application scenario of DHCP relay on a Layer 3 network...........................................................8-23 Figure 8-20 DHCP packet format......................................................................................................................8-24 Figure 8-21 L2VPN DHCP relay mode.............................................................................................................8-27 Figure 8-22 IPoE service scenario......................................................................................................................8-27 Figure 8-23 FE service scenario.........................................................................................................................8-27 Figure 8-24 Networking diagram of an intranet VPN........................................................................................8-29 Figure 8-25 Networking diagram of an extranet................................................................................................8-30 Figure 8-26 Route advertisement from Site2 to Site1 in Hub&Spoke networking model.................................8-31 Figure 8-27 Path of transmitting customer traffic from Site1 to Site2...............................................................8-32 Figure 8-28 L3VPN service configuration flow.................................................................................................8-33 Figure 8-29 Network of the intranet VPN service..............................................................................................8-48 Figure 8-30 NE planning diagram......................................................................................................................8-48 Figure 8-31 Networking of the Hub&Spoke VPN service.................................................................................8-78 Figure 8-32 NE planning diagram......................................................................................................................8-78 Figure 9-1 Configuration flow for dual-homing protection.................................................................................9-2 Figure 9-2 Link Aggregation Group....................................................................................................................9-5 Figure 9-3 LAG networking.................................................................................................................................9-6 Figure 9-4 MC-LAG for dual-homing protection................................................................................................9-7 Figure 9-5 Configuring an MC-LAG in a Dual-Homing Protection Scenario...................................................9-11 Figure 9-6 Networking diagram of MC-PW APS for dual-homing protection..................................................9-16 Figure 9-7 Networking diagram for the dual-homing protection with 1:1 MC-PW APS and MC-LAG..........9-18 Figure 10-1 VRRP networking...........................................................................................................................10-2 Figure 10-2 Network with VRRP for an RNC...................................................................................................10-9 Figure 11-1 Networking diagram of the static VLL+VPLS composite service.................................................11-4 Figure 11-2 Networking diagram of the dual-homed static VLL+VPLS composite service.............................11-5 Figure 11-3 Networking diagram of the PWE3+PWE3 composite service.......................................................11-6 Figure 11-4 Flowchart of configuring a composite service................................................................................11-6 Figure 11-5 Networking diagram of the PWE3+VPLS composite service......................................................11-12 Figure 11-6 Networking diagram of the PWE3+PWE3 composite service.....................................................11-20
Issue 01 (2010-08-16)
xv
Tables
Tables
Table 3-1 Tunnel configuration tasks.................................................................................................................3-11 Table 3-2 Planning of Tunnel parameters..........................................................................................................3-31 Table 3-3 Planning of protection group parameters...........................................................................................3-33 Table 3-4 Configuration parameters of NEs.......................................................................................................3-41 Table 3-5 Configuration parameters of Tunnels.................................................................................................3-42 Table 3-6 Configuration parameters of NEs.......................................................................................................3-53 Table 3-7 Static route.........................................................................................................................................3-53 Table 3-8 Planning of the IGP-ISIS...................................................................................................................3-54 Table 3-9 Planning of the MPLS-LDP...............................................................................................................3-54 Table 3-10 Planning of the working IP tunnel...................................................................................................3-54 Table 3-11 Planning of the protection LDP tunnel.............................................................................................3-55 Table 6-1 Features of the ATM cell transparent transmission services..............................................................6-13 Table 6-2 Applicable scenarios of various connection types.............................................................................6-13 Table 6-3 Comparison between 1-to-1 and N-to-1 modes.................................................................................6-14 Table 6-4 Tasks for configuring a CES service..................................................................................................6-25 Table 6-5 Tasks for configuring an ATM service..............................................................................................6-27 Table 6-6 Tasks for configuring an E-Line service............................................................................................6-29 Table 6-7 Operation tasks for configuring an IP line service.............................................................................6-31 Table 6-8 NE parameters....................................................................................................................................6-72 Table 6-9 Tunnel parameters..............................................................................................................................6-73 Table 6-10 CES service parameters: NE1-NE3 (E1 timeslots partially used)...................................................6-75 Table 6-11 CES service parameters: NE1-NE3 (E1 timeslots fully used).........................................................6-76 Table 6-12 Parameters of general attributes.......................................................................................................6-82 Table 6-13 Parameters of the source node..........................................................................................................6-83 Table 6-14 Parameters of the sink node.............................................................................................................6-85 Table 6-15 PW parameters.................................................................................................................................6-86 Table 6-16 Parameters of advanced attributes....................................................................................................6-88 Table 6-17 Parameters of general attributes.......................................................................................................6-89 Table 6-18 Parameters of the source node..........................................................................................................6-90 Table 6-19 Parameters of the sink node.............................................................................................................6-90 Table 6-20 PW parameters.................................................................................................................................6-91 Table 6-21 Parameters of advanced attributes....................................................................................................6-92 Table 6-22 Configuration parameters of NEs.....................................................................................................6-95 Issue 01 (2010-08-16) Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. xvii
Tables
iManager U2000 Operation Guide for PTN End-to-End Management Table 6-23 Tunnel parameters............................................................................................................................6-96 Table 6-24 Configuration parameters of the ATM service on NE1...................................................................6-97 Table 6-25 Configuration parameters of NE2....................................................................................................6-97 Table 6-26 Parameters of general attributes.....................................................................................................6-106 Table 6-27 Parameters of the source node........................................................................................................6-106 Table 6-28 Parameters of the sink node...........................................................................................................6-106 Table 6-29 PW parameters...............................................................................................................................6-107 Table 6-30 Parameter for configuring a connection.........................................................................................6-108 Table 6-31 Parameters of advanced attributes..................................................................................................6-110 Table 6-32 PW QoS parameters.......................................................................................................................6-110 Table 6-33 Parameters of general attributes.....................................................................................................6-111 Table 6-34 Parameters of the source node........................................................................................................6-111 Table 6-35 Parameters of the sink node...........................................................................................................6-111 Table 6-36 PW parameters...............................................................................................................................6-112 Table 6-37 Parameter for configuring a connection.........................................................................................6-113 Table 6-38 Parameters of advanced attributes..................................................................................................6-115 Table 6-39 PW QoS parameters.......................................................................................................................6-115 Table 6-40 Parameters of general attributes.....................................................................................................6-116 Table 6-41 Parameters of the source node........................................................................................................6-116 Table 6-42 Parameters of the sink node...........................................................................................................6-116 Table 6-43 PW parameters...............................................................................................................................6-117 Table 6-44 Parameter for configuring a connection.........................................................................................6-118 Table 6-45 Parameters of advanced attributes..................................................................................................6-120 Table 6-46 PW QoS parameters.......................................................................................................................6-120 Table 6-47 Configuration parameters of NEs...................................................................................................6-122 Table 6-48 Planning of the tunnel carrying the PW.........................................................................................6-122 Table 6-49 Planning of the UNI-NNI E-Line service carried by the PW........................................................6-123 Table 6-50 Planning of the PW........................................................................................................................6-123 Table 6-51 Tunnel parameters..........................................................................................................................6-127 Table 6-52 Parameters of general attributes.....................................................................................................6-130 Table 6-53 Parameters of the source and sink node.........................................................................................6-131 Table 6-54 PW parameters...............................................................................................................................6-132 Table 6-55 QoS parameters..............................................................................................................................6-133 Table 6-56 PW QoS parameters.......................................................................................................................6-134 Table 6-57 Parameters of advanced attributes..................................................................................................6-134 Table 6-58 Parameters of general attributes.....................................................................................................6-135 Table 6-59 Parameters of the source and sink node.........................................................................................6-135 Table 6-60 PW parameters...............................................................................................................................6-136 Table 6-61 Service parameters.........................................................................................................................6-137 Table 6-62 QoS parameters..............................................................................................................................6-138 Table 6-63 PW QoS parameters.......................................................................................................................6-138 Table 6-64 Parameters of advanced attributes..................................................................................................6-139
xviii
Issue 01 (2010-08-16)
Tables
Table 6-65 Planning of parameters for NEs.....................................................................................................6-140 Table 6-66 Planning of bearer tunnels for the PWs..........................................................................................6-141 Table 6-67 VRF configuration planning..........................................................................................................6-141 Table 6-68 PW configuration planning............................................................................................................6-142 Table 6-69 Parameter settings for a static tunnel.............................................................................................6-145 Table 6-70 Service parameter settings..............................................................................................................6-148 Table 6-71 General attributes of VRF..............................................................................................................6-148 Table 6-72 Service access interface..................................................................................................................6-149 Table 6-73 Route configuration........................................................................................................................6-150 Table 6-74 QoS parameter settings for the service access port........................................................................6-152 Table 6-75 PW QoS parameter settings...........................................................................................................6-152 Table 7-1 VPLS packets and encapsulation types................................................................................................7-5 Table 7-2 Tasks for Configure a VPLS service....................................................................................................7-8 Table 7-3 General planning of VPLS services...................................................................................................7-22 Table 7-4 Planning of VPLS services.................................................................................................................7-23 Table 7-5 Planning of UNI ports........................................................................................................................7-23 Table 7-6 General planning of VPLS services...................................................................................................7-24 Table 7-7 Planning of VPLS services.................................................................................................................7-25 Table 7-8 Planning of SAI..................................................................................................................................7-27 Table 7-9 Parameter configuration of a tunnel...................................................................................................7-28 Table 8-1 Description of each field in a DHCP packet......................................................................................8-24 Table 8-2 Tasks for configuring the L3VPN service......................................................................................... 8-33 Table 8-3 VPN1 parameter planning..................................................................................................................8-49 Table 8-4 VPN2 parameter planning..................................................................................................................8-50 Table 8-5 Basic parameters................................................................................................................................ 8-58 Table 8-6 Affinity object parameters..................................................................................................................8-59 Table 8-7 Parameters of explicit hops information object..................................................................................8-59 Table 8-8 FRR attribute parameters................................................................................................................... 8-59 Table 8-9 QoS parameters..................................................................................................................................8-60 Table 8-10 Setup attribute parameters................................................................................................................8-60 Table 8-11 Basic parameters.............................................................................................................................. 8-61 Table 8-12 NE list parameters............................................................................................................................8-62 Table 8-13 Basic parameters of advanced attribute............................................................................................8-62 Table 8-14 Affinity object parameters................................................................................................................8-62 Table 8-15 Parameters of explicit hops information object................................................................................8-63 Table 8-16 Parameters of fast rerouting attribute...............................................................................................8-63 Table 8-17 QoS parameters................................................................................................................................8-64 Table 8-18 Setup attribute parameters................................................................................................................8-64 Table 8-19 Basic parameters.............................................................................................................................. 8-64 Table 8-20 NE list parameters............................................................................................................................8-65 Table 8-21 Basic parameters of advanced attribute............................................................................................8-65 Table 8-22 Affinity object parameters................................................................................................................8-66 Issue 01 (2010-08-16) Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. xix
Tables
iManager U2000 Operation Guide for PTN End-to-End Management Table 8-23 Parameters of explicit hops information object................................................................................8-66 Table 8-24 Parameters of fast rerouting attribute...............................................................................................8-66 Table 8-25 QoS parameters................................................................................................................................8-67 Table 8-26 Setup attribute parameters................................................................................................................8-67 Table 8-27 Service information parameters.......................................................................................................8-68 Table 8-28 NE list parameters............................................................................................................................8-69 Table 8-29 PE1 parameters.................................................................................................................................8-69 Table 8-30 PE2 parameters.................................................................................................................................8-70 Table 8-31 PE3 parameters.................................................................................................................................8-72 Table 8-32 Service information parameters.......................................................................................................8-73 Table 8-33 NE list parameters............................................................................................................................8-73 Table 8-34 PE1 parameters.................................................................................................................................8-74 Table 8-35 PE2 parameters.................................................................................................................................8-75 Table 8-36 PE3 parameters.................................................................................................................................8-76 Table 8-37 VPN parameter planning..................................................................................................................8-79 Table 8-38 General information.........................................................................................................................8-87 Table 8-39 Affinity object parameters................................................................................................................8-87 Table 8-40 Parameters of the explicit hop information object...........................................................................8-88 Table 8-41 FRR attributes..................................................................................................................................8-88 Table 8-42 QoS configuration parameters..........................................................................................................8-89 Table 8-43 Setup attributes.................................................................................................................................8-89 Table 8-44 General information.........................................................................................................................8-90 Table 8-45 NE list...............................................................................................................................................8-90 Table 8-46 Basic information about the advanced attributes.............................................................................8-90 Table 8-47 Affinity object parameters................................................................................................................8-91 Table 8-48 Parameters of the explicit hop information object...........................................................................8-91 Table 8-49 FRR attributes..................................................................................................................................8-91 Table 8-50 QoS configuration parameters..........................................................................................................8-92 Table 8-51 Setup attributes.................................................................................................................................8-92 Table 8-52 Service information..........................................................................................................................8-93 Table 8-53 NE list...............................................................................................................................................8-94 Table 8-54 Hub-PE parameters..........................................................................................................................8-94 Table 8-55 Spoke-PE1 parameters.....................................................................................................................8-95 Table 8-56 Spoke-PE2 parameters.....................................................................................................................8-96 Table 9-1 Description of tasks in the configuration flow for dual-homing protection.........................................9-3 Table 9-2 Application of MC-LAG for dual-homing protection.........................................................................9-9 Table 9-3 Support for MC-LAG application scenario I (SC LAGs on dual-homing nodes in non-load-sharing mode) .............................................................................................................................................................................9-10 Table 9-4 Support for MC-LAG application scenario II (SC LAGs on dual-homing nodes in load-sharing mode) .............................................................................................................................................................................9-10 Table 9-5 Parameter planning for the PWs of NNI-side MC-PW APS (dual-homing protection with 1:1 MC-PW APS and MC-LAG in the example)....................................................................................................................9-19
xx
Issue 01 (2010-08-16)
Tables
Table 9-6 Parameter planning for NNI-side MC-PW APS (dual-homing protection with 1:1 MC-PW APS and MC-LAG in the example)...................................................................................................................................9-20 Table 9-7 Parameter planning for MC synchronization communication (dual-homing protection with 1:1 MC-PW APS and MC-LAG in the example)....................................................................................................................9-21 Table 9-8 Parameters for LAG1 on PE1 and LAG2 on PE2 (dual-homing protection with 1:1 MC-PW APS and MC-LAG in the example)...................................................................................................................................9-21 Table 9-9 Parameters for the MC-LAG protection groups on PE1 and PE2 (dual-homing protection with 1:1 MCPW APS and MC-LAG in the example).............................................................................................................9-21 Table 10-1 Planning of VRRP VR information................................................................................................. 10-9 Table 10-2 Planning of Advanced VRRP VR Information................................................................................10-9 Table 10-3 Planning of Information About Objects Under Tracking of a VRRP VR ....................................10-10 Table 10-4 Planning of Advanced VRRP VR Information..............................................................................10-12 Table 10-5 Parameters for Tracking More BFD Sessions or Interfaces...........................................................10-14 Table 11-1 Configuration tasks of a composite service..................................................................................... 11-7 Table 11-2 NE parameters................................................................................................................................11-13 Table 11-3 Planning of parameters for configuring the PWE3 service............................................................11-13 Table 11-4 Planning of parameters for configuring the VPLS service............................................................11-14 Table 11-5 Planning of parameters for configuring the composite service......................................................11-15 Table 11-6 Planning of parameters for configuring the PWE3 service............................................................11-17 Table 11-7 Planning of parameters for configuring the VPLS service............................................................11-17 Table 11-8 Planning of parameters for configuring the LAG..........................................................................11-20 Table 11-9 Planning of parameters for configuring the PWE3 service............................................................11-21 Table 11-10 Planning of parameters for configuring the composite service....................................................11-21 Table 11-11 Planning of parameters for configuring the LAG........................................................................11-22 Table 11-12 Planning of parameters for configuring the PWE3 service..........................................................11-22
Issue 01 (2010-08-16)
xxi
1 Process of Configuring PTN Services
Process of Configuring PTN Services
This topic describes the process of configuring PTN services in terms of network deployment, service discovery, service deployment, and service assurance. Figure 1-1 shows the process of configuring PTN services. Figure 1-1 Process of configuring PTN services
Network deployment Service discovery Service deployment Service assurance
Add equipment to the NMS Upload/Synchronize data
Discover tunnels
View service resources Create a service through a template Create a service with defined parameters
View the service topology Monitor alarms in centralized mode Monitor performance services
Service monitoring
Discover single services Discover composite services
Predeployment
Configure interface
Configure basic routes Configure control plane
Deploy the service
Monitor service alarms Locate faults with the test and check
Fault location
Optional Configure tunnels
Mandatory
Network deployment: is the prerequisite for the service deployment and includes adding equipment to the NMS, upload/synchronize data, and configuring basic routes, configuring control plane, and tunnels. Service discovery: discovers the existing services on the NMS for unified management and includes the discovery of tunnels, single services, and composite services. Service deployment
Issue 01 (2010-08-16)
1-1
1 Process of Configuring PTN Services
Viewing service resources: Before deployment services, you can view the service resources to check the available service resources. Predeploying services: Predeploying services refers to creating services on the NMS. After services are predeployed, the configuration data of the services are not deployed to equipment. To create services, you can either manually enter the parameters of the services or use a template to create the services in batches. Service deployment: deploys the configuration data of services to equipment.
Service assurance: includes service monitoring and fault location. Service monitoring includes service alarm monitoring and service performance monitoring. By monitoring service alarms, you can view affected services, and then locate the failure point through the test diagnosis tool.
Service monitoring: monitors the alarms and performance of services and views the service topology. The service topology provides rich service operation accesses. According to the topology color, you can discover alarms according to the topology color and view the related alarms in the topology view. Fault location: By monitoring service alarms, you can view affected services, and then locate the failure point through the test and check.
1-2
Issue 01 (2010-08-16)
2 Automatically Searching PTN Services
2
Prerequisite Procedure
Automatically Searching PTN Services
This topic describes how to automatically search IP services. With this function, you can recover the services existing on the current network to the end to end management module of the NMS for monitoring. In this manner, you can ensure the normal running of these services.
Data synchronization must be complete on the related equipment.
Step 1 Choose Service > Search for IP Service from the main menu. Step 2 On the Discovery Policy tab page, set the discovery policy. 1. Specify the equipment range for automatically searching IP services.
l l
Click the All option button to discover all the NEs on the entire network. Click the Select NE option button, and then click Add. In the dialog box that is displayed, select one or more NEs, and then click OK to discover the specified NEs.
2. 3.
In the Discover Service navigation tree, select the check box to the left of the related service to specify the type of the services to be searched. On the lower-right part, click each service tab to configure the customer policy and discovery policy. Customer association policies are classified into the following types:
l
Set Customer: The searched services are automatically associated with the specified customer. Do Not Set Customer: The automatically searched services are not associated with any customer.
NOTE
Only support discovering L3VPN service by VRF ID or VRF connectivity for PTN equipment.
4.
After the configuration, click Start.
Step 3 Click the Discovery Result tab. A progress bar is displayed indicating the progress of automatically discovering services. You can view the automatically searched services on the Add Service, Modify Service, and Discrete Service tab pages, as shown in the following figure. After selecting a record and clicking Jump Service, you can access the service management user interface for this service.
Issue 01 (2010-08-16) Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. 2-1
2 Automatically Searching PTN Services
----End
2-2
Issue 01 (2010-08-16)
3 Managing Tunnel
3
About This Chapter
Managing Tunnel
By using the tunnel technology, you can create private data transmission channels on a PSN network to transparently transmit packets. 3.1 Introduction to the Tunnel Different tunnel technologies are used in different scenarios and use different protocols to transparently transmit data packets. 3.2 Tunnel Configuration Flow This section describes the operation tasks for configuring the Tunnel, and relations among these tasks. When configuring and managing the Tunnel, follow the configuration flow. 3.3 Configuring a Tunnel This topic describes how to configure a tunnel, such as creating a tunnel, creating a protection group, deploying a tunnel, viewing discrete tunnels, and deleting a tunnel. 3.4 Monitoring a Tunnel This topic describes how to monitor a tunnel to facilitate tunnel services management. 3.5 Tunnel Configuration Example This topic describes configuration examples of creating tunnels in the end-to-end mode. In addition to the examples, the configuration flow diagrams are provided for you to learn the service configuration processes. A configuration example describes a networking scenario and the corresponding process of creating a tunnel on an actual network. A configuration example includes information about the configuration networking diagram, service planning, and configuration process.
Issue 01 (2010-08-16)
3-1
3 Managing Tunnel
3.1 Introduction to the Tunnel

Different tunnel technologies are used in different scenarios and use different protocols to transparently transmit data packets. 3.1.1 Introduction to the Tunnel OptiX equipment supports the MPLS tunnel, which is a tunneling technology using the MPLSprotocol-based encapsulation, and the IP tunnel, which is a tunneling technology using the IPprotocol-based encapsulation. 3.1.2 Standards and Protocols Compliance of the Tunnel This topic describes the standards Compliance and the two protocols that the tunneling technology uses. They are the MPLS-LDP protocol and the MPLS-RSVP protocol. 3.1.3 Principles Multi-protocol label switching (MPLS) is a tunnel technology and enables a routing and switching platform that integrates the switching and forwarding technologies of labels and network-layer routing technologies. In the MPLS architecture, the control plane is connectionless and uses the powerful and flexible routing function of the IP network to meet the network requirements of new application; the data plane is connection-oriented and uses short and fixed-length labels to encapsulate packets for implementation of fast forwarding.
3.1.1 Introduction to the Tunnel

OptiX equipment supports the MPLS tunnel, which is a tunneling technology using the MPLSprotocol-based encapsulation, and the IP tunnel, which is a tunneling technology using the IPprotocol-based encapsulation.
MPLS Tunnel
As a transmission technology, the multi-protocol label switching (MPLS) can realize transparent transmission of data packets among users. The MPLS tunnel is the tunnel defined in the MPLS protocol. Independent from the service, the MPLS tunnel realizes the end-to-end transmission and carries the PWs related to the service. Figure 3-1 shows how the MPLS tunnel is used as the service transmission channel. Figure 3-1 MPLS tunnel on the MPLS network
IMA E1 FE ATM STM-1
Ingress node
Transit node MPLS tunnel
Egress node
IMA E1 FE ATM STM-1
PW
3-2
Issue 01 (2010-08-16)
3 Managing Tunnel
The MPLS tunnel only provides an end-to-end channel, and does not care which service is encapsulated in the PW it carries. Data packets are first encapsulated in the PW, which is stuck with an MPLS label and sent to the MPLS tunnel for transmission. At the sink end, data packets are recovered and retain the original service features. In the tunnel, the intermediate nodes are called Transit nodes. Hence, a tunnel contains the Ingress node, Egress node and Transit nodes. Based on signaling types, MPLS tunnels can be classified into three types, that is, the static CR tunnel, RSVP TE tunnel, and LDP tunnel. These three types of tunnels are different and the details are as follows:
l l
Static CR tunnel: You need to specify the nodes that a static CR tunnel traverses. In addition, you can also specify the bandwidth and QoS of the tunnel. RSVP TE tunnel: You need to specify only the ingress and egress nodes for an RSVP TE tunnel. The MPLS protocol automatically calculates a route for the tunnel. In addition, you can specify constraint nodes to plan a specific route for the tunnel. You can configure FRR protection and the QoS function for an RSVP TE tunnel. Therefore, an RSVP tunnel is more flexible and safer than a static CR tunnel. LDP: You only need to specify the ingress and egress nodes for an LDP tunnel. Then, the LDP protocol sets up a route for the tunnel. An LDP tunnel functions on the network that supports the MPLS domain and thus is more flexible.
IP Tunnel
If ATM or CES emulation service that travels through an IP network is required, the PTN equipment can use the IP tunnel to carry the service. Figure 3-2 shows the protocol stack model of the ATM service. In the case of the IP tunnel, the situation is similar to that where "IP header" replaces the MPLS external label (MPLS tunnel label) to establish a tunnel in the IP network. An ATM emulation service can be provided between NE A and NE B, even though the IP network between NE A and NE B does not support the MPLS. Figure 3-2 ATM PWE3 over IP tunnel
ATM switch PTN Router Router PTN ATM switch
IP network NE A
ATM E1/STM-1 ATM PWE3 PW Label IP Ethernet ATM PWE3 PW Label IP Ethernet
NE B
ATM E1/STM-1
3.1.2 Standards and Protocols Compliance of the Tunnel

This topic describes the standards Compliance and the two protocols that the tunneling technology uses. They are the MPLS-LDP protocol and the MPLS-RSVP protocol.
MPLS-RSVP Protocol
Multi-protocol label switch resource reservation protocol (MPLS-RSVP) supports the distribution of MPLS labels. In addition, when transmitting the label binding message, it carries
3 Managing Tunnel
the resource reservation information, used as a signaling protocol to create, delete or modify the tunnel in the MPLS network. Basic Concepts of the MPLS-RSVP The MPLS-RSVP is a notification mechanism of the resource reservation in the network, which realizes the bandwidth reservation on the control plane. As a label distribution protocol, it is used to set up the LSP in the MPLS network. For details of the MPLS-RSVP extension, refer to RFC3209. Resource Reservation Style The LSP set up by using the MPLS-RSVP is of a certain reservation style. When the RSVP session is set up, the receive end determines which reservation style to be used, and thus determines which LSP to be used.
l
Fixed-filter (FF) style: When this style is used, resources are reserved for each transmit end individually. Thus, transmit ends in the same session cannot share the resources with each other. Shared-explicit (SE) style: When this style is used, resources are reserved for all transmit ends in the same session. Thus, transmit ends can share the resources.
NOTE
Currently, OptiX equipment supports only the SE resource reservation style.
MPLS-RSVP Message Type The MPLS-RSVP uses the following message types:
l
Path message: The transmit end sends this type of message in the transmission direction of data packets. In addition, the path state is saved on all the nodes along the trail. Resv message: The receive end sends this type of message in the reverse transmission direction of data packets. In addition, the resource reservation is requested, and the reservation state is created and maintained on all the nodes along the trail.
Parameters of the MPLS-RSVP State Timer The parameters of the MPLS-RSVP state timer include the refreshing period of the Path or Resv message, multiple of the path state block (PSB) timeout and reservation state block (RSB) timeout. In the case of the creation of the LSP, the transmit end adds the LABEL_REQUEST object to the Path message. When the receive end receives the Path message with the LABEL_REQUEST object, it distributes one label and adds the label to the LABEL object of the Resv message. The LABEL_REQUEST object is saved in the PSB of the upstream node, and the LABEL object is saved in the RSB of the downstream node. When the message indicating that the number of message refreshing times exceeds the multiple of the PSB or RSB timeout is not continuously received, the corresponding state in the PSB or RSB is deleted. Assume that there is a resource reservation request, which does not pass the access control on some nodes. In some cases, this request is not supposed to be immediately deleted, but it cannot stop other requests from using its reserved resources. In this case, the node enters the blockade state, and the blockade state block (BSB) is generated on the node of the downstream. When the message indicating that the number of the message refreshing times exceeds the multiple of the PSB or RSB timeout is continuously received, the corresponding state in the BSB is deleted.
3-4 Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. Issue 01 (2010-08-16)
3 Managing Tunnel
MPLS-LDP Protocol
The multi-protocol label switch label distribution protocol (MPLS-LDP) is used for the label switched routers (LSR) to distribute labels in the network. MPLS-LDP Peer Entities The MPLS-LDP peer entities refer to two NEs, where LDP session exists, use the MPLS-LDP to exchange labels mapping relation. MPLS-LDP Session The MPLS-LDP session is used to exchange label mapping and releasing messages between different equipment. The MPLS-LDP session consists the following two types:
l
Local MPLS-LDP session, in which the two NEs used to set up the session is directly connected. Remote MPLS-LDP session, in which the two NEs used to set up the session is not directly connected.
MPLS-LDP Message Types The MPLS-LDP protocol mainly uses the following four types of messages:
l
Discovery message, which is used to notify and maintain the existence of the equipment in the network. Session message, which is used to set up, maintain and end the session between MPLSLDP peer entities. Advertisement message, which is used to create, change and delete the label mapping. Notification message, which is used to provide the constructive message and error notification.
l l
Standards and Protocols Compliance

The tunneling technology is mainly compliant with the following:
l l l l l
ITU-T G.8110 MPLS layer network architecture ITU-T G.8110.1 Application of MPLS in the transport network ITU-T G.8121 Characteristics of transport MPLS equipment functional blocks RFC 3031 MPLS architecture RFC 3032 MPLS label stack encoding
3.1.3 Principles
Multi-protocol label switching (MPLS) is a tunnel technology and enables a routing and switching platform that integrates the switching and forwarding technologies of labels and network-layer routing technologies. In the MPLS architecture, the control plane is connectionless and uses the powerful and flexible routing function of the IP network to meet the network requirements of new application; the data plane is connection-oriented and uses short and fixed-length labels to encapsulate packets for implementation of fast forwarding.
Basic Concepts of the Tunnel

This topic describes basic concepts of the tunnel.
3 Managing Tunnel
FEC Forwarding equivalence class (FEC) is a class of packets that are forwarded in the same way on an MPLS network. Label Label is a short and length-fixed identifier. The label identifies the FEC that a packet belongs to and functions only in the MPLS domain. One FEC may involve multiple labels but one label can only indicate one FEC. LDP Label distribution protocol (LDP) is the control protocol for MPLS. Similar to the signaling protocol of a traditional network, the LDP protocol is responsible for creation and maintenance of LSPs and PWs, FEC classification, and label distribution. MPLS can use the following label distribution protocols:
l l
Protocols exclusive for label distribution, such as LDP. Existing protocols extended to support label distribution, such as RSVP-TE.
LSP On an MPLS network, the trail that an FEC traverses is a label switched path (LSP), that is, a unidirectional trail from the ingress to egress. LSPs are classified into static LSPs and dynamic LSPs. Static LSPs should be manually configured and dynamic LSPs are dynamically generated by the LDP protocol. LSR Label switching router (LSR) is the basic element in an MPLS domain. All LSRs support the MPLS protocol. Each node on an LSP is an LSR. An edge LSR (LER) is at the edge of an MPLS domain and connects to other user networks. The core LSR is in the center of an MPLS domain. Packets travel along an LSP and enter an MPLS domain. The incoming LER is the ingress, the outgoing LER is the egress, and the intermediate nodes are the transit nodes. An LSR consists of the control unit and forward unit.
l
The control unit is responsible for label distribution, route selection, setup of label forward tables, and setup and removal of LSPs. The forward unit forwards received packets according to the label forward tables.
NHLFE Next hop label forwarding entry (NHLFE) describes the operations that an LSR performs on labels, including push, swap, and pop.
Working Principles
This topic describes how to create a tunnel and the working principles of a tunnel.
Process of Creating a Tunnel

Figure 3-3 shows the process of creating a tunnel. Meanwhile, the working principles of a tunnel are described.
3 Managing Tunnel
Figure 3-3 Process of creating a tunnel

Ingress node Label request packet Label mapping packet Set up the forward entry Transit node Label request packet Label mapping packet Allocate the ingress label and set up the forward entry Egress node
Allocate the ingress label and set up the forward entry
A tunnel is created as follows: 1. 2. 3. 4. 5. The ingress node uses the encapsulation protocol to calculates a path to the egress node and transmits a label request packet to the egress node in the direction of the path. After receiving the label request packets, the transit node forwards them to the egress node. After receiving the label request packet, the egress node allocates an ingress label for the tunnel, sets up a forward entry, and transmits a label mapping packet to the ingress node. After receiving the label mapping packet, the transit node allocates an ingress label for the tunnel, sets up a forward entry, and forwards the label mapping packet to the ingress node. After receiving the label mapping packet, the ingress node sets up a forward entry. The tunnel is created successfully between the ingress node and egress node.
Working Process of a Tunnel

Figure 3-4 shows the working process of a tunnel. Figure 3-4 Working process of a tunnel
Tunnel
IMA E1 FE ATM STM-1
Ingress node MPLS Tunnel Packet FEC Push
Transit node
Egress IMA E1 node FE ATM STM-1
Swap PW
Pop
At each LSR, the LDP protocol and traditional routing protocol work together to set up the route table and label mapping table for the FEC as required. Each LSR node receives packets and performs the NHLFE operations for the packets:
l
Push: The ingress node receives packets and checks for the FEC that the packets belong to. Then, the ingress node adds labels on the packets and transmits the encapsulated MPLS packets to the next hop through the egress interface.
Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. 3-7
Issue 01 (2010-08-16)
3 Managing Tunnel
l
Swap: A transit node uses the forward unit to forward the packets only according to packet labels and the label forward table. A transit node does not perform any Layer 3 operation for the packets. Pop: The egress node stripes the labels from the packets and forwards the packets.
Tunnel Protection Group

Automatic protection switching (APS) of the MPLS tunnel is a network protection mechanism. The protection MPLS tunnel protects the services transmitted in the working MPLS tunnel. When the working MPLS tunnel is faulty, the services are switched to the protection MPLS tunnel. In this way, the services transmitted in the working tunnel are protected. OptiX PTN equipment supports the 1+1 and 1:1 APS protection of the MPLS tunnel.
Basic Information
APS (Automatic Protection Switching) The automatic protection switching (APS) protocol is used to coordinate actions of the source and the sink in the case of bidirectional protection switching. By the APS protocol, the source and the sink cooperate with each other to perform functions such as protection switching, switching delay, and WTR function. According to ITU-T Y.1720, the source and the sink both need to select channels in the APS. In this case, the APS protocol is required for coordination. In the case of bidirectional protection switching, the APS protocol needs to be used regardless of the revertive mode. The APS protocol is always transmitted through the protection tunnel. Then, the equipment at either end knows that the tunnel from which the APS protocol is received is the protection tunnel of the opposite end and thus to determine whether the configuration about the working tunnel and the protection tunnel is consistent at the two ends. Switching Mode MPLS APS provides two switching modes, that is, single-ended switching and dual-ended switching. In the case of single-ended switching, when one end detects a fault, it only performs switching on the local end and does not instruct the opposite end to perform any switching. In the case of dual-ended switching, when one end detects a fault, it performs switching on the local end and also instructs the opposite end to perform switching. Single-ended switching does not require the APS protocol for negotiation and it features rapid and stable switching. Dual-ended switching ensures that the services are transmitted in a consistent channel, which facilitates service management. Revertive Mode The MPLS APS function supports two revertive modes, that is, revertive mode and non-revertive mode. In the non-revertive mode, services are not switched from the protection tunnel to the working tunnel even the working tunnel is restored to the normal state. In the revertive mode, services are switched from the protection tunnel to the original working tunnel if the working tunnel is restored to the normal state within the WTR time.
3 Managing Tunnel
WTR Time The WTR time refers to the period from the time when the original working tunnel is restored to the time when the services are switched from the protection tunnel to the original working tunnel. In certain scenarios, the state of the working tunnel is unstable. In this case, setting the WTR time can prevent frequent switching of services between the working tunnel and the protection tunnel. By default, the WTR time of the equipment is 5 minutes. Hold-off Time The hold-off time refers to the period from the time when the equipment detects a fault to the time when the switching operation is performed. When the equipment is configured with the MPLS APS protection and other protection, setting the hold-off time can ensure that other protection switching operations are performed first. By default, the hold-off time of the equipment is 0s.
Application of the Tunnel Protection

The MPLS tunnels of the same type are created in one tunnel protection group. In this way, 1 +1 or 1:1 protection is provided to these MPLS tunnels. If the working MPLS tunnel fails, the Tunnel protection group ensures that services can still normally run. By using the U2000, the user can configure 1+1 or 1:1 protection for MPLS tunnels that carry important services. Figure 3-5 shows the protection principle for unicast tunnels. Figure 3-5 Principles of the tunnel protection
CE CE Working tunnel
Ingress node
Protection tunnel
Egress node
Configuration of source protection group
Configuration of sink protection group
Issue 01 (2010-08-16)
3-9
3 Managing Tunnel
Application of the Tunnel

As the carrier of PWs in the network, the MPLS Tunnel provides the service tunnel to transmit service packets. The MPLS Tunnel can carry various services, such as CES services, ATM/IMA services, Ethernet service and protocol packets. The MPLS Tunnel is mainly used for transparent transmission of point-to-point data service packets.
Transparent Transmission of Point-to-Point Data Packets

Commonly, the tunnel is used to provide a point-to-point channel for services such as EPL service. In this way, PEs on a PTN network can transparently transmit services. Figure 3-6 shows how point-to-multipoint data packets are transparently transmitted on a network. Figure 3-6 Transparent transmission of point-to-point data packets
Third-party IP network
Node B PE RSVP TE network MPLS network
PE
RNC
IP tunnel Static CR tunnel RSVP TE tunnel LDP tunnel
An edge node on one network receives services from Node B, and transmits the services to the RNC connected to another PE. In this case, a point-to-point MPLS tunnel can be used. The application scenarios of different tunnels are as follows:
l
When an IP tunnel transmits services, the service can be transparently transmitted on a third-party IP network. Therefore, IP tunnels are used mainly when the services that the PTN equipment transmits need to be transparently transmitted on a third-party IP network. When a static CR tunnel transmits services, the service can be transparently transmitted on an entire MPLS network. Therefore, static CR tunnels are used mainly when high QoS is not required and the routes are specified. When an RSVP TE tunnel transmits services, the service can be transparently transmitted on an entire RSVP TE network. RSVP TE tunnels are used when high QoS and resource usage are required on a network. When an LDP tunnel transmits services, the service can be transparently transmitted on an entire MPLS network. LDP tunnels are widely used on MPLS VPNs. To prevent traffic congestion on a certain node of a VPN, you can configure the LDP over RSVP feature.
Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. Issue 01 (2010-08-16)
3-10
3 Managing Tunnel
That is, the LSP of an LDP tunnel traverses the RSVP TE domain and thus the LDP tunnel can transmit VPN services. When all the preceding tunnels traverse the third-party equipment, you can set the third-party equipment as a virtual node to ensure that the tunnels are created properly.
3.2 Tunnel Configuration Flow

This section describes the operation tasks for configuring the Tunnel, and relations among these tasks. When configuring and managing the Tunnel, follow the configuration flow. Configure and manage Tunnels by following the configuration flow shown in Figure 3-7. Figure 3-7 Tunnel configuration flow
Required Optional Creating Network Start
Configure the network-side interface
Configure the LSR ID
Configure the control plane
Create the Tunnel
End
For the detailed configuration tasks shown in Figure 3-7, see Table 3-1. Table 3-1 Tunnel configuration tasks Task 1. Create Network 2. Configure the network-side interface Remarks To create a network, you need to create NEs, configure NE data, create fibers and crate level 2 link. Set the general attributes and Layer 3 attributes (tunnel enable status and IP address) for interfaces to carry the tunnel carrying.
3-11
Issue 01 (2010-08-16)
3 Managing Tunnel
Task 3. Configure the LSR ID
Remarks Specifies the LSR ID for each NE that a service traverses and the start value of the global label space. Each LSR ID is unique on a network. Set the protocol parameters related to the control plane to create the tunnel.
l
4. Configure the control plane
When you create a static CR tunnel to carry services, you do not need to set the parameters relevant to the control plane but you need to manually add labels. When you create an RSVP TE tunnel to carry services, the LDP automatically distributes labels. In this case, you need to set the parameters relevant to the control plane. 1. Set the IGP-ISIS protocol parameters. 2. Set the MPLS-RSVP protocol parameters.
When you create an LDP Tunnel to carry services, the LDP automatically distributes labels. In this case, you need to set the parameters relevant to the control plane. 1. Set the IGP-ISIS protocol parameters. 2. Create the MPLS-LDP.
When you create an IP tunnel to carry services, the label distribution protocol automatically allocates the forwarding label value. In addition, you need to configure parameters relevant to the control plane. Create a static route table.
NOTE To configure parameters relevant to the control plane, refer to the descriptions of configuring the control plane in the Operation Guide for PTN NE Management.
5. Create the Tunnel
Configure the basic information, equipment list, advanced attributes of the tunnel.
3.3 Configuring a Tunnel

This topic describes how to configure a tunnel, such as creating a tunnel, creating a protection group, deploying a tunnel, viewing discrete tunnels, and deleting a tunnel. 3.3.1 Creating a Tunnel This topic describes how to create a tunnel in the end-to-end mode. You can create a tunnel easily and efficiently. 3.3.2 Creating Tunnels in Batches In certain commonly used networks, the U2000 provides the function of creating tunnels in batches. Currently, you can create only LDP and RSVP-TE tunnels in batches. 3.3.3 Creating a Protection Group
3 Managing Tunnel
This topic describes how to create a tunnel protection group. If a tunnel protection group is created, the services carried over the active tunnel is switched over to the protection tunnel when the working tunnel is faulty. 3.3.4 Automatic Search for Protection Groups This topic describes automatic search for protection groups. With this function, you can recover the protection group existing on the current network to the end to end management module of the NMS for monitoring. In this manner, you can ensure the normal running of these protection group. 3.3.5 Deploying a Tunnel This topic describes how to apply the settings of a tunnel to NEs. 3.3.6 Reoptimizing an RSVP TE Tunnel When you reoptimize a tunnel, the trails of the tunnel are recalculated. 3.3.7 Viewing a Discrete Tunnel To view a discrete tunnel facilitates the management of discrete tunnels. 3.3.8 Checking the Correctness of the Tunnel Configuration After configuring a tunnel, you can check the connectivity of the tunnel by using the Test and Check function. 3.3.9 Perform Tunnel Protection Group Switching On the U2000, you can perform tunnel protection switching.
3.3.1 Creating a Tunnel

This topic describes how to create a tunnel in the end-to-end mode. You can create a tunnel easily and efficiently.
Prerequisite
You must be an NM user with "network operator" authority or higher. You must complete the correct configuration of the port attributes. You must complete the correct setting of the LSR ID for each NE. The control plane must be configured for the RSVP-TE, and IP tunnels.
Procedure
Step 1 Choose Service > Tunnel > Create Tunnel from the main menu.
Issue 01 (2010-08-16)
3-13
3 Managing Tunnel
Step 2 Configure basic information.

NOTE
When you create a reverse tunnel, the U2000 automatically allocates different Tunnel Name to the forward and reverse tunnels. If you manually set Tunnel Name for the forward tunnel, the U2000 automatically set Tunnel Name to Forward Tunnel Name+_Reverse for the reverse tunnel. When "Signaling Type" is set to be Static CR. In this case, if you select Create Reverse Tunnel, the U2000 creates two unidirectional tunnels in two opposite directions. If you select Create Bidirectional Tunnel, the U2000 creates a bidirectional tunnel, which has two opposite directions. When "Signaling Type" is set to be Static CR, You can select the "Create Protection Group", the tunnel and the protection group of tunnel are created at the same time. The "Template" parameter is available only when the "Signaling Type" parameter is set to RSVP TE. You can configure the detailed information of a tunnel by using a template. When you create a RSVP-TE tunnel, you can select the "Configure As Bypass Tunnel" check box to create a bypass protection tunnel. A static CR tunnel is created on the basis of certain constraints. The mechanism for creating and managing those constraints are constraint-based routing (CR). Different from a static tunnel, the establishment of a CR tunnel depends on the routing information and other conditions, for example, the specified bandwidth, the fixed route, and QoS parameters. The PTN supports only the static CR tunnel.
l l l l
Step 3 Configure the NE list. 1. Select the source and sink NEs or the transit NE and configure the NE location in a tunnel in the NE Role column. You can select an NE in the following methods:
l
Manner 1: In the physical topology in the upper right pane, select the required NE, rightclick and choose Add from the shortcut menu. Manner 2: In the physical topology in the upper right pane, double-click the required NE. Manner 3: a. Click Add and select NE from the drop-down list.
3-14
3 Managing Tunnel
b.
In the dialog box that is displayed, select the required NE and click OK.
NOTE
In the case of an RSVP-TE, LDP, or IP tunnel, you need to specify only the source and sink nodes of the tunnel. In the case of a static CR tunnel, you need to specify the source node, sink node, and transit nodes of the tunnel. You can choose Add and select Virtual Node from the drop-down list to specify virtual nodes through which a tunnel travels. A virtual node simulates an NE beyond the management range of the U2000. The virtual node is used for creating a tunnel whose source NE is on the U2000 but the sink NE is not on the U2000.
2.
Optional: In the case of a static CR tunnel. Set the route calculation for the U2000 as follows: a. b. c. Select Auto-Calculate route. Then, the U2000 automatically calculates the routes for a tunnel after you finish steps 2 and 3. Set Restriction Bandwidth(Kbit/s) and specify the source and sink nodes. Specify route constraint. Specifically, you can click Route Restriction and specify route constraint in the dialog box that is displayed. Alternatively, you can specify the explicit and excluded restriction through shortcut menu items in the physical topology.
NOTE
You can set NEs or ports as route constraints as required.
d.
If you do not select Auto-Calculate route, you can click Calculate Route to calculate the routes for a tunnel in the U2000.
NOTE
A layer 2 link must be configured before route calculation, refer the chapter of topology management to configure the layer 2 link. By default, the shortest route is selected from the routes that are calculated according to Restriction Bandwidth(Kbit/s) and route constraints.
You select Create Protection Group and click Configure Protection Group to configure parameters relevant to the protection group. Step 4 Click Details to configure details of the tunnel.
NOTE
l l l
It is recommended that you configure details of an RSVP-TE tunnel by using a template. In the case of a static CR tunnel, Next Hop is the IP address of the ingress port of the next node in the direction of the tunnel. In the case of a static CR tunnel, double-click Out Interface or In Interface. In the dialog box that is displayed, select an interface and click Configure to configure the attributes of the interface or click Add Virtual Interface to create Ethernet virtual interface.
Step 5 Optional: In the case of static CR tunnel, if you select Create Protection Group, you can click Configure Protection Group to configure parameters relevant to the protection group and click Configure OAM to configure OAM parameters relevant to the protection group. Step 6 Select the Deploy check box and click OK.
Issue 01 (2010-08-16)
3-15
3 Managing Tunnel
NOTE
If you clear the Deploy check box, the configuration data information is stored only on the U2000. If you select the Deploy check box, the configuration data information is stored on the U2000 and applied to NEs. By default, the Deploy check box is selected. When you select the Deploy and Enable check box, A tunnel is available on NEs only when it is enabled.
----End
3.3.2 Creating Tunnels in Batches

In certain commonly used networks, the U2000 provides the function of creating tunnels in batches. Currently, you can create only LDP and RSVP-TE tunnels in batches.
Prerequisite
You must be an NM user with "network operator" authority or higher. Configuration of the port attributes must be correct. Settings of the LSR ID for each NE must be correct. Configuration of the control plan for each NE must be correct.
Procedure
Step 1 Choose Service > Tunnel > Batch Create Tunnel from the main menu.
Step 2 Configure basic information. In the Basic Information field, set the Network Type, Protocol Type and Signaling Type parameters.
3-16
Issue 01 (2010-08-16)

NOTE
3 Managing Tunnel
Currently, the U2000 supports the following networking modes:

l l l
1. Full-Mesh: The equipment is bidirectionally and fully connected. 2. Hub-Spoke: All spoke nodes and hub nodes are directionally connected. In addition, the hub nodes are bidirectionally and fully connected. 3. Ring: Bidirectional connections are generated based on rings.
You can set the Template parameter when the Signaling Type parameter is set to RSVP TE.
Step 3 Configure the NE list. 1. Select the source and sink NEs or the transit NE and configure the NE location in a tunnel in the NE Role column. You can select an NE in the following manners:
l
Manner 1: In the physical topology in the upper right pane, select the required NE, rightclick and choose Add from the shortcut menu. Manner 2: In the physical topology in the upper right pane, double-click the required NE. Manner 3: a. b. Click Add and select NE from the drop-down list. In the dialog box that is displayed, select the required NE and click OK.
2.
Optional: You can set the NE Role parameter when the Network Type parameter is set to Hub-Spoke.
Step 4 Click Auto-Assign. Then, the U2000 automatically assigns IDs to the tunnels created in batches.
NOTE
You can also enter tunnel IDs.
Step 5 Configure details of tunnels.

l
In the case of RSVP-TE tunnels, set the General, TE Information, Trail Information, Protection Attribute, QoS Information, and Advance Information parameters. In the case of LDP tunnels, set the EXP parameter.
Step 6 Select the Deploy check box and click OK.

NOTE
If you select the Deploy check box, the tunnel information is stored on the U2000 and applied to NEs. By default, the Deploy check box is selected. When you select the Deploy and Enable check box, A tunnel is available on NEs only when it is enabled.
----End
3.3.3 Creating a Protection Group

This topic describes how to create a tunnel protection group. If a tunnel protection group is created, the services carried over the active tunnel is switched over to the protection tunnel when the working tunnel is faulty.
Prerequisite
You must be an NM user with "network operator" authority or higher.
3 Managing Tunnel
The working and protection tunnels of an MPLS tunnel must be created.
Context
Figure 3-8 shows the window for creating a tunnel protection group. Figure 3-8 The figure of tunnel protection group
Precautions:
l
The MPLS APS protection must not be coupled with the FRR, LMSP, LAG, and microwave 1+1 protection. The protection tunnel should not carry any extra service.
Procedure
Step 1 Choose Service > Tunnel > Create Protection Group from the main menu. Step 2 Configure basic information of a tunnel protection group.
NOTE
If a tunnel protection group is of the 1+1 protection type, services are dually fed on the source and selectively received on the sink. If a tunnel protection is of the 1:1 protection type, services are processed in the single fed single receiving mode. Single-ended switching refers to the scenario wherein only the local end is switched but the peer end is not notified to switch when a fault occurs at one end. Single-ended switching does not negotiate by using negotiation packets. Therefore, it is fast and reliable. Dual-ended switching refers to the scenario wherein the local end is switched and the peer end is notified to switch when a fault occurs at one end. In the case of dual-ended switching, the come-and-go path of a service is the same. This facilitates service management.
Step 3 Click Add. In the dialog box that is displayed, select the working tunnel and the protection tunnel and click OK. Step 4 Optional: Select a required tunnel, click Configure OAM, and then configure the OAM information of the tunnel. An OAM packet is used to detect the connectivity of a link. When a fault occurs on the working tunnel, services are switched to the protection tunnel.
3 Managing Tunnel
NOTE
By default, the OAM status is enabled for the protection tunnel, to ensure that the duration of switching to the protection tunnel is less than 50 ms, set the detect type to FFD and the frequency to 3.3. It is optional to configure OAM. If you do not configure it, the U2000, by default, enables the OAM of the tunnel protection group when you configure the tunnel protection group. You can set other OAM parameters only when you set OAM Status to Enabled. You can set Detection Packet Type and Detection Packet Period(ms) only when you set Detection Mode of the sink to Manual. The value of SF Threshold must be equal to or greater than the value of SD Threshold.
Step 5 Configure attributes of the tunnel protection group. Step 6 Choose Deploy. Click OK. ----End
3.3.4 Automatic Search for Protection Groups

This topic describes automatic search for protection groups. With this function, you can recover the protection group existing on the current network to the end to end management module of the NMS for monitoring. In this manner, you can ensure the normal running of these protection group.
Issue 01 (2010-08-16)
3-19
3 Managing Tunnel
Prerequisite
Procedure
Step 1 Choose Service > Tunnel > Search for Protection Group from the main menu. Step 2 In the dialog box that is displayed, click Add, select required equipment, and then click OK. Step 3 Click OK. A dialog box is displayed indicating the number of protection groups. Step 4 Click OK in the Prompt dialog box. ----End
3.3.5 Deploying a Tunnel

This topic describes how to apply the settings of a tunnel to NEs.
Prerequisite
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a tunnel whose settings are not applied to NEs and choose Deploy from the shortcut menu.
3-20
Issue 01 (2010-08-16)
3 Managing Tunnel
Step 4 Click Close in the dialog box displayed. ----End
3.3.6 Reoptimizing an RSVP TE Tunnel

When you reoptimize a tunnel, the trails of the tunnel are recalculated.
Prerequisite
You must be an NM user with "network operator" authority or higher. Only deployed RSVP TE tunnels can be reoptimized.
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click the required tunnel and choose Reoptimize from the shortcut menu. The Reoptimization dialog box is displayed. Step 4 Click Add or Delete to set the route constraints for the reoptimization of the tunnel.
NOTE
When you reoptimize a tunnel, the service may be interrupted.
Step 5 Click OK. In the dialog box that is displayed, click OK. Step 6 Right-click the tunnel and choose View LSP Topology from the shortcut menu to view the actual route of the tunnel after optimization. ----End
3.3.7 Viewing a Discrete Tunnel

To view a discrete tunnel facilitates the management of discrete tunnels.
Prerequisite
You must be an NM user with "network operator" authority or higher. A discrete tunnel must exist on the U2000.
Procedure
Step 1 Choose Service > Tunnel > Manage Discrete Tunnel from the main menu. Step 2 Click Filter Criteria. In the dialog box that is displayed, set filtering criteria and click Filter. Step 3 On the discrete tunnel management window, select a discrete tunnel, click the corresponding tab to view details. Step 4 Optional: Select a discrete tunnel, click Delete button and click Yes in the dialog box displayed. ----End
3 Managing Tunnel
3.3.8 Checking the Correctness of the Tunnel Configuration

After configuring a tunnel, you can check the connectivity of the tunnel by using the Test and Check function.
Prerequisite
The tunnel must be deployed.
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a service and choose Test and Check from the shortcut menu. Step 4 In the window that is displayed, select the trail to be checked. Step 5 Set Diagnosis Option. Set diagnosis parameters based on the requirements of operation and maintenance. The meaning of each option is as follows: 1. 2. 3. Service Check:to check the connectivity of a static CR tunnel, you can verify that the labels of the NEs that the tunnel traverses are consistent. OAM Tool: check the connectivity by performing the ping operation on each layer. Tracert: location is used to find out the fault position.
Step 6 Click Run. Step 7 View the running results. ----End
3.3.9 Perform Tunnel Protection Group Switching

On the U2000, you can perform tunnel protection switching.
Prerequisite
You must be an NM user with "network operator" authority or higher. You must complete the creation of the tunnel protection group and you must have enable the protocol status.
Context
l
1+1 protection Services are transmitted over the working tunnel and protection tunnel at the same time. Then, the receive end selects a tunnel according to the status of the two tunnels and receives the services from the tunnel. That is, the services are dually fed and selectively received. When the receive end detects loss of signals over the working tunnel or when the working
3-22
Issue 01 (2010-08-16)
3 Managing Tunnel
tunnel is detected as faulty by the MPLS OAM, the receive end receives the signals from the protection tunnel. In this manner, the services are switched.
l
1:1 protection Normally, services are transmitted over the working tunnel. That is, the services are singly fed and received. When the working tunnel is faulty, the equipment at the two ends negotiates through the APS protocol. Then, the transmit end transmits the services over the protection tunnel and the receive end receives the services from the protection tunnel. In this manner, the services are switched.
CAUTION
When other switching operations, excluding the exercise switching, are performed, the services may be interrupted.
Procedure
Step 1 Choose Service > Tunnel > Manage Protection Group from the main menu. Step 2 Check the switching status of the tunnel protection group. Right-click the protection group under test, and choose Query Switching Status from the shortcut menu to refresh the status of the tunnel protection group. Step 3 Optional: When the Protocol Status is Disabled for the protection group, click Hop Information tab, set Protocol Status to Enabled for the device of protection group, click Apply.
NOTE
When the Protocol Status is Enabled, you can perform tunnel protection switching.
Step 4 Perform tunnel protection group switching. 1. 2. 3. 4. 5. 6. Optional: Right-click the protection group under test, and choose Switch > Clear. Optional: Right-click the protection group under test, and choose Switch > Force Switching. Optional: Right-click the protection group under test, and choose Switch > Manual Switching To Working. Optional: Right-click the protection group under test, and choose Switch > Manual Switching To Protection. Optional: Right-click the protection group under test, and choose Switch > Exercise Swtiching. Optional: Right-click the protection group under test, and choose Switch > Lockout of Protection.
Step 5 Repeat step 2, Query the switching status of the protection group. ----End
3.4 Monitoring a Tunnel

This topic describes how to monitor a tunnel to facilitate tunnel services management.
3 Managing Tunnel
3.4.1 Configuring OAM for a Tunnel This topic describes how to configure OAM for a tunnel. 3.4.2 Viewing the VPN Service Carried on a Tunnel TAfter viewing VPN services that are transmitted in a tunnel, you can conveniently manage the tunnel and the VPN services. 3.4.3 Viewing the Topology of a Tunnel This topic describes how to view the tunnel topology. By viewing the topology of a tunnel, you can learn the topology structure and running status of the tunnel in real time 3.4.4 Viewing the Performance of a Tunnel This topic describes how to view the performance of a tunnel. 3.4.5 Viewing the Alarms of a Tunnel This topic describes how to view the alarms of a tunnel. 3.4.6 Monitoring the Running Status of a Tunnel By using this function, you can view the running status of a tunnel in real time. 3.4.7 Viewing the LSP Topology of a Tunnel This topic describes how to view the LSP topology of a tunnel. To view the actual routing information of a tunnel, you can perform this operation. 3.4.8 Diagnosing a Tunnel This topic describes how to diagnose a tunnel by performing the LSP ping and LSP tracert tests.
3.4.1 Configuring OAM for a Tunnel

This topic describes how to configure OAM for a tunnel.
Prerequisite
l l l
You must be an NM user with "network operator" authority or higher. The running status of RSVP TE tunnel is UP. OAM cannot be configured for an IP and LDP tunnel.
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a required tunnel and choose OAM > Configure OAM from the shortcut menu. Step 4 In the dialog box that is displayed, set OAM parameters of the tunnel.
3-24
Issue 01 (2010-08-16)
3 Managing Tunnel
Step 5 Click OK. Step 6 Select one or more tunnel, right click and choose OAM > Enable OAM to enable the OAM of tunnel. ----End
3.4.2 Viewing the VPN Service Carried on a Tunnel

TAfter viewing VPN services that are transmitted in a tunnel, you can conveniently manage the tunnel and the VPN services.
Prerequisite
You must be an NM user with "NM monitor" authority or higher.
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu.
Issue 01 (2010-08-16)
3-25
3 Managing Tunnel
Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a required tunnel and choose View VPN from the shortcut menu.
NOTE
You can view the VPN service of only one tunnel at a time. You can view the end-to-end services that are transmitted in a tunnel, but not the discrete services that are transmitted in the tunnel.
Step 4 View information of the VPN service carried on the tunnel in View VPN window. Step 5 Optional: Select a required VPN service, click View Details. In the relevant service management window, you can view or modify parameters of the VPN service. ----End
3.4.3 Viewing the Topology of a Tunnel

This topic describes how to view the tunnel topology. By viewing the topology of a tunnel, you can learn the topology structure and running status of the tunnel in real time
Prerequisite
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Select a required tunnel and view the topology of the tunnel. Perform the following operations as required.
l
In the topology, right-click an NE and choose View Real-Time Performance or NE Explorer from the shortcut menu. In the topology, right-click a link and choose Fast Diagnose, View VPN, View LSP Topology, or Alarm from the shortcut menu.
NOTE
You can view the real-time performance of only the tunnels that are in the deployed states. You can view the LSP topology of the RSVP TE tunnel that is in the UP running state.
Step 4 Optional: On the window for creating a tunnel, click the Service Topology tab to view topology information of the new tunnel. Step 5 Optional: In the Main Topology, click Current View, select Tunnel View from the drop-down list, and then view the topology of the tunnel in the network-side tunnel topology view. ----End
3.4.4 Viewing the Performance of a Tunnel

This topic describes how to view the performance of a tunnel.
3 Managing Tunnel
Prerequisite
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 View the runtime performance of a tunnel. Right-click the NE and choose View Real-Time Performance from the shortcut menu in the topology view. Step 4 Create a monitoring instance for a tunnel. For details, refer to the chapter of monitoring instance management in Performance Management System (PMS). Step 5 View the history performance of a tunnel. Right-click a required tunnel and choose Performance > View History Data from the shortcut menu. ----End
3.4.5 Viewing the Alarms of a Tunnel

This topic describes how to view the alarms of a tunnel.
Prerequisite
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 View the Alarm Status parameter of a tunnel. Step 4 Right-click a required tunnel and choose Alarm > View Current Alarm from the shortcut menu to view current alarms of the tunnel. Step 5 Right-click a required tunnel and choose Alarm > View History Alarm from the shortcut menu to view history alarms of the tunnel. ----End
3.4.6 Monitoring the Running Status of a Tunnel

By using this function, you can view the running status of a tunnel in real time.
Prerequisite
3 Managing Tunnel
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click the tunnel and select Update Running Status, view the Running Status parameter of a tunnel. ----End
3.4.7 Viewing the LSP Topology of a Tunnel

This topic describes how to view the LSP topology of a tunnel. To view the actual routing information of a tunnel, you can perform this operation.
Prerequisite
You must be an NM user with "NM monitor" authority or higher. The RSVP-TE tunnel and the LDP tunnel must support this operation and the running status of tunnel is UP. The function of viewing a tunnel must be supported.
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a required tunnel and choose View LSP Topology from the shortcut menu. Click the link in the dialog box that is displayed, view the actual routing information of the tunnel. ----End
3.4.8 Diagnosing a Tunnel

This topic describes how to diagnose a tunnel by performing the LSP ping and LSP tracert tests.
Prerequisite
You must be an NM user with "network operator" authority or higher. In the case of a static CR tunnel, the IS-IS protocol must be enabled on the source and sink ports of an MPLS tunnel. Alternatively, a diagnose test must be initiated at the local NE and a static route in control plane must be configured on the opposite NE.
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area.
3 Managing Tunnel
Step 3 Configure a scheduled test. 1. 2. 3. 4. 1. 2. 3. Right-click a required tunnel and choose Diagnose > Create Test Suite from the shortcut menu. Select the Select check box and click Next. Select the LSP Ping check box and click Details. In the dialog box that is displayed, set advance test parameters and click OK. Set parameters in the Test Time field, click Add, and then click Finish. Right-click a required tunnel and choose Diagnose > View Test Strategy from the shortcut menu. Click Condition. In the dialog box that is displayed, set relevant criteria and click OK. Click Query. Select a record and click Task Information and Associated Test Suite to view relevant information. Right-click a required tunnel and choose Diagnose > View Test Result from the shortcut menu. Click Query to view the result of a scheduled test. Optional: Click Export Result to export the result of the scheduled test to local computer.
NOTE
Step 4 View the test strategy.
Step 5 View the result of a scheduled test. 1. 2. 3.
The result of a scheduled test can be exported in a .cvs, .html, .xls, .pdf or .txt file.
Step 6 Configure a manual test. 1. 2. 3. 4. Right-click a required tunnel and choose Test and Check from the shortcut menu. Optional: Select the LSP Ping or ICMP Ping check box and click box that is displayed, set parameters of the ping test and click OK. . In the dialog
. In the Optional: Select the LSP Tracert or ICMP Tracert check box and click dialog box that is displayed, set parameters of the LSP tracert test and click OK. Click Run and view the test result on the right pane.
----End
3.5 Tunnel Configuration Example

This topic describes configuration examples of creating tunnels in the end-to-end mode. In addition to the examples, the configuration flow diagrams are provided for you to learn the service configuration processes. A configuration example describes a networking scenario and the corresponding process of creating a tunnel on an actual network. A configuration example includes information about the configuration networking diagram, service planning, and configuration process. 3.5.1 Configuration Example (Static CR Tunnel) This topic describes a networking diagram and the corresponding example of configuring a static CR tunnel on the network. 3.5.2 Configuration Example (RSVP TE Tunnel)
3 Managing Tunnel
This topic describes a networking diagram and the corresponding example of configuring a static RSVP TE tunnel on the network. 3.5.3 Configuration Example (IP and LDP Tunnels) This topic describes a networking diagram and the corresponding example of configuring an IP tunnel and an LDP tunnel on the network.
3.5.1 Configuration Example (Static CR Tunnel)

This topic describes a networking diagram and the corresponding example of configuring a static CR tunnel on the network.
Example Description
This topic describes O&M scenarios and networking diagrams. As shown in Figure 3-9, the service between NodeB and RNC is to be carried by static CR tunnels. NE1 accesses the service from NodeB. Then, the service is transmitted to the 10GE ring on the convergence layer through the GE ring on the access layer. Finally, the service is converged at NE3 and transmitted to RNC. If the service requires high network security, configure the MPLS APS protection to ensure service transmission.
l l
Working tunnel: NE1-NE2-NE3. NE2 is a transit node. Protection tunnel: NE1-NE6-NE5-NE4-NE3. NE6, NE5, and NE4 are transit nodes. When the working tunnel becomes faulty, the service on it is switched to the protection tunnel for protection.
Figure 3-9 Networking diagram of an MPLS tunnel
NE4 NE5 NE6 GE ring on access layer NE1 10GE ring on convergence layer
NE2
NE3
RNC
Working Tunnel
NodeB
OptiX PTN 3900
Protection Tunnel
OptiX PTN 1900
NE1 and NE6 are OptiX PTN 1900 NEs. NE2, NE3, NE4 and NE5 are OptiX PTN 3900 NEs. Figure 3-10 shows the planning details of boards on the NE and interfaces on the boards.
3 Managing Tunnel
Figure 3-10 NE planning

1-EX2-1(Port-1) 3-EG16-1(Port-1) 10.0.3.2 10.0.4.2 NE5 4-EFG2-2(Port-2) 10.0.4.1 4-EFG2-1(Port-1) 10.0.5.2 4-EFG2-2(Port-2) 10.0.5.1 NE6 GE ring on access layer NE1 3-EG16-1(Port-1) 10.0.0.2 1-EX2-2(Port-2) 10.0.3.1 NE4 10GE ring on convergence layer 1-EX2-1(Port-1) 10.0.1.2 1-EX2-1(Port-1) NE2 10.0.1.1 1-EX2-2(Port-2) 10.0.2.1 NE3 1-EX2-1(Port-1) 10.0.2.2
4-EFG2-1(Port-1) 10.0.0.1
RNC Working Tunnel
NodeB
Protection Tunnel
OptiX PTN 3900
OptiX PTN 1900
Service Planning
There are services between NodeB and RNC. Two static MPLS tunnels are to be created. One is the working tunnel and the other is the protection tunnel. Then, the services can be securely transmitted on the network. Table 3-2 lists the planned tunnel parameters. Table 3-2 Planning of Tunnel parameters Parameter Tunnel ID Tunnel Name Signaling Type Protocol Type LSP Type EXP Bandwidth (Kbit/s) CBS(byte) PIR(Kbit/s) PBS(byte) MTU
Issue 01 (2010-08-16)
Working Tunnel 100 Working Tunnel Static CR MPLS E-LSP None 10000 10000 20000 20000 1620 101 Working Tunnel_Reverse Static CR MPLS E-LSP None 10000 10000 20000 20000 1620
Protection Tunnel 120 Protection Tunnel Static CR MPLS E-LSP None 10000 10000 20000 20000 1620 121 Protection Tunnel_Reverse Static CR MPLS E-LSP None 10000 10000 20000 20000 1620
3-31
3 Managing Tunnel
Parameter NE Role
Working Tunnel NE1: Ingress NE2: Transit NE3: Egress NE3: Ingress NE2: Transit NE1: Egress NE3
l
Protection Tunnel NE1: Ingress NE6, NE5, NE4: Transit NE3: Egress NE3: Ingress NE4, NE5, NE6: Transit NE1: Egress NE3
l
Ingress Node Route Information
NE1
l
NE1
l
Out Interface: 4EFG2-1 Out Label: 20
Out Interface: 1-EX2-1 Out Label: 21
Out Interface: 4-EFG2-2 Out Label: 22
Out Interface: 1-EX2-2 Out Label: 23
Transit Node Route Information
NE2
l
NE2
l
NE6
l
NE4
l
In Interface: 3-EG16-1 In Label: 20 Out Interface: 1EX2-1 Out Label: 30
In Interface: 1EX2-1 In Label: 21 Out Interface: 3-EG16-1 Out Label: 31
In Interface: 4-EFG2-1 In Label: 22 Out Interface: 4-EFG2-2 Out Label: 32 In Interface: 3-EG16-1 In Label: 32 Out Interface: 1-EX2-1 Out Label: 42 In Interface: 1-EX2-2 In Label:42 Out Interface: 1-EX2-1 Out Label: 52
In Interface: 1-EX2-1 In Label: 23 Out Interface: 1-EX2-2 Out Label: 33 In Interface: 1-EX2-1 In Label: 33 Out Interface: 3-EG16-1 Out Label: 43 In Interface: 4-EFG2-2 In Label: 43 Out Interface: 4-EFG2-1 Out Label: 53
l l
l l
l l
l l
NE5
l
NE5
l
l l
l l
NE4
l
NE6
l
l l
l l
Egress Node Route Information
NE3
l
NE1
l
NE3
l
NE1
l
In Interface: 1-EX2-1 In Label: 30
In Interface: 4EFG2-1 In Label: 31
In Interface: 1-EX2-2 In Label: 52
In Interface: 4-EFG2-2 In Label: 53
3-32
Issue 01 (2010-08-16)
3 Managing Tunnel
Table 3-3 Planning of protection group parameters Parameter Group Name Protection Type Switch Mode Protocol Status Revertive Mode WTR Time(min) Hold-off Time(100ms) Tunnel Type Vlaue Protection Group 1:1 Double-Ended Enabled Revertive 5 0 Forward Working (Working Tunnel) Forward Protecting (Protection Tunnel) Backward Working (Working Tunnel_Reverse) Backward Protecting (Protection Tunnel_Reverse)
Configuration Process
This topic describes how to configure the static CR tunnel.
Prerequisite
You must be an NM user with "network operator" authority or higher. You must understand the networking, requirements and service planning of the example. A network must be created and Allocate IP addresses to ports automatically. Allocating IP addresses to ports automatically refer to Allocating IP Addresses to Ports Automatically.
Procedure
Step 1 Set LSR IDs. 1. 2. In the NE Explorer, select NE1 and choose Configuration > MPLS Management > Basic Configuration from the Function Tree. Set LSR ID, Start of Global Label Space, and other parameters. Click Apply. Parameter LSR ID Example Value NE1: 1.0.0.1 Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network.
3-33
Issue 01 (2010-08-16)
3 Managing Tunnel
Parameter Start of Global Label Space
Example Value 0
Principle for Value Selection Set this parameter according to the network planning.
3.
Display the NE Explorer of NE2, NE3, NE4, NE5, and NE6 separately and perform the preceding two steps to set the parameters, such as LSR ID. Parameter LSR ID Example Value NE2: 1.0.0.2 NE3: 1.0.0.3 NE4: 1.0.0.4 NE5: 1.0.0.5 NE6: 1.0.0.6 Start of Global Label Space 0 Set this parameter according to the network planning. Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network.
Step 2 Create the working tunnel. 1. 2. Choose Service > Tunnel > Create Tunnel from the main menu. Set the basic information about the working tunnel.
Parameter Tunnel Name
Example Value Working Tunnel
Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning.
Issue 01 (2010-08-16)
Protocol Type
MPLS
3-34
3 Managing Tunnel
Parameter Signaling Type
Example Value Static CR
Principle for Value Selection Set this parameter according to the service planning. This parameter is selected when a reverse tunnel needs to be created.
Create Reverse Tunnel
Selected
3.
Configure the NE list. On the physical topology, double-click NE1, NE2, and NE3 to add them to the NE list and set the corresponding NE roles. Parameter NE Role Example Value NE1: Ingress NE2: Transit NE3: Egress Principle for Value Selection An ingress is the incoming node of a network. In this example, NE1 is an ingress node. A transit is a pass-through node. In this example, NE2 is a transit node. An egress is the outgoing node of a network. In this example, NE3 is an egress node. Deploy Selected When this parameter is selected, a tunnel is saved on the U2000 and applied to the corresponding NEs
4.
Click Details to set the advanced parameters of the reverse tunnel. Click OK.
Parameter Tunnel ID
Example Value
l l
Principle for Value Selection Set this parameter according to the service planning.
Forward Tunnel: 100 Reverse Tunnel: 101
Issue 01 (2010-08-16)
3-35
3 Managing Tunnel
Parameter Bandwidth(Kbit/s)
Example Value Forward and Reverse Tunnels: 10000 Forward and Reverse Tunnels: 10000 Forward and Reverse Tunnels: 20000 Forward and Reverse Tunnels: 20000 Forward and Reverse Tunnels: 1620 Forward and Reverse Tunnels: E-LSP Forward and Reverse Tunnels: None Forward Tunnel:
l l
Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Currently, this parameter can be set to E-LSP only. Set this parameter according to the network planning. Set this parameter according to the service planning. Only this parameter needs to be set for only the ingress node and transit node.
CBS(byte)
PIR(Kbit/s)
PBS(byte)
MTU
LSP Type EXP
Out Interface
NE1: 4-EFG2-1 NE2: 1-EX2-1 NE3: 1-EX2-1 NE2: 3-EG16-1
Reverse Tunnel:
l l
Out Label
Forward Tunnel:
l l
NE1: 20 NE2: 30 NE3: 21 NE2: 31
Set this parameter according to the service planning.
Reverse Tunnel:
l l
3-36
Issue 01 (2010-08-16)
3 Managing Tunnel
Parameter In Interface
Example Value Forward Tunnel:

l l
Principle for Value Selection Set this parameter according to the service planning. Only this parameter needs to be set for only the egress node and transit node.
NE2: 3-EG16-1 NE3: 1-EX2-1 NE2: 1-EX2-1 NE1: 4-EFG2-1
Reverse Tunnel:
l l
In Label
Forward Tunnel:
l l
NE2: 20 NE3: 30 NE2: 21 NE1: 31
Set this parameter according to the network planning.
Reverse Tunnel:
l l
Next Hop
Forward Tunnel:
l l
NE1: 10.0.0.2 NE2: 10.0.1.2 NE3: 10.0.1.1 NE2: 10.0.0.1
Reverse Tunnel:
l l
Set this parameter according to the service planning. Only this parameter needs to be set for only the ingress node and transit node.
Step 3 Create the protection tunnel. 1. Create the protection tunnel by referring to Step 2.1 through Step 2.4. Set the basic Information as follows: Parameter Tunnel Name Example Value Working Tunnel Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. This parameter is selected when a reverse tunnel needs to be created.
Protocol Type
MPLS
Signaling Type
Static CR
Selected
Issue 01 (2010-08-16)
3-37
3 Managing Tunnel
Set the node information as follows: Parameter NE Role Example Value NE1: Ingress NE6, NE5, NE4: Transit NE3: Egress Principle for Value Selection An ingress is the incoming node of a network. In this example, NE1 is an ingress node. A transit is a pass-through node. In this example, NE6, NE5, and NE4 are transit nodes. An egress is the outgoing node of a network. In this example, NE3 is an egress node. Deploy Selected When this parameter is selected, a tunnel is saved on the U2000 and delivered to the corresponding NEs
For route details, see the descriptions of route settings in Table 3-2. Step 4 Creating the protection group.
1. 2.
Choose Service > Tunnel > Create Protection Group from the main menu. Configure basic information of a tunnel protection group. Parameter Group Name Example Value Protection Group Principle for Value Selection Set this parameter according to the service planning.
3-38
Issue 01 (2010-08-16)
3 Managing Tunnel
Parameter Protection Type
Example Value 1:1
Principle for Value Selection Set this parameter according to the service planning. This parameter is selected when a reverse tunnel needs to be created.
Switch Mode
Double-Ended
3. 4.
Click Add. In the dialog box that is displayed, select the working tunnel and the protection tunnel and click OK. Configure the type of tunnel. Parameter Tunnel Type Example Value Forward Working (Working Tunnel) Forward Protecting (Protection Tunnel) Backward Working (Working Tunnel_Reverse) Backward Protecting (Protection Tunnel_Reverse) Principle for Value Selection Set this parameter according to the service planning.
5.
Configure attributes of the tunnel protection group, choose Deploy, click OK. Parameter Protocol Status Example Value Enabled Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. This parameter is selected when a reverse tunnel needs to be created. Set this parameter according to the service planning.
Revertive Mode
Revertive
WTR Time(min)
Hold-off Time(100ms)
----End
3 Managing Tunnel
3.5.2 Configuration Example (RSVP TE Tunnel)

This topic describes a networking diagram and the corresponding example of configuring a static RSVP TE tunnel on the network.
Example Description
This topic describes O&M scenarios and networking diagrams. As shown in Figure 3-11, Company A has branches in City 1 and City 2. Real-time service transmission is required between the branches. In this case, an MPLS tunnel can be created to carry the real-time services. Real-time services require high network reliability. Hence, FRR protection should also be configured for the MPLS tunnel between NE1 and NE3.
l l
The NE1-to-NE3 working tunnel is along the NE1-NE2-NE3 trail. NE2 is the transit node. The NE1-to-NE3 bypass tunnel 1 is along the NE1-NE4-NE3 trail. When the NE1-NE2 link fails or the NE2 has a fault, bypass tunnel 1 protects the working tunnel. The NE2-to-NE3 bypass tunnel 2 is along the NE2-NE4-NE3 trail. When the NE2-NE3 link fails, bypass tunnel 2 protects the working tunnel.
Figure 3-11 Networking diagram of an RSVP TE tunnel

NE4
NE1
A Company City1
NE3
A Company City2
NE2
Working Tunnel Bypass Tunnel 1 Bypass Tunnel 2
Figure 3-12 shows the NE planning. NE1 is an OptiX PTN 1900 NE. NE2, NE3 and NE4 are OptiX PTN 3900 NEs.
3-40
Issue 01 (2010-08-16)
3 Managing Tunnel

10.1.3.1 1-EG16-2 10.1.3.2 4-EFG2-2 10.1.4.1 1EG16-3
NE4
10.1.5.2 1-EG16-1 10.1.5.1 1-EG16-2
NE1
A Company 4-EFG2-1 City1 10.1.1.2 1-EG16-1 10.1.1.1 1EG16-3
NE3
10.1.2.1 10.1.4.2 1-EG16-2 1-EG16-1 A Company City2
NE2
10.1.2.2
Working Tunnel Bypass Tunnel 1 Bypass Tunnel 2
Service Planning
The services between the branches of Company A are carried by the working tunnel. Bypass tunnel 1 and bypass tunnel 2 provide FRR protection for the working tunnel. On the NNI side of the NEs, the GE boards are used and a GE ring is built on the boards. Assume that the IP addresses of the ports of NEs are the same as those listed in Table 3-4 after the U2000 automatically allocates the IP addresses of ports. Table 3-4 Configuration parameters of NEs NEs LSR ID Interface 4-EFG2-1(Port-1) 4-EFG2-2(Port-2) 1-EG16-1(Port-1) NE2 1.0.0.2 1-EG16-2(Port-2) 1-EG16-3(Port-3) NE3 1.0.0.3 1-EG16-1(Port-1) 1-EG16-2(Port-2) 1-EG16-1(Port-1) NE4 1.0.0.4 1-EG16-2(Port-2) 1-EG16-3(Port-3) IP Address of the Interface 10.1.1.2 10.1.3.2 10.1.1.1 10.1.2.2 10.1.4.2 10.1.2.1 10.1.5.1 10.1.3.1 10.1.5.2 10.1.4.1 Subnet Mask of the Interface 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252
NE1
1.0.0.1
Since the service bandwidth is 10Mbit/s, the bypass tunnel should have bandwidth more than 10Mbit/s. In addition, the service travels through several NEs. Hence, several bypass tunnels
3 Managing Tunnel
are required to completely protect the tunnel for the service. According to the actual condition, two bypass tunnels are planned for the FRR. Table 3-5 lists the planned parameters of the working tunnel and the two bypass tunnels. Table 3-5 Configuration parameters of Tunnels Parameter Tunnel ID Working Tunnel Positive: 1 Revers: 2 Tunnel Name Protocol Type Signaling Type LSP Type Bandwidth(Kbit/s) Tunnel Source Node Tunnel Sink Node Enable Affinity Positive: Tunnel-0001 MPLS RSVP TE E-LSP 10000 NE1 NE3 Selected (Forward and Reverse Tunnels) 0 (Forward and Reverse Tunnels) 0 (Forward and Reverse Tunnels) IP Address:
l l
Bypass Tunnel 1 Positive: 3 Revers: 4 Positive: Tunnel-0003 MPLS RSVP TE E-LSP 10000 NE1 NE3 Selected (Forward and Reverse Tunnels) 0 (Forward and Reverse Tunnels) 0 (Forward and Reverse Tunnels) IP Address:
l l
Bypass Tunnel 2 Positive: 5 Revers: 6 Positive: Tunnel-0005 MPLS RSVP TE E-LSP 10000 NE2 NE3 Selected (Forward and Reverse Tunnels) 0 (Forward and Reverse Tunnels) 0 (Forward and Reverse Tunnels) IP Address:
l l
Color(0x) Mask(0x) Route Restriction Object (Positive)
NE2: 10.1.1.1 NE3: 10.1.2.1
NE4: 10.1.3.1 NE3: 10.1.5.1
NE4: 10.1.4.1 NE3: 10.1.5.1
Hop Type: Strictly include Route Restriction Object (Revers) IP Address:

l l
Hop Type: Strictly include IP Address:

l l
Hop Type: Strictly include IP Address:

l l
NE2: 10.1.2.2 NE1: 10.1.1.2
NE4: 10.1.5.2 NE1: 10.1.3.2
NE4: 10.1.5.2 NE2: 10.1.4.2
Hop Type: Strictly include Enable FRR FRR BW Type Yes (Forward and Reverse Tunnels) facility (Forward and Reverse Tunnels)
Hop Type: Strictly include Yes (Forward and Reverse Tunnels)
Hop Type: Strictly include Yes (Forward and Reverse Tunnels)
facility (Forward and facility (Forward and Reverse Tunnels) Reverse Tunnels)
Issue 01 (2010-08-16)
3-42
3 Managing Tunnel
Parameter FRR Protect Type
Working Tunnel Node Protection (Forward and Reverse Tunnels) 10000 (Forward and Reverse Tunnels) E-LSP (Forward and Reverse Tunnels) 4 (Forward and Reverse Tunnels) -
Bypass Tunnel 1 Node Protection (Forward and Reverse Tunnels) 10000 (Forward and Reverse Tunnels) E-LSP (Forward and Reverse Tunnels) E-LSP (Forward and Reverse Tunnels) Positive: NE1-4EFG2-1 Reverse: NE3-1EFG16-1
Bypass Tunnel 2 Node Protection (Forward and Reverse Tunnels) 10000 (Forward and Reverse Tunnels) E-LSP (Forward and Reverse Tunnels) E-LSP (Forward and Reverse Tunnels) Positive: NE2-1EFG16-2 Reverse: NE3-1EFG16-1
FRR Bandwidth (Kbit/s) LSP Type EXP Protect Interface
NOTE In this example, the subnet mask for each network-side port is 255.255.255.252.
This topic describes how to configure the RSVP TE tunnel in the example.
Prerequisite
Procedure
Step 1 Set LSR IDs. 1. 2. In the NE Explorer, select NE1 and choose Configuration > MPLS Management > Basic Configuration from the Function Tree. Set LSR ID, Start of Global Label Space, and other parameters. Click Apply. Parameter LSR ID Example Value NE1: 1.0.0.1 Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network.
3-43
Issue 01 (2010-08-16)
3 Managing Tunnel
Parameter Start of Global Label Space
Example Value 0
Principle for Value Selection This parameter indicates the minimum value for the ingress or egress label. You need to set this parameter according to the network planning.
3.
Display the NE Explorer for NE2, NE3, and NE4 separately. Set the parameters such as LSR ID of each NE by following the previous two steps. Parameter LSR ID Example Value
l l l
Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network. This parameter indicates the minimum value for the ingress or egress label. You need to set this parameter according to the network planning.
NE2: 1.0.0.2 NE3: 1.0.0.3 NE4: 1.0.0.4
Start of Global Label Space
Step 2 Configure the control plane. 1. 2. In the NE Explorer, select NE1 and choose Configuration > Control Plane Configuration > IGP-ISIS Configuration from the Function Tree. Click the Node Configuration tab page. Click New. Configure the related parameters in the dialog box displayed. Parameter IGP-ISIS Instance ID Example Value 1 Principle for Value Selection The value of IGP-ISIS Instance ID must be one and only. The node takes part in the route computation of L1 and L2, and also maintains the link state databases (LSDBs) of L1 and L2
Node Level
level-1-2
3.
Click the Port Configuration tab page. Click New. In the dialog box displayed, click Add. Select 4-EFG2-1(Port-1) and 4-EFG2-2(Port-2), and click OK. Set parameters as follows:
3-44
3 Managing Tunnel
Parameter Link Level
Example Value level-1-2
Principle for Value Selection The port can establish both the level-1 neighboring relationship and level-2 neighboring relationship. In the case of a point-topoint link, if the local equipment fails to receive any response in a period after transmitting an LSP, the local equipment considers that the LSP is lost or discarded. To ensure the transmission reliability, the local equipment transmits the LSP again. Sets the minimum delay between two consecutive LSPs.
LSP Retransmission Interval(s)
Minimum LSP Transmission Interval (ms)
100
4.
Display the NE Explorers of NE2, NE3, and NE4 separately and refer to Step 2.1 through Step 2.3 to set control plane parameters for NE2, NE3, and NE4. The parameters of NE2, NE3, and NE4 are the same as those of NE1, except that the ports specified for NE2, NE3, and NE4 are different as follows: Parameter Port Example Value NE2:
l l l
Principle for Value Selection Set this parameter according to the service planning.
1-EG16-1(Port-1) 1-EG16-2(Port-2) 1-EG16-3(Port-3) 1-EG16-1(Port-1) 1-EG16-2(Port-2) 1-EG16-1(Port-1) 1-EG16-2(Port-2) 1-EG16-3(Port-3)
NE3:
l l
NE4:
l l l
Step 3 Create an active tunnel. 1. 2.

Issue 01 (2010-08-16)
Choose Service > Tunnel > Create Tunnel from the main menu. Set the basic information about a tunnel.
3 Managing Tunnel
Example Value Tunnel-0001
Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. This parameter is selected when a reverse tunnel needs to be created.
Protocol Type
MPLS
Signaling Type
RSVP TE
Selected
3.
Configure the NE list. On the physical topology, double-click NEs to add them to the NE list. Then, specify the ingress and egress NEs.
3-46
Issue 01 (2010-08-16)
3 Managing Tunnel
Parameter NE Role
Example Value NE1: Ingress NE3: Egress
Principle for Value Selection An ingress is the incoming node of a network. In this example, NE1 is an ingress node. An egress is the outgoing node of a network. In this example, NE3 is an egress node.
Deploy
Selected
When this parameter is selected, a tunnel is saved on the U2000 and applied to the corresponding NEs
4.
Click Details to configure details of the tunnel management. The general information is as follows: Parameter Tunnel ID Example Value Forward Tunnel: 1 Reverse Tunnel: 2 Principle for Value Selection Set this parameter according to the service planning.
Choose Trail InformationAffinity Information, right-click, and choose Insert Instance. The parameters of the affinity object are as follows: Parameter Enable Affinity Example Value Forward and Reverse Tunnels: Yes Principle for Value Selection After you select Enable Affinity, when the active tunnel is faulty, the links with the same route color are preferred during a rerouting. The forward and reverse tunnels are set to the same value. The forward and reverse tunnels are set to the same value.
Color(0x)
Forward and Reverse Tunnels: 0 Forward and Reverse Tunnels: 0
Mask(0x)
Issue 01 (2010-08-16)
3-47
3 Managing Tunnel
Choose Trail Information > Route Restriction, right-click, and choose Insert Instance. The parameters of a hop-by-hop object are as follows: Parameter IP Address Example Value Forward Tunnel: 10.1.1.1, 10.1.2.1 Reverse Tunnel: 10.1.2.2, 10.1.1.2 Principle for Value Selection Set the IP address that a tunnel traverses. For the forward tunnel, use the IP address of the NE2-1EG16-1(Port-1) and NE3-1-EG16-1(Port-1) ports. For the reverse tunnel, use the IP addresses of the NE2-1-EG16-2 (Port-2) and NE1-4EFG2-1(port-1) ports. When this parameter is set to Strictly include, the tunnel is created strictly in the sequence of the set IP addresses.
Hop Type
Forward and Reverse Tunnels: Strictly include
Choose Protection Attribute > FRR.Attribute. Fast reroute attributes are as follows: Parameter Enable FRR FRR BW Type Example Value Forward and Reverse Tunnels: Yes Forward and Reverse Tunnels: facility Principle for Value Selection Select this parameter to enable the FRR function. Currently, only facility is supported. In this mode, a protection tunnel can protect multiple LSPs. The bypass tunnel that a PLR selects is required to protect the adjacent downstream node of the PLR and the link between the adjacent downstream node and the PLR. Set this parameter according to the network planning.
FRR Protect Type
Forward and Reverse Tunnels: Node Protection
FRR Bandwidth(Kbit/s)
Forward and Reverse Tunnels: 10000
3-48
Issue 01 (2010-08-16)
3 Managing Tunnel
The QoS configuration is as follows: Parameter LSP Type EXP Example Value Forward and Reverse Tunnels: E-LSP Forward and Reverse Tunnels: 4 Principle for Value Selection Currently, this parameter can be set to E-LSP only. Set this parameter according to the network planning.
Step 4 Create bypass tunnel 1. 1. Refer to Step 3.1 through Step 3.2 to configure the basic attributes of bypass tunnel 1. Parameter Tunnel Name Example Value Tunnel-0002 Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. This parameter is selected when a reverse tunnel needs to be created. This parameter needs to be selected because the tunnel is a bypass tunnel.
Protocol Type
MPLS
Signaling Type
RSVP TE
Selected
Configure As Bypass Tunnel
Selected
2.
Configure the NE list. On the physical topology, double-click NEs to add them to the NE list. Then, specify the ingress and egress NEs.
Issue 01 (2010-08-16)
3-49
3 Managing Tunnel
Parameter NE Role
Example Value NE1: Ingress NE3: Egress
Principle for Value Selection An ingress is the incoming node of a network. In this example, NE1 is an ingress node. An egress is the outgoing node of a network. In this example, NE3 is an egress node.
Deploy
Selected
When this parameter is selected, a tunnel is saved on the U2000 and applied to the corresponding NEs
3.
Click Details to configure details of the tunnel management. The basic Information is as follows: Parameter Tunnel ID Example Value Forward Tunnel: 3 Reverse Tunnel: 4 Principle for Value Selection Set this parameter according to the service planning.
Choose Trail Information > Affinity Information, right-click, and choose Insert Instance. The parameters of the affinity object are as follows: Parameter Enable Affinity Example Value Forward and Reverse Tunnels: Yes Principle for Value Selection After you select Enable Affinity, when the active tunnel is faulty, the links with the same route color are preferred during a rerouting. The forward and reverse tunnels are set to the same value. The forward and reverse tunnels are set to the same value.
Color(0x)
Forward and Reverse Tunnels: 0 Forward and Reverse Tunnels: 0
Mask(0x)
3-50
Issue 01 (2010-08-16)
3 Managing Tunnel
Choose Trail Information > Route Restriction, right-click, and choose Insert Instance. The parameters of route restriction object are as follows: Parameter IP Address Example Value Forward Tunnel: 10.1.3.1, 10.1.5.1 Reverse Tunnel: 10.1.5.2, 10.1.3.2 Principle for Value Selection Set the IP address that a tunnel traverses. For the forward tunnel, use the IP addresses of the NE4-1EG16-2(Port-2) and NE3-1-EG16-2(Port-2) ports. For the reverse tunnel, use the IP addresses of the NE4-1-EG16-1 (Port-1) and NE1-4EFG2-2(Port-2) ports. When this parameter is set to Strictly include, the tunnel is created strictly in the sequence of the set IP addresses.
Hop Type
Forward and Reverse Tunnels: Strictly include
Choose QoS.Information. The QoS configuration is as follows: Parameter LSP Type EXP Example Value Forward and Reverse Tunnels: E-LSP Forward and Reverse Tunnels: 4 Principle for Value Selection Currently, this parameter can be set to E-LSP only. Set this parameter according to the network planning.
4.
In the tunnel management window, configure the protection interface for a bypass tunnel after the bypass tunnel 1 is successfully created and its running status is in UP state. The Bypass attribute is as follows: Parameter Protect Interface Example Value Forward: 4-EFG2-1 Reverse: 1-EG16-1 Principle for Value Selection Set this parameter according to the service planning.
Issue 01 (2010-08-16)
3-51
3 Managing Tunnel
5.
Refer to Step 4.1 through Step 4.4 to create bypass tunnel 2. The parameters of bypass tunnel 2 are the same as those of bypass tunnel 2, except the tunnel names, tunnel IDs, IP addresses and protection interface. Parameter Tunnel Name Example Value Tunnel-0003 Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set the IP address that a tunnel traverses. For the forward tunnel, use the IP addresses of the NE4-1EG16-3(Port-3) and NE3-1-EG16-2(Port-2) ports. For the reverse tunnel, use the IP addresses of the NE4-1-EG16-1 (Port-1) and NE2-1EG16-3(Port-3) ports. Set this parameter according to the service planning.
Tunnel ID
IP Address
Forward Tunnel: 10.1.4.1, 10.1.5.1 Reverse Tunnel: 10.1.5.2, 10.1.4.2
Protect Interface
Forward: 1-EG16-2 Reverse: 1-EG16-1
----End
3.5.3 Configuration Example (IP and LDP Tunnels)

This topic describes a networking diagram and the corresponding example of configuring an IP tunnel and an LDP tunnel on the network.
Example Description
This topic describes O&M scenarios and networking diagrams. As shown in Figure 3-13, NE1 receives services transmitted from Node B. Then, the services are carried in two tunnels, that is, an IP tunnel and an LDP tunnel, between Node B and the RNC. Specifically, the IP tunnel traverses a third-party IP network and the LDP tunnel traverses an MPLS network. The services are converged on NE3 and then transmitted to the RNC.
l l
IP tunnel: NE1-a third-party IP network-NE3. LDP tunnel: NE1-an MPLS network-NE3.
In Figure 3-13, NE1 is the OptiX PTN 950 and NE3 is the OptiX PTN 3900. The Figure 3-13 shows the planning of boards and ports on each NE.
3 Managing Tunnel
DSLAM 10.0.5.2 10.0.5.1
Third-Party IP Network
10.0.2.2 3-EG16-1(Port-1)
4-SHD4-1(Port-1) 2-EG2-1(Port-1) 10.0.0.1 MPLS Network
10.0.2.1 1-EX2-1(Port-1) 10.0.0.2 NE3
Node B
NE1
RNC
I P Tunnel LDP Tunnel
Service Planning
To transmit services between Node B and the RNC, you need to create an IP tunnel and an LDP tunnel. Assume that the IP addresses of the ports of NEs are the same as those listed in Table 3-6 after the U2000 automatically allocates the IP addresses of ports. Table 3-6 Configuration parameters of NEs NE NE1 LSR ID 1.0.0.1 Port 2-EG2-1(Port-1) 4-SHD4-1(Bind-1) 1-EX2-1(Port-1) 3-EG16-1(Port-1) Port IP Address 10.0.0.1 10.0.5.1 10.0.1.2 10.0.2.1 Mask 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252
NE3
1.0.0.3
Table 3-7 lists the planned static routes of the NEs. Table 3-7 Static route Parameter Station Route List ID Board
Issue 01 (2010-08-16)
Value NE1 1 Virtual Ethernet NE3 1 3-EG16

3-53
3 Managing Tunnel
Parameter Port Next Hop IP Address Destination Node IP Address Destination Node Subnet Mask
Value 1(VEther-1) 10.0.5.2 10.0.2.1 255.255.255.252 1(Port-1) 10.0.2.2 10.0.5.1 255.255.255.252
Table 3-8 lists the planned parameters of IGP-ISIS. Table 3-8 Planning of the IGP-ISIS Parameter Station Port Link Level LSP Retransmission Interval(s) Minimum LSP Transmission Interval (ms) Value NE1 2-EG2-1(Port-1) level-1-2 5 30 NE3 1-EX2-1(Port-1) level-1-2 5 30
Table 3-9 lists the planned parameters of MPLS-LDP. Table 3-9 Planning of the MPLS-LDP Parameter Station Enable LDP Opposite LSR ID Value NE1 2-EG2-1(Port-1): Enabled 1.0.0.3 NE3 1-EX2-1(Port-1): Enabled 1.0.0.1
Table 3-10 lists the planned parameters of the IP tunnel. Table 3-10 Planning of the working IP tunnel Parameter Tunnel Name
3-54
Positive Tunnel Value Working Tunnel

Reverse Tunnel Value Working Tunnel_Reverse

Issue 01 (2010-08-16)
3 Managing Tunnel
Parameter Protocol Type Tunnel ID Out interface Destination IP Address
Positive Tunnel Value IP 90 1(VEther-1) 10.0.2.1
Reverse Tunnel Value IP 91 3-EG16-1 10.0.5.1
Table 3-11 lists the planned parameters of the LDP tunnel. Table 3-11 Planning of the protection LDP tunnel Parameter Tunnel Name Protocol Type Signaling Type NE Role(NE1) NE Role(NE3) EXP Protecting Tunnel MPLS LDP Ingress Egress 2 Value Protecting Tunnel_Reverse MPLS LDP Egress Ingress 2
This topic describes how to configure the IP tunnel and LDP tunnel.
Prerequisite
Procedure
Step 1 Set LSR IDs. 1. 2. In the NE Explorer, select NE1 and choose Configuration > MPLS Management > Basic Configuration from the Function Tree. Set LSR ID, Start of Global Label Space and Start of Multicast Label Space. Click Apply.
Issue 01 (2010-08-16)
3-55
3 Managing Tunnel
Parameter LSR ID
Example Value NE1: 1.0.0.1
Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network. This parameter indicates the minimum value for the ingress or egress label. You need to set this parameter according to the network planning.
3.
In the NE Explorer of NE3, refer to the preceding two steps to set the parameters, such as the LSR ID. Parameter LSR ID Example Value NE1: 1.0.0.3 Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network. This parameter indicates the minimum value for the ingress or egress label. You need to set this parameter according to the network planning.
Step 2 Configure the control plane. 1. Configure the static routes for the working tunnel. In the NE Explorer, select NE1 and choose Configuration > Control Plane Configuration > Static Route Management from the Function Tree. Click Create to create the static route between NE1 and NE3.
2.
3-56
Issue 01 (2010-08-16)
3 Managing Tunnel
Parameter Route List ID
Example Value 1
Principle for Value Selection Set this parameter according to the service planning. When you configure a static route on the ATM cards, you need to set this parameter to Virtual Ethernet. When you configure a static route on the ATM ports, you need to set the port type to 1(VEther-1). Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning.
Board
Virtual Ethernet
Port
1(VEther-1)
Next Hop IP Address
10.0.5.2
Destination Node IP Address Destination Node Subnet Mask
10.0.2.1
255.255.255.252
3. 4.
Click Apply. The Operation Result dialog box is displayed indicating that the operation is successful. Enable the IGP-ISIS protocol of the protection MPLS tunnel. In the NE Explorer, select NE1 and choose Configuration > Control Plane Configuration > IGP-ISIS Configuration from the Function Tree. Click the Node Configuration tab page. Click New. Configure the related parameters in the dialog box displayed.
5.
Issue 01 (2010-08-16)
3-57
3 Managing Tunnel
Parameter IGP-ISIS Instance ID
Example Value 1
Principle for Value Selection The value of IGP-ISIS Instance ID must be one and only. The port can establish both the level-1 neighboring relationship and level-2 neighboring relationship.
Node Level
level-1-2
6.
Click the Port Configuration tab and then click New. Click Add in the dialog box displayed. Then, select 2-EG2-1(Port-1) on the port tab page. Click OK. Parameter Link Level Example Value level-1-2 Principle for Value Selection The port can establish both the level-1 neighboring relationship and level-2 neighboring relationship. In the case of a point-topoint link, if the local equipment fails to receive any response in a period after transmitting an LSP, the local equipment considers that the LSP is lost or discarded. To ensure the transmission reliability, the local equipment transmits the LSP again. Specify the minimum delay between two consecutive LSPs.
Minimum LSP Transmission Interval (ms)
30
7. 8. 9.
Click Apply. The Operation Result dialog box is displayed indicating that the operation is successful. Choose Session Configuration and click Create. Set Opposite LSR ID to 1.0.0.3 in the Create LDP Peer Entity dialog box. Click OK. Configure the MPLS-LDP peer for the protection LDP tunnel. Choose Configuration > Control Plane Configuration > MPLS-LDP Configuration from the Function Tree. Click Port Configure and set Enable LDP of 2-EG2-1(Port-1) to Enabled. Parameter Enable LDP Example Value 2-EG2-1(Port-1): Enabled Principle for Value Selection Enable the LDP function of a port.
Issue 01 (2010-08-16)
3-58
3 Managing Tunnel
10. Click Apply. The Operation Result dialog box is displayed indicating that the operation is successful. 11. In the NE Explorer of NE3, refer to Step 2.1 through Step 2.3 to configure the static routes for NE3. Parameter Route List ID Example Value 1 Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning.
Board
3-EG16
Port
1(Port-1)
Next Hop IP Address
10.0.2.2
Destination Node IP Address Destination Node Subnet Mask
10.0.5.1
255.255.255.252
12. In the NE Explorer of NE3, refer to Step 2.4 through Step 2.7 to enable the IGP-ISIS protocol for NE3. The settings of the IS-IS protocol for NE3 are consistent with the settings of the IS-IS protocol for NE1. 13. In the NE Explorer of NE3, refer to Step 2.8 through Step 2.10 to configure the peer of NE3. Parameter Enable LDP Hello Send Interval(s) KeepAlive Send Interval(s) Example Value 1-EX2-1(Port-1): Enabled 10 10 Principle for Value Selection Enable the LDP function of a port. The same value as the hello send interval of NE1. The same value as the keepalive send interval of NE1.
Issue 01 (2010-08-16)
3-59
3 Managing Tunnel
Parameter Opposite LSR ID
Example Value 1.0.0.1
Principle for Value Selection This parameter indicates the LSR ID of the peer NE of the PW. In this example, this parameter indicates the LSR ID of NE1.
Step 3 Create an IP tunnel. 1. 2. Choose Service > Tunnel > Create Tunnel from the main menu. Configure the basic information about the IP tunnel. Parameter Tunnel Name Example Value Working Tunnel Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. This parameter is selected when a reverse tunnel needs to be created.
Protocol Type
IP
Selected
3.
On the physical topology, double-click NE1 and NE3 and set relevant parameters in the NE list. Parameter NE Role Example Value NE1: Ingress NE3: Egress Principle for Value Selection Set this parameter according to the service planning.
4.
Click Details to configure details of the IP tunnel.
3-60
Issue 01 (2010-08-16)
3 Managing Tunnel
Parameter Tunnel ID
Example Value Forward Tunnel: 90 Reverse Tunnel: 91
Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning.
Out Interface
Forward Tunnel: 1 (VEther-1) Reverse Tunnel: 3-EG16-1
Destination IP Address
Forward Tunnel: 10.0.2.1 Reverse Tunnel: 10.0.5.1
5.
Select Deploy and click Apply. In the dialog box displayed, click Close.
NOTE
If you select Deploy, the created tunnel is saved on the U2000 and applied to the corresponding NEs. By default, Deploy is selected.
Step 4 Create an LDP tunnel. 1. 2. Choose Service > Tunnel > Create Tunnel from the main menu. Configure the general information about a tunnel. Parameter Tunnel Name Example Value Protection Tunnel Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. This parameter is selected when a reverse tunnel needs to be created.
Protocol Type
MPLS
Signaling Type
LDP
Selected
3.
On the physical topology, double-click NE1 and NE3 and set relevant parameters in the NE list. Parameter NE Role Example Value NE1: Ingress NE3: Egress Principle for Value Selection Set this parameter according to the service planning.
3-61
Issue 01 (2010-08-16)
3 Managing Tunnel
4.
Click Details and set EXP of the forward and reverse tunnels to 2.
5.
Select Deploy and click Apply. In the dialog box displayed, click Close.
NOTE
If you select Deploy, the created tunnel is saved on the U2000 and applied to the corresponding NEs. By default, Deploy is selected.
----End
3-62
Issue 01 (2010-08-16)
4 Configuring a Service Template
Configuring a Service Template
About This Chapter

By using a service template, you can create services more quickly and easily. You can customize a service template according to actual O&M requirements. 4.1 Creating a Service Template This topic describes how to create a service template. There are service templates as follows: VPLS service template, L3VPN service template, PWE3 service template, and RSVP-TE Tunnel template. 4.2 Creating a Service by Using a Template This topic describes how to create a service by using a template.
Issue 01 (2010-08-16)
4-1
4.1 Creating a Service Template

This topic describes how to create a service template. There are service templates as follows: VPLS service template, L3VPN service template, PWE3 service template, and RSVP-TE Tunnel template.
Prerequisite
You must be an NM user with "NE operator" authority or higher.
Procedure
Step 1 Choose Service > Service Template from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Click Create and select the required type of the service template from the drop-down list. Step 4 Set the parameters relevant to the service template.
NOTE
To set the new service template as the default template, select Set as Default Template.
Step 5 Click OK. The service template is created successfully. Step 6 Optional: In the service template management window, select the new service template, and click the Configure Template tab to view the details of the template. Step 7 Optional: In the service template management window, select the new service template, click Modify to modify the details of the template. ----End
4.2 Creating a Service by Using a Template

This topic describes how to create a service by using a template.
Prerequisite
Context
The following example describes how to create a tunnel service by using an RSVP TE Tunnel Template.
Procedure
Step 1 Choose Service > Tunnel > Create Tunnel from the main menu. Step 2 Configure the general information about a tunnel. 1.
4-2
Set Protocol Type to MPLS and set Signaling Type to RSVP TE.
2. 3. 4. 5.
Click
. In the dialog box displayed, select the service template to be used.
Click OK. A dialog box is displayed, indicating that the parameters not contained in the new template may be lost. Click Confirm. Select Create Reverse Tunnel or Configure As Bypass Tunnel as required.
Step 3 Configure the NE list. Select source and sink NEs. In NE List, set the location of an NE in a tunnel as follows: You can select an NE by using any of the following three methods:
l
Method 1: On the physical topology in the upper right portion, select an NE, right-click, and choose Add from the shortcut menu. Method 2: On the physical topology in the upper right portion, double-click an NE. Method 3: 1. 2. Click Add and select NE from the drop-down list. In the dialog box displayed, select an NE and click OK.
l l
Step 4 Select Deploy and click OK.

NOTE
If Deploy is not selected, the tunnel is saved only on the U2000. If Deploy is selected, the tunnel is save on the U2000 and delivered to corresponding NEs. By default, Deploy is selected. When Deploy is selected, Enable is selected accordingly. A tunnel on the NE side can be used only when the tunnel is enabled.
----End
Issue 01 (2010-08-16)
4-3
5 Viewing a Service Resource
5
About This Chapter
Viewing a Service Resource
This topic describes how to view the usage of a service resource. 5.1 Querying Public Resources This topic describes how to view the details about a service resource. Service resources include PW IDs, VSI IDs, RDs, RTs, and IP addresses. 5.2 Querying SAI Resources This topic describes how to view the interface resources bound to a service.
Issue 01 (2010-08-16)
5-1
5.1 Querying Public Resources

This topic describes how to view the details about a service resource. Service resources include PW IDs, VSI IDs, RDs, RTs, and IP addresses.
Procedure
Step 1 Choose Service > Service Resource > Common Resource Management from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area.
NOTE
You can set the filter criteria, such as Resource Type and NE Name. In this manner, only the information meeting the filter criteria is displayed in the query result area.
Step 3 In the query result area, you can view the Resource Type, Resource Value, and Service Sum information about a resource. Step 4 After selecting a resource that is already added to a service, you can click the Details tab to view the details about the resource, such as Resource Value, NE Name, Service Name, Service Type, Customer, and Service Deployment Status. Step 5 On the Details tab page, right-click a resource and choose View Service from the shortcut menu. The service management user interface for the service corresponding to the selected resource is displayed. Step 6 Optional: Click Print to set the print parameters and prints the related data on the current user interface. Step 7 Optional: Click Save to export all the service resources in the query result area to a file of the specified format.
NOTE
The file can be saved in .xls, .txt, .html, .csv.
----End
5.2 Querying SAI Resources

This topic describes how to view the interface resources bound to a service.
Procedure
Step 1 Choose Service > Service Resource > SAI from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area.
NOTE
You can set the filter criteria, such as Service Type and NE name. In this manner, only the information meeting the filter criteria is displayed in the query result area.
Step 3 In the query result area, you can view the details about the interface.
Step 4 Right-click an interface that is already bound to a service and choose View Service from the shortcut menu. The service management user interface for the service corresponding to the selected interface is displayed. Step 5 Optional: Click Print to set the print parameters and prints the related data on the current user interface. Step 6 Optional: Click Save to export all the interface resources in the query result area to a file of the specified format.
NOTE
The file can be saved in .xls, .txt, .html, .csv.
----End
Issue 01 (2010-08-16)
5-3
6 Managing PWE3 Services
6
About This Chapter
Managing PWE3 Services
This section describes how to configure PWE3 services. 6.1 Overview of PWE3 This topic describes basic concepts of the PWE3. 6.2 PWE3 Configuration Process The configuration process of the PWE3 consists of configure the CES services, ATM services, IP line service and Ethernet services. This section describes the operation tasks for configuring the services, and relations between the tasks. When configure and managing the PWE3 service, follow the configuration process. 6.3 Configuration Flow for the PWE3 Service Protection This topic describes how to easily and fast create protection for a PWE3 service when you configure the PWE3 service. 6.4 PWE3 Operation Tasks This topic describes all operation tasks relevant to a PWE3 service. 6.5 PWE3 Service Monitoring The PWE3 service monitoring enables you to view the service topology, monitor service performance, and monitor service alarms. 6.6 Managing PWE3 Service Authority This topic describes how to manage the PWE3 service authority. 6.7 Examples for Configuring PWE3 Services This topic describes several examples of configuring PWE3 services, including the TDM, ATM, and Ethernet services.
Issue 01 (2010-08-16)
6-1
6.1 Overview of PWE3

This topic describes basic concepts of the PWE3. 6.1.1 Introduction In a packet switched network (PSN), PWE3 is a Layer 2 service bearing technology that emulates as faithfully as possible the basic behaviors and characteristics of ATM services, Ethernet services, low-rate time division multiplexing (TDM) circuit services, and other services. Such a technology can interconnect the traditional network with PSN network to share resources and expand the network. 6.1.2 Reference Standards and Protocols This topic describes the compliant standards and protocols for various technologies used in the PWE3. 6.1.3 Principle This topic describes the basic principle and various technologies used to implement the PWE3. 6.1.4 Overview of IP Line IP line services are private line services provided by the PTN equipment. In the case of IP line services, IP packets are encapsulated into PWs for transmission. 6.1.5 Principle of IP Line The PTN equipment supports UNI-NNI IP line services and transports the services in a pointto-point manner. In addition, the PTN equipment supports dual-homing protection for IP line services. 6.1.6 The Application of PWE3 Service This topic describes a typical application of the PWE3.
6.1.1 Introduction
In a packet switched network (PSN), PWE3 is a Layer 2 service bearing technology that emulates as faithfully as possible the basic behaviors and characteristics of ATM services, Ethernet services, low-rate time division multiplexing (TDM) circuit services, and other services. Such a technology can interconnect the traditional network with PSN network to share resources and expand the network.
Definition
PWE3 is a Layer 2 service bearing technology, mainly used to emulate essential behaviors and characteristics of services such as ATM, frame relay, Ethernet, low-rate TDM circuit, and synchronous optical network (SONET)/synchronous digital hierarchy (SDH) as faithfully as possible in a PSN. PWE3 is a point-to-point L2 VPN(Virtual Private Network) technology. PWE3 has the following features: Adding new signaling; reducing cost of signaling; regulating the auto-negotiation mode of multiple hops; achieving flexible networking diagrams. The PWE3 protocol can reduce packet exchange, avoid repeated PW creations and deletions caused by network unstabilities.
Objectives
With development of the IP network, the IP network has great compatibility and great capabilities for expansion, upgrade, and interoperation. The traditional communication network, which has
poor capabilities for expansion, upgrade, and interoperation, is restricted by the transmission mode and service type. In addition, newly built networks support few services and are unsuitable for interoperation management. Hence, during the upgrade and expansion of traditional communication networks, you should consider whether to build duplicated networks or use existing or common network resources. PWE3 is a solution that combines traditional communication networks with the existing packet networks. PWE3 has certain advantages of MPLS L2VPN. In addition, PWE3 can be used to interconnect traditional networks with PSNs. Hence, resources can be shared and networks can be expanded.
6.1.2 Reference Standards and Protocols

This topic describes the compliant standards and protocols for various technologies used in the PWE3. The reference documents of this feature are as follows: Document RFC3916 RFC3985 RFC4446 draft-ietf-pwe3control-protocol-17 draft-martini-pwe3pw-switching-03 draft-ietf-pwe3-cw-00 draft-ietf-pwe3vccv-03 draft-ietf-pwe3ethernet-encap-10 draft-ietf-pwe3-atmencap-11 draft-ietf-pwe3-celltransport-05 RFC 5085 Description Requirements for Pseudo-Wire Emulation Edge-toEdge (PWE3) Pseudo Wire Emulation Edge-to-Edge (PWE3) Architecture IANA Allocations for Pseudowire Edge to Edge Emulation (PWE3) Pseudo wire Setup and Maintenance using the Label Distribution Protocol Pseudo Wire Switching PWE3 Control Word for use over an MPLS PSN Pseudo Wire Virtual Circuit Connectivity Verification (VCCV) Encapsulation Methods for Transport of Ethernet Over MPLS Networks Encapsulation Methods for Transport of ATM Over MPLS Networks PWE3 ATM Transparent Cell Transport Service Pseudowire Virtual Circuit Connectivity Verification (VCCV) A Control Channel for Pseudowires VCCV of PWs in L2TP V3 mode is not supporte d. Remark s
Issue 01 (2010-08-16)
6-3
6.1.3 Principle
This topic describes the basic principle and various technologies used to implement the PWE3.
PWE3 Basic Principle

This topic describes the implementation principle for the PWE3 to carry various Layer 2 services on the customer edge (CE) side.
Basic Transmission Components of the PWE3

As shown in Figure 6-1, the basic transmission components of the PWE3 network are as follows:
l l l l
Virtual link pseudo wire (PW) Forwarder Tunnels PW signaling protocol
Figure 6-1 Basic transmission components of the PWE3

VPN1 CE1 Forwarder CE3 Forwarder Site2
VPN1 Site1
PE1 VPN2 Site1 CE2
P MPLS Network
PE2 CE4 VPN2 Site2
AC PW PW Signal Tunnel
The VPN1 packet flow from CE1 to CE3 is taken as an example. The basic data flow is as follows:
l l l
Layer 2 packets are sent to CE1 first, and the packets gain access to PE1 through the link. After PE1 receives the packets, the forwarder selects the PWs for forwarding packets. PE1 generates two MPLS labels (a private network label and a public network label) according to the PW forwarding table entries. The private network label is used to identify the PW, and the public network label is used for a service to traverse over the tunnel to PE2.
6-4

l
The Layer 2 packets reach PE2 through the public network. Then, the system prompts private network labels (on the P equipment, public network labels are prompted in the last hop but one). The forwarder of PE2 selects the link for forwarding packets, and then forwards the Layer 2 packets to CE3.
PWE3 Network Mode

The PWE3 network can be in single-hop mode or multi-hop mode.
l
Single-hop PWE3 network Single-hop PW indicates that only one PW is available between U-PEs, and the label switching of the internal label is not required. Figure 6-2 shows the typical network topology of the single-hop PW. Figure 6-2 PWE3 single-hop topology MPLS Network PE1 P PE2
PW
CE1
CE2
Multi-hop PWE3 network in LDP mode In most cases, the single-hop PW can meet the actual requirement. In the following three cases, however, the single-hop PW cannot meet the requirement and the multi-hop PW needs to be used:
Two PEs are not in the same AS domain. In addition, the signaling connection or tunnel between the two PEs cannot be constructed. The signaling types on the two PEs are different. For example, one end runs the LDP, and the other end runs the RSVP. The access equipment can run the MPLS, but it cannot construct a large number of LDP sessions. In this case, the user facing provider equipment (UFPE) is used as the U-PE, and the high-performance S-PE is used as the switching node (similar to the signaling reflector) of the LDP sessions. The multi-hop PW indicates that multiple PWs are available between U-PEs. The forwarding mechanisms of the U-PE in the case of multi-hop forwarding and the U-PE in the case of single-hop forwarding are the same. In the case of multi-hop forwarding, the label switching of the PW label should be performed on the S-PE.
Figure 6-3 shows the typical network topology of the multi-hop PW using the LDP as the signaling.
Figure 6-3 PWE3 multi-hop topology
MPLS Network U-PE1 S-PE1 S-PE2 U-PE2
PW1
PW2
PW3
CE1
CE2
Static PW
The static PW does not use the signaling protocol for parameter negotiation. The information required by the static PW is manually specified through commands, and the data is transmitted between PEs through the tunnel.
Dynamic PW
The dynamic PW is a PW constructed through signaling protocol. The U-PE switches the PW label through the LDP, and bundles the corresponding CE through PW ID. After the tunnel that connects two PEs is successfully constructed and the label switching and bundling are complete, if the link of the two PEs is up, a PW is constructed. The message packets of the dynamic PW consist of:
l l
Request: Requests for label allocation from the opposite end. Mapping: Notifies the opposite end of the label at the local end and determines whether to contain the status message according to the default signaling action. (The default Martini mode does not support the status message.) Notification: Notifies status to negotiate the PW status, and thus reducing the count of packets for interaction. Withdraw: Contains the relevant label and status to inform the opposite end to cancel the label. Release: As a response to the Withdraw packet, informs the opposite end that sends the Withdraw packet to cancel the label.
Extension at the PWE3 Control Plane

l
Signaling extension The Notification mode is added to the LDP signaling. In this manner, only status is notified and the signaling is not cleared unless the configuration is deleted or the signaling protocol is interrupted. This mode reduces packet interaction and signaling overheads, and is compatible with the original LDP and Martini modes.
6-6
Issue 01 (2010-08-16)

l
Multi-hop extension The multi-hop PW function is added, which extends the network mode.
The multi-hop PW lowers the requirement on the count of LDP connections of the access equipment, that is, lowers the overheads of the LDP session of the access nodes. Multi-hop access nodes meet the PW convergence requirement, which facilitates the network flexibility and is applicable to different levels (access, convergence, and core).
TDM interface extension Supports more telecommunication low-speed TDM interfaces. The functions of TDM packet sequencing, and clock extraction and synchronization are added through the control word (CW) and the forwarding plane Real-time Transport Protocol (RTP). The advantages of the low-speed TDM interfaces are as follows:

The encapsulation type is added to support the encapsulation of low-speed TDMs. Supports integration of the PSTN, TV, and data networks. It is a mode to substitute the traditional DDN service.
Other extensions Other extensions at the control plane are as follows:

The negotiation mechanism of the fragmentation capability is added to the control plane. The PW connectivity check, such as the virtual circuit connectivity verification (VCCV) and PW operation administration and maintenance (OAM), is added, which improves the quick convergence capability and reliability of the network.
Extension at the PWE3 Data Plane

l l
Real-time information extension. Clock extraction and time synchronization through the Real-time Transport Protocol (RTP). Assurance of the bandwidth, jitter, and delay of telecommunication signals. Re-transmission of out-of-order packets.
l l
VCCV
Virtual circuit connectivity verification (VCCV) is a technology that is used to verify and diagnose the connectivity of a PW forwarding trail. VCCV is an end-to-end PW fault detection and diagnosis mechanism. That is, the VCCV is the control channel on which connectivity verification messages are sent between the PW ingress and egress nodes. The objective of the VCCV is to verify and further diagnose the connectivity of the PW forwarding trail. The VCCV PING is a tool that help you to manually check the connection status of the virtual circuit. The VCCV PING is achieved through the extended LSP-PING. The VCCV defines a serial of messages exchanged between PEs to verify the connectivity of the PW. To ensure that the packets of the VCCV and data packets in the PW pass through the same trail, the VCCV packets and the PW packets must have the same encapsulation mode and pass through the same tunnel.
Static and Dynamic Hybrid Multi-Hop PW

This topic describes the static and dynamic hybrid multi-hop PW. Hybrid multi-hop PW refers to a PW with one end being the static PW and the other end being the dynamic PW (LDP). Either the static PW or the dynamic PW can have multiple hops. The static and dynamic PWs, however, cannot have multiple hops in interleaved mode. As shown in Figure 6-4, the PW between U-PE1 and S-PE is a dynamic PW and that between U-PE2 and S-PE is a static PW. Figure 6-4 Network of the static and dynamic hybrid multi-hop PW
P1 S-PE P2
PW mic yn a D
Sta tic
PW
U-PE1
U-PE2
CE-A
CE-B
PW Protection
To implement quick data switching, the PW protection mechanism ensures that services can be quickly switched to another PW when one PW fails.
PW Redundancy
As shown in Figure 6-5, CE1 is connected to PE1 through a single link. CE2 is connected to PE2 and PE3 in dual-homing mode.
NOTE
PWs between PE equipment must be created by using the LDP signaling.

l l l l
Create a PW between PE1 and PE3. This PW is the working PW. Create a PW between PE1 and PE2. This PW is the protection PW. Detect faults between CE and PE. When the active trail CE2- PE3- PE1- CE1 is faulty, the service traffic can be quickly switched to the standby trail CE2- PE2- PE1- CE1. After the fault on the active trail CE2- PE3- PE1- CE1 is rectified, the service traffic is switched to the original trail.
6-8
Figure 6-5 PW redundancy protection
PE3
CE1
PE1
PE2
CE2
Working PW
CE Symmetrical Access Dual-Homing Protection

As shown in Figure 6-6, CE1 is connected to PE1 and PE2 through the dual-homing mode, and CE1 is connected to PE2 and PE4 through the dual-homing mode.
l l l
Connect CE1 and CE2 to PE. Between PE1 and PE3 and between PE2 and PE4, create PWs. Trail CE2- PE3- PE1- CE1 and trail CE2- PE4- PE2- CE1 serve as mutual backups for each other. When a tail is faulty, the service traffic can be quickly switched to the other trail. By default, use trail CE2- PE3- PE1- CE1 as the working trail.
Figure 6-6 CE symmetrical access dual-homing protection
PE1
PE3
CE1
P P PE2 PE4
CE2
Working PW Protection PW
Backup Protection
As shown in Figure 6-7, CE1 is connected to PE1 and CE2 is connected to PE2.

l l
Between PE1 and PE3, create two dynamic PWs. The two PWs on trail PE1- PE2 serve as mutual backups. When a trail is faulty, the service traffic can be quickly switched to the other trail.
Figure 6-7 Backup protection
PE1 CE1
PE2 CE2
PW APS Protection
As shown in Figure 6-8, CE1 is connected to PE1 and CE2 is connected to PE2 and PE3.
l l l
Between PE1 and PE2, create a PW. Between PE1 and PE3 and between PE2 and PE3, create PWs. When trail CE1- PE1- PE2- CE2 is faulty, the service traffic can be quickly switched to the protection trail CE1- PE1- PE3- PE2- CE2.
Figure 6-8 PW APS protection
PE2 PE1 W P CE1 P PE3 Working PW Protection PW CE2
6-10
Issue 01 (2010-08-16)
ATM Cell Transparent Transmission

This topic describes the ATM cell transparent transmission technology.
Definition
ATM cell transparent transmission is a technology that is used to bear ATM cells on the PWE3 virtual circuit.
Objective
The ATM cell transparent transmission uses the PSN network to connect traditional ATM network resources and emulates traditional ATM services on the PSN network. In this case, traditional ATM network services are emulated to the maximum when traversing the PSN network. Therefore, end users can rarely sense any difference and the existing investment of customers and operators are fully utilized in the network integration and construction.
Implementation of the ATM Cell Transparent Transmission

The objective of the PWE3 is to use the PSN network to connect traditional network resources (ATM/FR/LAN) and provide the emulation of the traditional services on the PSN network. In this case, traditional network services are emulated to the maximum when traversing the PSN network. Therefore, end users can rarely sense any difference and the existing investment of customers and operators are fully utilized in the network integration and construction. By creating P2P tunnels, bearing data packets, cells, and bit streams, Layer 2 emulation service on the PSN traverses the public or private PSN. The original services are emulated to the maximum between two PEs that a PW connects.
l
Port-based ATM cell transparent transmission In this mode, the connection between two remote ATM ports is emulated. The port-based ATM cell transparent transmission can be classified into port-based remote ATM cell transparent transmission and port-based local ATM cell transparent transmission.
ATM cell transparent transmission in 1-to-1 virtual circuit connection (VCC) mode In this mode, a PW bears an ATM VCC cell. This mode supports all ATM adaptation layer (AAL) types. Because a PW bears only one ATM VCC cell, the tunnel packet does not contain the values of virtual path identifier (VPI) or virtual channel identifier (VCI). In addition, the permanent virtual circuits (PVCs) for the PEs are mapped through the PW, that is, the MPLS PW functions as the ATM switch to support the VPI/VCI switching without configuring the switching relation on the PE. The ATM cell transparent transmission in 1-to-1 VCC mode can be classified into remote ATM cell transparent transmission in 1-to-1 VCC mode and local ATM cell transparent transmission in 1-to-1 VCC mode.
ATM cell transparent transmission in N-to-1 VCC mode In this mode, a PW bears multiple ATM VCC cells. This mode supports all AAL types. Because a PW bears multiple ATM VCC cells, the tunnel packet contains the values of VPI and VCI. This encapsulation mode supports the function of mapping multiple VCs in the same ATM sub-interface to a PW, and does not support the function of mapping multiple VCs in different ATM interfaces to a PW or the function of mapping multiple inter-board VCs to a PW.
Issue 01 (2010-08-16)
6-11
The ATM cell transparent transmission in N-to-1 VCC mode can be classified into remote ATM cell transparent transmission in N-to-1 VCC mode and local ATM cell transparent transmission in N-to-1 VCC mode.
l
ATM cell transparent transmission in 1-to-1 virtual path connection (VPC) mode In this mode, a PW bears an ATM VPC cell. This mode supports all AAL types. Compared with the ATM cell transparent transmission in 1-to-1 VCC mode, the tunnel packet of this mode contains only the value of VCI. The output equipment then determines the destination CE based on the value of VCI. Because a PW bears only one ATM VPC cell, the PVCs for the PEs are mapped through the PW, that is, the MPLS PW functions as the ATM switch to support the VPI switching without configuring the switching relation on the PE. The ATM cell transparent transmission in 1-to-1 VPC mode can be classified into remote ATM cell transparent transmission in 1-to-1 VPC mode and local ATM cell transparent transmission in 1-to-1 VPC mode.
ATM cell transparent transmission in N-to-1 VPC mode In this mode, a PW bears multiple ATM VPC cells. This mode supports all AAL types. Because a PW bears multiple ATM VPC cells, the tunnel packet contains the value of VPI and VCI. The encapsulation modes of the ATM cell transparent transmission in N-to-1 VPC and N-to-1 VCC modes are the same. The ATM cell transparent transmission in N-to-1 VPC mode can be classified into remote ATM cell transparent transmission in N-to-1 VPC mode and local ATM cell transparent transmission in N-to-1 VPC mode.
Encapsulation Modes of the ATM Cell Transparent Transmission

The ATM cell transparent transmission covers the following transparent transmission services:
l l l
PVC-based transparent transmission service Permanent virtual path (PVP)-based transparent transmission service Interface-based transparent transmission service
The encapsulation modes of the ATM cell transparent transmission are as follows:
l l
1-to-1 N-to-1
The ATM cell transparent transmission has the following transparent transmission modes:
l l
Cell Frame
Table 6-1 describes the features of the ATM cell transparent transmission services of different levels.
6-12
Issue 01 (2010-08-16)
Table 6-1 Features of the ATM cell transparent transmission services Encapsulati on Mode Transpa rent Transmi ssion Mode Cell AAL Type Supported Connection Type Encapsulation Method
N-to-1 VCC
All AALs
VC
Contains the VPI and VCI. The control word (CW) is optional. Supports the VPI/ VCI switching. Not contain the VPI or VCI. The CW is mandatory. Supports the VPI/VCI switching. Contains the VPI and VCI. The CW is optional. Contains the VPI and not contain the VCI. The CW is mandatory. Contains the VPI and VCI. The CW is optional.
1-to-1 VCC
Cell
All AALs
VC
N-to-1 VPC 1-to-1 VPC
Cell Cell
All AALs All AALs
VP VP
Interface transparent transmission
Cell
All AALs
Interface
Table 6-2 describes the applicable scenarios of various connection types. Table 6-2 Applicable scenarios of various connection types Connection Type VCC cell transparent transmission Applicable Scenario Virtual channel connection, which is a basic unit on the ATM network. Applicable to transmission of various ATM network services. VPC cell transparent transmission Virtual path connection, a group of VCCs with the same destination. Applicable to transmission of various ATM network services, especially when multiple services with the same destination exist in the transmission direction. The VPC cell transparent transmission is quicker and easier for management and configuration than VCC cell transparent transmission. Applicable to the scenario that the VP and VC do not need to be processed and the equipment functions an ATM transmission private line.
Whole port transparent transmission
Table 6-3 describes the comparison between 1-to-1 and N-to-1 modes.
Table 6-3 Comparison between 1-to-1 and N-to-1 modes Mode 1-to-1 N-to-1 Description A VCC or VPC maps one PW. Multiple VCCs or VPCs map one PW. (N >= 1) Applicable Scope All AAL types All AAL types Difference The VPI and VCI are not contained. The VPI and VCI must be contained in the encapsulation regardless whether N = 1 or N > 1.
Service Demarcation Tag

This topic describes the basic information about service demarcation tags and implementation principles.
Packet Encapsulation on an AC
Packet encapsulation mode on an AC is determined by the user access mode. User access modes can be VLAN access and Ethernet access. Each user access mode is described as follows:
l
VLAN access: In VLAN access mode, the header of each Ethernet frame sent between CEs and PEs carries a VLAN tag. This tag is a service delimiter that is used to identify users in an ISP network. It is called provider-tag (P-tag). Ethernet access: In Ethernet access mode, the header of each Ethernet frame sent between CEs and PEs does not carry any P-tag. If the frame header carries a VLAN tag, the VLAN tag is the internal VLAN tag of the user packet, and is called user-tag (U-tag). The U-tag is carried in a packet before the packet is sent to a CE and is thus not added by the CE. The U-tag is used by the CE to identify which VLAN the packet belongs to, and is meaningless to PEs.
Packet Encapsulation on a PW
Packet encapsulation modes on a PW can be Raw mode and Tagged mode, as shown follows:
l
Raw mode The P-tag is not transmitted on the PW. If a PE receives the packet with a P-tag from a CE, the PE strips the P-tag, adds double MPLS labels (outer label and inner label) to the packet, and then forwards the packet. If a PE receives the packet without a P-tag from a CE, the PE directly adds double MPLS labels to the packet, and then forwards the packet. If a PE sends a packet to a CE, the PE adds or does not add the P-tag to the packet as required, and then forwards the packet to the CE. Note that the PE is not allowed to rewrite or remove any existing tag.
Tagged mode The frame sent to a PW must carry the P-tag. If a PE receives the packet with a P-tag from a CE, the PE directly adds double MPLS labels to the packet without stripping the P-tag, and then forwards the packet; if a PE receives the packet without a P-tag from a CE, the PE adds a null tag and double MPLS labels to the packet, and then forwards the packet. If a PE sends a packet to a CE, the PE rewrites, removes, or preserves the service delimiter of the packet as required, and then forwards the packet to the CE.
6-14
Issue 01 (2010-08-16)
Service Demarcation Tag

After you set the access port of an Ethernet service to the C-aware tag or S-aware tag, at least one C-VLAN tag or S-VLAN tag is added to the user packet that is transmitted through the access port. Then, you can set a service demarcation tag to identify the access mode of the user packet and the method of handling the outermost C-VLAN tag or S-VLAN tag of the user packet during packet forwarding.
l
User: Services gain access to the AC in Ethernet access mode. The outermost C-VLAN tag or S-VLAN tag of a user packet functions as the user VLAN tag (U-TAG) for the forwarding of the user packet. Service: Services gain access to the AC in VLAN access mode. The outermost C-VLAN tag or S-VLAN tag of a user packet functions as the service VLAN tag (P-TAG) and is not involved in the forwarding of the user packet.
Application of the Service Demarcation Tag: Ethernet Access Mode - Raw

Figure 6-9 Ethernet raw mode (with user VLAN tags)
CE1
AC
L2 Header
User Vlan Tag
IP Header
Data
PE1
PW
L2 Header
Tunnel Label
VC Label
L2 Header
User Vlan Tag
IP Header
Data
PE2
AC
L2 Header
User Vlan Tag
IP Header
Data
CE2
As shown in Figure 6-9, when you set the service demarcation tag to User, the AC adopts the Ethernet encapsulation mode and the PW adopts the raw mode. Therefore, packets transmitted from the CE to the PE contains the user VLAN tags (U-TAGs) but no service VLAN tags (PTAGs).
Interaction of packets with U-TAGs in the Ethernet raw mode is described as follows: 1. 2. 3. CE1 transmits packets with Layer 2 encapsulation to PE1. The packets contains U-TAGs but no P-TAGs. When PE1 receives the packets that contain U-TAGs but no P-TAGs, PE1 considers the U-TAGs as user data without processing them because the U-TAGs are useless to PE1. When PE1 receives the packets that contain P-TAGs but no U-TAGs, PE1 deletes the PTAGs from the packets because PWs require raw encapsulation and frames transmitted in the PWs cannot contain P-TAGs. According to the routing table, PE1 selects tunnels and PWs for the packets. According to the selected tunnels and PWs, PE1 directly adds two types of MPLS tags (outer tunnel tags and inner VC tags) to the packets, performs Layer 2 encapsulation, and then forwards the packets. PE2 receives the packets from PE1 and decapsulates the packets. Specifically, PE2 strips the Layer 2 encapsulation and the two MPLS tags from the packets. PE2 transmits the decapsulated Layer 2 packets from CE1 to CE2. The packets contain UTAGs but no P-TAGs.
4. 5.
6. 7.
Application of the Service Demarcation Tag: Ethernet Access Mode - Tagged

Figure 6-10 Ethernet tagged mode (with user VLAN tags)
CE1
AC
L2 Header
User Vlan Tag
IP Header
Data
PE1
PW
L2 Header
Tunnel Label
VC Label
L2 Header
Service User Vlan Tag Vlan Tag
IP Header
Data
PE2
AC
L2 Header
User Vlan Tag
IP Header
Data
CE2
6-16
Issue 01 (2010-08-16)
As shown in Figure 6-9, when you set the service demarcation tag to User, the AC adopts the Ethernet encapsulation mode and the PW adopts the tagged mode. Therefore, packets transmitted from the CE to the PE contains the user VLAN tags (U-TAGs) but no service VLAN tags (PTAGs). Interaction of packets with U-TAGs in the Ethernet raw mode is described as follows: 1. 2. 3. CE1 transmits packets with Layer 2 encapsulation to PE1. The packets contains U-TAGs but no P-TAGs. When PE1 receives the packets that contain U-TAGs but no P-TAGs, PE1 considers the U-TAGs as user data without processing them because the U-TAGs are useless to PE1. When PE1 receives the packets that contain no P-TAGs, PE1 adds the P-TAGs in the packets because PWs require tagged encapsulation and frames transmitted in the PWs must contain P-TAGs. According to the routing table, PE1 selects tunnels and PWs for the packets. According to the selected tunnels and PWs, PE1 directly adds two types of MPLS tags (outer tunnel tags and inner VC tags) to the packets, performs Layer 2 encapsulation, and then forwards the packets. PE2 receives the packets from PE1 and decapsulates the packets. Specifically, PE2 strips the Layer 2 encapsulation and the two MPLS tags from the packets and then adds the PTAGs that is deleted by PE1 to the packets. PE2 transmits the decapsulated Layer 2 packets from CE1 to CE2. The packets contain UTAGs but no P-TAGs.
4. 5.
6.
7.
Issue 01 (2010-08-16)
6-17
Application of the Service Demarcation Tag: VLAN Access Mode - Raw

Figure 6-11 VLAN raw mode (with service VLAN tags)
CE1
AC
L2 Header
Service Vlan Tag
IP Header
Data
PE1
PW
L2 Header
Tunnel Label
VC Label
L2 Header
IP Header
Data
PE2
AC
L2 Header
Service Vlan Tag
IP Header
Data
CE2
As shown in Figure 6-9, when you set the service demarcation tag to Service, the AC adopts the VLAN encapsulation mode and the PW adopts the raw mode. Therefore, packets transmitted from the CE to the PE contains the service VLAN tags (P-TAGs) but no user VLAN tags (UTAGs). Interaction of packets with U-TAGs in the VLAN raw mode is described as follows: 1. 2. CE1 transmits packets with Layer 2 encapsulation to PE1. The packets contains P-TAGs but no U-TAGs. When PE1 receives the packets that contain P-TAGs but no U-TAGs, PE1 deletes the PTAGs from the packets because PWs require raw encapsulation and frames transmitted in the PWs cannot contain P-TAGs. According to the routing table, PE1 selects tunnels and PWs for the packets. According to the selected tunnels and PWs, PE1 directly adds two types of MPLS tags (outer tunnel tags and inner VC tags) to the packets, performs Layer 2 encapsulation, and then forwards the packets. PE2 receives the packets from PE1 and decapsulates the packets. Specifically, PE2 strips the Layer 2 encapsulation and the two MPLS tags from the packets and then adds the PTAGs that is deleted by PE1 to the packets.
3. 4.
5.
6-18
6.
PE2 transmits the decapsulated Layer 2 packets from CE1 to CE2. The packets contain PTAGs but no U-TAGs.
Application of the Service Demarcation Tag: VLAN Access Mode - Tagged

Figure 6-12 VLAN tagged mode (with service VLAN tags)
CE1
AC
L2 Header
Service Vlan Tag
IP Header
Data
PE1
PW
L2 Header
Tunnel Label
VC Label
L2 Header
Service Vlan Tag
IP Header
Data
PE2
AC
L2 Header
Service Vlan Tag
IP Header
Data
CE2
As shown in Figure 6-9, when you set the service demarcation tag to Service, the AC adopts the VLAN encapsulation mode and the PW adopts the tagged mode. Therefore, packets transmitted from the CE to the PE contains the service VLAN tags (P-TAGs) but no user VLAN tags (U-TAGs). Interaction of packets with P-TAGs in the VLAN tagged mode is described as follows: 1. 2. CE1 transmits packets with Layer 2 encapsulation to PE1. The packets contains U-TAGs but no P-TAGs. When PE1 receives the packets that contain P-TAGs but no U-TAGs, PE1 do nothing with the P-TAGs in the packets because PWs require tagged encapsulation and frames transmitted in the PWs must contain P-TAGs. According to the routing table, PE1 selects tunnels and PWs for the packets. According to the selected tunnels and PWs, PE1 directly adds two types of MPLS tags (outer tunnel tags and inner VC tags) to the packets, performs Layer 2 encapsulation, and then forwards the packets.
3. 4.
Issue 01 (2010-08-16)
5. 6.
PE2 receives the packets from PE1 and decapsulates the packets. Specifically, PE2 strips the Layer 2 encapsulation and the two MPLS tags from the packets. PE2 transmits the decapsulated Layer 2 packets from CE1 to CE2. The packets contain PTAGs but no U-TAGs.
6.1.4 Overview of IP Line

IP line services are private line services provided by the PTN equipment. In the case of IP line services, IP packets are encapsulated into PWs for transmission.
Feature Overview
With the growth of wireless networks, the number of base stations that support IP interfaces is greatly increased, and therefore mobile backhaul networks need to access base station services through IP packets. If services are accessed through a traditional L3VPN solution, the restrictions are as follows:
l
The access equipment at the edge of a backhaul network must have strong routing capability. This increases the cost of the access equipment. An L3VPN network relies on dynamic routing protocols, and therefore networking is complex and the protection mechanism cannot satisfy network requirements.
On a mobile backhaul network, the trail between a base station and an RNC is fixed. Therefore, if you create IP line services between the base station and RNC, the services can fully satisfy service bearing requirements. In the case of IP line services, IP packets are encapsulated into PWs. In this manner, IP services from base station are accessed. In addition, features of private line services such as simple networking, easy management, and complete protection are maintained.
Networking
As shown in Figure 6-13, an IP line service is created between the OptiX PTN 910/950 and OptiX PTN 1900/3900/3900-8 for each base station. The OptiX PTN 910/950 encapsulates IP packets from base stations into a PW, and sends the PW over an IP line to the OptiX PTN 1900/3900/3900-8. The OptiX PTN 1900/3900/3900-8 decapsulates the packets and sends the packets to an RNC. In this manner, UNI-NNI service transmission is implemented. Figure 6-13 Deployment of IP line services
IP Line IP Line
IP Line
OptiX PTN 910/950
OptiX PTN 3900/ OptiX PTN 1900
NodeB
RNC
6-20
Issue 01 (2010-08-16)
NOTE
IP line services for PTN equipment support the DHCP relay function. That is, a base station can obtain its IP address through DHCP.
A complete protection mechanism for IP line services on PTN equipment is available. For details, see Dual-Homing Protection for IP Line Services.
6.1.5 Principle of IP Line

The PTN equipment supports UNI-NNI IP line services and transports the services in a pointto-point manner. In addition, the PTN equipment supports dual-homing protection for IP line services.
Implementation Principle
The IP line feature is based on the MPLS technology. In the case of IP line, the accessed IP packets are encapsulated into PWs, and then the packets are transported in point-to-point manner. The PTN equipment supports UNI-NNI IP line services. Figure 6-14 shows the service encapsulation process. Figure 6-14 Encapsulation process of IP line services
IP Line
A IP Ethernet IP PW Label MPLS Label Ethernet
B IP Ethernet
NodeB
OptiX PTN 910/950
OptiX PTN 1900/3900
RNC
The encapsulation process is as follows:

l
Equipment A encapsulates the packets from the base station into a PW, and then sends the packets to equipment B. After terminating the PW, equipment B transmits the packets to an RNC.
Issue 01 (2010-08-16)
6-21
Dual-Homing Protection for IP Line Services

The IP line feature implements dual-homing protection for active and standby routes through PW OAM.
Normal Running
As shown in Figure 6-15, nodes A and B are connected through PW1. Nodes A and C are connected through PW2. PW OAM is enabled for PW1 and PW2 to detect PW faults. In normal cases, packets are sent to node B over PW1 and then to the RNC. Figure 6-15 Dual-homing protection for IP line services
B PW1 A PW2 C OptiX PTN 910/950 Service Route OptiX PTN 3900/ OptiX PTN 1900 NodeB RNC
Equipment Fault
Figure 6-16 shows the situation where switching occurs when node B is faulty. Figure 6-16 Dual-homing protection switching for IP line services in case of an equipment fault
B PW1 A PW2 C B PW1
A PW2 C
OptiX PTN 910/950 RNC
OptiX PTN 3900/ OptiX PTN 1900 Service Route
NodeB
6-22
Issue 01 (2010-08-16)
The switching process is as follows:

l
When node B is faulty, node A detects the fault through PW OAM, and then node A switches to PW2. Node C detects the fault of node B through the routing protocol, and then node C updates the route information and accepts the packets sent by node A. The route of services from NodeB changes to A-C-RNC.
Link Fault
Figure 6-17 shows the situation where switching occurs when the link between nodes A and B is faulty. Figure 6-17 Dual-homing protection switching for IP line services in case of a link fault
B PW1 A PW2 C B PW1
A PW2 C
OptiX PTN 910/950 RNC
OptiX PTN 3900/ OptiX PTN 1900 Service Route
NodeB
The switching process is as follows:

l
Node A detects that PW1 is faulty through PW OAM, and therefore node A switches services to PW2. Through the routing protocol, node B updates route information and accepts the packets sent by node C. The route of services from NodeB changes to A-C-B-RNC.
To prevent service interruption over the link between node B and the RNC or between node C and the RNC, you can configure VRRP protection for the RNC. For details on VRRP, see VRRP.
Issue 01 (2010-08-16)
6-23
6.1.6 The Application of PWE3 Service

This topic describes a typical application of the PWE3. As an end-to-end Layer 2 service transmission technology, the PWE3 provides end-to-end virtual emulation links on edges of packet switched networks (PSNs) for transmitting various services (ATM, Ethernet, and CES) on PSN networks. Such a technology can interconnect the traditional network and PSN to share resources and expand the network. Figure 6-18 Application of the PWE3
BITS NMS CE CE CE PW1 PE PW2 AC PE

E1 interface
BSC
CE
RNC
PW3
PE
BTS CE
FE interface
AC
IMA E1 interface
Node B CE
Figure 6-18 shows a PWE3 single-hop mobile carrier network. On this network, the following types of services are transmitted:
l
BTS is connected to the PSN network through the E1 interface and TDM signals are transmitted to the BSC by using CES services. Node B is connected to the PSN network through the IMA E1 interface and ATM cells are transmitted to the RNC by using ATM services. Node B is connected to the PSN network through the FE interface and Ethernet packets are transmitted to the NMS by using Ethernet services.
6-24
All the preceding services are emulated by using the PWE3 technology and transmitted on PSN networks. By using the PWE3 technology, carriers can smoothly migrate original access schemes to PSN networks. This helps to reduce repeated network constructions and lower OPEX.
6.2 PWE3 Configuration Process

The configuration process of the PWE3 consists of configure the CES services, ATM services, IP line service and Ethernet services. This section describes the operation tasks for configuring the services, and relations between the tasks. When configure and managing the PWE3 service, follow the configuration process.
CES Service Configuration Process

Figure 6-19 shows the recommended configuration process for configuring and managing a CES service. Figure 6-19 CES service configuration process
Required Optional Create a Network Start
Set the NE LSR ID
Configure the networkside interface
Configure Control Plane
Configure Tunnel
Configure CES Service
End
Table 6-4 Tasks for configuring a CES service Operation 1. Create a network 2. Set the NE LSR ID
Issue 01 (2010-08-16)
Description Complete creating the NE, configure the NE data, and creating fibers. Specifies the LSR ID for each NE that a service traverses and the start value of the global label space. Each LSR ID is unique on a network.
6-25
Operation 3. Configure the network-side interface 4. Configure Control Plane
Description Set the basic attributes and Layer 3 attributes (such as tunnel enabling status and IP address) for the interface to bear tunnels. Set the associated protocol parameters of the control plane for creating tunnels.
l
To create the static MPLS tunnel to bear the CES service, you do not need to set the associated parameters of the control plane. To create the dynamic MPLS tunnel to bear the CES service, you need to set the following parameters: 1. IGP-ISIS protocol parameters 2. MPLS-RSVP protocol parameters To create the dynamic PW to bear services, you need to set the IGPISIS and MPLS-LDP protocol parameters.
To create the IP tunnel or GRE tunnel to bear the CES service, you need to add a static route.
5. Configure Tunnel
The tunnel is used to bear services.

l
In the case of the static MPLS tunnel, you can create the tunnel in either NE or trail mode. Select the signaling type as static and set the relevant information about the tunnel, including the tunnel ID, service name, ingress node, egress node, and transit node. In the case of the dynamic MPLS tunnel, you need to select the signaling type as dynamic and set the relevant information about the tunnel, including service name, and sink and source nodes of the tunnel. In the case of the IP tunnel or GRE tunnel, set the source board, source port, and IP address of the sink port.
6. Configure the service interface 7. Configure CES Service
Use the CD1 board or tributary card to access the base station services. 1. Create the CES service, including setting the service ID and service name. 2. Set the source and sink information, including setting the board and channel. 3. Configure the PW, including setting the PW type, label, and tunnel type. 4. Configure the advanced attributes, including setting the jitter buffer time, packet loading time, and clock mode.
ATM Service Configuration Process

Figure 6-20 shows the flowchart for configuring an ATM service. For details of each step, see the relevant section.
6-26
Issue 01 (2010-08-16)
Figure 6-20 ATM service configuration process

Required Optional Create Network Start
Configure the LSR ID
Configure the network-side interface Configure the control plane
Configure Tunnel
Configure the ATM Policy
Configure the ATM Interface
Configure the UNIsNNI ATM service
End
Table 6-5 Tasks for configuring an ATM service Operation 1. Create Network 2. Configure the LSR ID 3. Configure the network-side interface Description Complete creating the NE, configure the NE data, and creating fibers. Specifies the LSR ID for each NE that a service traverses and the start value of the global label space. Each LSR ID is unique on a network. Set the basic attributes and Layer 3 attributes (such as tunnel enabling status and IP address) for the interface to bear tunnels.
Issue 01 (2010-08-16)
6-27
Operation 4. Configure the control plane
Description Set the associated protocol parameters of the control plane for creating tunnels.
l
To create the static MPLS tunnel to bear the ATM service, you do not need to set the associated parameters of the control plane. To create the dynamic MPLS tunnel to bear the ATM service, you need to set the following parameters: 1. IGP-ISIS protocol parameters 2. MPLS-RSVP protocol parameters To create the dynamic PW to bear the service, you need to set the IGPISIS and MPLS-LDP protocol parameters.
To create the IP tunnel or GRE tunnel to bear the ATM service, you need to add a static route.
5. Configure Tunnel

l
6. Configure the ATM Policy 7. Configure the ATM interface 8. Configure the UNIs-NNI ATM service
The ATM policy is used to perform the traffic management on the ATM service. The ATM interface is used to access the base station services. 1. Create the ATM service, including setting the service ID and service name, and selecting the service type and connection type. 2. Configure the connection, including setting the source information, PW ID, sink information, and policy. 3. Configure the PW, including setting the PW type, label, and tunnel type. 4. Configure the CoS mapping and CoS policy of the PW.
E-Line Service Configuration Process

Figure 6-21 shows the flowchart for configuring an E-Line service.
6-28
Issue 01 (2010-08-16)
Figure 6-21 E-Line service configuration process

Required Optional
Start
Create Network
Configure the LSR ID Configure the network-side Interfaces Configure the Control Plane
Configure Tunnel
Configure the QoS Policy Configure the userside Interfaces
Configure the UNINNI E-Line Service Carried by the PW in the per-trail mode End
Table 6-6 Tasks for configuring an E-Line service Operation 1. Create Network 2. Configure the LSR ID 3. Configure the network-side Interface Description Complete creating the NE, configure the NE data, creating fibers, and configure clocks. Specifies the LSR ID for each NE that a service traverses and the start value of the global label space. Each LSR ID is unique on a network. Set the basic attributes and Layer 3 attributes (such as tunnel enabling status and IP address) for the interface to bear tunnels.
Issue 01 (2010-08-16)
6-29
Operation 4. Configure the Control Plane
l
To create the static MPLS tunnel to bear the E-Line service, you do not need to set the associated parameters of the control plane. To create the dynamic MPLS tunnel to bear the E-Line service, you need to set the following parameters: 1. IGP-ISIS protocol parameters 2. MPLS-RSVP protocol parameters To create the dynamic PW to bear services, you need to set the IGPISIS and MPLS-LDP protocol parameters.
To create the IP tunnel or GRE tunnel to bear the E-Line service, you need to add a static route.
5. Configure Tunnel

l
6. Configure the QoS Policy 7. Configure the user-side Interface 8. Configure the UNI-NNI E-Line Service Carried by the PW in the per-trail mode
The QoS policy is used to perform the traffic management on the E-Line service. The user-side interface is used to access the base station services.
1. Create the E-Line service, including setting the service ID and service name, and selecting the service type and bearer type. 2. Configure the PW, including setting the PW type, label, and tunnel type. 3. Configure the QoS, including setting the UNI and QoS of the PW.
IP Line Service Configuration Flow

Figure 6-22 shows the recommended flow for configuring an IP line service.
6-30
Issue 01 (2010-08-16)
Figure 6-22 Flow of configuring an IP line service

Mandatory Optional Create a network Start
Configure interfaces
Configure a Layer 3 virtual interface Create a static MPLS tunnel Configure an IP line service
Configure a QoS policy
End
Table 6-7 Operation tasks for configuring an IP line service Task Remarks
1. Create a network. Create NEs and fibers, and configure NE data. 2. Configure interface.
l
Configure a UNI port, which is used from service access from a base station. Configure an NNI port. That is, set the general attributes and Layer 3 attributes (such as Enable Tunnel and IP Address) for the port so that the port can carry tunnels.
3. Configure a Layer 3 virtual interface. 4. Configure a static MPLS tunnel.
Configure a Layer 3 virtual interface as the sink port for the IP line service. An IP line service can be carried only by a static MPLS tunnel.
l
You can create a static MPLS tunnel site by site or end to end. When creating a static MPLS tunnel, you need to set the signaling type to static and specify the service name, ingress node, egress node, and transit node.
Issue 01 (2010-08-16)
6-31
Task 5. Configure an IP line service.
Remarks 1. Create an IP line service. That is, set the service ID and specify the service name. 2. Set the source and sink. That is, choose boards and a tunnel. 3. Configure a PW. That is, set the PW type, PW label, and tunnel type. 4. Set advanced attributes. That is, set parameters such as QoS for the UNI port.
6.3 Configuration Flow for the PWE3 Service Protection

This topic describes how to easily and fast create protection for a PWE3 service when you configure the PWE3 service. Protection types for PWE3 services are as follows: PW redundancy protection, Dual-Homing protection for CEs of symmetric access, PW backup protection, and PW APS protection.
PW Redundancy Protection
The PW redundancy protection can be implemented either in the single source and dual sink mode or in the dual source and single sink mode. To configure the single source and dual sink shown in Figure 6-23, you need to set PE1 to the source, PE3 the working sink, and PE2 the protection sink by using the NMS. To configure the dual source and single sink shown in Figure 6-24, you need to set PE3 to the sink, PE1 the working source, and PE2 the protection source by using the NMS. Figure 6-23 Single source and dual sink
Working Sink
Source
PE3
CE
PE1
PE2
CE
Protection Sink Working PW Protection PW
6-32
Issue 01 (2010-08-16)
Figure 6-24 Dual source and single sink

Working Source W PE1 PE2 CE Protection Source P PE3 CE Sink
Figure 6-25 shows the process of configuring the PW redundancy protection. In the PWE3 service creation window, set Protection Type to PW redundancy. After the protection is configured, proceed with the configuration of other parameters. A PWE3 service with the dualhoming protection is created successfully. Figure 6-25 Process of configuring PW redundancy dual-homing protection
Start
Select Protection Type PW Redundancy Protection Select single source and dual sink or dual source and single sink
Single source and dual sink
Dual source and single sink
Configure Source
Configure Sink
Configure Working Sink
Configure Working Source
Configure Protection Sink
Configure Protection Source
End
Issue 01 (2010-08-16)
6-33
Dual-Homing Protection for CEs Symmetric Access

To configure the dual-Homing protection for CEs symmetric access shown in Figure 6-26, you need to set PE1 as the working source, PE3 the working sink, PE2 the protection source, and PE4 the protection sink. Figure 6-26 Dual-Homing protection for CEs symmetric access
Working Source W PE1
Working Sink
PE3
CE
PE2 Protection Source
PE4 Protection Sink
CE
Figure 6-27 shows the process of configuring the dual-Homing protection for CEs symmetric access. In the PWE3 service creation window, set Protection Type to Dual-Homing protection for CEs symmetric access. After the protection is configured, proceed with the configuration of other parameters. A PWE3 service with the dual-homing protection is created successfully.
6-34
Issue 01 (2010-08-16)
Figure 6-27 Process of configuring the dual-Homing protection for CEs symmetric access
Start
Select Protection Type Dual-Homing Protection for CEs of Asymmetric Access
End
PW Backup Protection
To configure the PW backup protection shown in Figure 6-28, you need to set PE1 as the FRR source and PE2 the FRR sink. Figure 6-28 PW Backup Protection
Source Sink PE1 CE PE2 CE
Figure 6-29 shows the process of configuring the PW backup protection. In the PWE3 service creation window, set Protection Type to PW backup protection. After the protection is configured, proceed with the configuration of other parameters. A PWE3 service with the PW backup protection is created successfully.
Figure 6-29 Process of configuring the PW backup protection

Start
Select Protection Type PW Backup Protection
Configure Source
Configure Sink
End
PW APS Protection
The PW APS protection can be implemented either in the single source and dual sink mode or in the dual source and single sink mode. To configure the single source and dual sink shown in Figure 6-30, you need to set PE1 as the source, PE2 the working sink, and PE3 the protection sink. To configure the dual source and single sink shown in Figure 6-31, you need to set PE1 as the working source, PE2 the sink, and PE3 the protection source. Figure 6-30 Single source and dual sink
Working Sink Source W PE2 P CE PE1 PE3 P Protection Sink Working PW Protection PW CE
6-36
Issue 01 (2010-08-16)
Figure 6-31 Dual source and single sink

Working Source W PE1 P CE PE3 P PE2 CE Sink
Protection Source
Figure 6-32 shows the process of configuring the PW APS protection. In the PWE3 service creation window, set Protection Type to PW APS protection. After the protection is configured, proceed with the configuration of other parameters. A PWE3 service with the PW APS protection is created successfully. Figure 6-32 Process of configuring the PW APS protection
Start
Select Protection Type PW APS Protection Select single source and dual sink or dual source and single sink
Single source and dual sink
Dual source and single sink
Configure Source
Configure Sink
End
Issue 01 (2010-08-16)
6-37
6.4 PWE3 Operation Tasks

This topic describes all operation tasks relevant to a PWE3 service. 6.4.1 Creating a CES Service This topic describes how to create a CES service. You can create a CES PWE3 service tunnel for transmitting TDM signals in trail configuration mode. By using the trail configuration mode, you can directly configure the source and sink nodes of a CES service and the PW attributes on the GUI of the U2000. In this manner, the CES service can be created quickly. 6.4.2 Creating an ETH Service This topic describes how to create an ETH service. The service is connected to the user side, and transmitted to one PW at the network side. In this manner, user data can be transparently transmitted in a point-to-point manner. By using the trail configuration mode, you can directly configure the source and sink nodes of an ETH service and the PW attributes on the GUI of the U2000. In this manner, the ETH service can be created quickly. 6.4.3 Creating an ATM Service This topic describes how to create an ATM service. You can create an ATM PWE3 service tunnel for transmitting ATM signals in trail configuration mode. By using the trail configuration mode, you can directly configure the source and sink nodes of an ATM service and the PW attributes on the GUI of the U2000. In this manner, the ATM service can be created quickly. 6.4.4 Creating an IP Line Service By using the end-to-end service management function, you can directly configure the source and sink nodes of an IP line service and the PW attributes on the U2000. In this manner, the IP line service can be quickly created. 6.4.5 Creating a PWE3 Service Through Duplication This topic describes how to create a PWE3 service through duplication. You can duplicate a PWE3 service and change certain parameters to create another PWE3 service. 6.4.6 Deploying a PWE3 Service This topic describes how to deploy a PWE3 service. When you deploy a PWE3 service, the service is applied from the U2000 to NEs. 6.4.7 Adjusting a Discrete PWE3 Service This topic describes how to adjust a discrete PWE3 service. The U2000 searches out all discrete services on the network automatically. Then, the U2000 converts these services to unterminated services or delete these services. 6.4.8 Configure PWE3 Protection Service You can configure network protection for a PWE3 service without protection in the U2000. 6.4.9 Checking the Correctness of the Service Configuration After configuring a service, you can check the connectivity of the service by using the Test and Check function. 6.4.10 Performing a PW APS Protection Switching On the U2000, you can perform MPLS tunnel protection switching. The protection switching operations include forced switching, exercise switching, manual to working, and manual to protection. 6.4.11 Managing ATM Connections
6-38
Issue 01 (2010-08-16)
This topic describes how to manage ATM connections, including the operations of adding and deleting an ATM connection.
6.4.1 Creating a CES Service

This topic describes how to create a CES service. You can create a CES PWE3 service tunnel for transmitting TDM signals in trail configuration mode. By using the trail configuration mode, you can directly configure the source and sink nodes of a CES service and the PW attributes on the GUI of the U2000. In this manner, the CES service can be created quickly.
Prerequisite
l l l
You must be an NM user with "network operator" authority or higher. The DCN function must be disabled for the port that carries the CES service. The CES service interface must be configured. Specifically, the interface mode must be configured to Layer 1 and the frame format and frame mode of the interface must be configured. If the service need be carried by an MPLS Tunnel, you must configure a tunnel first.. If the service need be carried by an IP or GRE Tunnel, you must configure a tunnel first. . To create the dynamic PW to bear the service, you need to set the IGP-ISIS and MPLSLDP protocol parameters.
l l l
Context
When the interface is used to carry the CES service, you need to set the frame format, to ensure that the frame format is the same as the service encapsulation format. When the emulation mode of a CES service is CESoPSN, it is recommended that you set the frame format at the interface to CRC-4 multiframe. When the emulation mode of a CES service is SATop, the frame format at the interface should be set to non-framing. When the UNI interface is used to carry the CES service, you need to set the frame mode.
Procedure
Step 1 Choose Service > PWE3 Service > Create PWE3 Service from the main menu. Step 2 Set the parameters on the General Attributes tab page.
Issue 01 (2010-08-16)
6-39

NOTE
l l l
You can use a template to configure a service. Specifically, you can select a template in the Service template field. Alternatively, you can create another template. Set Service Type to CES. If you set Protection Type to PW redundancy or PW APS protection, select Single source and dual sink or Dual source and single sink on the Node List. You need to configure one source node and two sink nodes for Single source and dual sink, and two source nodes and one sink node for Dual source and single sink. One of the corresponding two PWs is the working trail and the other is the protection trail. PW APS protection supports to be set as the Single source and single sink. If Protection Type is CE Dual-homing protection for CEs of symmetric access, you need to configure two source nodes and two sink nodes. The corresponding two PWs protect each other. If Protection Type is PW backup protection, two dynamic PWs are automatically created between the source node and sink node. The two PWs protect each other.
l l
Step 3 Selects the source and sink NEs for a service. 1. Click Configure Source And Sink. A dialog box is displayed.
2. 3. 4. 5.
Select a source NE from Physical Topology on the left. Then, the selected NE is displayed in the upper-right pane. In the right portion of NE Panel, all slots and available cards of the NE are displayed. According to the service type to be created, select the appropriate card. Select an interface. Set the SAI attribute of the CES service in the SAI configuration. After you complete the setting, click Add Node, In the lower portion of the window, the new source and sink NEs are displayed,click OK. Configure the sink NE, protection NE and transit NE with the same method and based on different protection types.
NOTE
6.
The configuration method is the same for the sink NE, transit NE, and source NE. Hence, only the example for configuring a source NE is provided as follows. In the dialog box for configuring the source and sink, you can select multiple lower order timeslots and create CES services in batches.
6-40
Issue 01 (2010-08-16)
Step 4 Optional: Click Configure Source And Sink,select the Unterminated on the left,specify the LSR ID of unterminated node and click Add Node,In the lower portion of the window, the unterminated source and sink NEs are displayed, click OK.
NOTE
On a network, if the equipment at one end of a service can be managed by the U2000, and the equipment at the other end of the service is from another vendor and cannot be managed by the U2000, select Unterminated to set the LSR ID of the opposite end of the service. Currently, the PTN equipment in the same management domain can be used to configure unterminated trails. If Protection Type is PW backup protection or PW APS protection, the unterminated node cannot be set.
Step 5 Optional: Click Configure PW Switch Node to add Working and Protection transit NEs between the source NE and sink NE.
Step 6 Set parameters for the source and sink NEs that are displayed in Node List. To view the topology of a configured service, click the Service Topology tab in the upper-right area. Step 7 In the PW pane in lower left portion of the window, configure parameters. Configure general attributes of the PW.
Issue 01 (2010-08-16)
6-41
NOTE
l l
The PW ID can be automatically allocated. You can set Signaling Type to Dynamic or Static. If you set Signaling Type to Dynamic, the Forward Label and Reverse Label are assigned automatically. If you set Signaling Type to Static, the Forward Label and Reverse Label can be assigned automatically or manually. You can set Forward Type and Reverse Type to Static Binding or Select policy. If you set Forward Type to Static Binding, you need to manually specify a tunnel in the Forward Tunnel field. If you set Forward Type to Select Policy, you need to set the tunnel priority in the Forward Type field so that the system selects a tunnel according to the priority. You may also set the forward tunnel and reverse tunnel by clicking the Service Topology tab in the upper-right area. Select a tunnel between the source NE and sink NE, right-click, and then choose Select Forward Tunnel or Select Reverse Tunnel. In the dialog box that is displayed, select the tunnel for static binding.
Step 8 Optional: Click Detail. A pane is displayed in the lower-right area. Step 9 Optional: Click the Advanced PW Attribute tab to set parameters for a PW and set the clock mode of the source and sink NEs.
NOTE
Generally, Packet Loading Time (us) for packets that carry the CES service is 1 ms. The value of Jitter Compensation Buffering Time(us) must be greater than the value of Packet Loading Time (us) at the peer end.
Step 10 Optional: If the protection type of service are PW redundancy, PW backup protection or PW APS protection,click Protection Parameter to set the Protection parameters.
l
the protection type of service are PW redundancy or PW backup protection: Set Protection Mode as 1:1 or 1+1. the protection type of service are PW APS Protection: Set the parameters as follows.
NOTE
Currently, the PTN supports PW APS protection with the dual-ended protection switching in 1:1 revertive mode. Protection Type supports to be set as the Slave protection pair, If the working PWs, protection PWs, and DNI-PWs of multiple MC-PW APS to be created share the same source and sink with the working PW, protection PW, and DNI-PW of an MC-PW APS, you can attach these multiple MC-PW APS to be created to the MC-PW APS (master MC-PW APS). Then, these PWs are considered as being in one MC-PW APS for synchronous detection and switching. In this manner, the switching time is reduced, and the OAM resources and APS resources are saved. Then, the entire MC-PW APS performs protection switching according to the status of the PWs in the master MC-PW APS. The Protection Group ID of slave protection pair refers to the ID of the protection group configured on PE3 as the master PW APS protection group.
6-42
Issue 01 (2010-08-16)

NOTE
If you clear the Deploy check box, the configuration data information is stored only on the U2000. If you select the Deploy check box, the configuration data information is stored on the U2000 and applied to NEs. By default, the Deploy check box is selected. When you select the Deploy and Enable check box, A service is available on NEs only when it is enabled.
----End
6.4.2 Creating an ETH Service

This topic describes how to create an ETH service. The service is connected to the user side, and transmitted to one PW at the network side. In this manner, user data can be transparently transmitted in a point-to-point manner. By using the trail configuration mode, you can directly configure the source and sink nodes of an ETH service and the PW attributes on the GUI of the U2000. In this manner, the ETH service can be created quickly.
Prerequisite
l l l l l
You must be an NM user with "network operator" authority or higher. If you need to use the port exclusively, disable the DCN function of the UNI port. The MPLS tunnel for carrying services must be created if it is used. The IP/GRE tunnel for carrying services must be created if it is used. To create the dynamic PW to bear the service, you need to set the IGP-ISIS and MPLSLDP protocol parameters.
Procedure
Issue 01 (2010-08-16)
6-43

NOTE
l l l
You can use a template to configure a service. Specifically, you can select a template in the Service template field. Alternatively, you can create another template. Set Service Type to ETH. If you set Protection Type to PW redundancy or PW APS protection, select Single source and dual sink or Dual source and single sink on the Node List. You need to configure one source node and two sink nodes for Single source and dual sink, and two source nodes and one sink node for Dual source and single sink. One of the corresponding two PWs is the working trail and the other is the protection trail. PW APS protection supports to be set as the Single source and single sink. If Protection Type is CE Dual-homing protection for CEs of symmetric access, you need to configure two source nodes and two sink nodes. The corresponding two PWs protect each other. If Protection Type is PW backup protection, two dynamic PWs are automatically created between the source node and sink node. The two PWs protect each other.
l l
2. 3. 4. 5.
Select a source NE from Physical Topology on the left. Then, the selected NE is displayed in the upper-right pane. In the right portion of NE Panel, all slots and available cards of the NE are displayed. According to the service type to be created, select the appropriate card. Select an interface. Set the SAI attribute of the Ethernet service in the SAI configuration. After you complete the setting, click Add Node, In the lower portion of the window, the new source and sink NEs are displayed. Click OK. Configure the sink NE, protection NE and transit NE with the same method and based on different protection types.
NOTE
6.
The configuration method is the same for the sink NE, transit NE, and source NE. Hence, only the example for configuring a source NE is provided as follows.
6-44
Issue 01 (2010-08-16)
Step 4 Optional: Click Configure Source And Sink, select the Unterminated on the left, specify the LSR ID of unterminated node, and click Add Node, In the lower portion of the window, the unterminated source and sink NEs are displayed, click OK.
NOTE
Step 5 Optional: Click Configure PW Switch Node to add working and protection transit NEs between the source NE and sink NE.
Issue 01 (2010-08-16)
6-45
NOTE
l l
Step 8 Optional: Click Detail. A pane is displayed in the lower-right area. Step 9 Optional: Click the SAI QoS tab to view the Local QoS Policy or configure the global template and service bandwidth of SAI. Alternatively, you can select one of the policies that are configured in the Global QoS Policy Template field. After you set Bandwidth Limited to Enabled, the CIR (kbit/s) and PIR (kbit/s) can be set. Step 10 Optional: Click Service Parameter tab to configure the service parameter. If you set BPDU to Transparent Transmission, the MTU(byte) cannot be set. Step 11 Optional: Click the PW QoS tab to configure the global template and service bandwidth of a PW. Alternatively, you can click Global QoS Policy Template and select the global template of QoS from the drop-down list. Then, set parameters. After you set Bandwidth Limited of a PW to Enabled, the CIR (kbit/s) and PIR (kbit/s) can be set.
Step 12 Optional: Click the Advanced PW Attribute tab to set parameters for a PW. When the PW Type is set to Ethernet Tagged Mode, the TPID and Request VLAN is available.
Step 13 Optional: If the protection type of service is PW redundancy, PW backup protection or PW APS protection, Click Protection Parameter to set the Protection parameters.
l
The protection type of service is PW redundancy or PW backup protection: Set Protection Mode as 1:1 or 1+1. The protection type of service is PW APS Protection: Set the parameters as follows.
6-46

NOTE

NOTE
----End
6.4.3 Creating an ATM Service

This topic describes how to create an ATM service. You can create an ATM PWE3 service tunnel for transmitting ATM signals in trail configuration mode. By using the trail configuration mode, you can directly configure the source and sink nodes of an ATM service and the PW attributes on the GUI of the U2000. In this manner, the ATM service can be created quickly.
Prerequisite
l l l
You must be an NM user with "network operator" authority or higher. The control plane must be configured. The interface must be configured. If IMA services are connected, the IMA group must be configured. The ATM policy must be configured. The MPLS tunnel for carrying services must be created if it is used. The IP/GRE tunnel for carrying services must be created if it is used. To create the dynamic PW to bear the service, you need to set the IGP-ISIS and MPLSLDP protocol parameters.
l l l l
Procedure
Issue 01 (2010-08-16)
6-47
NOTE
l l l
You can use a template to configure a service. Specifically, you can select a template in the Service Template field. Alternatively, you can create another template. Set Service Type to ATM. If you set Protection Type to PW redundancy or PW APS protection, select Single source and dual sink or Dual source and single sink on the Node List. You need to configure one source node and two sink nodes for Single source and dual sink, and two source nodes and one sink node for Dual source and single sink. One of the corresponding two PWs is the working trail and the other is the protection trail. PW APS protection supports to be set as the Single source and single sink. If Protection Type is CE Dual-homing protection for CEs of symmetric access, you need to configure two source nodes and two sink nodes. The corresponding two PWs protect each other. If Protection Type is PW backup protection, two dynamic PWs are automatically created between the source node and sink node. The two PWs protect each other.
l l
2. 3.
Select a source NE from Physical Topology on the left. Then, the selected NE is displayed in the upper-right pane. In the right portion of NE Panel, all slots and available cards of the NE are displayed. According to the service type to be created, select the appropriate card.
6-48
4. 5.
Select an interface. Set the SAI attribute of the ETH service in the SAI configuration. After you complete the setting, click Add Node, In the lower portion of the window, the new source and sink NEs are displayed,click OK. Configure the sink NE, protection NE and transit NE with the same method and based on different protection types. To configure multiple ATM connections for an ATM service at the same time, select multiple ports for an NE by using the same method.
NOTE
6. 7.
The configuration method is the same for the sink NE, transit NE, and source NE. Hence, only the example for configuring a source NE is provided as follows.
Step 4 Optional: Click Configure Source And Sink,select the Unterminated on the left,specify the LSR ID of unterminated node and click Add Node,In the lower portion of the window, the unterminated source and sink NEs are displayed, click OK.
NOTE
Step 5 Optional: Click Configure PW Switch Node to add Working and Protection transit NEs between the source NE and sink NE.
Issue 01 (2010-08-16)
6-49
6-50
Issue 01 (2010-08-16)

NOTE
l l
Step 8 Click ATM Link. In the dialog box that is displayed, add the ATM connection, and set relevant parameters of the ATM connection.
NOTE
After you finishing configuring VPI/VCI of the source and sink, the U2000 assigns the transit VPI/VCI automatically. In the case of a network consisting of PTN equipment, the transit VPI/VCI can be set. Moreover, the transit VPI/VCI can be set be different from the VPI/VCI of the source and sink.
Step 9 Optional: Click Detail. A pane is displayed in the lower-right area. Step 10 Optional: Click the PW QoS tab to configure the global template of a PW. Alternatively, you can select one of the templates that are configured in the Global QoS Policy Template field, and set parameters. Step 11 Optional: Click the Advanced PW Attribute tab to set parameters for a PW. Step 12 Optional: If the protection type of service are PW redundancy, PW backup protection or PW APS protection,click Protection Parameter to set the Protection parameters.
l
the protection type of service are PW redundancy or PW backup protection: Set Protection Mode as 1:1 or 1+1. the protection type of service are PW APS protection: Set the parameters as follows.
Issue 01 (2010-08-16)
6-51

NOTE

NOTE
----End
Postrequisite
After the service is created successful, the service is displayed in the PWE3 service management window.
6.4.4 Creating an IP Line Service

By using the end-to-end service management function, you can directly configure the source and sink nodes of an IP line service and the PW attributes on the U2000. In this manner, the IP line service can be quickly created.
Prerequisite
You must be an NM user with "NE administrator" authority or higher. If you need to use a UNI port exclusively, disable the DCN function at the port. You need to create an MPLS tunnel for carrying services if it is used. You need to create an IP/GRE tunnel for carrying services if it is used.
NOTE
You must configure a VRF UNI port before configuring a UNI port for an IP line service.
Procedure
Step 1 Choose Service > PWE3 Service > Create PWE3 Service from the main menu. Step 2 On the General Attributes tab page, set relevant parameters.
6-52
Issue 01 (2010-08-16)
NOTE
l l l l l
Set Service Type to IP E-line. For configuration principles of Protection Type, see PW Protection. By default, Service ID is set to Auto-Assign. Service ID can also be assigned according to actual service planning, and the value range of Service ID is 1 to 4294967295. Set Service Name according to actual service planning. If Service Name is not set, it will be automatically generated after the IP line service configuration is completed. By default, Protection is set to Protection-Free. If you need to configure PW protection for the IP line service, select PW Redundancy.
Step 3 Configure the source and sink NEs for a service. 1. Click Configure Source and Sink. Then, the Configure Node dialog box is displayed.
2.
Choose an NE from the Navigation Tree on the left and choose a corresponding port from the pane on the right. Then, click Add Node. Set Location to Source or Sink. After the settings are completed, click OK.
NOTE
The sink of the IP line service must be a Layer 3 port.
Step 4 Configure a PW switching node. Click Configure PW Switch Node, and then choose a PW switching node between the source and sink NEs. Then, click OK.
Issue 01 (2010-08-16)
6-53

NOTE
A PW switching node cannot be the source or sink NE.
Step 5 Configure a PW. Click the PW tab page, and configure basic attributes for the PW.
PW ID can be Automatically Allocated. The PW ID is networkwide unique. That is, one PW ID indicates only one PW. Set Forward Type and Reverse Type to Static Binding. Select a created forward tunnel for Forward Tunnel. Select a created reverse tunnel for Reverse Tunnel. Set Signaling Type to Dynamic.
NOTE
l l l l
In the case of an IP line service, only Dynamic signaling is supported.

l
Set MPLS to Encapsulation.

NOTE
Forward Label and Reverse Label are stuck to packet headers when Ethernet frames are encapsulated to PWs. These labels are used for label switching.
Step 6 Click Deploy to deploy the service to NEs. In this case, If you click Enable, the service is available. Otherwise, the service is only saved on the U2000 but not deployed to NEs. By default, the U2000 deploys and enables the service. Step 7 Optional: Set QoS for the service access port. Click Advanced to display a pane on the lower right side. Click the SAI QoS tab. Set Bandwidth Enabled to Enabled. Then, you can set parameters such as CIR, PIR, CBS, and PBS. You can also select a configured QoS template by clicking in QoS Template.
Step 8 Optional: Set PW QoS. Click the PW QoS tab and set a PW QoS policy. Set Bandwidth Enabled to Enabled. Then, you can set parameters such as CIR, PIR, CBS, and PBS. You can also select a configured QoS template by clicking in QoS Template.
Step 9 Click OK. ----End
6.4.5 Creating a PWE3 Service Through Duplication

This topic describes how to create a PWE3 service through duplication. You can duplicate a PWE3 service and change certain parameters to create another PWE3 service.
Prerequisite
l l
You must be an NM user with "network operator" authority or higher. PWE3 services that are created successfully must exist.
Context
To create a PWE3 services through duplication, you can specify the source, sink, and transit nodes again, or change certain parameters only.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 Set the query criteria and click Filter. Step 3 Create a PWE3 service by duplicating either a protected PWE3 service or an unprotected PWE3 service.
l
Methods of duplicating different protected PWE3 services and the corresponding windows are similar. The following example describes how to duplicate a PWE3 service with the PW backup protection. 1. 2. Select a PWE3 service with PW backup protection, right-click, and choose Copy from the shortcut menu. In the Copy PWE3 Service window, modify the attributes relevant to the new service based on service planning, and click OK.
NOTE
In the Copy PWE3 Service window, all parameters of the original PWE3 service are retained, including parameters of the access ports. You must change an original access port to another idle access port before a duplicate service can be created successfully.
l l
If you want to change the access port to another port of the same NE, change the port directly in the node list on the left. If you want to change the access port to a port of another NE, change the port by any of the two methods. Method 1: In the topology view, right-click the NE where the required port resides and choose the corresponding shortcut menu (change source, sink or transit node). In the dialog box that is displayed, change the service access port. Method 2: In the node list on the left, delete the corresponding NE. Then configure another NE for the access port.
Issue 01 (2010-08-16)
6-55

l
Methods of duplicating unprotected Ethernet services, IP E-line services and CES services and the corresponding windows are similar. The following example describes how to duplicate a CES service. 1. 2. 3. Select one CES service to be duplicated, right-click, and choose Copy from the shortcut menu. In the Copy PWE3 Service dialog box, click Add. In the Add Service dialog box, set the source and sink nodes, and then click OK.
NOTE
On a network, if the equipment at one end of a service can be managed by the U2000, and the equipment at the other end of the service is from another vendor and cannot be managed by the U2000, select Unterminated to set the LSR ID of the opposite end of the service. Currently, the PTN equipment in the same management domain can be used to configure unterminated trails.
NOTE
In the Add Service dialog box, you can set multiple source and sink nodes to create the corresponding services through duplication. Those services can share intermediate NEs. The following describes the details.
l
The mapping between the source and sink NEs is 1:N or N:1. In this case, only one source node exists, and a service is created between the source node and a sink node. In this way, N services are created. The mapping between the source and sink NEs is N:N. In this case, a service is created between a source node and the sink node with the same number. For example, a service is created between source node 1 and sink node 1 and a service is created between source node 2 and sink node 2. In this way, N services are created. The mapping between the source and sink NEs is N:M and M is greater than N. In this case, a service is created between the source node whose number is smaller than or equal to N and the sink node with the same number. For the remaining sink nodes, a service is created between source node N and each remaining sink node. In this way, M services are created.
Select an NE of the same type as the original NE when you select the source, sink, or transit node for the duplication.
4. 5.
l
Click Advanced and Modify SAI tabs respectively to modify relevant parameters of the service. Click OK.
The following describes how to duplicate an unprotected ATM service. 1. 2. 3. 4. Configure the general attributes of the service created through duplication. For details, see 3.1 through 3.4. In the Service Parameter area, modify the attributes relevant to the ATM connection of the new service. Click Add Link to add an ATM connection to the new service. Click OK.
----End
6.4.6 Deploying a PWE3 Service

This topic describes how to deploy a PWE3 service. When you deploy a PWE3 service, the service is applied from the U2000 to NEs.
Prerequisite
l l
You must be an NM user with "network operator" authority or higher. A PWE3 service must be created.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria. Step 3 Select one PWE3 service that is configured, right-click, and then choose Deploy from the shortcut menu.
NOTE
l l l
If you deploy a service, the service configuration data is applied to NEs. If you do not deploy a service, the service configuration data is saved in the U2000. After the service is created successful, in the PWE3 service management window, Deployment Status of the service is displayed as Deployed.
----End
Postrequisite
When you need to delete the service, select the service and click Delete, click Yes in the dialog box displayed.
NOTE
Deleting a service is to delete a service on a per-NE basis and an end-to-end tunnel. When you choose Delete from Network Side, only the data about end-to-end services is deleted.
6.4.7 Adjusting a Discrete PWE3 Service

This topic describes how to adjust a discrete PWE3 service. The U2000 searches out all discrete services on the network automatically. Then, the U2000 converts these services to unterminated services or delete these services.
Prerequisite
l l
You must be an NM user with "network operator" authority or higher. Discrete services must exist on the network.
Context
NOTE
You cannot convert a discrete service that has no LSR IDs for both the source and sink ends to an unterminated service.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Discrete Service from the main menu.
Step 2 Set the query criteria and click Filter.

NOTE
Currently, only the router supports the function of filtering services by port name.
Step 3 Select one or more discrete services, click Convert to Unterminated. Alternatively, right-click and choose Convert to Unterminated from the shortcut menu. Step 4 Set the parameters in the dialog box, click OK. Step 5 In the Confirm dialog box, click OK. The adjusted discrete PWE3 service is displayed in the service list in the PWE3 Service Management window. Step 6 Optional: Delete a discrete PWE3 service. 1. 2. Select one or more discrete services, click Delete Discrete. Alternatively, right-click and choose Delete Discrete rom the shortcut menu. In the Confirm dialog box, click OK.
----End
6.4.8 Configure PWE3 Protection Service

You can configure network protection for a PWE3 service without protection in the U2000.
Prerequisite
l l
You must be an NM user with "network operator" authority or higher. At least a PWE3 service without protection must exist.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria. Step 3 Right-click a PWE3 service without protection and choose Protect > Configure Protection from the shortcut menu. Step 4 Click Protection Type and select the required service protection type from the drop-down list.
l
If you set Protection Type to PW redundancy or PW APS protection, select Single source and dual sink or Dual source and single sink on the Node List. You need to configure one source node and two sink nodes for Single source and dual sink, and two source nodes and one sink node for Dual source and single sink. One of the corresponding two PWs is the working trail and the other is the protection trail. PW APS protection supports to be set as the Single source and single sink. If Protection Type is CE Dual-homing protection for CEs of symmetric access, you need to configure two source nodes and two sink nodes. The corresponding two PWs protect each other. If Protection Type is PW backup protection, two dynamic PWs are automatically created between the source node and sink node. The two PWs protect each other.
6-58
Step 5 Click Configure Source And Sink. In the dialog box that is displayed, configure a protection NE and click OK. Step 6 Set parameters for the source, sink and protect NEs that are displayed in Node List. To view the topology of a configured service, click the Service Topology tab in the upper-right area. Step 7 In the PW pane in lower left portion of the window, configure parameters. Configure general attributes of the PW.
NOTE
You can set Forward Type and Reverse Type to Static Binding or Select policy. If you set Forward Type to Static Binding, you need to manually specify a tunnel in the Forward Tunnel field. If you set Forward Type to Select Policy, you need to set the tunnel priority in the Forward Type field so that the system selects a tunnel according to the priority. You may also set the forward tunnel and reverse tunnel by clicking the Service Topology tab in the upper-right area. Select a tunnel between the source NE and sink NE, right-click, and then choose Select Forward Tunnel or Select Reverse Tunnel. In the dialog box that is displayed, select the tunnel for static binding.
Step 8 Optional: Click Detail. A pane is displayed in the lower-right area. Step 9 Optional: If you configure protection for an Ethernet or ATM service, click the SAI QoS tab to view the Local QoS Policy or configure the global template and service bandwidth of SAI. Alternatively, you can select one of the policies that are configured in the Global QoS Policy Template field. After you set Bandwidth Limited to Enabled, the CIR (kbit/s) and PIR (kbit/ s) can be set. Step 10 Optional: Click the PW QoS tab to configure the global template and service bandwidth of a PW. Alternatively, you can click Global QoS Policy Template and select the global template of QoS from the drop-down list. Then, set parameters. After you set Bandwidth Limited of a PW to Enabled, the CIR (kbit/s) and PIR (kbit/s) can be set. Step 11 Optional: Click the Advanced PW Attribute tab to set parameters for a PW. Step 12 Optional: If the protection type of service is PW redundancy, PW backup protection or PW APS protection, Click Protection Parameter to set the Protection parameters.
l l
The protection type of service is PW redundancy: Set Protection Mode as 1:1 or 1+1. The protection type of service is PW APS Protection: Set the parameters as follows.
NOTE
Issue 01 (2010-08-16)
6-59
6.4.9 Checking the Correctness of the Service Configuration

After configuring a service, you can check the connectivity of the service by using the Test and Check function.
Prerequisite
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria. Step 3 Right-click a service and choose Test and Check from the shortcut menu. Step 4 In the dialog box that is displayed, select the trail to be checked. Step 5 Set Diagnosis Option. Set diagnosis parameters based on the requirements of operation and maintenance. The meaning of each option is as follows: 1. 2. 3. 4. Service Check: check list all service configuration parameters. OAM Tool: check the connectivity by performing the ping operation on each layer. Collect Information: view the information about the public route, LDP peer, LDP session, and LSP. Tracert: location is used to find out the fault position.
6.4.10 Performing a PW APS Protection Switching

On the U2000, you can perform MPLS tunnel protection switching. The protection switching operations include forced switching, exercise switching, manual to working, and manual to protection.
Prerequisite
l l
You must be an NM user with "network operator" authority or higher. You must have created the PW APS protection service and you must have enabled the APS protocol status.
6-60
Issue 01 (2010-08-16)
Context
CAUTION
When other switching operations, excluding the exercise switching, are performed, the services may be interrupted.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria. Step 3 Select a PWE3 service with the PW APS protection. In the lower portion, information about associated attributes is displayed. Step 4 Click the PW tab. Step 5 Click the Protection Parameter tab. You can query the current status of the PW APS protection switching. Step 6 Select a protection record and click Function in the lower right corner. Step 7 Select a required switching operation from the drop-down list. For details of switching operations, see PWE3 Service Management. ----End
6.4.11 Managing ATM Connections

This topic describes how to manage ATM connections, including the operations of adding and deleting an ATM connection.
Prerequisite
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria. Step 3 In the service list, select a ATM service. Step 4 Click the Service Parameter tab. The ATM link list is displayed. Step 5 Optional: Add an ATM connection. 1.
Issue 01 (2010-08-16)
Click Create Link. The Create Link dialog box is displayed.

2. 3.
Click Add Link to add an ATM connection. Set the name of the connection and the VPI/VCI for the source and sink of the connection.
NOTE
In the case of a PTN NE, you need to configure the ATM policy. Otherwise, an error message is displayed.
4.
Click OK.
Step 6 Optional: Delete an ATM connection. 1. 2. Select an ATM connection and click Delete. In the confirmation dialog box, click Yes.
NOTE
A service must have at least an ATM connection.
----End
6.5 PWE3 Service Monitoring

The PWE3 service monitoring enables you to view the service topology, monitor service performance, and monitor service alarms. 6.5.1 Configuring Ethernet OAM This topic describes how to configure Ethernet OAM. The Ethernet OAM is used to check the connectivity of Ethernet services in real time. This helps to locate and recover from faults. 6.5.2 Configuring PW OAM This topic describes how to configure PW OAM. The PW OAM is used to check the connectivity of PWE3 services in real time. This helps to locate and recover from faults. 6.5.3 Viewing the PWE3 Service Topology This topic describes how to view the PWE3 service topology. By viewing the service topology of a PWE3 service, you can learn the topology structure and running status of the service in real time. 6.5.4 Monitoring Performance of a PWE3 Service This topic describes how to monitor performance of a PWE3 service. While a PWE3 service is running, abnormal status may occur. By viewing the performance data of a PWE3 service, you may learn the abnormal status in time. In this manner, the maintenance personnel can take timely measures to avoid faults. 6.5.5 Monitoring Alarms of a PWE3 Service
This topic describes how to monitor alarms of a PWE3 service. By creating a service monitoring template, the maintenance personnel can monitor alarms of services that important to customers, and learn the running status of services in real time, thus ensuring the normal running of services. 6.5.6 Viewing the Alarms of a PWE3 Service This topic describes how to view the alarms of a PWE3 service. 6.5.7 Diagnosing a PWE3 Service This topic describes how to diagnose a PWE3 service by using the ping and tracert.
6.5.1 Configuring Ethernet OAM

This topic describes how to configure Ethernet OAM. The Ethernet OAM is used to check the connectivity of Ethernet services in real time. This helps to locate and recover from faults.
Prerequisite
You must be an NM user with "network operator" authority or higher. The equipment must communicate with the U2000 in the normal state. A PWE3 service must be created.
Context
The Ethernet OAM defines the following concepts:
l
Maintenance domain (MD): The MD is a network that requires the OAM. An important attribute of the MD is level, which restricts the range of OAM operations. The MD can be embedded but not overlapped. The OAM packet processing principle of the MD is as follows: Block the low level, transparently transmit the high level, and process the same level. Maintenance association (MA): The MA can be considered as a service-related domain, which consists of many maintenance end points (MEPs). Maintenance end point (MEP): The MEP is the transmitting and terminating points of all OAM packets. It is relevant to services. The MEP has one unique MEP ID in the MA. In a network, the MA and MEP ID can determine a unique MEP. Maintenance intermediate point (MIP): The MIP is relevant to the MD but irrelevant to the MA. The MIP cannot initiate the OAM packets. The MIP can respond to and forward LB and LT packets, but the MIP can forward the CC packets only.
The Ethernet OAM sends CC packets periodically to check the connectivity of services in real time. The source MEP constructs and sends CC frames periodically. The destination MEP receives the CC frames and directly starts the CC function. If the destination MEP does not receive the CC frames from the source in a period of time (for example, 3.5 times transmit period), the MEP reports the CCLOS alarm automatically. You can perform the LB test on Ethernet services without interrupting the services, to check the connectivity of the services for locating and rectifying faults.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter.
The NMS displays the PWE3 services that meet the filter criteria. Step 3 Optional: Perform a CC test. 1. 2. In the service list, select a service where you want to configure the OAM, right-click, and choose Ethernet OAM > Enable CC from the shortcut menu. Select a link and click OK. The source MEP starts the CC check. If the link fails, the destination MEP reports the CCLOS alarm. In the service list, select a service where you want to configure the OAM, right-click, and choose Ethernet OAM > LB Test from the shortcut menu. Select a link and right-click, choose Configure and set the LB check parameter information. Click Run to start an LB test. The Operation Result dialog box is displayed, indicating that the operation is successful. Click Close. View the test result in the LB Check Information tab and LB Statistic Information tab.
Step 4 Optional: Perform an LB test. 1. 2. 3. 4.
----End
6.5.2 Configuring PW OAM

This topic describes how to configure PW OAM. The PW OAM is used to check the connectivity of PWE3 services in real time. This helps to locate and recover from faults.
Prerequisite
You must be an NM user with "network operator" authority or higher. The equipment must communicate with the U2000 in the normal state. A PWE3 service must be created and deployed.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria. Step 3 In the service list, select a service to be configured with the PW OAM. Step 4 Click the PW tab. Then, click the Basic tab. Step 5 Select one PW and click PW OAM. A dialog box is displayed. Step 6 After you configure the PW OAM, click OK. The configuration is applied to NEs and the current dialog box is closed. ----End
6.5.3 Viewing the PWE3 Service Topology

This topic describes how to view the PWE3 service topology. By viewing the service topology of a PWE3 service, you can learn the topology structure and running status of the service in real time.
Prerequisite
l l
You must be an NM user with "network operator" authority or higher. PWE3 services that are created must exist.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria. Step 3 In the service list, select a service to be viewed. Step 4 View the topology structure of a service. In the service topology, you can learn PE information of the source and sink ends, and interface information for connecting to CE. Step 5 Check alarm information of a service. If a fault occurs, the corresponding interface and PW of the PE in the service topology is displayed with fault identifier. Step 6 You can perform the following operations in the service topology.
l
In the service topology, select a PE, right-click, and then choose the following menu items from the shortcut menu respectively.

Choose NE Explorer to view the NE Explorer of the equipment. Choose View Real-Time Performance to view the real-time performance of the PW.
In the service topology, select one interface, right-click, and then choose View Real-Time Performance to view the real-time performance of the interface. In the topology view, select a PW between PEs, right-click, and then choose the following menu items from the shortcut menu respectively.

Choose Fast Diagnose. In the LSP Ping window that is displayed, diagnose the PW. Choose View Real-Time Performance to view the real-time performance of the PW. Choose View Tunnel. In the Tunnel Management dialog box that is displayed, view the Tunnel information.
----End
6.5.4 Monitoring Performance of a PWE3 Service

This topic describes how to monitor performance of a PWE3 service. While a PWE3 service is running, abnormal status may occur. By viewing the performance data of a PWE3 service, you may learn the abnormal status in time. In this manner, the maintenance personnel can take timely measures to avoid faults.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria.
Step 3 View the runtime performance of a service. Right-click the NE and choose View Real-Time Performance from the shortcut menu in the topology view. Step 4 Create a monitoring instance for a service. For details, refer to the chapter of monitoring instance management in Performance Management System (PMS). Step 5 View the history performance of a service. Right-click a required service and choose Performance > View History Data from the shortcut menu. ----End
6.5.5 Monitoring Alarms of a PWE3 Service

This topic describes how to monitor alarms of a PWE3 service. By creating a service monitoring template, the maintenance personnel can monitor alarms of services that important to customers, and learn the running status of services in real time, thus ensuring the normal running of services.
Procedure
Step 1 Choose Fault > Service Monitoring > Service Monitoring Template from the main menu. Step 2 In the Centralized Monitoring dialog box, expand the All Service branch to view alarm information of all services.
Step 3 Click Select Monitoring Group. Step 4 In the Select Monitoring Group dialog box, click Add from the shortcut menu. Step 5 In the Add Monitoring Group dialog box, enter the name of the monitoring group and click OK. The newly-added monitoring group is displayed in the monitoring group list.
6-66
Issue 01 (2010-08-16)
Step 6 Select the monitoring group that is added, right-click, and then choose Add Monitoring Service from the shortcut menu. Step 7 In the Add Monitoring Service dialog box, select the corresponding service tab and select the service to be added. Then, click Add. Step 8 Click Close. ----End
6.5.6 Viewing the Alarms of a PWE3 Service

This topic describes how to view the alarms of a PWE3 service.
Context
When a service alarm is generated, certain phenomena occur, including but not limited to:
l l l
The alarm panel blinks. The color of the alarm status column in the service list changes. The color of the NE, interface, or link in the service topology changes.
If you find a service alarm through preceding phenomena, perform the following operations to view the detailed alarm information.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria. Step 3 Right-click the service with the alarm and choose Alarm > Current Alarm from the shortcut menu. You can also choose Alarm > History Alarm from the shortcut menu to view the history alarms of the service. Step 4 Select the service alarm in the alarm list and view the detailed alarm information in the details area. ----End
Postrequisite
Primarily determine the possible cause of the alarm based on the detailed alarm information, and then locate the fault by using the debugging tool.
6.5.7 Diagnosing a PWE3 Service

This topic describes how to diagnose a PWE3 service by using the ping and tracert.
Prerequisite
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the PWE3 services that meet the filter criteria. Step 3 Set a scheduled test. 1. 2. 3. Right-click a PWE3 service and choose Diagnose > Create Test Suite from the shortcut menu. Select NO. and click Next. Select LSP Ping and click Detail. In the dialog box that is displayed, set advanced parameters for the test and click OK.
4.
Set Test Time, click Add, and then click Finish.
Step 4 View the scheduled test result. 1. 2. 3. Right-click the PWE3 service and choose Diagnose > View Test Result from the shortcut menu. Click Query to view the scheduled test result. Optional: Click Export Result to export the result to the local computer.
NOTE
The result can be exported to a .cvs, .html, , .xls, .pdf, or .txt file.
Step 5 View the test strategy. 1. 2. 3.

6-68
Right-click the corresponding PWE3 service and choose Diagnose > View Test Strategy from the shortcut menu. Click Create. In the dialog box that is displayed, set information relevant to the strategy and click OK to create a diagnosis strategy. Click the Associated Test Suite tab. Click Bind.
4. 5. 1. 2. 3.
In the dialog box that is displayed, select an existing test suite and click OK to bind the test strategy and test suite. Click Run to implement the preset diagnosis strategy. Right-click a PWE3 service and choose Test And Check from the shortcut menu. Optional: Select LSP Ping and click . In the dialog box that is displayed, set parameters relevant to the LSP ping test and click OK. Optional: Select LSP Tracert and click . In the dialog box that is displayed, set parameters relevant to the LSP tracert test and click OK.
NOTE
Step 6 Set the manual test.
If you select Reply mode, details of an error are displayed only when the error occurs in the reply mode.
4.
Click Run and then view test result in the pane on the right.
----End
6.6 Managing PWE3 Service Authority

This topic describes how to manage the PWE3 service authority. 6.6.1 Configuring the Rights of a User on PWE3 Services You can configure operation rights on PWE3 services for different users. This enhances the NMS security. 6.6.2 Viewing the Rights of a User on PWE3 Services This topic describes how to view the rights of a user on PWE3 services.
6.6.1 Configuring the Rights of a User on PWE3 Services

You can configure operation rights on PWE3 services for different users. This enhances the NMS security.
Prerequisite
You must be an NM user with "network operator" authority or higher. A user that requires rights allocation must exist.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 Click Filter. In the dialog box that is displayed, set the filter criteria, and click Filter. Step 3 Select the required service, right-click, and then choose Confer Service Authority from the shortcut menu. Step 4 In Useable User, select the required user and click User.
Issue 01 (2010-08-16) Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.
to add the user to Selected
6-69
6.6.2 Viewing the Rights of a User on PWE3 Services

This topic describes how to view the rights of a user on PWE3 services.
Prerequisite
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service Authority from the main menu. Step 2 In the dialog box that is displayed, select the required user and view its manageable services in the right pane.
NOTE
In the right pane, after selecting the required services, you can adjust its service authorization.
6.7 Examples for Configuring PWE3 Services

This topic describes several examples of configuring PWE3 services, including the TDM, ATM, and Ethernet services. 6.7.1 Example for Configuring a CES Emulation Service This topic describes the example of configuring a CES emulation service. Specifically, the example description, service planning, and configuration process are provided. 6.7.2 Example for Configuring an ATM Service This topic describes the example of configuring an ATM service. Specifically, the example description, service planning, and configuration process are provided. 6.7.3 Example for Configuring an Ethernet Private Line Service This topic describes the example of configuring an Ethernet private line service. Specifically, the example description, service planning, and configuration process are provided. 6.7.4 Example of Configuring an End-to-End IP Line Service This section describes an example of configuring an end-to-end IP line service and provides a flowchart to illustrate the service configuration process. The configuration example involves networking, service planning, and service configuration.
6.7.1 Example for Configuring a CES Emulation Service

This topic describes the example of configuring a CES emulation service. Specifically, the example description, service planning, and configuration process are provided.
6-70
Issue 01 (2010-08-16)
Example Description
This topic describes O&M scenarios and networking diagrams.
Networking and Requirements

As shown in Figure 6-33, the CES service is transmitted through the PTN equipment between BTS and BSC. Two TDM services are transmitted between the BTS and BSC that are connected to NE1. NE1 is the OptiX PTN 1900 and functions as a base station to access services. NE2, NE3, NE4, and NE5 are the OptiX PTN 3900. NE6 is the OptiX PTN 1900. A tunnel is required between NE1 and NE3. You can create the MPLS APS protection to transmit the services that required high network security.
l l
Active tunnel: NE1-NE2-NE3, in which NE2 is a transit node. Bypass tunnel: NE1-NE6-NE5-NE4-NE3, in which NE6, NE5, and NE4 are transit nodes. When the active tunnel is faulty, the services are switched to the bypass tunnel.
Figure 6-33 Network of the CES service
NE4 NE5 NE6 GE Ring On Access Layer NE1 NE2 10 GE Ring On Convergence Layer
NE3
BSC Woking Tunnel Protection Tunnel OptiX PTN 3900 OptiX PTN 1900
BTS
Figure 6-34 shows the planning of the boards and ports on each NE.
Issue 01 (2010-08-16)
6-71

1-EX2-2(port-2) 10.0.3.1 1-EX2-1(port-1) 10.0.2.2
4-EFG2-2(port-2) 10.0.4.1 NE6 4-EFG2-1(port-1) 10.0.5.2
3-EG16-1(port-1) 10.0.4.2 GE Ring On Access Layer
1-EX2-2(port-2) 10.0.3.2 NE5
NE4 10 GE Ring On Convergence Layer 1-EX2-1(port-1) 10.0.1.2
NE3
3-EG16-1(port-1) 10.0.0.2 NE1
1-EX2-2(port-2) 10.0.2.1
4-EFG2-2(port-2) 4-EFG2-1(port-1) 10.0.5.1 10.0.0.1 6-L12
NE2 1-EX2-1(port-1) 10.0.1.1
6-MP1-1-CD1-1port-1 10.0.6.1 BSC Working Tunnel Protection Tunnel
BTS
OptiX PTN 3900
OptiX PTN 1900
Service Planning
This topic describes the planning of the parameters, such as IP addresses, interfaces, and protocol types involved in this example in table format. Assume that the IP addresses of the ports of NEs are the same as those listed in Table 6-8 after the U2000 automatically allocates the IP addresses of ports. Table 6-8 NE parameters NE NE1 LSR ID 1.0.0.1 Port 4-EFG2-1(Port-1) 4-EFG2-2(Port-2) 3-EG16-1(Port-1) 1-EX2-1(Port-1) 1-EX2-1(Port-1) 1-EX2-2(Port-2) 1-EX2-1(Port-1) 1-EX2-2(Port-2) 1-EX2-2(Port-2) 3-EG16-1(Port-1) 4-EFG2-1(Port-1) Port IP Address 10.0.0.1 10.0.5.1 10.0.0.2 10.0.1.1 10.0.1.2 10.0.2.1 10.0.2.2 10.0.3.1 10.0.3.2 10.0.4.2 10.0.5.2 Mask 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252
Issue 01 (2010-08-16)
NE2
1.0.0.2
NE3
1.0.0.3
NE4
1.0.0.4
NE5 NE6
6-72
1.0.0.5 1.0.0.6
NE
LSR ID
Port 4-EFG2-2(Port-2)
Port IP Address 10.0.4.1
Mask 255.255.255.252
Table 6-9 lists the planning details of tunnel parameters. Table 6-9 Tunnel parameters Parameter Tunnel ID Tunnel Name 100 Working TunnelForward Static CR E-LSP No Limit NE1 NE2 NE3 NE1
l
Working Tunnel 101 Working Tunnel-Reverse Static CR E-LSP No Limit NE3 NE2 NE1 NE3
l
Protection Tunnel 120 Protection TunnelForward Static CR E-LSP No Limit NE1 NE6, NE5, NE4 NE3 NE1
l
121 Protection TunnelReverse Static CR E-LSP No Limit NE3 NE4, NE5, NE6 NE1 NE3
l
Signaling Type LSP Type Bandwidth(Kbit/s) Ingress Node Transit Node Egress Node Ingress Node Route Information
Out Interface: 4-EFG2-1 (Port-1) Out Label: 20
Out Interface: 1-EX2-1 (Port-1) Out Label: 21
Out Interface: 4EFG2-2 (Port-2) Out Label: 22
Out Interface: 1EX2-2 (Port-2) Out Label: 23
Issue 01 (2010-08-16)
6-73
Parameter Transit Node Route Information NE2

l
Working Tunnel NE2

l
Protection Tunnel NE6

l
NE4
l
In Interface: 3-EG16-1 (Port-1) In Label: 20 Out Interface: 1-EX2-1 (Port-1) Out Label: 30
In Interface: 1-EX2-1 (Port-1) In Label: 21 Out Interface: 3-EG16-1 (Port-1) Out Label: 31
In Interface: 4-EFG2-1 (Port-1) In Label: 22 Out Interface: 4EFG2-2 (Port-2) Out Label: 32 In Interface: 3-EG16-1 (Port-1) In Label: 32 Out Interface: 1EX2-2 (Port-2) Out Label: 42 In Interface: 1-EX2-2 (Port-2) In Label: 42 Out Interface: 1EX2-1 (Port-1) Out Label: 52
In Interface: 1-EX2-1 (Port-1) In Label: 23 Out Interface: 1EX2-2 (Port-2) Out Label: 33 In Interface: 1-EX2-2 (Port-2) In Label: 33 Out Interface: 3EG16-1 (Port-1) Out Label: 43 In Interface: 4-EFG2-2 (Port-2) In Label: 43 Out Interface: 4EFG2-1 (Port-1) Out Label: 53
l l
l l
l l
l l
NE5
l
NE5
l
l l
l l
NE4
l
NE6
l
l l
l l
Egress Node Route Information
NE3
l
NE1
l
NE3
l
NE1
l
In Interface: 1-EX2-1 (Port-1) In Label: 30
In Interface: 4-EFG2-1 (Port-1) In Label: 31
In Interface: 1-EX2-2 (Port-2) In Label: 52
In Interface: 4-EFG2-2 (Port-2) In Label: 53
Table 6-10 and Table 6-11 list the planning details of CES service parameters.
6-74
Issue 01 (2010-08-16)
Table 6-10 CES service parameters: NE1-NE3 (E1 timeslots partially used) Parameter Service Type Service ID Service Name Protection Type Set as Source Set as Sink Port Value CES 4 CES Remote Service1 Protection-Free NE1 NE3 NE1: 6-L12 NE3: 6-MP1-1-CD1-1(Port-1) Channelized 64k timeslot High-order timeslot YES 1-14, 20 NE1: NE3: 1 Low-order timeslot NE1: 2 NE3: 2 PW ID Signaling Type PW Type Forward Label Reverse Label Forward Type Forward Tunnel Reverse Type Reverse Tunnel RTP Header Jitter Compensation Buffering Time(us) Packet Loading Time (us) Clock Mode EXP 8 Static CESoPSN 36 36 Static Binding Working Tunnel-Forward(Tunnel-0100) Static Binding Working Tunnel-Reverse(Tunnel-0101) Disabled 8000 1000 External Clock Mode 4
Issue 01 (2010-08-16)
6-75
Table 6-11 CES service parameters: NE1-NE3 (E1 timeslots fully used) Parameter Service Type Service ID Service Name Protection Type Set as Source Set as Sink Port Value CES 5 CES Remote Service2 Protection-Free NE1 NE3 NE1: 6-L12 NE3: 6-MP1-1-CD1-1(Port-1) High-order timeslot NE1: NE3: Low-order timeslot NE1: 3 NE3: 3 PW ID Signaling Type PW Type Forward Label Reverse Label Forward Type Forward Tunnel Reverse Type Reverse Tunnel RTP Header Jitter Compensation Buffering Time(us) Packet Loading Time (us) Clock Mode EXP 9 Static SAToP 37 37 Static Binding Working Tunnel-Forward(Tunnel-0100) Static Binding Working Tunnel-Reverse(Tunnel-0101) Disabled 8000 1000 External Clock Mode 4
NOTE
To create an MPLS APS, you can refer to the descriptions of how to create an MPLS tunnel protection group.
6-76
Issue 01 (2010-08-16)
This topic describes how to configure a CES emulation service.
Prerequisite
You must be an NM user with "network operator" authority or higher. You must learn about the networking requirements and service planning described in the example. A network must be created and Allocate IP addresses to ports automatically. Allocating IP addresses to ports automatically refer to Allocating IP Addresses to Ports Automatically.
Procedure
Step 1 Set LSR IDs. 1. 2. In the NE Explorer, select NE1 and choose Configuration > MPLS Management > Basic Configuration from the Function Tree. Set LSR ID, Start of Global Label Space, and other parameters. Click Apply. Parameter LSR ID Example Value NE1: 1.0.0.1 Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network. Set this parameter according to the network planning.
3.
Step 2 Create the working tunnel.

1. 2.
Choose Service > Tunnel > Create Tunnel from the main menu. Set the basic information about the working tunnel.
Protocol Type
MPLS
Signaling Type
Static CR
Selected
3.
Configure the NE list. On the physical topology, double-click NE1, NE2, and NE3 to add them to the NE list and set the corresponding NE roles. Parameter NE Role Example Value NE1: Ingress NE2: Transit NE3: Egress Principle for Value Selection An ingress is the incoming node of a network. In this example, NE1 is an ingress node. A transit is a pass-through node. In this example, NE2 is a transit node. An egress is the outgoing node of a network. In this example, NE3 is an egress node.
6-78
Issue 01 (2010-08-16)
Parameter Deploy
Example Value Selected
Principle for Value Selection When this parameter is selected, a tunnel is saved on the U2000 and applied to the corresponding NEs
4.
Parameter Tunnel ID
Example Value
l l
Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Currently, this parameter can be set to E-LSP only. Set this parameter according to the network planning.
Bandwidth(Kbit/s)
Forward and Reverse Tunnels: 10000 Forward and Reverse Tunnels: 10000 Forward and Reverse Tunnels: 20000 Forward and Reverse Tunnels: 20000 Forward and Reverse Tunnels: 1620 Forward and Reverse Tunnels: E-LSP Forward and Reverse Tunnels: None
CBS(byte)
PIR(Kbit/s)
PBS(byte)
MTU
LSP Type EXP
Issue 01 (2010-08-16)
6-79
Parameter Out Interface

l l
Principle for Value Selection Set this parameter according to the service planning. Only this parameter needs to be set for only the ingress node and transit node.
Reverse Tunnel:
l l
Out Label
Forward Tunnel:
l l
NE1: 20 NE2: 30 NE3: 21 NE2: 31
Reverse Tunnel:
l l
In Interface
Forward Tunnel:
l l
Reverse Tunnel:
l l
Set this parameter according to the service planning. Only this parameter needs to be set for only the egress node and transit node.
In Label
Forward Tunnel:
l l
NE2: 20 NE3: 30 NE2: 21 NE1: 31
Reverse Tunnel:
l l
Next Hop
Forward Tunnel:
l l
NE1: 10.0.0.2 NE2: 10.0.1.2 NE3: 10.0.1.1 NE2: 10.0.0.1
Reverse Tunnel:
l l
Step 3 Optional: Create the protection tunnel. 1. Create the protection tunnel by referring to Step 2.1 through Step 2.4. Set the basic Information as follows:
6-80
Issue 01 (2010-08-16)
Protocol Type
MPLS
Signaling Type
Static CR
Selected
For route details, see the descriptions of route settings in Table 3-2. Step 4 Configure the E1 interface at the BTS side. 1. 2. In the NE Explorer, select NE1 and choose Configuration > Interface Management > PDH Interface from the Function Tree. Click the General Attributes tab. Select 6-L12-2(Port-2) and 6-L12-3(Port-3) and set Port Mode to Layer 1.
Issue 01 (2010-08-16)

NOTE
Before setting the port mode, ensure that the DCN of the port is disabled.
3. 4. 5.
Click Apply. The Operation Result dialog box is displayed, indicating that the operation is successful. Click Close. Click the Advanced Attributes tab. Select 6-L12-2(Port-2) and set Frame Format to CRC-4 Multiframe. Select 6-L12-3(Port-3) and set Frame Format to Unframe. Click Apply. The Operation Result dialog box is displayed, indicating that the operation is successful. Click Close.
Step 5 Configure the STM-1 interface on the BSC side. 1. 2. In the NE Explorer, select the 6-MP1 of NE3 and choose Configuration > Interface Management > Path Configuration from the Function Tree. Select NE3-6-MP1-1-CD1-1(Port-1)-VC4:1-VC12:2 and set VC12 Frame Format to CRC-4 Multiframe. Select NE3-6-MP1-1-CD1-1(Port-1)-VC4:1-VC12:3 and set VC12 Frame Format to Unframe. Click Apply. The Operation Result dialog box is displayed, indicating that the operation is successful.
3.
Step 6 Create remote CES service 1. 1. 2. Choose Service > PWE3 Service > Create PWE3 Service from the main menu. Set the parameters of the CES service.
Table 6-12 Parameters of general attributes Parameter Service Type Example Value CES Principle for Value Selection Set this parameter according to the network planning. A service ID uniquely identifies a service on the entire network. Set this parameter according to the network planning. Set this parameter according to the network planning.
Issue 01 (2010-08-16)
Service ID
Service Name
CES Remote Service 1
Protection Type
Protection-Free
6-82
3.
Click Configure Source And Sink. A dialog box is displayed. On the Physical Topology in the upper left portion of the window, set NE1 as the source NE, set NE3 as the sink NE. Set relevant parameters and click OK. Table 6-13 Parameters of the source node Parameter Channelized Example Value Checked Principle for Value Selection
l
When working in channelized mode, the CE1 port is divided into 32 timeslots physically. You can bind any of the timeslots except timeslot 0. The bound timeslots work as a single port whose logical features are the same as those of a synchronous serial port. When working in clear channel mode, the CE1 port does not support timeslotting.
Issue 01 (2010-08-16)
6-83
Parameter 64k timeslot
Example Value 1-14,20
Principle for Value Selection This parameter indicates the timeslot compression list for structured CES emulation services. Services are loaded in the timeslots that are included in the timeslot compression list, encapsulated into PW packets, and then transmitted to the peer end on an Ethernet. Services loaded in the timeslots that are not included in the timeslot compression list are not encapsulated into PW packets and thus the network bandwidth is saved. After receiving the PW packets, the peer end restores the services to the corresponding timeslot based on its own timeslot compression list. The timeslot lists at the two ends can be different, but the number of timeslots must be the same. Otherwise, services are unavailable. You can set the lower order timeslot after you set channelization. In the case of an E1 port, set the E1 port number. In the case of a line port, set the VC-12 lower order path number.
Low-order timeslot
6-84
Issue 01 (2010-08-16)
Table 6-14 Parameters of the sink node Parameter Channelized Example Value Checked Principle for Value Selection
l
64k timeslot
1-14,20
This parameter indicates the timeslot compression list for structured CES emulation services. Services are loaded in the timeslots that are included in the timeslot compression list, encapsulated into PW packets, and then transmitted to the peer end on an Ethernet. Services loaded in the timeslots that are not included in the timeslot compression list are not encapsulated into PW packets and thus the network bandwidth is saved. After receiving the PW packets, the peer end restores the services to the corresponding timeslot based on its own timeslot compression list. The timeslot lists at the two ends can be different, but the number of timeslots must be the same. Otherwise, services are unavailable.
Issue 01 (2010-08-16)
6-85
Parameter Low-order timeslot
Example Value 2
Principle for Value Selection You can set the lower order timeslot after you set channelization. In the case of an E1 port, set the E1 port number. In the case of a line port, set the VC-12 lower order path number. You can set the higher order timeslot after you set channelization. In the case of a line port, set the VC-4 higher order path number.
High-order timeslot
4.
In PW in the lower left portion of the window, set relevant parameters.
Table 6-15 PW parameters Parameter Forward Type Example Value Static Binding Principle for Value Selection
l
If you set Forward Type to Static Binding, you need to manually specify a tunnel in theForward Tunnel area. If you set Forward Type, you need to set the tunnel priority in the Forward Tunnel area so that the system selects a tunnel according to the priority.
Forward Tunnel
Working Tunnel-Positive (Tunnel-0100)
6-86
Issue 01 (2010-08-16)
Parameter Reverse Type
Example Value Static Binding
Principle for Value Selection

l
If you set Reverse Type to Static Binding, you need to manually specify a tunnel in the Reverse Tunnel area. If you set Reverse Type to Select Policy, you need to set the tunnel priority in the Reverse Tunnel area so that the system selects a tunnel according to the priority.
Reverse Tunnel
Working Tunnel-Reverse (Tunnel-0101) 8
Set this parameter according to the network planning. A PW ID uniquely identifies a PW on the entire network. This parameter specifies whether a PW is dynamic or static. In the case of a dynamic PW, services are available after a signaling negotiation is successful. In the case of a static PW, a signaling negotiation is not required. In addition, you need to configure Forward Label and Reverse Label for a static PW. An Forward Label is attached to the packet header when a CES frame is encapsulated into a PW. An Forward Label is used for label switching. A Reverse Label is attached to the packet header when a CES frame is encapsulated into a PW. A Reverse Label is used for label switching.
PW ID
Signaling Type
Static
Forward Label
36
Reverse Label
36
Issue 01 (2010-08-16)
6-87
Parameter Encapsulation Type
Example Value MPLS
5.
Click Advanced and configure Advanced PW Attribute.
Table 6-16 Parameters of advanced attributes Parameter PW Type Example Value CESoPSN Principle for Value Selection CESoPSN is the structured emulation, for which the timeslot compression can be set. SAToP is the nonstructured emulation, for which the timeslot compression cannot be set. On an MPLS PSN network, a control word carries the packet information. A control word is the encapsulation packet header that consists of four bytes. A control word can be used to identify the packet sequence or used for bit stuffing. Set this parameter according to the network planning. The VCCV verification mode is used to detect the connectivity of a PW. Set this parameter according to the network planning.
Control Word
Must Use
Control Channel Type
CW
VCCV Verification Mode
Ping
RTP Header
Disabled
6-88
Issue 01 (2010-08-16)
Parameter Jitter Compensation Buffering Time(us)
Example Value 8000
Principle for Value Selection Sets the size of the buffer in the receive direction. The size of the buffer is measured based on time. When a PW carries CES emulation service, you can set this parameter. Set the packet loading time. Set this parameter according to the network planning.
Packet Loading Time (us) Emulation Level
1000 E1
6.
Click OK.
Step 7 Create remote CES service 2. For details, refer to Step 6.1 through Step 6.6. Table 6-17 Parameters of general attributes Parameter Service Type Service ID Example Value CES 5 Principle for Value Selection Set this parameter according to the network planning. A service ID uniquely identifies a service on the entire network. Set this parameter according to the network planning. Set this parameter according to the network planning.
Service Name Protection Type
CES Remote Service 2 Protection-Free
Issue 01 (2010-08-16)
6-89
Table 6-18 Parameters of the source node Parameter Channelized Example Value Unchecked Principle for Value Selection
l
Low-order timeslot
You can set the lower order timeslot after you set channelization. In the case of an E1 port, set the E1 port number. In the case of a line port, set the VC-12 lower order path number.
Table 6-19 Parameters of the sink node Parameter Channelized Example Value Unchecked Principle for Value Selection
l
6-90
Issue 01 (2010-08-16)
Parameter Low-order timeslot
Example Value 3
Principle for Value Selection You can set the lower order timeslot after you set channelization. In the case of an E1 port, set the E1 port number. In the case of a line port, set the VC-12 lower order path number. You can set the higher order timeslot after you set channelization. In the case of a line port, set the VC-4 higher order path number.
High-order timeslot
l
Forward Tunnel Reverse Type
Working Tunnel-Positive (Tunnel-0100) Static Binding

l
Issue 01 (2010-08-16)
6-91
Parameter Reverse Tunnel PW ID Signaling Type
Example Value Working Tunnel-reverse (Tunnel-0101) 9 Static
Principle for Value Selection Set this parameter according to the network planning. A PW ID uniquely identifies a PW on the entire network. This parameter specifies whether a PW is dynamic or static. In the case of a dynamic PW, services are available after a signaling negotiation is successful. In the case of a static PW, a signaling negotiation is not required. In addition, you need to configure Forward Label and Reverse Label for a static PW. An Forward Label is attached to the packet header when a CES frame is encapsulated into a PW. An Forward Label is used for label switching. A Reverse Label is attached to the packet header when a CES frame is encapsulated into a PW. A Reverse Label is used for label switching. Set this parameter according to the network planning.
Forward Label
37
Reverse Label
37
Encapsulation Type
MPLS
Table 6-21 Parameters of advanced attributes Parameter PW Type Example Value SAToP Principle for Value Selection CESoPSN is the structured emulation, for which the timeslot compression can be set. SAToP is the nonstructured emulation, for which the timeslot compression cannot be set.
6-92
Issue 01 (2010-08-16)
Parameter Control Word
Example Value No Use
Principle for Value Selection On an MPLS PSN network, a control word carries the packet information. A control word is the encapsulation packet header that consists of four bytes. A control word can be used to identify the packet sequence or used for bit stuffing. Set this parameter according to the network planning. The VCCV verification mode is used to detect the connectivity of a PW. Set this parameter according to the network planning. Sets the size of the buffer in the receive direction. The size of the buffer is measured based on time. When a PW carries CES emulation service, you can set this parameter. Set this parameter according to the network planning.
Control Channel Type VCCV Verification Mode
None Ping
RTP Header Jitter Compensation Buffering Time(us)
Disabled 8000
Packet Loading Time (us)
1000
Set the packet loading time. Set this parameter according to the network planning.
Emulation Level
E1
----End
6.7.2 Example for Configuring an ATM Service

This topic describes the example of configuring an ATM service. Specifically, the example description, service planning, and configuration process are provided.
Example Description
This topic describes O&M scenarios and networking diagrams. Figure 6-35 shows the networking diagram of the ATM services. The 3G R99, signaling, and HSDPA services are required between the two base stations and RNC. NE1 accesses the MPLS
network that consists of PTN equipment. NodeB1 is connected to NE1 through IMA1, and NodeB2 is connected to NE1 through IMA2. The VPI/VCI switching is performed on NE1, and the VPI/VCI transparent transmission is performed on NE2 and NE3. Between NE1 and NE3, three PWs are used to carry the R99, signaling, and HSDPA services respectively. At the remote end, to transparently transmit the ATM services on the MPLS network, NE2 is connected to RNC through STM-1.NE1 is the OptiX PTN 1900; NE2, NE3, NE4, and NE5 are the OptiX PTN 3900; NE6 is the OptiX PTN 950. ATM services are carried in the active tunnel. In addition, you can create a bypass tunnel to protect real-time services. The active tunnel is as follows: NE1-NE2-NE3. The bypass tunnel is as follows: NE1-NE6NE5-NE4-NE3. Figure 6-35 Network of the ATM services
NE4 NE5 NE6 GE Ring On Access Layer NE1 IMA1 pw1 pw2 pw3 IMA2 RNC
Tunnel
10 GE Ring On Convergence Layer NE3 ATM STM-1
NE2
NodeB 1
NodeB 2
PW Protection Tunnel
UNI
IMA1:
Connect1 Connect2 Connect3 R99 HSDPA Singal VPI 1 1 1 VCI 100 101 102
NNI
VPI 50 51 52 VCI 32 32 32
NNI
VPI 50 51 52 VCI 32 32 32
UNI
VPI 50 51 52 VCI 32 32 32
UNI
IMA2:
Connect1 Connect2 Connect3 R99 HSDPA Singal VPI 1 1 1 VCI 100 101 102
NNI
VPI 60 61 62 VCI 32 32 32
NNI
VPI 60 61 62 VCI 32 32 32
UNI
VPI 60 61 62 VCI 32 32 32
Figure 6-36 shows the planning of NEs.
6-94
Issue 01 (2010-08-16)
Figure 6-36 NE planning diagram

1-EX2-2(Port-2) 10.0.3.2 3-EG16-1(Port-1) 10.0.4.2 NE5 GE Ring On Access Layer 3-EG16-1(Port-1) 10.0.0.2 NE1 1-EX2-2(Port-2) 10.0.3.1 1-EX2-1(Port-1) 10.0.2.2
2-EG2-2(Port-2) 10.0.4.1 NE6 2-EG2-1(Port-1) 10.0.5.2 4-EFG2-2(Port-2) 10.0.5.1
NE4
10 GE Ring On Convergence Layer 1-EX2-1(-1) 10.0.1.2
NE3
1-EX2-2(Port-2) 10.0.2.1
NE2 1-EX2-1(Port-1) 10.0.1.1 4-EFG2-1(Port-1) 10.0.0.1 1-CXP-MD1-3-L12
3-MP1-1-AD1-1Port-1 10.0.6.1
RNC Working Tunnel NodeB 1 NodeB 2 Protection Tunnel
Service Planning
This topic describes the planning of the parameters, such as IP addresses, interfaces, and protocol types involved in this example in table format. Between NE1 and NE3, PW1 transmits R99 services, PW2 transmits HSDPA services, and PW3 transmits signaling services. Therefore, you need to create three ATM services. The two base stations converge R99 services and access signaling and HSDPA services. Therefore, you need to create two ATM services connected to the N:1 VCC. Assume that the IP addresses of the ports of NEs are the same as those listed in Table 6-24 after the U2000 automatically allocates the IP addresses of ports. Table 6-22 Configuration parameters of NEs NE NE1 LSR ID 1.0.0.1 Port 4-EFG2-1(Port-1) 4-EFG2-2(Port-2) 3-EG16-1(Port-1) 1-EX2-1(Port-1) 1-EX2-1(Port-1) 1-EX2-2(Port-2) 1-EX2-1(Port-1) 1-EX2-2(Port-2) 1-EX2-2(Port-2) Port IP Address 10.0.0.1 10.0.5.1 10.0.0.2 10.0.1.1 10.0.1.2 10.0.2.1 10.0.2.2 10.0.3.1 10.0.3.2 IP Mask 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.252
6-95
NE2
1.0.0.2
NE3
1.0.0.3
NE4 NE5
Issue 01 (2010-08-16)
1.0.0.4 1.0.0.5
NE
LSR ID
Port 3-EG16-1(Port-1)
Port IP Address 10.0.4.2 10.0.5.2 10.0.4.1
IP Mask 255.255.255.252 255.255.255.252 255.255.255.252
NE6
1.0.0.6
4-EFG2-1(Port-1) 4-EFG2-2(Port-2)
Table 6-23 Tunnel parameters Parameter Tunnel ID Tunnel Name 100 Working TunnelForward Static CR E-LSP No Limit NE1 NE3 IP address of the ingress port of NE2: 3EG16-1(Port-1) 10.0.0.2 IP address of the ingress port of NE3: 1EX2-1(Port-1) 10.0.1.2 IP address of the ingress port of NE2: 1-EX2-2 (Port-2) 10.1.2.2 IP address of the ingress port of NE1: 4-EFG2-1 (Port-1) 10.1.1.2 Working Tunnel 101 Working TunnelReverse Static CR E-LSP No Limit 120 Protection Tunnel-Forward Static CR E-LSP No Limit NE1 NE3 IP address of the ingress port of NE6: 2-EG2-1 (Port-1) 10.0.5.2 IP address of the ingress port of NE5: 3-EG16-1 (Port-1) 10.0.4.2 IP address of the ingress port of NE4: 1-EX2-2 (Port-2) 10.0.3.1 IP address of the ingress port of NE3: 1-EX2-2 (Port-2) 10.0.2.1 Protection Tunnel 121 Protection Tunnel-Reverse Static CR E-LSP No Limit NE3 NE1 IP address of the ingress port of NE4: 1-EX2-1 (Port-1) 10.0.2.2 IP address of the ingress port of NE5: 1-EX2-2 (Port-2) 10.0.3.2 IP address of the ingress port of NE6: 2-EG2-2 (Port-2) 10.0.4.1 IP address of the ingress port of NE1: 4-EFG2-2 (Port-2) 10.0.5.1
Signaling Type LSP Type Bandwidth (Kbit/s) Source Node Sink Node Route Constraint Port IP Address
6-96
Issue 01 (2010-08-16)
Table 6-24 Configuration parameters of the ATM service on NE1 Parameter Base Station of Service IMA Group Source Port Service Source VPI/VCI Sink VPI/ VCI PW of Service PW ID Description NodeB1 NodeB2
IMA1 1-CXP-1-MD1-1(Trunk1) R99 1/100 50/32 PW1 35 HSDPA 1/101 51/32 PW2 36 Signalin g 1/102 52/32 PW3 37
IMA2 1-CXP-1-MD1-2(Trunk2) R99 1/100 60/32 PW1 35 HSDPA 1/101 61/32 PW2 36 Signaling 1/102 62/32 PW3 37
Table 6-25 lists the planning of the configuration parameters of NE3. Table 6-25 Configuration parameters of NE2 Parame ter Service Source (VPI/ VCI) Sink (VPI/ VCI) PW of Service PW ID Sink Port Description R99 50/32 HSDPA 51/32 Signaling 52/32 Description R99 60/32 HSDPA 61/32 Signalin g 62/32
50/32
51/32
52/32
60/32
61/32
62/32
PW1 35
PW2 36
PW3 37
PW1 35
PW2 36
PW3 37
3-MP1-1-AD1-1(1-AD1.PORT-1)
Issue 01 (2010-08-16)
6-97
This topic describes how to configure an ATM emulation service.
Prerequisite
You must be an NM user with "network operator" authority or higher. You must learn about the networking requirements and service planning described in the example. A network must be created and Allocate IP addresses to ports automatically. Allocating IP addresses to ports automatically refer to Allocating IP Addresses to Ports Automatically.
Procedure
Step 1 Set LSR IDs. 1. 2. In the NE Explorer, select NE1 and choose Configuration > MPLS Management > Basic Configuration from the Function Tree. Set LSR ID, Start of Global Label Space, and other parameters. Click Apply. Parameter LSR ID Example Value NE1: 1.0.0.1 Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network. Set this parameter according to the network planning.
3.
Step 2 Configure control planes for NEs.

1. 2.
In the NE Explorer, select NE1 and choose Configuration > Control Plane Configuration > IGP-ISIS Configuration from the Function Tree. Click the Port Configuration tab and click New. In the dialog box that is displayed, click Add. Select the 4-EFG2-1(Port-1) and 4-EFG2-2(Port-2) ports and click OK. Set relevant parameters as follows:
l l
Link Level: level-1-2 LSP Retransmission Interval(s): 5 (In the case of a point-to-point link, if the local equipment fails to receive any response in a period after transmitting an LSP, the local router considers that the LSP is lost or discarded. To ensure the transmission reliability, the local equipment transmits the LSP again.) Minimum LSP Transmission(ms): 30
3.
Choose Configuration > Control Plane Configuration > MPLS-LDP Configuration from the Function Tree.
NOTE
When using a PW to carry services, you need to set the parameters relevant to the MPLS-LDP.
4.
Click New. In the Create LDP Peer Entity dialog box, set the LSR ID of the peer end. Click OK. Set relevant parameters as follows:
l
Opposite LSR ID: 1.0.0.3 (The parameter indicates the LSR ID of the terminal NE on the PW, that is, NE3 in this example.) Hello Send Interval(s): 10 (Hello packets are periodically sent to establish the neighbor relationship.) KeepAlive Send Interval(s): 10 (Keepalive packets are periodically sent to maintain the LDP session.)
5.
In the NE Explorer, select NE3 and set the parameters relevant to the control plane. For details, refer to Step 2.1 through Step 2.4. The parameters of the IS-IS protocol are set to the same values as those of NE 1. For the LDP parameters, set the LSR ID to 1.0.0.1.
Step 3 Create the working tunnel. 1. 2. Choose Service > Tunnel > Create Tunnel from the main menu. Set the basic information about the working tunnel.
Issue 01 (2010-08-16)
6-99
Protocol Type
MPLS
Signaling Type
Static CR
Selected
3.
Configure the NE list. On the physical topology, double-click NE1, NE2, and NE3 to add them to the NE list and set the corresponding NE roles. Parameter NE Role Example Value NE1: Ingress NE2: Transit NE3: Egress Principle for Value Selection An ingress is the incoming node of a network. In this example, NE1 is an ingress node. A transit is a pass-through node. In this example, NE2 is a transit node. An egress is the outgoing node of a network. In this example, NE3 is an egress node. Deploy Selected When this parameter is selected, a tunnel is saved on the U2000 and applied to the corresponding NEs
4.
6-100
Issue 01 (2010-08-16)
Parameter Tunnel ID
Example Value
l l
Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. Currently, this parameter can be set to E-LSP only. Set this parameter according to the network planning. Set this parameter according to the service planning. Only this parameter needs to be set for only the ingress node and transit node.
Bandwidth(Kbit/s)
Forward and Reverse Tunnels: 10000 Forward and Reverse Tunnels: 10000 Forward and Reverse Tunnels: 20000 Forward and Reverse Tunnels: 20000 Forward and Reverse Tunnels: 1620 Forward and Reverse Tunnels: E-LSP Forward and Reverse Tunnels: None Forward Tunnel:
l l
CBS(byte)
PIR(Kbit/s)
PBS(byte)
MTU
LSP Type EXP
Out Interface
Reverse Tunnel:
l l
Out Label
Forward Tunnel:
l l
NE1: 20 NE2: 30 NE3: 21 NE2: 31
Reverse Tunnel:
l l
Issue 01 (2010-08-16)
6-101
Parameter In Interface

l l
Principle for Value Selection Set this parameter according to the service planning. Only this parameter needs to be set for only the egress node and transit node.
Reverse Tunnel:
l l
In Label
Forward Tunnel:
l l
NE2: 20 NE3: 30 NE2: 21 NE1: 31
Reverse Tunnel:
l l
Next Hop
Forward Tunnel:
l l
NE1: 10.0.0.2 NE2: 10.0.1.2 NE3: 10.0.1.1 NE2: 10.0.0.1
Reverse Tunnel:
l l
Step 4 Create the protection tunnel. 1. Create the protection tunnel by referring to Step 2.1 through Step 2.4. Set the basic Information as follows: Parameter Tunnel Name Example Value Working Tunnel Principle for Value Selection Set this parameter according to the service planning. Set this parameter according to the service planning. Set this parameter according to the service planning. This parameter is selected when a reverse tunnel needs to be created.
Protocol Type
MPLS
Signaling Type
Static CR
Selected
6-102
Issue 01 (2010-08-16)
For route details, see the descriptions of route settings in Table 3-2. Step 5 Configure ports, including ATM ports on Node B and RNC. 1. Configure ATM ports on Node B. a. In the NE Explorer, select NE1 and choose Configuration > Interface Management > PDH Interface from the Function Tree to configure ports on Node B. Select the ports from 3-L12-1(Port-1) to 3-L12-8(Port-8). In the Port Mode field, right-click, and choose Layer 2 from the shortcut menu. Click Apply.
NOTE
b.
Before setting the frame format, ensure that the DCN of the port is disabled.
Set relevant parameters as follows:

l l
Port: ports from 3-L12-1(Port-1) to 3-L12-8(Port-8) Name: NodeB ATM (You can set port names to distinguish different service ports for easy location and query.) Port Mode: Layer 2 (IMA signals are carried.) Encapsulation Type: ATM
l l
c.
On the Advanced tab page, set Frame Format and Frame Mode for the ports from 3-L12-1(Port-1) to 3-L12-8(Port-8). Click Apply. Set relevant parameters as follows:
l l
Port: ports from 3-L12-1(Port-1) to 3-L12-8(Port-8) Frame Format: CRC-4 multiframe (The frame format must be same as the cell format on Node B.)
Issue 01 (2010-08-16)

l
Frame Mode: 31
d. e.
Choose Configuration > Interface Management > ATM IMA Management from the Function Tree. Click the Binding tab. On the Binding tab page, click Configuration. Then, set the bound ports for 1-CXP-1MD1-1(Trunk1) and 1-CXP-1-MD1-2(Trunk2). Click OK. Set the parameters relevant to 1-CXP-1-MD1-1(Trunk1) as follows:
l l l
Available Boards: 1-CXP Configurable Ports: 1-CXP-1-MD1-1(Trunk1) Level: E1
E1: For the E1 card, when the E1 level is selected, the entire E1 channel is used to transmit ATM IMA signals. Fractional E1: For the E1 card, when the fractional E1 level is selected, certain 64 kbit/s timeslots of an E1 channel are used to transmit ATM IMA signals. For the ATM STM-1 card, when the fractional E1 level is selected, certain 64 kbit/s timeslots of a VC12 lower order path are used to transmit ATM IMA signals. Before selecting the fractional E1 level, ensure that the serial port for the 64 kbit/s timeslot is created. VC12-xv: For the ATM STM-1 card, the VC4 path of an STM-1 contains 63 VC12 lower order paths. When the VC12-xv level is selected, certain VC12 lower order paths of a VC4 path is used to transmit ATM IMA signals.
l l
Direction: Bidirectional (default) Optical Interface: - (In the case of the E1 and fractional E1 levels, you need not set this parameter. In the case of the VC12-xv level, you need to select the corresponding optical port, that is, the E1 level in this example.) Available Resources: ports from 3-L12-1(Port-1) to 3-L12-4(Port-4) Available Timeslots: - (In the case of the E1 and fractional E1 levels, you need not set this parameter. In the case of the VC12-xv level, you need to select the corresponding timeslot.) Available Boards: 1-CXP Configurable Ports: 1-CXP-1-MD1-2(Trunk2) Level: E1 Direction: Bidirectional Optical Interface: Available Resources: ports from 3-L12-5(Port-5) to 3-L12-8(Port-8) Available Timeslots: -
l l
Set the parameters relevant to 1-CXP-1-MD1-2(Trunk2) as follows:

l l l l l l l
f.
On the IMA Group Management tab page, double-click the IMA Protocol Enable Status field to enable the IMA protocol. Set other relevant parameters as required. Click Apply. The settings of parameters need to be the same as those on Node B. On the ATM Interface Management tab page, set the parameters, such as Max. VPI and Max. VCI. Click Apply. Set relevant parameters as follows:
g.
6-104
Issue 01 (2010-08-16)

l
Port Type: UNI (A UNI port is used to connect to the client-side equipment, and an NNI port is used to connect the ATM equipment on a core network.) ATM Cell Payload Scrambling: Enabled Max. VPI: 8 (Set this parameter according to the networking planning. You can determine the value range of VPIs by setting Max. VPI. The value of the VPI ranges between 0 and (2 MaxVPIbits - 1).) Max. VPI: 7 (Set this parameter according to the networking planning. You can determine the value range of VCIs by setting Max. VCI. The value of the VCI ranges between 0 and (2 MaxVCIbits - 1).) VCC-Supported VPI Count: 32 (Set this parameter according to the networking planning.) Loopback: No Loopback
l l
2.
Configure ATM ports on RNC. a. b. In the NE Explorer, select NE3 and choose Configuration > Interface Management > SDH Interface from the Function Tree to configure ports on RNC. On the Layer 2 Attributes tab page, select 3-MP1-1-AD1-1(Port-1) and set the parameters, such as Max. VPI and Max. VCI, for the port. Click Apply.
Set relevant parameters as follows:

l
Port Type: UNI (A UNI port is used to connect to the client-side equipment, and an NNI port is used to connect the ATM equipment on a core network.) ATM Cell Payload Scrambling: Enabled Max. VPI: 8 (Set this parameter according to the networking planning. You can determine the value range of VPIs by setting Max. VPI. The value of the VPI ranges between 0 and (2 MaxVPIbits - 1).) Max. VPI: 7 (Set this parameter according to the networking planning. You can determine the value range of VCIs by setting Max. VCI. The value of the VCI ranges between 0 and (2 MaxVCIbits - 1).) VCC-Supported VPI Count: 32 (Set this parameter according to the networking planning.)
l l
Step 6 Create three UNI-NNI ATM services. 1. Choose Service > PWE3 Service > Create PWE3 Service from the main menu. Create the R99 service from NE1 to NE3.
Issue 01 (2010-08-16)
6-105
Table 6-26 Parameters of general attributes Parameter Service Type Example Value ATM Principle for Value Selection Set this parameter according to the network planning. A service ID uniquely identifies a service on the entire network. Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning.
Service ID
Service Name
ATMService-R99
Protection Type
Protection-free
Link Type
ATM N-to-1 VCC Cell Transport
2.
Click Configure Source And Sink. A dialog box is displayed. On the Physical Topology in the upper left portion of the window, set NE1 as the source NE, set NE3 as the sink NE. Set relevant parameters and click OK. Table 6-27 Parameters of the source node Parameter SAI Type Example Value ATM Principle for Value Selection Set this parameter according to the network planning.
Table 6-28 Parameters of the sink node Parameter SAI Type Example Value ATM Principle for Value Selection Set this parameter according to the network planning.
3.
6-106
Issue 01 (2010-08-16)
l
Forward Tunnel
Tunnel-001

l
Reverse Type
Static Binding
Reverse Tunnel
Tunnel-001_Reverse
Set this parameter according to the network planning. A PW ID uniquely identifies a PW on the entire network.
PW ID
35
Issue 01 (2010-08-16)
6-107
Example Value Dynamic
Principle for Value Selection This parameter specifies whether a PW is dynamic or static. In the case of a dynamic PW, services are available after a signaling negotiation is successful. In the case of a static PW, a signaling negotiation is not required. In addition, you need to configure Forward Label and Reverse Label for a static PW. Set this parameter according to the network planning.
Encapsulation Type
MPLS
4.
Click ATM Link. In the dialog box that is displayed, set the parameters relevant to the connection. Table 6-30 Parameter for configuring a connection Parameter Connection Name Example Value Connection1 and Connection2 Working Principle for Value Selection Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning.
Role
Source SAI
Connection1: NE1-1CXP-1-MD1-1(Trunk1) Connection2: NE1-1CXP-1-MD1-2(Trunk2)
Source VPI
Connection1: 1 Connection2: 1
VPI information carried by the service from a base station. VCI information carried by the service from a base station.
Source VCI
6-108
Issue 01 (2010-08-16)
Parameter Source ATM Policy
Example Value Connection1: RT-VBR Connection2: RT-VBR
Principle for Value Selection Connection1 is an R99 service and you need to select the RT-VBR policy for it. Connection2 is an R99 service and you need to select the RT-VBR policy for it.
Sink SAI
Connection1: NE3-3MP1-1-AD1-1(Port-1) Connection2: NE3-3MP1-1-AD1-1(Port-1)
Sink VPI
VPI information carried by the service after a VPI switching. Max. VPI of an ATM port is 255 according to the planning and thus the value of the VPI on the sink ranges between 0 and 255. VCI information carried by the service after a VCI switching. Max. VCI of an ATM port is 127 according to the planning and thus the value of the VPI on the sink ranges between 32 and 127. Connection1 is an R99 service and you need to select the RT-VBR policy for it. Connection2 is an R99 service and you need to select the RT-VBR policy for it.
Sink VCI
Sink ATM Policy
Connection1: RT-VBR Connection2: RT-VBR
Transit VPI
Set this parameter according to the network planning. Set this parameter according to the network planning.
Transit VCI
5.
Click Advanced and configure PW QoS and Advanced PW Attribute.
Issue 01 (2010-08-16)
6-109
Table 6-31 Parameters of advanced attributes Parameter Control Word Example Value Must use Principle for Value Selection On an MPLS PSN network, a control word carries the packet information. A control word is the encapsulation packet header that consists of four bytes. A control word can be used to identify the packet sequence or used for bit stuffing. A CW control word is used to detect the connectivity of a PW. The VCCV verification mode is used to detect the connectivity of a PW. Set this parameter according to the network planning. Set this parameter according to the network planning. Maximum number of ATM cells that can be encapsulated into a packet. Set this parameter according to the network planning.
CW
Ping
Source ATM CoS Map
1(mapping1)
Sink ATM CoS Map
1(mapping1)
Max. Concatenated Cells Count Packet Loading Time (us)
10
1000
Table 6-32 PW QoS parameters Parameter Bandwidth Limited Example Value Enabled Principle for Value Selection Set this parameter according to the network planning. Set the bandwidth based on the service traffic. Set the bandwidth based on the service traffic.
Issue 01 (2010-08-16)
CIR (kbit/s) PIR (kbit/s)
30000 50000
6-110
Parameter EXP
Example Value 1
6. 7.
Click OK. The ATMService-R99 service is created successfully. Create the ATMService-HSDPA service. For details, refer to the preceding steps. Table 6-33 Parameters of general attributes Parameter Service Type Example Value ATM Principle for Value Selection Set this parameter according to the network planning. A service ID uniquely identifies a service on the entire network. Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning.
Service ID
Service Name
ATMService-HSDPA
Protection Type
Protection-free
Link Type
Table 6-34 Parameters of the source node Parameter SAI Type Example Value ATM Principle for Value Selection Set this parameter according to the network planning.
6-111
Issue 01 (2010-08-16)
l
Forward Tunnel
Tunnel-001

l
Reverse Type
Static Binding
Reverse Tunnel
Tunnel-001_Reverse
PW ID
36
6-112
Issue 01 (2010-08-16)
Encapsulation Type
MPLS
Table 6-37 Parameter for configuring a connection Parameter Connection Name Example Value Connection1 and Connection2 Working Principle for Value Selection Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning.
Role
Source SAP
Source VPI
VPI information carried by the service from a base station. VCI information carried by the service from a base station. Connection1 is an HSDPA service and you need to select the UBR policy for it. Connection2 is an HSDPA service and you need to select the UBR policy for it.
Source VCI
Source ATM Policy
Connection1: UBR (policy) Connection2: UBR (policy)
Issue 01 (2010-08-16)
6-113
Parameter Sink SAP
Example Value Connection1: NE1-3MP1-1-AD1-1(1AD1.PORT-1) Connection2: NE1-3MP1-1-AD1-1(1AD1.PORT-1)
Sink VPI
VPI information carried by the service after a VPI switching. Max. VPI of an ATM port is 255 according to the planning and thus the value of the VPI on the sink ranges between 0 and 255. VCI information carried by the service after a VCI switching. Max. VCI of an ATM port is 127 according to the planning and thus the value of the VPI on the sink ranges between 32 and 127. Connection1 is an HSDPA service and you need to select the UBR policy for it. Connection2 is an HSDPA service and you need to select the UBR policy for it. Set this parameter according to the network planning. Set this parameter according to the network planning.
Sink VCI
Sink ATM Policy
Connection1: UBR (policy) Connection2: UBR (policy)
Transit VPI
Transit VCI
6-114
Issue 01 (2010-08-16)
CW
Ping
Source ATM CoS Map
1(mapping1)
Sink ATM CoS Map
1(mapping1)
20
1000
6-115
30000 50000
Issue 01 (2010-08-16)
Parameter EXP
Example Value 3
8.
Create the ATMService-Signaling service. For details, refer to the preceding steps. Table 6-40 Parameters of general attributes Parameter Service Type Example Value ATM Principle for Value Selection Set this parameter according to the network planning. A service ID uniquely identifies a service on the entire network. Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning.
Service ID
Service Name
ATMService-Signaling
Protection Type
Protection-free
Link Type
Table 6-41 Parameters of the source node Parameter SAI Type Example Value ATM Principle for Value Selection Set this parameter according to the network planning.
Issue 01 (2010-08-16)
6-116
l
Forward Tunnel
Tunnel-001

l
Reverse Type
Static Binding
Reverse Tunnel
Tunnel-001_Reverse
PW ID
37
Issue 01 (2010-08-16)
6-117
Encapsulation Type
MPLS
Table 6-44 Parameter for configuring a connection Parameter Connection Name Example Value Connection1 and Connection2 Working Principle for Value Selection Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning.
Role
Source SAP
Source VPI
VPI information carried by the service from a base station. VCI information carried by the service from a base station. Connection1 is a signaling service and you need to select the CBR policy for it. Connection2 is a signaling service and you need to select the CBR policy for it.
Source VCI
Source ATM Policy
Connection1: CBR (policy) Connection2: CBR (policy)
6-118
Issue 01 (2010-08-16)
Parameter Sink SAP
Example Value Connection1: NE1-3MP1-1-AD1-1(1AD1.PORT-1) Connection2: NE1-3MP1-1-AD1-1(1AD1.PORT-1)
Sink VPI
VPI information carried by the service after a VPI switching. Max. VPI of an ATM port is 255 according to the planning and thus the value of the VPI on the sink ranges between 0 and 255. VCI information carried by the service after a VCI switching. Max. VCI of an ATM port is 127 according to the planning and thus the value of the VPI on the sink ranges between 32 and 127. Connection1 is a signaling service and you need to select the CBR policy for it. Connection2 is a signaling service and you need to select the CBR policy for it.
Sink VCI
Sink ATM Policy
Connection1: CBR (policy) Connection2: CBR (policy)
Transit VPI
Set this parameter according to the network planning. Set this parameter according to the network planning.
Transit VCI
Issue 01 (2010-08-16)
6-119
CW
Ping
Source ATM CoS Map
1(mapping1)
Sink ATM CoS Map
1(mapping1)
20
1000
Issue 01 (2010-08-16)
30000 50000
6-120
Parameter EXP
Example Value 3
----End
6.7.3 Example for Configuring an Ethernet Private Line Service

This topic describes the example of configuring an Ethernet private line service. Specifically, the example description, service planning, and configuration process are provided.
Example Description
This topic describes O&M scenarios and networking diagrams. As shown in Figure 6-37, both company A and company B have branches in city 1 and city 2. Branches of each company need to communicate with each other. Services from the two companies must be isolated. NE1 is connected to company A and Company B in city 1 and NE3 is connected to company A and Company B in city 2. NE1 accesses services from city 1, NE2 transparently transmits the services, and NE3 transmits the services to city 2. Similarly, NE3 accesses services from city 2, NE2 transparently transmits the services, and NE1 transmits the services to city 1. You can configure Ethernet private line services to meet the requirements of communication between the branches of company A and between the branches of company B. Two PWs carry the services of company A and company B respectively and share bandwidth of a same tunnel. In the case of Company A, the branches require the common Internet access service, CIR=10 Mbit/s, PIR=30 Mbit/s, VLAN ID=100. In the case of Company B, the branches require the data service, CIR=30 Mbit/s, PIR=50 Mbit/ s, VLAN ID=200. NE1 is the OptiX PTN 1900; NE2 and NE3 are the OptiX PTN 3900. Figure 6-37 Network of the Ethernet private line service
NE4 NE5 10 GE Ring On Convergence Layer Access Layer NE3 5-EX2-1Port-1 10.0.1.2
20-EFF8-1Port-1 20-EFF8-2Port-2 10.0.0.2 5-EX2-1Port-1 NE1 3-EFF8-3Port-3 NE2 10.0.1.1 10.0.0.1 20-EFF8-1Port-1 3-EFF8-1Port-1 3-EFF8-2Port-2
Compnay B Compnay A Compnay B Compnay A
Issue 01 (2010-08-16)
6-121
Service Planning
This topic describes the planning of the parameters, such as IP addresses, interfaces, and protocol types involved in this example in table format. Table 6-47 lists the planning details of NE parameters. Table 6-47 Configuration parameters of NEs NE LSR ID Port 3-EFF8-1(Port-1) Port Attribute Port Mode: Layer 2 TAG: Tag Aware NE1 1.0.0.1 3-EFF8-2(Port-2) Port Mode: Layer 2 TAG: Tag Aware 3-EFF8-3(Port-3) 20-EFF8-1(Port-1) NE2 1.0.0.2 5-EX2-1(Port-1) 20-EFF8-1(Port-1) Port Mode: Layer 3 Port Mode: Layer 3 Port Mode: Layer 3 Port Mode: Layer 2 TAG: Tag Aware NE3 1.0.0.3 20-EFF8-2(Port-2) Port Mode: Layer 2 TAG: Tag Aware 5-EX2-1(Port-1) Port Mode: Layer 3 10.0.1.2 255.255.255. 252 10.0.0.1 10.0.0.2 10.0.1.1 255.255.255. 252 255.255.255. 252 255.255.255. 252 Port IP Address Mask -
Table 6-48 lists the planning details of the tunnel that carries a PW. Table 6-48 Planning of the tunnel carrying the PW Parameter Tunnel ID Tunnel Name Signaling Type LSP Type Bandwidth(Kbit/s)
6-122
Forward Tunnel 1 Tunnel-0001 Dynamic E-LSP 80 Mbit/s
Reverse Tunnel 2 Tunnel-0001_Reverse Dynamic E-LSP 80 Mbit/s

Issue 01 (2010-08-16)
Parameter Source Node Sink Node Route Constraint Port IP Address
Forward Tunnel NE1 NE3 IP addresses of ingress port of NE2: 20-EFF8-1: 10.0.0.2 IP addresses of ingress port of NE3: 5-EX2-1: 10.0.1.2
Reverse Tunnel NE3 NE1 IP address of the ingress port of NE2: 5-EX2-1: 10.0.1.1 IP address of the ingress port of NE1: 3-EFF8-3: 10.0.0.1
Table 6-49 lists the planning details of the Ethernet service. Table 6-49 Planning of the UNI-NNI E-Line service carried by the PW Parameter Service ID Service Name Service Direction UNI VLANs Bearer Type Protection Type BPDU MTU(byte) Service Tag Company A 1 E-Line-1 UNI-NNI 3-EFF81(Port-1) 100 PW Protection-Free Non-transparent transmission 1526 User Company B 2 E-Line-2 UNI-NNI 3-EFF8-2(Port-2) 200 PW Protection-Free Non-transparent transmission 1526 User
Table 6-50 lists the planning details of a PW. Table 6-50 Planning of the PW Parameter PW ID PW Signaling Type PW Type Direction
Issue 01 (2010-08-16)
PW of Company A 35 Static Ethernet Bidirectional

PW of Company B 45 Static Ethernet Bidirectional

6-123
Parameter PW Ingress Label PW Egress Label Opposite LSR ID Tunnel Bandwidth Limit CIR (kbit/s) PIR (kbit/s)
PW of Company A 20 20 1.0.0.3 1(E-Line) Enabled 10000 30000
PW of Company B 30 30 1.0.0.3 1(E-Line) Enabled 30000 50000
This topic describes how to configure an Ethernet private line emulation service.
Prerequisite
You must be an NM user with "network operator" authority or higher. You must learn about the networking requirements and service planning described in the example.
Procedure
Step 1 Set LSR IDs for NEs. 1. 2. In the NE Explorer, select NE1 and choose Configuration > MPLS Management > Basic Configuration from the Function Tree. Set the parameters, such as LSR ID and Start of Global Label Space, for the NE. Click Apply. Parameter LSR ID Example Value NE1: 1.0.0.1 Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network. Set this parameter according to the network planning.
3.
Display the NE Explorers of NE2 and NE3 and perform the preceding two steps to set the parameters, such as the LSR ID.
6-124
Issue 01 (2010-08-16)
Parameter LSR ID
Example Value NE2: 1.0.0.2 NE3: 1.0.0.3
Principle for Value Selection Set this parameter according to the network planning. In addition, this value is unique on the entire network. Set this parameter according to the network planning.
Step 2 Configure ports. 1. 2. In the NE Explorer, select NE1 and choose Configuration > Interface Management > Ethernet Interface from the Function Tree to configure ports. On the General Attributes tab page, select 3-EFF8-1(Port-1), 3-EFF8-2(Port-2), and 3EFF8-3(Port-3) and set the parameters, such as Port Mode and Working Mode, for those ports. Click Apply. Set relevant parameters as follows:
l
Port: 3-EFF8-1(Port-1) and 3-EFF8-2(Port-2)

Enable Port: Enabled Port Mode: Layer 2 (UNI port for accessing services of company A and company B.) Encapsulation Type: 802.1Q Working Mode: Auto-Negotiation Max Frame Length: 1620 Enable Port: Enabled Port Mode: Layer 3 (NNI port for carrying tunnels) Working Mode: Auto-Negotiation Max Frame Length(byte): 1620
Port: 3-EFF8-3(Port-3)

3.
On the Layer3 Attributes tab page, select 3-EFF8-3(Port-3). In the Enable Tunnel field, right-click, and choose Enabled from the shortcut menu. In the Specify IP Address field, right-click, and choose Manually from the shortcut menu. Set the parameters, such as IP Address and IP Mask. Click Apply. Set relevant parameters as follows:
l l
Enable Tunnel: Enabled TE Measurement: 10 (The link with a smaller TE measurement value is preferred for route selection of a tunnel. You can intervene in the route selection by adjusting the TE measurement of a link. The smaller the value of the TE measurement, the higher the priority of the link is.) Specify IP Address: Manually (You can set the IP address for a port when Manually is selected.)
Issue 01 (2010-08-16)

l l
IP Address: 10.0.0.1 IP Mask: 255.255.255.252
4.
Display the NE Explorers of NE2 and NE3 and set the parameters relevant to each port. For details, refer to Step 2.1 through Step 2.3. Set relevant parameters as follows:
l
NE2
General Attributes

Port: 20-EFF8-1(Port-1), 5-EX2-1(Port-1) Enable Port: Enabled Port Mode: Layer 3 (NNI port for carrying tunnels) Working Mode: Auto-Negotiation (The working mode of this port must be set to the same value as that of the interconnected port.) Max Frame Length (byte): 1620 (Set this parameter according to the lengths of data packets. All received data packets whose lengths are greater than the parameter value are discarded.) Enable Tunnel: Enabled TE Measurement: 10 (The link with a smaller TE measurement value is preferred for route selection of a tunnel. You can intervene in the route selection by adjusting the TE measurement of a link. The smaller the value of the TE measurement, the higher the priority of the link is.) Specify IP Address: Manually (You can set the IP address for a port when Manually is selected.) 20-EFF8-1(Port-1) IP Address: 10.0.0.2 5-EX2-1(Port-1) IP Address: 10.0.1.1 IP Mask: 255.255.255.252
Layer 3 Attributes

NE3
General Attributes
Port: 20-EFF8-1(Port-1), 20-EFF8-2(Port-2)

Enable Port: Enabled Port Mode: Layer 2 (UNI port for accessing services of company A and company B.) Encapsulation Type: 802.1Q Working Mode: Auto-Negotiation Max Frame Length: 1620 Enable Port: Enabled Port Mode: Layer 3 (NNI port for carrying tunnels) Working Mode: Auto-Negotiation Max Frame Length(byte): 1620
Port: 5-EX2-1(Port-1)

Layer 3 Attributes
6-126

Port: 5-EX2-1(Port-1) Enable Tunnel: Enabled TE Measurement: 10 Specify IP Address: Manually IP Address: 10.0.1.2 IP Mask: 255.255.255.252
Step 3 Configure control planes for NEs. 1. 2. In the NE Explorer, select NE1 and choose Configuration > Control Plane Configuration > IGP-ISIS Configuration from the Function Tree. Click the Port Configuration tab and click New. In the dialog box that is displayed, click Add. Select the 3-EFF8-3(Port-3) port and click OK. Set relevant parameters as follows:
l l
Link Level: level-1-2 LSP Retransmission Interval(s): 5 (In the case of a point-to-point link, if the local equipment fails to receive any response in a period after transmitting an LSP, the local router considers that the LSP is lost or discarded. To ensure the transmission reliability, the local equipment transmits the LSP again.) Minimum LSP Transmission Interval (ms): 30
3.
Display the NE Explorers of NE2 and NE3 and set the parameters relevant to the control planes. For details, refer to Step 3.1 through Step 3.2. The settings of the IS-IS protocol for NE3 are the same as those for NE1. Choose Service > Tunnel > Create Tunnel from the main menu. Set the parameters for a tunnel. For configuration details, refer to 3.3.1 Creating a Tunnel. Table 6-51 Tunnel parameters Parameter Tunnel Name Example Value Tunnel-0001(Positive), Tunnel-0001_Reverse (Reverse) MPLS Principle for Value Selection Set this parameter according to the network planning. A service ID uniquely identifies a service on the entire network.
Step 4 Create a tunnel. 1. 2.
Protocol Type
Issue 01 (2010-08-16)
6-127
Example Value RSVP TE
Principle for Value Selection When the signal type is set to RSVP TE, labels are distributed by using the LSP signaling and the tunnel is of the dynamic type. When the signal type is set to static, you need to manually attach labels and the tunnel is of the static type. The positive and reverse tunnels are created at the same time. Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning. Set the link affinity attribute of a link. When an active tunnel is faulty, the links with the same route color are preferred during a rerouting. When there is no restriction on the link affinity attribute, it is recommended that you use the default value. Set the link affinity attribute of a link. When an active tunnel is faulty, the links with the same route color are preferred during a rerouting. When there is no restriction on the link affinity attribute, it is recommended that you use the default value.
Issue 01 (2010-08-16)
Checked
NE
NE1 and NE3
LSR ID
NE1: 1.0.0.1 NE3: 1.0.0.3
NE Role
NE1: Ingress NE3: Egress
Bandwidth(Kbit/s)
80000
Color(0x)
Mask(0x)
6-128
Parameter LSP Type
Example Value E-LSP
Principle for Value Selection E-LSP indicates that a tunnel determines the scheduling priority and discard priority of packets according to the EXP information. In one MPLS tunnel of the E-LSP type, there can be a maximum of eight types of PWs. L-LSP indicates that a tunnel determines the scheduling policy of packets according to the MPLS labels and determines the discard policy of packets according to the EXP information. In one MPLS tunnel of the LLSP type, there is only one type of PWs. Currently, the OptiX PTN equipment does not support the L-LSP type.
EXP IP Address
None Positive: 10.0.0.2, 10.0.1.2 Reverse: 10.0.1.1, 10.0.0.1
Priority of a tunnel. Set this parameter according to the network planning. Set this parameter according to the network planning. Priority specified for a dynamic MPLS tunnel during the creation of the tunnel. 0 indicates the highest priority. The tunnel of higher setup priority can preempt the bandwidth resources of other tunnels when the resources are insufficient.
Hop Type
Strictly include
Setup Priority
Issue 01 (2010-08-16)
6-129
Parameter Hold Priority
Example Value 0
Principle for Value Selection Priority used by a dynamic MPLS tunnel after the creation of the tunnel. 0 indicates the highest priority. When resources are insufficient, it is of the low probability that the bandwidth resources of a tunnel of higher hold priority are preempted by other tunnels. The hold priority of a tunnel should be higher than or equal to the corresponding setup priority.
3. 1. 2.
Click OK. The tunnel is created successfully. Choose Service > PWE3 Service > Create PWE3 Service from the main menu. Set the parameters of the E-Line-1 Ethernet service.
Step 5 Configure an Ethernet private line (EPL) service.
Table 6-52 Parameters of general attributes Parameter Service Type Example Value ETH Principle for Value Selection Set this parameter according to the network planning. A service ID uniquely identifies a service on the entire network. Set this parameter according to the network planning.
Service ID
Service Name
E-Line-1
6-130
Issue 01 (2010-08-16)
Parameter Protection Type
Example Value Protection-Free
3.
Click Configure Source And Sink. A dialog box is displayed. On the Physical Topology in the upper left portion of the window, set NE1-3-EFF8-1 as the source NE, NE3-20-EFF8-1 as the sink NE. Set relevant parameters and click OK. Table 6-53 Parameters of the source and sink node Parameter SAI Type Example Value ETH Principle for Value Selection Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning.
Connect Type
VLAN
VLAN ID
NE1-3-EFF8-1:100 NE3-20-EFF8-1:200
4.
Issue 01 (2010-08-16)
6-131
l
Forward Tunnel
Tunnel-0001(Positive)

l
Reverse Type
Static Binding
Reverse Tunnel
Tunnel-0001_Reverse (Reverse) 35
PW ID
6-132
Issue 01 (2010-08-16)
Example Value Static
Principle for Value Selection This parameter specifies whether a PW is dynamic or static. In the case of a dynamic PW, services are available after a signaling negotiation is successful. In the case of a static PW, a signaling negotiation is not required. In addition, you need to configure Forward Label and Reverse Label for a static PW. An Forward Label is attached to the packet header when an Ethernet frame is encapsulated into a PW. An Forward Label is used for label switching. A Reverse Label is attached to the packet header when an Ethernet frame is encapsulated into a PW. A Reverse Label is used for label switching. Set this parameter according to the network planning.
Forward Label
20
Reverse Label
20
Encapsulation Type
MPLS
5.
Click Advanced and configure SAI QoS, PW QoS, Advanced PW Attributes, and Service parameter. Use the default value for SAI QoS. Table 6-55 QoS parameters Parameter Bandwidth Limited Example Value Enabled Principle for Value Selection Set this parameter according to the network planning. Set the bandwidth based on the service traffic. Set the bandwidth based on the service traffic.
CIR (kbit/s) PIR (kbit/s) Default Forwarding Priority

Issue 01 (2010-08-16)
10000 30000 BE
6-133
Parameter Default Packet Re-Marking Color
Example Value Yellow
Principle for Value Selection
Table 6-56 PW QoS parameters Parameter Bandwidth Limited Example Value Enabled Principle for Value Selection Set this parameter according to the network planning. Set the bandwidth based on the service traffic. Set the bandwidth based on the service traffic. Set this parameter according to the network planning. The CoS of user packets needs to be restored when the tunnel labels are stripped.
CIR (kbit/s) PIR (kbit/s) EXP
10000 30000 4
LSP Mode
Uniform
Table 6-57 Parameters of advanced attributes Parameter PW Type Example Value Ethernet Principle for Value Selection Set this parameter according to the network planning. On an MPLS PSN network, a control word carries the packet information. A control word is the encapsulation packet header that consists of four bytes. A control word can be used to identify the packet sequence or used for bit stuffing.
Control Word
No Use
6-134
Issue 01 (2010-08-16)
Parameter Control Channel Type
Example Value CW
Principle for Value Selection A CW control word is used to detect the connectivity of a PW. The VCCV verification mode is used to detect the connectivity of a PW.
Ping
6. 7.
Click OK. The E-Line-1 Ethernet service is created. Create the E-Line-2 Ethernet service. For details, refer to the preceding steps. Table 6-58 Parameters of general attributes Parameter Service Type Example Value ETH Principle for Value Selection Set this parameter according to the network planning. A service ID uniquely identifies a service on the entire network. Set this parameter according to the network planning. Set this parameter according to the network planning.
Service ID
Service Name
E-Line-2
Protection Type
Protection-Free
Table 6-59 Parameters of the source and sink node Parameter SAI Type Example Value ETH Principle for Value Selection Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning.
Connect Type
VLAN
VLAN ID
NE1-3-EFF8-2:200 NE3-20-EFF8-2:100
Issue 01 (2010-08-16)
6-135
l
Forward Tunnel
Tunnel-0001(Positive)

l
Reverse Type
Static Binding
Reverse Tunnel
Tunnel-0001_Reverse (Reverse) 45
PW ID
6-136
Issue 01 (2010-08-16)
Example Value Static
Principle for Value Selection This parameter specifies whether a PW is dynamic or static. In the case of a dynamic PW, services are available after a signaling negotiation is successful. In the case of a static PW, a signaling negotiation is not required. In addition, you need to configure Forward Label and Reverse Label for a static PW. An Forward Label is attached to the packet header when an Ethernet frame is encapsulated into a PW. An Forward Label is used for label switching. A Reverse Label is attached to the packet header when an Ethernet frame is encapsulated into a PW. A Reverse Label is used for label switching. Set this parameter according to the network planning.
Forward Label
30
Reverse Label
30
Encapsulation Type
MPLS
Table 6-61 Service parameters Parameter MTU(byte) Example Value 1526 Principle for Value Selection Set this parameter according to the network planning. Set this parameter according to the network planning. Set this parameter according to the network planning.
BPDU
Not Transparently Transmitted User
Service Tag
Issue 01 (2010-08-16)
6-137
Table 6-62 QoS parameters Parameter Bandwidth Limited Example Value Enabled Principle for Value Selection Set this parameter according to the network planning. Set the bandwidth based on the service traffic. Set the bandwidth based on the service traffic.
CIR (kbit/s) PIR (kbit/s) Default Forwarding Priority Default Packet Re-Marking Color
30000 50000 BE Yellow
Table 6-63 PW QoS parameters Parameter Bandwidth Limited Example Value Enabled Principle for Value Selection Set this parameter according to the network planning. Set the bandwidth based on the service traffic. Set the bandwidth based on the service traffic. Set this parameter according to the network planning. The CoS of user packets needs to be restored when the tunnel labels are stripped.
CIR (kbit/s) PIR (kbit/s) EXP
30000 50000 4
LSP Mode
Uniform
6-138
Issue 01 (2010-08-16)
Table 6-64 Parameters of advanced attributes Parameter PW Type Example Value Ethernet Principle for Value Selection Set this parameter according to the network planning. On an MPLS PSN network, a control word carries the packet information. A control word is the encapsulation packet header that consists of four bytes. A control word can be used to identify the packet sequence or used for bit stuffing. A CW control word is used to detect the connectivity of a PW. The VCCV verification mode is used to detect the connectivity of a PW.
Control Word
Must Use
CW
Ping
----End
6.7.4 Example of Configuring an End-to-End IP Line Service

This section describes an example of configuring an end-to-end IP line service and provides a flowchart to illustrate the service configuration process. The configuration example involves networking, service planning, and service configuration.
Example Description
This section describes the function requirement, network diagram, and service planning of an example.
Requirement and Network Diagram

The IP line solution needs to be adopted to achieve IP access based on the capabilities of the access equipment at the edge of a PTN network. Figure 6-38 shows deployment of an IP line service. NE1 is an OptiX PTN 1900 NE and NE2 is an OptiX PTN 3900 NE. A Layer 3 virtual port needs to be created on NE2, and this port serves as the sink port for the IP line service. A VRF needs to be configured on NE2. The IP line service corresponds to a VRF UNI port on NE2. This UNI port serves as one VRF UNI port on NE2. Port 1-EG16-2 on NE2, which is directly connected to the RNC, needs to be configured as another VRF UNI port. In this manner,
IP packets from the NodeB travel through the IP line, NE2, and finally reaches the RNC through the VRF. Figure 6-38 Network where an IP line service is deployed
VRF
1-EG16-2 UNI UNI
Node B
Interface IP:10.1.3.2 Service IP:10.10.1.1
IP-LINE 1 NE1
4-EG2-1 10.1.1.2
1-EG16-1 10.1.1.1
NE2
RNC
L3 Virtual Interface IP:10.1.3.1
NOTE
A VRF instance synchronizes route information. NE2 does not store the IP address of NodeB (the IP line is static and no protocol synchronizes routes), and thus the DIP with the packets sent to the RNC is the IP address of NodeB. To ensure that the packets are sent from the RNC to NodeB, the IP address of the UNI port on NE2 and the port IP address of the NodeB must be in the same network segment. Note that a NodeB may have two IP addresses, that is, service IP address and port IP address. The IP address of the Layer 3 virtual port and the IP address of NodeB must be in the same network segment.
NOTE
Service configuration on the OptiX PTN 3900-8 is the same as that on the OptiX PTN 3900, except for the slots for service boards. For details on service configuration on the OptiX PTN 3900-8, see this example about service configuration on the OptiX PTN 3900.
Service Planning
Table 6-65 lists the planning of parameters for NEs. Table 6-65 Planning of parameters for NEs NE NE1 LSR ID 1.1.1.1 Port 4-EG2-1 (Port-1) 1-EG16-1(port-1) NE2 1.1.1.2 1-EG16-2(port-2) 10(Vinter01) Port IP Address 10.1.1.2 10.1.1.1 10.1.2.2 10.1.3.1 Port Subnet Mask 255.255.255.252 255.255.255.252 255.255.255.252 255.255.255.0
Table 6-66 lists the planning of bearer tunnels for the PWs.
6-140
Issue 01 (2010-08-16)
Table 6-66 Planning of bearer tunnels for the PWs Paramet er Tunnel ID Tunnel Name Signaling LSP Type Bandwidt h(Kbit/s) Ingress Node Transit Node Egress Node Ingress Node Forward Tunnel 01 Tunnel01 Static CR E-LSP No Limit NE1 None. NE2 NE1:
l l l
Reverse Tunnel 01 Tunnel01 Static CR E-LSP No Limit NE2 None. NE1 NE2:
l l l
Egress Port: 4-EFG2-1 Egress Label: 20 Next Hop IP Address: 10.1.1.1
Egress Port: 1-EX16-1 Egress Label: 30 Next Hop IP Address: 10.1.1.2
Egress Node
NE2:
l l
NE1:
l l
Ingress Port: 1-EX16-1 Ingress Label: 20
Ingress Port: 4-EFG2-1 Ingress Label: 30
Table 6-67 VRF configuration planning Parameter Service Information Service Name Service Template VRF ID VRF Name RD RT IP DSCP Pass Through Node List Node Name Description L3VPN01 Full-Mesh 1 VRF01 100:1 100:1 Not supported NE2
Issue 01 (2010-08-16)
6-141
Parameter Node IP Address SAI Interface Name IP AdInterface Namedress/ Mask Interface Name IP Address/Mask Static Route Destination IP Address Mask Outbound Interface Next Hop IP Address Priority
Description NE2: 1.1.1.2 NE2: 1-EG16-2 NE2: 10.1.2.2/30 NE2: 10(Vinter01) NE2: 10.1.3.1/24 Node B Service IP: 10.10.1.1 255.255.255.252 NE2: 10(Vinter01) Node B Interface IP: 10.1.3.2 Default: 60
Table 6-68 PW configuration planning Parameter PW ID Forward Type/Reverse Type Forward Tunnel/Reverse Tunnel Signaling Type Forward Label Reverse Label Encapsulation Description Automatically Allocated Static Binding Tunnel01/Tunnel01 Reverse Dynamic 20 30 MPLS
This section describes how to configure an end-to-end IP line service.
Prerequisite
You must be an NM user with "network operator" authority or higher. If an MPLS tunnel is used to carry services, you need to crate a static MPLS tunnel. . If an IP/GER tunnel is used to carry services, you need to create an IP/GRE tunnel.. If you need to use a UNI port exclusively, disable the DCN function at the port. .
Procedure
Step 1 Set LSR IDs for NEs. 1. 2. Navigate to the NE Explorer of NE1, and choose Configuration > MPLS Management > Basic Configuration from the Function Tree. Set parameters such as LSR ID and Start of Global Label Space for NE1. Then, click Apply. Parameter LSR ID Value (for This Example) NE1: 1.1.1.1 Setting Rule An LSR ID must be unique on the entire network. Set this parameter according to network planning. Set this parameter according to network planning.
3.
Navigate to the NE Explorer of NE2 and repeat the preceding steps to set parameters (including LSR ID) for NE2. Parameter LSR ID Value (for This Example) NE2: 1.1.1.2 Setting Rule An LSR ID must be unique on the entire network. Set this parameter according to network planning. Set this parameter according to network planning.
Step 2 Configure ports. 1. 2. In the NE Explorer, click NE1 and choose Configuration > Interface Management > Ethernet Interface from the Function Tree. Click the General Attributes tab, select 4-EG2-1(Port-1), 4-EG2-2(Port-2), and then set parameters such as Port Mode and Working Mode. Click Apply. Set the related parameters as follows:
l
Port: 4-EG2-2 (Port-2)

Enable Port: Enabled Port Mode: Layer 3 (UNI, for access to NodeB) Working Mode: Auto-Negotiation Max Frame Length (byte): 1620 Enable Port: Enabled
Port: 4-EG2-1 (Port-1)
Issue 01 (2010-08-16)

Port Mode: Layer 3 (NNI, for carrying a tunnel) Working Mode: Auto-Negotiation Max Frame Length (byte): 1620
3.
Click the Layer 3 Attributes tab, select 4-EG2-1(Port-1), right-click the Tunnel Enabling Status field, and then choose Enabled. Right-click the Specify IP field and choose Manually. Then, set parameters such as IP Address and IP Mask. Click Apply.
l l
Enable Tunnel: Enabled TE Measurement: 10 (This parameter indicates link cost. A link with less link cost is selected for a tunnel with preference. You can intervene in route selection by adjusting TE measurement. A smaller TE measurement value indicates a higher priority.) Specify IP Address: Manually (When you set this parameter to Manually, you can set an IP address for the port.) IP Address: 10.1.1.2 IP Mask: 255.255.255.252
l l
4.
Navigate to the NE Explorer of NE2 and set the parameters related to the NNI port with reference to Step 2.1 to Step 2.3. Set the related parameters as follows:
l
NE2

Port: 1-EG16-1 (Port-1) General attributes

Port: 1-EG16-1 (Port-1) Enable Port: Enabled Port Mode: Layer 3 (NNI, for carrying a tunnel) Working Mode: Auto-Negotiation (The working modes of the local port and opposite port must be the same.) Max Frame Length (byte): 1620 (Set this parameter according to the length of service data packets. All the received packets with a length exceeding the maximum frame length are discarded.) Enable Tunnel: Enabled TE Measurement: 10 (This parameter indicates link cost. A link with less link cost is selected for a tunnel with preference. You can intervene in route selection by adjusting TE measurement. A smaller TE measurement value indicates a higher priority.) Specify IP Address: Manually (When you set this parameter to Manually, you can set an IP address for the port.) IP Address: 10.1.1.1 IP Mask: 255.255.255.252
Layer 3 attributes

Step 3 Create a static MPLS tunnel. 1. 2.

6-144
Choose Service > Tunnel > Create Tunnel from the main menu. Set general parameters for the static tunnel.

l
For this example, set Protocol Type to MPLS. When you set Protocol Type to IP, Signaling Type and Template are unavailable. For this example, set Signaling Type to Static CR. For this example, select only Create Reverse Tunnel. When you select Create Reverse Tunnel, a forward tunnel and a reverse tunnel are created. Otherwise, only a forward tunnel is created. When you select Create Bidirectional Tunnel, a bidirectional tunnel is created. When you select Create Protection, a protection tunnel is also created.
NOTE
l l
he OptiX PTN equipment supports only static constraint-based routing (CR) tunnels. A static CR tunnel is based on certain constraints, which are established and managed through the CR mechanism. Unlike a static tunnel, a static CR tunnel can be created when the routing information is available and certain constraints, such as specified bandwidth, selected path, and QoS parameters, are met. When you set Signaling Type to Static CR, you can select Create Reverse Tunnel. When you set Signaling Type to RSVP TE, you can set Template to copy tunnel details from a template.
l
For this example, select only Create Reverse Tunnel. When you select Create Reverse Tunnel, a forward tunnel and a reverse tunnel are created. Otherwise, only a forward tunnel is created. When you select Create Bidirectional Tunnel, a bidirectional tunnel is created. When you select Create Protection, a protection tunnel is also created.
Table 6-69 Parameter settings for a static tunnel Parameter Tunnel ID Value (for This Example)
l
Setting Rule Set this parameter according to service planning.
Forward Tunnel: Tunnel - 01 Reverse Tunnel: Tunnel - 02
Bandwidth(Kbit/s)
Forward Tunnel or Reverse Tunnel: 10000 Forward Tunnel or Reverse Tunnel: 10000 Forward Tunnel or Reverse Tunnel: 20000 Forward Tunnel or Reverse Tunnel: 20000 Forward Tunnel or Reverse Tunnel: 2000 Forward Tunnel or Reverse Tunnel: ELSP
Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning. Currently, only E-LSPs are supported.
CBS(byte)
PIR(Kbit/s)
PBS(byte)
MTU
LSP Type
Issue 01 (2010-08-16)
6-145
Parameter EXP
Value (for This Example) Forward Tunnel or Reverse Tunnel: None Forward Tunnel
l
Setting Rule Set this parameter according to network planning. Set egress ports according to service planning. You need to set egress ports only for the ingress node and transit nodes. Set the parameters according to service planning.
Out Interface
NE1: 4-EG2-1 NE2: 1-EG16-1
Reverse Tunnel
l
Out Label
Forward Tunnel
l
NE1: 20 NE2:30
Reverse Tunnel
l
In Interface
Forward Tunnel
l
NE2: 3-EG16-1 NE1: 4-EG2-1
Reverse Tunnel
l
Set ingress ports according to service planning. You need to set ingress ports only for the egress node and transit nodes. Set the parameters according to network planning.
In Label
Forward Tunnel
l
NE2:20 NE1:30
Reverse Tunnel
l
Next Hop
Forward Tunnel
l
NE1:10.1.1.1 NE2:10.1.1.2
Set the parameters according to network planning.
Reverse Tunnel
l
3. 1. 2. 3.
Click OK. Then, creating a static tunnel is complete. In the NE Explorer, click NE2 and choose ConfigurationInterface ManagementEthernet Virtual Interface from the Function Tree. Click the General Attributes tab and then choose New > Create Ethernet L3 Virtual Interface to display the Create Ethernet L3 Virtual Interface dialog box. In the Create Ethernet L3 Virtual Interface dialog box, set the related parameters.
Step 4 Create a Layer 3 virtual port.
6-146
Issue 01 (2010-08-16)
Step 5 Set parameters associated with the VRF on NE2. Configure a Layer 3 virtual port as a VRF UNI port and port 1-EG16-2 on NE2, which is directly connected to the RNC, as another VRF UNI port. 1. 2. Choose Service > L3VPN Service > Create L3VPN Service from the Main Menu. Set service parameters.
Issue 01 (2010-08-16)
6-147
Table 6-70 Service parameter settings Parameter Service Name Value (for This Example) L3VPN01 Setting Rule Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning.
Service Template
Full-Mesh
VRF ID
VRF Name
VRF01
RD
100:1
RT
100:1
3. 4.
Add NE2 where a service is to be created to NE List. You can also right-click NE2 in Physical Topology and choose Add NE to Service. In VRF Configuration, select General to set basic attributes of VRF. Table 6-71 General attributes of VRF Parameter VRF Name Value (for This Example) VRF01 Setting Rule Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning.
RD
100:1
Import RT
VRF01: 100:1
Export RT
VRF01: 100:1
6-148
Issue 01 (2010-08-16)
Parameter IP DSCP Pass Through
Value (for This Example) NO
5.
In VRF Configuration, select SAI to configure a service access interface. Table 6-72 Service access interface Parameter Interface Name Value (for This Example) 10(Vinter01) Setting Rule Set this parameter to the Layer 3 virtual port on the sink NE of the IP line service. Set this parameter according to service planning. Set this parameter to a Layer 3 port connected to the RNC. Set this parameter according to service planning.
IP Address/Mask
10.1.3.1
Interface Name
1-EG16-2
IP Address/Mask
10.1.2.2
6.
In VRF Configuration, choose Router Configuration > Static Router > Static Router Object, and set static router objects.
Issue 01 (2010-08-16)
6-149
Table 6-73 Route configuration Parameter Destination Value (for This Example) 10.10.1.1 Setting Rule Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning. Set this parameter according to service planning. When multiple routes are configured, routes are selected according to their priorities. Set this parameter according to service planning. Set this parameter according to service planning.
Mask
255.255.255.252
Outbound Interface
10(Vinter01)
Next Hop IP Address
10.1.3.2
Priority
60
Track Event Type
BFD Index
6-150
Issue 01 (2010-08-16)
Parameter VRRP ID
Value (for This Example) -
Step 6 Configure an IP line service. 1. 2. Choose Service > PWE3 Service > Create PWE3 Service from the Main Menu. Set parameters on the Attribute tab.
l l l
Set Service Type to IP E-line. For details on how set Protection Type, see PW Protection. Service ID is set to Auto-Assign by default. You can also specify a number in the range of 1 to 4294967295 for Service ID. Set Service Name according to service planning. If you do not set Service Name, the IP line service is automatically named when the configuration is complete. Protection Type is set to Protection-Free by default. When dual-homing protection is required for the IP line service, select PW redundancy.
3.
Configure the source node and sink node for the IP line service. Click Configure Source And Sink to display the Configure Source and Sink Node dialog box. In the navigation tree on the left, select the source NE; in the pane on the right, select the port. Then, set Role to Source or Sink for the port. When the setting is complete, click OK.
NOTE
The sink port of an IP line service must be a virtual IP port, that is, a Layer 3 virtual port.
4.
Configure a PW. Click the PW tab and set general attributes of the PW.
l
PW ID can be Automatically Allocated. The PW ID is networkwide unique. That is, one PW ID indicates only one PW. Set Forward Type and Reverse Type to Static Binding. Select a created forward tunnel for Forward Tunnel. Select a created reverse tunnel for Reverse Tunnel. Set Signaling Type to Dynamic.
NOTE
l l l l
In the case of an IP line service, only Dynamic signaling is supported.

l l
Set Forward Label to 20. Set Reverse Label to 30.

NOTE
Forward Label and Reverse Label are stuck to packet headers when IP packets are encapsulated to PWs. These labels are used for label switching.
l
Set Encapsulation to MPLS.
5. 6.
Issue 01 (2010-08-16)
Apply the service configuration to NEs. Click Deploy to apply the service configuration to NEs and also select Enable to provision the service. Click Advanced and then set SAI QoS, PW QoS, and Advanced PW Attribute.
Table 6-74 QoS parameter settings for the service access port Parameter Bandwidth Limited Value (for This Example) Enabled Setting Rule It is recommended to set this parameter according to network planning. Set bandwidth according to service traffic. Set bandwidth according to service traffic.
10000 30000
Table 6-75 PW QoS parameter settings Parameter EXP Value (for This Example) 4 Setting Rule It is recommended to set this parameter according to network planning. The CoS of user packets is restored when the tunnel label is stripped.
LSP Mode
Uniform
----End
6-152
Issue 01 (2010-08-16)
7 Managing VPLS Services
7
About This Chapter
Managing VPLS Services
This topic describes how to configure VPLS services. 7.1 VPLS Overview When configuring VPLS services, you need to learn the protocols relevant to the VPLS services and the application scenarios of these protocols. 7.2 Configuration Flow for a VPLS Service The configuration flow of the VPLS service includes creating networks, configuring the LSR ID, configuring QoS policies, configuring interfaces, configuring the control plane, configuring MPLS tunnel, and configuring VPLS service. 7.3 VPLS Operation Tasks This topic describes the VPLS operation tasks, which includes creating and deploying a VPLS service and adjusting VSI resource. 7.4 Monitoring a VPLS Service This topic describes how to monitor a VPLS service. 7.5 Managing VPLS Service Authority This topic describes how to manage the VPLS service authority. 7.6 Configuration Case of the VPLS Service This section describes a configuration example of the VPLS service. A configuration flow diagram is provided to describe the process of service configuration. The configuration example includes the service planning and VPLS service configuration.
Issue 01 (2010-08-16)
7-1
7.1 VPLS Overview

When configuring VPLS services, you need to learn the protocols relevant to the VPLS services and the application scenarios of these protocols. 7.1.1 Introduction to VPLS This topic describes basic concepts of the VPLS. 7.1.2 Reference Standards and Protocols This topic describes the compliant standards and protocols for various technologies used in the VPLS. 7.1.3 VPLS Principle VPLS is an L2VPN technology based on MPLS and Ethernet technologies. VPLS can provide the multipoint-to-multipoint VPN services, which is better than the earlier point-to-point L2VPN services, and L3VPN services requiring carriers to manage the routing information. 7.1.4 VPLS Application This topic describes a typical application of the VPLS.
7.1.1 Introduction to VPLS

This topic describes basic concepts of the VPLS.
Definition
The Virtual Private LAN Service (VPLS), also called the Transparent LAN Service (TLS) or virtual private switched network service, is a Layer 2 VPN (L2VPN) technology that is based on Multi-Protocol Label Switching (MPLS) and Ethernet technologies.
Purpose
The primary goal of VPLS is to interconnect multiple Ethernet LANs through the Packet Switched Network (PSN). In this manner, these LANs can function as one LAN. VPLS can implement the multipoint-to-multipoint VPN networking; therefore, by using the VPLS technology, service providers (SPs) can provide the Ethernet-based multipoint services through MPLS backbone networks. In addition, by utilizing the VPLS solution in which MPLS virtual circuits (VCs) function as the Ethernet bridge links, SPs can transparently transmit LAN services on the MPLS network.
7.1.2 Reference Standards and Protocols

This topic describes the compliant standards and protocols for various technologies used in the VPLS. The following table lists the references of this document. Document No. draft-ietf-l2vpn-signaling-08 Description Provisioning, auto-discovery, and signaling in VPLS.
Issue 01 (2010-08-16)
7-2
Document No. draft-ietf-l2vpn-oam-req-frmk-01 RFC 4664
Description VPLS requirements and framework. Framework for layer 2 virtual private networks (VPLS).
7.1.3 VPLS Principle

VPLS is an L2VPN technology based on MPLS and Ethernet technologies. VPLS can provide the multipoint-to-multipoint VPN services, which is better than the earlier point-to-point L2VPN services, and L3VPN services requiring carriers to manage the routing information.
VPLS Forwarding Model

The VPLS forwarding model is displayed Figure 7-1. In the VPLS forwarding model, PEs utilize the Virtual Switch Instance (VSI) for VPLS forwarding; PEs forward Ethernet frames through the fully-meshed Ethernet emulation circuits or PWs. PEs of the same VPLS network must be fully meshed. That is, PEs are interconnected with PWs. In this manner, packets can be sent directly from the ingress provider edge (PE) to the egress PE, and the transit PE needs not be passed. As a result, no loop occurs between PEs, and the Spanning Tree Protocol (STP) is not needed. Figure 7-1 VPLS forwarding model
VLAN1 VSI 1
CE
VSI 1 VSI 2
VLAN1
CE
PE
PE
VSI 2
VLAN2
CE
VSI 1
VSI 2
VLAN2
CE
PE CE CE
VLAN1
VLAN2
Basic VPLS Transport Components

The whole VPLS network is similar to a switch. In the VPLS network, PWs are set up between VPN sites of each VPN through MPLS tunnels, and Layer 2 packets are transparently transmitted
between sites; PEs learn the source MAC addresses and create MAC forwarding entries when forwarding packets, and then maps the MAC addresses to attachment circuits (ACs) and PWs. The basic VPLS transport components include ACs, virtual circuits (VCs), forwarders, tunnels, encapsulation, PW signaling protocol, and Quality of Service (QoS). Figure 7-2 shows the location of each basic VPLS transport component in the VPLS network. Figure 7-2 Basic VPLS transport components
VPN1 Site3 CE5
VPN1 Site2 CE3
VPN2 Site2 CE4
PE3
MPLS Network
Forwarder PE1
PE2
CE1 VPN1 Site1
CE2 VPN2 Site1
AC PW PWSignal Tunnel
The following takes the flow direction of VPN1 packets from CE1 to CE3 as an example to show the basic direction of the data flow. CE1 forwards Layer 2 packets to PE1. After PE1 receives these packets, the forwarder selects a PW to forward these packets to PE2. Then the forwarder of PE2 forwards these packets to CE3.
VPLS Loop Avoidance

On Ethernet, STP is often enabled in Layer 2 networks to avoid loops. STP, as a private network protocol, however, can only avoid loops between devices of the private network, but not in the ISP network. Therefore, in a VPLS network, full mesh and split horizon are used to avoid loops. To be specific, in each VPLS forwarding instance, each PE must create a tree to all the other PEs; each PE must support split horizon to avoid loops (that is, PEs cannot forward packets between PWs in the same VSI). Usually, PEs in the same VSI are interconnected through PWs. In this sense, splithorizon forwarding means that packets received from the PW on the public network side are forwarded only to the private network side, but not to other PWs. The full mesh between PEs and split horizon ensure the reachability and loop-free in VPLS forwarding. When a customer edge (CE) is connected to multiple PEs, or CEs that are connected to the same VPLS network are interconnected, VPLS cannot ensure that no loop occurs. In such a situation, other methods such as STP must be used to avoid loops.
Note that STP can run in the private network of the L2VPN, and all the BPDUs of STP are transparently transmitted in the ISP network.
Packet Encapsulation on an AC
Packet encapsulation mode on an AC is determined by the user access mode. User access modes can be VLAN access and Ethernet access. Each user access mode is described as follows:
l
VLAN access: In VLAN access mode, the header of each Ethernet frame sent between CEs and PEs carries a VLAN tag. This tag is a service delimiter that is used to identify users in an ISP network. It is called provider-tag (P-tag). Ethernet access: In Ethernet access mode, the header of each Ethernet frame sent between CEs and PEs does not carry any P-tag. If the frame header carries a VLAN tag, the VLAN tag is the internal VLAN tag of the user packet, and is called user-tag (U-tag). The U-tag is carried in a packet before the packet is sent to a CE and is thus not added by the CE. The U-tag is used by the CE to identify which VLAN the packet belongs to, and is meaningless to PEs.
Packet Encapsulation on a PW
Packet encapsulation modes on a PW can be Raw mode and Tagged mode, as shown follows:
l
Raw mode The P-tag is not transmitted on the PW. If a PE receives the packet with a P-tag from a CE, the PE strips the P-tag, adds double MPLS labels (outer label and inner label) to the packet, and then forwards the packet. If a PE receives the packet without a P-tag from a CE, the PE directly adds double MPLS labels to the packet, and then forwards the packet. If a PE sends a packet to a CE, the PE adds or does not add the P-tag to the packet as required, and then forwards the packet to the CE. Note that the PE is not allowed to rewrite or remove any existing tag.
Tagged mode The frame sent to a PW must carry the P-tag. If a PE receives the packet with a P-tag from a CE, the PE directly adds double MPLS labels to the packet without stripping the P-tag, and then forwards the packet; if a PE receives the packet without a P-tag from a CE, the PE adds a null tag and double MPLS labels to the packet, and then forwards the packet. If a PE sends a packet to a CE, the PE rewrites, removes, or preserves the service delimiter of the packet as required, and then forwards the packet to the CE.
VPLS Packets and Encapsulation Types

According to the preceding packet encapsulation modes on a AC and a PW, the VPLS packets and encapsulations can be classified into eight types, as listed in Table 7-1. Table 7-1 VPLS packets and encapsulation types AC Ethernet Ethernet PW Raw Raw U-tag Carried No Yes Type Ethernet access in raw mode (without the U-tag) Ethernet access in raw mode (with the U-tag)
7-5
Issue 01 (2010-08-16)
AC Ethernet Ethernet VLAN VLAN VLAN VLAN
PW Tagged Tagged Raw Raw Tagged Tagged
U-tag Carried No Yes No Yes No Yes
Type Ethernet access in tagged mode (without the U-tag) Ethernet access in tagged mode (with the U-tag) VLAN access in raw mode (without the U-tag) VLAN access in raw mode (with the Utag) VLAN access in tagged mode (without the U-tag) VLAN access in tagged mode (with the U-tag)
7.1.4 VPLS Application

This topic describes a typical application of the VPLS.
Typical VPLS Networking

Figure 7-3 shows the typical networking of VPLS. VPLS-A and VPLS-B access different UPEs respectively and communicate with each other through the ISP network. From the following figure, it is similar that the user networks of VPLS are in the same LAN. The interfaces used by VPLS must support the ability to broadcast, forward, and filter Ethernet frames. The UPEs are connected through pseudo wires (PWs) and form an emulation LAN to users. Each PE learns both the MAC addresses of Ethernet packets from PW and those from CE. A PW can use either MPLS tunnel or other tunnels, such as GRE and L2TP. A PE is usually a set of MPLS edge equipment and can create tunnels to other PEs.
7-6
Issue 01 (2010-08-16)
Figure 7-3 Typical VPLS networking
VPLS-A CE-1
VPLS-B CE-4
VPLS-B CE-1
ISP Network UPE NPE UPE
VPLS-A CE-4
VPLS-A CE-2
UPE
UPE
VPLS-B CE-3
VPLS-B CE-2
VPLS-A CE-3
7.2 Configuration Flow for a VPLS Service

The configuration flow of the VPLS service includes creating networks, configuring the LSR ID, configuring QoS policies, configuring interfaces, configuring the control plane, configuring MPLS tunnel, and configuring VPLS service. Figure 7-4 shows the flow for configuring the VPLS service.
Issue 01 (2010-08-16)
7-7
Figure 7-4 Flowchart for configuring a VPLS service

Required Optional Create a network Start
Configure the LSR ID Configure interface Configure the control plane
Configure Tunnel
Configure the QoS Policy Configure VPLS Service End
Table 7-2 Tasks for Configure a VPLS service Operation 1. Create Network 2. Configure the LSR ID 3. Configure the network-side Interface Description Complete creating the NE, Configure the NE data, creating fibers, and Configure clocks. Specifies the LSR ID for each NE that a service traverses and the start value of the global label space. Each LSR ID is unique on a network. Set the basic attributes and Layer 3 attributes (such as tunnel enabling status and IP address) for the interface to bear tunnels.
7-8
Issue 01 (2010-08-16)
Operation 4. Configure the Control Plane
l
To create the static MPLS tunnel to bear the VPLS service, you do not need to set the associated parameters of the control plane. To create the dynamic MPLS tunnel to bear the VPLS service, you need to set the following parameters: 1. IGP-ISIS protocol parameters 2. MPLS-RSVP protocol parameters To create the dynamic PW to bear services, you need to set the IGPISIS and MPLS-LDP protocol parameters.
To create the IP tunnel or GRE tunnel to bear the VPLS service, you need to add a static route.
5. Configure Tunnel

l
In the case of the static MPLS tunnel, you can create the tunnel either on the per-NE basis or by using the end-to-end management function. Select the signaling type as static and set the relevant information about the tunnel, including the tunnel ID, service name, ingress node, egress node, and transit node. In the case of the dynamic MPLS tunnel, you need to select the signaling type as dynamic and set the relevant information about the tunnel, including service name, and sink and source nodes of the tunnel. In the case of the IP tunnel or GRE tunnel, set the source board, source port, and IP address of the sink port.
6. Configure the QoS Policy 7. Configure the VPLS Service
The QoS policy is used to perform the traffic management on the VPLS service. 1. Create the VPLS service, including setting the service ID and service name, and selecting the service type and bearer type. 2. Configure the user-side interface is used to access the base station services. 3. Configure the PW, including setting the PW type, label, and tunnel type. 4. Configure the QoS, including setting the UNI and QoS of the PW.
7.3 VPLS Operation Tasks

This topic describes the VPLS operation tasks, which includes creating and deploying a VPLS service and adjusting VSI resource. 7.3.1 Creating a VPLS Service This topic describes how to create a VPLS service. 7.3.2 Deploying a VPLS Service
This topic describes how to deploy a VPLS service. 7.3.3 Adjusting the VSI Resource The U2000 can automatically search out all VSI Resource in the network. In addition, the U2000 supports the ability to create a new service, convert a VSI resource to a normal service, and delete a VSI resource in the VSI resource Management window. 7.3.4 Checking the Correctness of the Service Configuration After configuring a service, you can check the connectivity of the service by using the Test and Check function.
7.3.1 Creating a VPLS Service

This topic describes how to create a VPLS service.
Prerequisite
You must be an NM user with "NE administrator" authority or higher. The port attributes must be configured correctly. A tunnel for carrying PWs must be created. The DCN function of a port carrying services must be disabled if the port need be exclusively used. A QoS policy must be created for configuring the QoS if required.
Context
NOTE
The parameters with
are mandatory.
Procedure
Step 1 Choose Service > VPLS Service > Create VPLS Service from the main menu. Step 2 Set the parameters in Attributes List.
7-10
Issue 01 (2010-08-16)

NOTE
When setting parameters, pay attention to the following points:

l
Service Template: When creating services, you can use an existing template to improve the efficiency of applying service configuration. It is recommended that you create a service template for typical services or services with same or similar parameters. Networking Mode: The scenario of typical networking involves common networking scenarios. In special scenarios, you can customize a networking scenario. Service Type: The values Service VPLS and Management VPLS are the same for the PTN equipment. VSI Name: The PTN equipment does not support this parameter. VSI ID: By default, the U2000 automatically allocates VSI IDs. You can click Auto-Assign to reallocate VSI IDs.
l l l l
Step 3 Select service nodes. l l Manner 1: In NE List, click Add and select the required PE type for service deployment. In the dialog box that is displayed, select the required equipment. Manner 2: In the Physical Topology view, right-click an NE and then choose the required PE type.
NOTE
If the typical scenario defined by the U2000 is selected, you can click the Add drop-down button to select the defined PE type as required.
Step 4 In NE List, select an NE, and click Details. On the VSI Configuration tab page, set the relevant VSI parameters.
NOTE
l l
You need to set the parameters for all the NEs in NE List. It is recommended that you set Split Horizon Group parameters to prevent multicast storms. Specifically, add the PWs of NEs to split horizon groups.
Step 5 Configure a PW for carrying services. l If Networking Mode is set to Full-Mesh VPLS, the U2000 automatically creates a PW between NEs, but you need to configure the tunnel for carrying PWs. Click the PW Configuration tab. Set In/Out Tunnel binding type and relevant parameters.
NOTE
l l l
When Binding Type is set to Static Binding, you need to select the tunnel to bind. When Binding Type is set to Select Policy, the U2000 automatically selects the required tunnel according to the policy. By default, the U2000 automatically allocates PW IDs.
If Networking Mode is set to Customized, you need to create a PW between NEs. 1. 2. In the NE List, select all NEs and click the PW Configuration tab. Click Create and choose Bidirectional PW or Unterminated PW as required. In the dialog box that is displayed, set the relevant information for the PW.
Step 6 Configure SAI. 1. 2. In the NE List, select an NE and click the SAI Configuration tab. Click Create. In the dialog box that is displayed, set the relevant information for the SAI, and click OK.
Issue 01 (2010-08-16)
3.
Click the SAI QoS tab, select an SAI, click Configure, and then choose QoS Policy or QoS CAR Template. In the dialog box that is displayed, set the relevant information for the SAI QoS.

NOTE
----End
Postrequisite
After the service is created successful, the service is displayed in the VPLS service management window.
7.3.2 Deploying a VPLS Service

This topic describes how to deploy a VPLS service.
Prerequisite
You must be an NM user with "NE administrator" authority or higher. A VPLS service that is created but not deployed exists.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the VPLS services that meet the filter criteria. Step 3 Select the required VPLS service to be deployed, right-click, and then choose Deploy from the shortcut menu. Step 4 Select the required VPLS service to be enabled, right-click, and then choose Enable from the shortcut menu. ----End
7.3.3 Adjusting the VSI Resource

The U2000 can automatically search out all VSI Resource in the network. In addition, the U2000 supports the ability to create a new service, convert a VSI resource to a normal service, and delete a VSI resource in the VSI resource Management window.
Prerequisite
You must be an NM user with "NE administrator" authority or higher. VSI resource must exist in the network and can be discovered on the U2000.
Context
Discrete VSI resource are mainly classified into the following two types:
l l
Services created incompletely on NEs but discovered on the U2000 Discrete services manually created on the U2000
NOTE
In the Manage VSI Resource list, the service whose Service Name is empty is a discrete service.
Purpose of creating a new service: When you need to modify a service running in the existing network but the specific configuration of the service is not determined, you can create a new service based on the current configuration. If the new service meets the requirement, you can add the created new service to the service running in the existing network. This improves the efficiency of service deployment. Purpose of converting to services: After a VPLS VPN network runs for a period, certain discrete VSIs may be generated. With the function of adjusting a discrete service, you can add the discrete VSIs to existing services.
Procedure
Step 1 Choose Service > VPLS Service > Manage VSI Resource from the main menu. Step 2 Click Filter. In the dialog box that is displayed, set the filter criteria and filter the VSI resource. Step 3 Optional: Create new service. 1. 2. Select one or more VSI resource, right-click, and then choose Create New Service from the shortcut menu. In the dialog box that is displayed, set basic information and general VSI information of the service and click OK. The new service is displayed in the service list of the Manage VPLS Service window. Select one or more VSI resource, right-click, and then choose Convert to Service from the shortcut menu. In the dialog box that is displayed, click Filter and set the filter criteria. Click OK. Then, select a required service in the query result, and then click OK. Select one or more VSI resource, and click Delete. In the dialog box that is displayed, click Yes.
Step 4 Optional: Convert to service. 1. 2. 3. 1. 2.
Step 5 Optional: Delete the VSI resource.
----End

Prerequisite
You must be an NM user with "NE administrator" authority or higher. VPLS services must be created and deployed on NEs.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the VPLS services that meet the filter criteria. Step 3 Right-click a service and choose Test and Check from the shortcut menu. Step 4 In the dialog box that is displayed, select the trail to be checked. Step 5 Set Diagnosis Option. Set diagnosis parameters based on the requirements of operation and maintenance. The meaning of each option is as follows: 1. 2. 3. 4. Service Check: It checks whether the configuration data of the source is consistent with that of the sink. OAM Tool: check the connectivity by performing the ping operation on each layer. Collect Information: view the information about the public route, LDP peer, LDP session, and LSP. Traceroute: location is used to find out the fault position.
7.4 Monitoring a VPLS Service

This topic describes how to monitor a VPLS service. 7.4.1 Configuring Ethernet OAM This topic describes how to configure Ethernet OAM. Ethernet OAM checks the connectivity of a VPLS service through CC and LB tests. This facilitates the locating of a service fault and the recovery of the service. 7.4.2 Viewing the Topology of a VPLS Service This topic describes how to view the topology of a VPLS service and configure the VPLS service in the topology view. The topology view helps you to directly configure a service in a visual manner. 7.4.3 Monitoring the Performance of a VPLS Service This topic describes how to monitor the performance of a VPLS service. 7.4.4 Monitoring the Alarms of a VPLS Service This topic describes how to monitor the alarms of a VPLS service. 7.4.5 Viewing the Alarms of a VPLS Service This topic describes how to view the alarms of a VPLS service. 7.4.6 Diagnosing a VPLS Service Through the service diagnosis function, the NMS can periodically perform the ping operation. This helps users to learn the connectivity of service links.
7.4.1 Configuring Ethernet OAM

This topic describes how to configure Ethernet OAM. Ethernet OAM checks the connectivity of a VPLS service through CC and LB tests. This facilitates the locating of a service fault and the recovery of the service.
Prerequisite
NEs must communicate with the NMS in the normal state. You must be an NM user with "NE administrator" authority or higher. VPLS services must be created and deployed on NEs.
Context
Ethernet OAM defines the following concepts:
l
MD: short for maintenance domain. It refers to the network that requires OAM. An important attribute of MDs is the level, which defines the OAM scope. MDs can be nested but cannot be overlapped. MDs process OAM packets by following the rule of blocking low-level packets, transparent transmitting high-level packets, and processing same-level packets. MA: short for maintenance association. It can be considered as a service-related domain that is composed of several MEPs. MEP: short for maintenance end point. It is the originating and terminating points of all OAM packets and is related to services. Each MEP has a unique MEP ID in the MA. On a network, an MA and an MEP ID can uniquely identify an MEP. MIP: short for maintenance intermediate point. MIP is related to an MD but irrelevant to an MA. An MIP cannot send OAM packets. An MIP can respond to and forward LB packets and LT packets, and can only forward CC packets.
Ethernet OAM checks the service connectivity in real time by periodically sending CC packets. The source MEP periodically constructs and sends CC packets. After receiving the CC packets from the source MEP, the destination MEP directly starts the CC check. If the destination MEP does not receive any CC packets from the source MEP within a certain period, such as 3.5 times the sending period, the destination MEP reports the CCLOS alarm. Ethernet OAM checks the connectivity of a service through LB tests. The source MEP constructs and transmits an LBM frame and starts the timer for timing. If the destination MEP or MIP receives the LBM frame, it constructs and transmits an LBR frame to the source MEP. The LB detection is successful. If the source MEP timer times out, the LB detection fails.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the VPLS services that meet the filter criteria. Step 3 Optional: Perform an CC test. 1. In the service list, select a service where you want to configure the OAM, right-click, and choose Ethernet OAM > Start CC from the shortcut menu.
Issue 01 (2010-08-16)
2. 3.
In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Select a link and click OK, the source MEP starts the CC check. If the link falls, the destination MEP reports the CCLOS alarm.
Step 4 Optional: Perform an LB test. 1. 2. 3. In the service list, select a service where you want to configure the OAM, right-click, and choose Ethernet OAM > LB Test from the shortcut menu. In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Select a link and click Run to start an LB test.
----End
7.4.2 Viewing the Topology of a VPLS Service

This topic describes how to view the topology of a VPLS service and configure the VPLS service in the topology view. The topology view helps you to directly configure a service in a visual manner.
Prerequisite
You must be an NM user with "NE administrator" authority or higher. Created VPLS services must exist.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the VPLS services that meet the filter criteria. Step 3 Select a service in the service list. The Topology tab page displays the topology of this service. Step 4 You can perform the following operations in the topology view: 1. Right-click an NE and then perform one of the following operations: a. b. c. d. 2. a. b. c. Choose Current Alarm from the shortcut menu to browse current alarm of the NE. Choose History Alarm from the shortcut menu to history current alarm of the NE. Choose NE Explore from the shortcut menu to jump to the NE explore window of the selected NE. Choose Fast Diagnose from the shortcut menu to diagnose the selected VSI. Choose Current Alarm from the shortcut menu to browse current alarm of the interface. Choose History Alarm from the shortcut menu to history current alarm of the interface. Choose View Real-Time Interface Performance from the shortcut menu. In the realtime performance window that is displayed, set the related parameters to view the realHuawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd. Issue 01 (2010-08-16)
Right-click an interface and then perform one of the following operations:
7-16
time performance of the selected interface. If you view the real-time performance for the first time, you need to select the real-time performance indicators to be viewed. 3. Right-click a PW and then perform one of the following operations: a. b. c. d. Choose Current Alarm from the shortcut menu to browse current alarm of the PW. Choose History Alarm from the shortcut menu to history current alarm of the PW. Choose View Tunnel from the shortcut menu to view the tunnel used by the selected PW. Choose View Real-Time PW Performance from the shortcut menu. In the real-time performance window that is displayed, set the related parameters to view the real-time performance of the selected PW. If you view the real-time performance for the first time, you need to select the real-time performance indicators to be viewed. Choose Fast Diagnose from the shortcut menu to diagnose the selected PW. Right-click in the blank area and choose Legend from the shortcut menu, The legend is displayed in the topology view. Right-click in the blank area and choose Toolbar from the shortcut menu, The toolbar is displayed in the topology view. Right-click in the blank area and choose Synchronize the Main Topology to refresh the current topology view according to the NE layout in the Main Topology. Right-click in the blank area and choose Save to save the current NE layout in the topology. Right-click in the blank area and choose Hide Interface from the shortcut menu. Interfaces are not displayed in the topology view. Right-click in the blank area and choose Hide CE from the shortcut menu. CEs are not displayed in the topology view.
e. 4.
l
Perform one of the following operations without selecting any node or link:
----End
7.4.3 Monitoring the Performance of a VPLS Service

This topic describes how to monitor the performance of a VPLS service.
Prerequisite
You must be an NM user with "NE administrator" authority or higher. VPLS services must be created and deployed on NEs.
Context
By viewing the performance data, you can know whether the VPLS service is normally running in a certain period.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the VPLS services that meet the filter criteria.
Step 3 View the runtime performance of a service. Right-click the PW and choose View Runtime Performance from the shortcut menu in the topology view. Step 4 Create a monitoring instance for a service. For details, refer to the chapter of monitoring instance management in Performance Management System (PMS). Step 5 View the history performance of a service. Right-click a required service and choose Performance > View History Data from the shortcut menu. ----End
7.4.4 Monitoring the Alarms of a VPLS Service

This topic describes how to monitor the alarms of a VPLS service.
Prerequisite
You must be an NM user with "NE administrator" authority or higher.
Context
You can monitor the alarm status of the specified services by customizing the monitoring template.
Procedure
Step 1 Choose Fault > Service Monitoring > Service Monitoring Template from the main menu. Step 2 Right-click in the monitoring list and choose Select Monitoring Groupfrom the shortcut menu.
Step 3 In the dialog box that is displayed, click Add. In the dialog box that is displayed, set the name of the monitoring group and click OK. Step 4 Right-click a monitoring group to be configured and choose Add Monitoring Service from the shortcut menu. In the dialog box that is displayed, select a service to be monitored and click Add to add the service to the monitoring group. Step 5 Click Close. ----End
7.4.5 Viewing the Alarms of a VPLS Service

This topic describes how to view the alarms of a VPLS service.
Context
l l l
The alarm panel blinks. The color of the status column in the service list changes. The color of the NE, interface, or link in the service topology changes.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the VPLS services that meet the filter criteria. Step 3 Right-click the service with the alarm and choose Alarm > Current Alarm from the shortcut menu, view the current alarms of the service. You can also choose Alarm > History Alarm from the shortcut menu to view the history alarms of the service. Step 4 Select the service alarm in the alarm list and view the detailed alarm information in the details area. ----End
Postrequisite
7.4.6 Diagnosing a VPLS Service

Through the service diagnosis function, the NMS can periodically perform the ping operation. This helps users to learn the connectivity of service links.
Prerequisite
You must be an NM user with "NE administrator" authority or higher. The services to be diagnosed must be deployed.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter. The NMS displays the VPLS services that meet the filter criteria. Step 3 Right-click a service and choose Diagnose > Create Test Suit from the shortcut menu. Step 4 In the wizard dialog box, select the link to be diagnosed and click Next.
Step 5 Select the test case type. Step 6 Set Test Time 1. 2. Set Period Type and Run Time. Click Add.
NOTE
l l
In the VPLS Service Management window, right-click in the blank area and choose Diagnose > View Test Strategy from the shortcut menu to view the running policy of test cases. You can add multiple diagnosis times for a period type.
Step 7 Click Finish. ----End
Postrequisite
In daily operation and maintenance, you can do as follows to view the diagnosis result and know the service connectivity: 1. 2. 3. Right-click a service in the VPLS Service Management window and choose Diagnose > View Test Result from the shortcut menu. In the dialog box that is displayed, view the history data of the service diagnosis result. Determine the service connectivity based on the diagnosis result.
7.5 Managing VPLS Service Authority

This topic describes how to manage the VPLS service authority. 7.5.1 Configuring the Rights of a User on VPLS Services You can configure operation rights on VPLS services for different users. This enhances the NMS security. 7.5.2 Viewing the Rights of a User on VPLS Services This topic describes how to view the rights of a user to VPLS services.
7.5.1 Configuring the Rights of a User on VPLS Services

You can configure operation rights on VPLS services for different users. This enhances the NMS security.
Prerequisite
You must be an NM user with "NE administrator" authority or higher. A user that requires rights allocation must exist.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box that is displayed, set the filter criteria, and click Filter.
The NMS displays the VPLS services that meet the filter criteria. Step 3 Select the required service, right-click, and then choose Confer Service Authority from the shortcut menu. Step 4 In Useable User, select the required user and click User. Step 5 Click OK. ----End to add the user to Selected
7.5.2 Viewing the Rights of a User on VPLS Services

This topic describes how to view the rights of a user to VPLS services.
Prerequisite
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service Authority from the main menu. Step 2 In the dialog box that is displayed, select the required user and view its manageable services in the right pane.
NOTE
l l
In the right pane, you can adjust the authorization of a service after selecting it. To be specific, the selected user has the right to a service after you select the service. The selected user has the rights to all VPLS services after you select All Services.
7.6 Configuration Case of the VPLS Service

This section describes a configuration example of the VPLS service. A configuration flow diagram is provided to describe the process of service configuration. The configuration example includes the service planning and VPLS service configuration. 7.6.1 Configuration Networking Diagram The sample description includes the information, such as overview of operation & maintenance (O&M) scenario and networking diagram. 7.6.2 Service Planning The engineering planning department plans a project according to project requirements and then outputs the planning details. 7.6.3 Configuration Process This topic describes the configuration process of VPLS services.
7.6.1 Configuration Networking Diagram

The sample description includes the information, such as overview of operation & maintenance (O&M) scenario and networking diagram. As shown in Figure 7-5, the three CE networks need communicate with each other. Each CE network VPLS service has the same VLAN value, that is, 100. MPLS Tunnel 1, MPLS Tunnel 2, and MPLS Tunnel 3 exist among the three PEs. Among the CE networks, three types of services, including the voice service, data service, and common Internet access service, are available. The complex traffic classification can be performed at the access side, and different QoS policies for assured bandwidth can be configured. The Network can prevents multicast storms. Figure 7-5 Networking diagram for the VPLS service
CE 1 UNI for CE1: 1-EG16-19-ETFC-1 NNI for CE2: 1-EG16-20-POD41-1 NNI for CE3: 1-EG16-20-POD41-2 FE NE 1 MPLS Tunnel 3 NE 3 MPLS Tunnel 1 PSN MPLS Tunnel 2 FE
VLAN=100
VLAN=100
UNI for CE3: 1-EG16-19-ETFC-1 NNI for CE1: 1-EG16-20-POD41-1 NNI for CE2: 1-EG16-20-POD41-2
CE 3
NE 2 FE CE 2 UNI for CE2: 1-EG16-19-ETFC-1 NNI for CE3: 1-EG16-20-POD41-1 NNI for CE1: 1-EG16-20-POD41-2
VLAN=100
7.6.2 Service Planning

The engineering planning department plans a project according to project requirements and then outputs the planning details. Table 7-3 provides the configuration parameters of NEs. Table 7-3 General planning of VPLS services Attribute Service Name
7-22
VPLS_1
Attribute VSI ID Networking Mode 1 Full-Mesh VPLS
Table 7-4 provides the planning of VPLS services. Table 7-4 Planning of VPLS services Attribute Tag Type Enable MAC Address Learning Learning Mode Enable BPDU Transparent Transmission NE 1 C-Awared Enable Quailty(SVL) Disable NE 2 C-Awared Enable Quailty(SVL) Disable NE 3 C-Awared Enable Quailty(SVL) Disable
Table 7-5 provides the SAI planning of each NE. Table 7-5 Planning of UNI ports Attribute Port ID Sub Interface Type VLAN ID NE 1 19-ETFC-1 1 VLAN Sub Interface 100 NE 2 19-ETFC-1 1 VLAN Sub Interface 100 NE 3 19-ETFC-1 1 VLAN Sub Interface 100
7.6.3 Configuration Process

This topic describes the configuration process of VPLS services.
Prerequisite
You must be an NM user with "NE operator" authority or higher. You must learn the sample network and requirement, and the relevant service planning. A network must be created.
Procedure
Step 1 Choose Service > VPLS Service > Create VPLS Service from the main menu. Step 2 Set the parameters in Attribute List.
Table 7-6 General planning of VPLS services Parameter Service Name VSI ID Networking Mode Example Value VPLS_1 1 Full-Mesh VPLS Guideline Set this value based on the service planning. The VSI ID of each NE must be unique. For VPLS services, it is recommended that you use the Full-Mesh network or customize a network according to network characteristics. After this parameter is selected, the tunnel is saved on the U2000 and deployed to NEs. If the tunnel for carrying VPLS services is not deployed, the tunnel is deployed when VPLS services are deployed.
Deploy
Selected
Step 3 Select a VPLS service node. To be specific, select NE1, NE2, and NE3 respectively in Physical Topology at the upper right corner of the window, right-click, and then choose NPE from the shortcut menu. Step 4 Set parameters for a VPLS service node. To be specific, select NEs from the NE list in the left pane, and click Details. Then, set the relevant parameters in VSI Configuration at the lower right corner of the window.
Table 7-7 Planning of VPLS services Parameter Tag Type Example Value C-Awared Guideline C-Awared indicates that the learning is based on the CTAG (client-side VLAN tag). S-Awared indicates that the learning is based on the STAG (operator service-layer VLAN tag). Tag-Transparent indicates that only the Ethernet packets without VLAN tags can be accessed. Now, the S-Awared cannot be supported.
Issue 01 (2010-08-16)
7-25
Parameter Enable MAC Address Learning
Example Value Enable
Guideline If the function of MAC address learning is enabled, it indicates that the network bridge supports the ability to learn MAC addresses. In addition, the network bridge supports the ability to generate forward table items and manually configure the forward table items of static MAC addresses. If the function of MAC address learning is disabled, it indicates that the network bridge does not support the ability to learn MAC addresses but only support the ability to manually configure the forward table items of static MAC addresses.
Learning Mode
Quailty(SVL)
SVL indicates the shared VLAN learning. All VLANs share a MAC address forwarding table. Any MAC address is unique in the forwarding table. IVL indicates the independent VLAN learning. The forwarding tables for different VLANs are independent from each other. It is acceptable that the MAC address forwarding tables for different VLANs have the same MAC address. If the BPDU transparent transmission identifier of the Ethernet service of an NE is enabled, the port where the service VUNI resides cannot process the BPDU packets, and the MSTP cannot be enabled on this port. After the BPDU transparent transmission is enabled, the BPDU packets are transmitted as service packets.
Issue 01 (2010-08-16)
Enable BPDU Transparent Transmission
Disable
7-26
Parameter Split Horizon Group
Example Value Indicates the PW on the NNI side of an NE. For example, you need to add the PWs between NE1 and NE2 between NE1 and NE3 to a split horizon group.
Guideline After you configure Split Horizon Group, ports and links can be isolated. This setting prevents multicast storms.
Step 5 Set NE SAI parameters. Right-click the SAI Configuration tab in the lower right corner, select the three NEs, and then click Create.
Table 7-8 Planning of SAI Parameter Port ID Sub Interface Type VLAN ID Example Value 19-ETFC-1 1 VLAN Sub Interface 100 Guideline Set this value based on the service planning. Set this value based on the service planning. Set this value based on the service planning. Set this value based on the VLANs permitted by VPLS.
Issue 01 (2010-08-16)
7-27
Step 6 Select a tunnel for carrying VPLS services manually. To be specific, click the PW Configuration tab at the lower right corner of the window. Then, select the PWs of the NEs respectively, and click Modify. Table 7-9 Parameter configuration of a tunnel Parameter Tunnel Binding Type Example Value Static Binding Guideline After selecting Static Binding, you can manually specify a tunnel. After selecting Select Policy, the NMS can automatically select a tunnel according to the preset priority in the policy. Set this value based on the service planning.
Tunnel
MPLS Tunnel 1 MPLS Tunnel 2 MPLS Tunnel 3
7-28
Issue 01 (2010-08-16)
8 Managing an L3VPN Service
8
About This Chapter
Managing an L3VPN Service
On U2000, You can quickly configure the L3VPN service by using the trail function. 8.1 Introduction to L3VPN A VPN depends on Internet service providers (ISPs) and network service providers (NSPs) to build a virtual private communication network in a public network. The PTN equipment implements the L3VPN function through the BGP/MPLS protocol and other protocols. 8.2 Basic Concepts This topic describes the basic concepts related to L3VPN. 8.3 Application of the L3VPN L3VPN has three application scenarios, which are intranet VPN, extranet VPN, and Hub & Spoke. 8.4 Configuration Flow of L3VPN Services This section describes the operation tasks for configuring L3VPN services, and relations among these tasks. When configuring or managing L3VPN services, follow the configuration flows. 8.5 L3VPN Operation Tasks This topic describes the operations tasks of quickly deploying L3VPN services by using the trail management function on the U2000. 8.6 L3VPN Service Monitoring This topic describes how to monitor the L3VPN service. 8.7 Managing L3VPN Service Authority This topic describes how to manage the L3VPN service authority. 8.8 Example for Configuring the L3VPN Service This topic describes the configuration example of the L3VPN services, including the intranet VPN and Hub&Spoke VPN services.
Issue 01 (2010-08-16)
8-1
8.1 Introduction to L3VPN

A VPN depends on Internet service providers (ISPs) and network service providers (NSPs) to build a virtual private communication network in a public network. The PTN equipment implements the L3VPN function through the BGP/MPLS protocol and other protocols.
L3VPN
On a L3VPN, the Border Gateway Protocol (BGP) advertises VPN routes and the multiprotocol label switching (MPLS) forwards VPN packets on backbone networks of service providers (SPs). Figure 8-1 shows the basic model of a BGP/MPLS VPN. Figure 8-1 Model of a L3VPN
VPN 2 CE Service provider's backbone P P CE
Site
VPN 1
Site
PE PE PE CE VPN 1
Site
VPN 2
Site
P CE
The L3VPN model consists of the following parts:

l
Customer edge (CE): is an edge device on a customer network. A CE has one or more interfaces directly connected to an SP network. The CE can be a router, a switch, or a host. Generally, the CE cannot "sense" VPNs, and need not support MPLS. Provider edge (PE): is an edge device on an SP network. A PE is directly connected to the CE. On an MPLS network, VPN processing is performed on PEs; thus, an MPLS network is PE-intensive. Provider (P): is a backbone device in an SP. A P is not directly connected to CEs. A P need support only the MPLS forwarding capability and need not maintain VPN information.
PEs and Ps are managed by SPs. CEs are managed by users unless the users trust SPs with the management right. A PE can provide the access service for multiple CEs. A CE can access multiple PEs of the same SP or of different SPs.
BGP
Different from the Interior Gateway Protocol (IGP), BGP focuses on controlling route transmission and selecting the optimal routes instead of discovering and calculating routes. VPNs use public networks to transmit the VPN data, and the public networks use IGP to discover and calculate their routes. The key to construct a VPN is how to control the transmission of VPN routes and select the optimal route between two PEs. BGP uses TCP with the port number 179 as the transport-layer protocol. The reliability of BGP is thus enhanced. Therefore, VPN routes can be directly exchanged between two non-directly connected PEs. BGP can transmit any information appended to a route. As the optional BGP attributes, the information is transparently forwarded by BGP devices that cannot identify those attributes. VPN routes, thus, can be conveniently transmitted between PEs. When routes are updated, BGP sends only updated routes rather than all the routes. This decreases the bandwidth consumed by the route transmission. The transmission of a great number of routes over a public network becomes possible.
8.2 Basic Concepts

This topic describes the basic concepts related to L3VPN. 8.2.1 Basic Concepts of L3VPN This topic describes the basic concepts of L3VPN, including site, VPN instance, address space overlapping, VPN-IPv4 addresses, and so on. 8.2.2 MP-BGP The PTN equipment uses the MP-BGP protocol to implement the L3VPN function. This topic describes the concepts related to MP-BGP. 8.2.3 Label Allocation of MP-BGP This topic describes how an MP-BGP label is distributed. 8.2.4 VPN Route Selection on PEs VPN route selection on PEs consists of two parts, which are route cross of a private network and tunnel iteration. In the first part, routing information between PEs are processed. In the second part, VPN packets are forwarded. 8.2.5 Advertisement of VPNv4 Routes This topic describes the concepts related to advertisement of VPNv4 routes. 8.2.6 Route Advertisement of a Basic L3VPN This topic describes how routes of a L3VPN are advertised by using a basic L3VPN as an example. 8.2.7 Packet Forwarding in a Basic L3VPN This topic describes how L3VPN packets are forwarded by using a basic L3VPN as an example. 8.2.8 IP DSCP Overview In a Diff-Serv network, the differentiated services code point (DSCP) is used to identify QoS priority. 8.2.9 Introduction to DHCP Relay On an IP-oriented 3G network, after a base station (running the DHCP client) is powered on, the IP address can be automatically obtained from the DHCP server (usually a component of the
base station controller) through the DHCP protocol. The PTN equipment on a mobile carrier network can transmit DHCP packets between a base station and a base station controller. 8.2.10 Principle of DHCP Relay This section describes how the PTN equipment implements relay of DHCP packets between a mobile network base station (running the DHCP client) and a DHCP server (usually a component of a base station controller) in two DHCP relay modes.
8.2.1 Basic Concepts of L3VPN

This topic describes the basic concepts of L3VPN, including site, VPN instance, address space overlapping, VPN-IPv4 addresses, and so on.
Site
The concept of site is frequently used in the VPN technology. The following describes a site from different aspects:
l
A site is a group of IP systems with IP connectivity. IP connectivity can be realized independent from SP networks. As shown in Figure 8-2, in the networks on the left side, the headquarters of X company in city A is a site; the branch of X company in city B is another site. IP devices in the two sites can communicate without through any carrier's network. Figure 8-2 Schematic diagram of sites
Two sites Site A One site Site X
CE Carrier's network CE Headquarters of X company in City A Carrier's network CE Headquarters of X company in CityA
CE
Branch of X company in CityB
Site B
Branch of X company in CityB
Sites are classified according to the topology relationship between devices rather than the geographic positions of the devices although the devices in a site are geographically adjacent to each other in general. If two IP systems are geographically separated and connected through private lines, the two systems compose a site if they can communicate without the help of carrier's networks.
8-4
Issue 01 (2010-08-16)
As shown in Figure 8-2, in the networks on the right side, if the branch network of city B is connected with the headquarters network of city A through private lines instead of carrier's networks, the branch network and the headquarters network compose a site.
l
The devices in a site may belong to multiple VPNs. In other words, a site may belong to multiple VPNs. As shown in Figure 8-3, the decision-making department of X company in city A (Site A) is allowed to communicate with the research and development (R&D) department in city B (Site B) and the financial department in city C (Site C). Site B and Site C are not allowed to communicate. In this case, two VPNs, namely, VPN 1 and VPN 2 can be established. Site A and Site B belong to VPN 1; Site A and Site C belong to VPN 2. Site A, thus, belongs to multiple VPNs. Figure 8-3 One site belonging to multiple VPNs
City A VPN 1 Site A X Company Decisionmaking department
City B CE X Company R&D department
CE
Site B
VPN 2 City C X Company Financial department Site C CE
Carrier's netw ork
A site is connected to an SP network through CEs. A site may contain more than one CE, but a CE belongs only to one site. According to different sites, you are recommended to use the following devices as CEs:

If the site is a host, use the host as the CE. If the site is a subnet, use switches as CEs. If the site comprises multiple subnets, use routers as CEs.
Sites connected to the same carrier's network can be divided into different sets based on policies. Only sites that belong to the same set can access each other. A set of sites is a VPN.
Issue 01 (2010-08-16)
8-5

NOTE
l l l l
In this manual, if two PEs establish BGP sessions and exchange VPN routing information, for one PE, the other PE is called the peer PE. The CE that a PE accesses is called the local CE of the PE. The CE that the peer PE accesses is called the remote CE. In this chapter, IP addresses of the sites are IPv4 addresses.
VPN Instances
A VPN instance is also called a VPN Routing and Forwarding table (VRF). A PE has multiple forwarding tables, including a public routing and forwarding table and one or more VPN instances. That is, a PE has multiple instances, including a public instance and one or more VPN instances. Figure 8-4 Schematic diagram of VPN instances
VPN1
Site1
CE VPN1 VPN-instance VPN2 VPN-instance
PE
Backbone
Public forwarding table
VPN2
Site2 CE
The differences between a public routing table and a VRF are as follows:
l
A public routing table contains the IPv4 routes of all the PEs and Ps, which are generated by routing protocols or static routes of backbone networks. A VRF contains the routes of all sites that belong to the VPN instance. The VRF is obtained through configuring static routes or by exchanging the VPN route information between a CE and a PE, and between two PEs. A public forwarding table contains the minimum forwarding information extracted from the corresponding public routing table; a VPN forwarding table contains the minimum forwarding information extracted from the corresponding VPN routing table according to the route management policies.
VPN instances on a PE are independent of each other. They are also independent of the public routing and forwarding table. Each VPN instance can be perceived as a virtual device, which maintains an independent address space and has one or more interfaces that connect the PE associated with the instance.
In RFC 2547 (L3VPNs), a VPN instance is called the per-site forwarding table. To be more specific, every connection between a CE and a PE corresponds to a VPN instance (not a one-toone mapping). The VPN instance is bound to the PE interface that connects the CE through manual configuration. The independent address space of a VPN instance is realized by using router distinguishers (RDs). A VPN instance manages VPN membership and routing principles of the directly connected sites by using the VPN target attributes. The following describes RDs and the VPN target in detail.
Relationship Between VPNs, Sites, and VPN Instances

The relationship between VPNs, sites, and VPN instances is as follows:
l l
A VPN consists of multiple sites. A site may belong to multiple VPNs. A site on each PE is associated with a VPN instance. A VPN instance integrates the VPN member relationship and routing principles of the associated sites. Multiple sites compose a VPN based on the rule of VPN instances. VPN instances and VPNs do not have one-to-one mapping relationship.
Address Space Overlapping

After receiving private routes from a CE, a PE advertises them to other PEs. As a private network, a VPN independently manages an address realm, also called address space. Address spaces of different VPNs may overlap. For example, both VPN1 and VPN2 use addresses on the segment 10.110.10.0/24. Address space overlapping arises. VPNs can use overlapped address spaces in the following situations:
l l
The two VPNs do not have the same site. The two VPNs have the same site; however, the devices in the site and the devices using overlapped address spaces in the VPNs do not access each other.
VPN-IPv4 Addresses
Traditional BGP cannot process routes of VPNs with address spaces overlapping. Suppose both VPN1 and VPN2 use addresses on the segment 10.110.10.0/24, each of them advertises a route to this network segment, and no load balancing is performed between routes of different VPNs. BGP selects only one route from the two routes. The other route is thus lost. The cause to the forementioned problem is that BGP cannot distinguish VPNs with the same IP address prefix. To solve this problem, BGP/MPLS IP VPN uses the VPN-IPv4 address family. A VPN-IPv4 address consists of 12 bytes. The first 8 bytes represent the RD; the last 4 bytes stand for IPv4 address prefix, as shown in Figure 8-5. Figure 8-5 VPN-IPv4 address structure
Router distinguisher (8-byte)
Type field (2-byte) Administrator subfield Assigned number subfield IPv4 address prefix (4-byte)
Issue 01 (2010-08-16)
8-7
The valid values of the Type field are as follows:

l
0 The Administrator subfield occupies 2 bytes and the Assigned Number subfield occupies 4 bytes. The Administrator subfield is a 16-bit Autonomous System (AS) number; the Assigned Number subfield is a 32-bit user-defined number.
1 The Administrator subfield occupies 4 bytes and the Assigned Number subfield occupies 2 bytes. The Administrator subfield is a 32-bit IPv4 address; the Assigned Number subfield is a 16bit user-defined number.
NOTE
When configuring an RD, you only need to specify the Administrator subfield and the Assigned Number subfield. Two types of the configuration formats of an RD are as follows:
l l
The RD format is "16-bit AS number:32-bit user-defined number". For example, 100:1. The RD format is "32-bit IPv4 address:16-bit user-defined number". For example, 172.1.1.1:1.
In this chapter, an RD value does not contain the Type field.
IPv4 addresses with RDs are called the VPN-IPv4 addresses. After receiving IPv4 routes from a CE, a PE converts the routes into globally unique VPN-IPv4 routes and advertises the routes in the public network.
VPN Target
The VPN target, also called route target (RT),is a 32-bit BGP extension community attribute. BGP/MPLS IP VPN uses the VPN target to control the advertisement of VPN routing information. A VPN is associated with one or more VPN target attributes, which have the following types:
l
Export target: After learning the IPv4 routes from directly connected sites, a local PE converts the routes to VPN-IPv4 routes and sets the export target attribute for those routes. As the BGP extension community attribute, the export target attribute is advertised along with the routes. Import target: After receiving the VPN-IPv4 routes from other PEs, a PE checks the export target attribute of the routes. If the export target is identical with the import target of a VPN instance on the PE, the PE adds the route to the VPN routing table.
That is, the VPN target attribute defines the sites that can receive a VPN route, and the sites from which the PE can receive routes. After receiving a route from the directly connected CEs, a PE associates the route with one or more export target attributes. The process during which VPNv4 routes match the import targets of local VPN instances is called the private network route cross. For details, see the following sections. BGP advertises the attributes along with the VPN-IPv4 route to related PEs. After receiving the route, the PEs compare the export target attributes with the import target attributes of all the VPN instances on the PEs. If the export and import attributes are matched, the route is installed to the VPN routing tables. Similar to RDs, a VPN target shown in Figure 8-6 has the following formats:

l
0 The Administrator subfield occupies 2 bytes and the Assigned Number subfield occupies 4 bytes. The Administrator subfield is a 16-bit AS number; the Assigned Number subfield is a 32bit user-defined number.
1 The Administrator subfield occupies 4 bytes and the Assigned Number subfield occupies 2 bytes. The Administrator subfield is a 32-bit IPv4 address; the Assigned Number subfield is a 16bit user-defined number.
Figure 8-6 Format of a VPN target

VPN-Target (8-byte) Type field (2-byte) Administrator subfield Assigned number subfield
NOTE
When configuring a VPN target, you only need to specify the Administrator subfield and the Assigned Number subfield. Two types of the configuration format of a VPN target are as follows:
l l
The VPN-Target format is "16-bit AS number:32-bit user-defined number". For example, 100:1. The VPN-Target format is "32-bit IPv4 address:16-bit user-defined number". For example, 172.1.1.1:1.
In this chapter, a VPN target value does not contain the Type field.
The reasons that using VPN target instead of RDs as the extension community attributes are as follows:
l
A VPN-IPv4 route has only one RD, but can be associated with multiple VPN targets. With multiple extension community attributes, BGP can greatly improve the flexibility and scalability of a network. VPN targets are used in controlling route advertisement between different VPNs on a PE. That is, after being configured with the same VPN target, different VPNs on a PE can import routes between each other. On a PE, different VPNs have different RDs; however, the BGP extension community attributes are limited. Using RDs as the attributes to import routes confines the network scalability.
In a BGP/MPLS IP VPN, VPN targets are used to control the advertisement and receipt of VPN routing information between sites. VPN export targets are independent of import targets. An export target and an import target can be configured with multiple values; thus, flexible VPN access control and diversified VPN networking schemes can be implemented. For more information, see L3VPN.
Relationship Between RD and RT

A L3VPN uses RDs to distinguish the prefixes of IPv4 IP addresses that use the same address space, and uses RTs to control the release of VPN routing information.
RDs and RTs are similar in structure, but RDs cannot be replaced with RTs. This is because the RT is an extended group attribute of BGP, the route cancellation packets of BGP do not carry the extended attribute. In this case, the received packets have no RT attribute and you need to define the RD attribute separately.
8.2.2 MP-BGP
The PTN equipment uses the MP-BGP protocol to implement the L3VPN function. This topic describes the concepts related to MP-BGP.
Introduction to MP-BGP
As previously mentioned, the traditional BGP-4 described in the RFC 1771 can manage only the IPv4 routing information, but cannot manage the routes of VPNs with overlapped address spaces. To correctly process VPN routes, VPNs use Multiprotocol Extensions for BGP-4 described in RFC 2858. MP-BGP supports multiple network layer protocols. In an MP-BGP Update message, information about the network layer protocol is described in the Network Layer Reachability Information (NLRI) and the Next Hop fields. MP-BGP uses the address family to differentiate network layer protocols. An address family can be a traditional IPv4 address family or other address families such as VPN-IPv4 address family. For the values of address families, refer to RFC 1700 (Assigned Numbers).
NOTE
The PTN supports multiple MP-BGP extension applications such as VPN extension, which are configured in the corresponding views of the address families. By default, for an IPv4 address family, after the peer address and the AS to which the peer belongs are specified, the local NE has the capability of setting up sessions with its peer. For other address families, the capability of setting up sessions must be manually enabled on the local NE.
The transmission of VPN member information and VPN-IPv4 routes between PEs is implemented by importing extension community attributes into BGP. The following attributes are introduced in MP-BGP:
l l
MP_REACH_NLRI MP_UNREACH_NLRI
The two attributes are optional non-transitive. BGP speakers without the multiprotocol capability ignore the two attributes and do not pass them to peers. In a VPN, PEs with the multiprotocol capability advertise the VPN routing information to the peer PEs or ASBR PEs supporting multiprotocol through MP-BGP. BGP peers without the multiprotocol capability ignore the attributes, and do not identify and store the VPN routing information.
NOTE
Optional non-transitive is a BGP attribute type. If a BGP NE does not support this attribute type, the Update messages with the attributes of this type are ignored, and the messages are not advertised to other peers.
IBGP and EBGP

BGP has two running modes, which are shown in Figure 8-7.
l
Internal BGP (IBGP)

8-10

l
External BGP (EBGP)
When BGP runs in the interior of the autonomous system, it is referred to as IBGP. When BGP runs between different autonomous systems, it is referred to as EBGP. Figure 8-7 BGP running mode
IBGP EBGP EBGP
CE Internet
CE
MP_REACH_NLRI
Multiprotocol Reachable NLRI (MP_REACH_NLRI) is used to advertise reachable routes and information about the next hop. The attribute consists of three parts: Address Family Information, Next Hop Network Address Information, and Network Layer Reachable Information. Figure 8-8 shows the format of the attribute. Figure 8-8 Format of MP_REACH_NLRI
Address Family Information (3bytes) Next Hop Network Address Information (variable length) Network Layer Reachable Information (variable length)
Address Family Information: consists of 2-byte Address Family Identifier (AFI) and 1-byte Subsequent Address Family Identifier (SAFI).
Issue 01 (2010-08-16)

l
An AFI identifies a network layer protocol. The values of network layer protocols are described in RFC 1700 (Address Family Number). For example, 1 indicates IPv4. An SAFI indicates the type of the NLRI field. If the AFI is 1 and the SAFI is 128, it indicates that the address in the NLRI field is an MPLS-labeled VPN-IPv4 address. Next Hop Network Address Information: consists of the 1-byte length of the next-hop network address and next-hop network address of variable length. A next-hop network address refers to the network address of the next NE on the path to the destination. In MPBGP, before advertising MP_REACH_NLRI to EBGP peers, BGP speakers set the nexthop network addresses as the addresses of the interface that connects the local NE and the remote NE. The next-hop network address remains unchanged when MP_REACH_NLRI is advertised to IBGP peers. NLRI: consists of three parts: length, label, and prefix. Figure 8-9 shows the format of the NLRI field.
l l
Figure 8-9 Format of the NLRI field with a Label subfield

Length (1 byte) Label (variable length) Prefix (variable length)
l l
Length: indicates the total bits of the label and prefix. Label: consists of one or more labels. The length of a label is 3 bytes. The label format is the same as the MPLS label format. The highest bit indicates whether the label is at the bottom of the label stack; the following three bits are 0; the last 20 bits are labels. Prefix: In a BGP/MPLS IP VPN, the prefix field consists of an RD and IPv4 address prefix.
VPNv4 update messages exchanged between PEs or ASBR PEs carry MP_REACH_NLRI. An Update message can carry multiple reachable routes with the same routing attributes.
MP_UNREACH_NLRI
Multiprotocol Unreachable NLRI (MP_UNREACH_NLRI) is used to inform a peer to delete unreachable routes. Figure 8-10 shows the format of the attribute. Figure 8-10 Format of MP_UNREACH_NLRI
Address Family Identifier (2 bytes) Subsequent Address Family Identifier (1 byte) Withdraw n Routes (variable length)
8-12
Issue 01 (2010-08-16)

l
AFI: Corresponding to the address family values defined in RFC 1700 (Address Family Number), an AFI identifies a network layer protocol. SAFI: Similar to SAFI in MP_REACH_NLRI, an SAFI indicates the NLRI type. Withdrawn Routes: Indicates an unreachable route list, which consists of one or more NLRI fields. In the Withdrawn Routes field, BGP speakers can fill the NLRI field the same as the reachable route advertised before to withdraw the route.
l l
Update messages carrying MP_UNREACH_NLRI are sent to withdraw the VPN-IPv4 routes. An Update message can carry information about multiple unreachable routes. If the labels of routes to be withdrawn are specified in the messages, the routes with specified labels are withdrawn. If the labels are not specified, only the routes without labels are withdrawn. Update messages with MP_UNREACH_NLRI do not carry any path-attributes. A peer can delete routes based on labels because different routes are assigned with different labels.
Negotiation of the MP-BGP Capability

A BGP NE gets to know the negotiation capability of its peer by checking the capability parameters in the Open messages. If the BGP NE and its peer support the same function, the BGP NE and its peer communicate through the function. The optional parameters of negotiation capability in an Open message consist of three parts: Capability Code, Capability Length, and Capability Value. Figure 8-11 shows the format of the capability parameters. Figure 8-11 Format of BGP capability parameters
Capability Code (1 byte) Capability Length (1 byte) Capability Value (variable length)
Capability Code: uniquely identifies the capability type. The value 1 indicates that the BGP speaker has the MP-BGP capability. Capability Length: indicates the length of the capability field. For MP-BGP, the length of the capability field is 4. Capability Value: indicates the value of the capability field. The length is variable and depends on the type specified in Capability Code. Figure 8-12 shows the format of the Capability Value field in MP-BGP.
The meanings of 2-byte AFI and 1-byte SAFI are the same as those of MP_REACH_NLRI. Res. is a 1-byte reserved field. A sender sets the value to 0, and the receiver ignores the field.
Figure 8-12 Format of the Capability Value field in MP-BGP

AFI Res. SAFI
Issue 01 (2010-08-16)
8-13
At present, BGP does not support dynamic capability negotiation. After a BGP speaker advertises an Open message with optional capability fields,
l
If the speaker receives a Notification message from its peer, it indicates the peer does not support the capability. Then the BGP speaker tears down the session with its peer, and sends an Open message without optional capability field to the peer, attempting a new BGP connection. If the peer supports the capability advertisement; however, the capability fields are unknown or unsupported, negotiation fails. Then the BGP speaker tears down the session with its peer, and sends an Open message without the optional capability fields (but may carry other optional capability fields) to the peer, attempting a new BGP connection.
After any change of BGP capability, such as enabling or disabling label-routing capability, enabling or disabling address family capability (IPv4, and VPNv4), and enabling GR capability, the BGP speaker tears down the session with its peer, and then re-negotiates the capability with its peer.
Conditions of Exchanging BGP Routes

MP-BGP peers can exchange routes between each other only if the following conditions are satisfied:
l
The MP-BGP peers have routes to each other. The operation of BGP is triggered by messages that are transmitted through TCP with the port number as 179. To set up the TCP connection between the peers, the MP-BGP peers must be routable. A BGP peer is not necessarily a directly connected NE. After a virtual link is set up between a local NE and a remote NE that run BGP, the remote NE becomes a BGP peer of the local NE. To improve the stability of a BGP connection, 32-bit LSR ID interface addresses are used to set up the connection. Instead of discovering routes within an AS, BGP generally imports IGP routes, static routes, or direct routes into BGP routing tables.
MP-BGP peers set up and maintain BGP sessions. After a TCP connection is established, an Open message is sent to the peer to attempt a session. After receiving the Open message, the peer responds with a Keepalive message to keep the connection valid. Then the peers begin to exchange messages of other types. MPBGP peers can exchange routes between each other only if the peers can set up and maintain BGP sessions.
Update of VPN-IPv4 Routes

A PE must require its peer to re-send BGP Update messages to refresh routes in the following situations:
l l l
The import policy on the PE changes. VPN instances are added or deleted on the PE. The import VPN targets of the VPN instances are added or deleted on the PE.
In these situations, the PE sends Route Refresh messages carrying AFI and SAFI to the peers, which have successfully negotiated the capability with the PE. If the peers do not support the
Route Refresh messages, the PE resets the sessions of the peers. After receiving the messages, the peers re-transmit all the routes that satisfy AFI and SAFI.
8.2.3 Label Allocation of MP-BGP

This topic describes how an MP-BGP label is distributed. In a L3VPN, before advertising private routes to related PEs in the backbone network through MP-BGP, a PE must associate the private routes with MPLS labels. The packets transmitted over a backbone network carry MPLS labels. Before being allocated labels, a PE advertises a route that identifies itself to other PEs in the backbone network through IGP. To reduce the number of LSPs on a network, it is recommended to allocate labels only to 32-bit mask loopback interface and configure the LSR ID and the BGP session to use the IP address of the same loopback interface. Several methods of allocating labels exist. The PTN supports the following methods:
l
MPLS label allocation based on routes By default, the PTN allocates a label to each route in a VRF. This method is called one label per route. When the number of the routes is great, the Incoming Label Map (ILM) maintains a great number of entries, which requires high router capacity.
MPLS label allocation based on VPNs A VPN instance is assigned one label. All the routes of the instance share the same label. Thus, a great number of labels are saved.
8.2.4 VPN Route Selection on PEs

VPN route selection on PEs consists of two parts, which are route cross of a private network and tunnel iteration. In the first part, routing information between PEs are processed. In the second part, VPN packets are forwarded.
Route Cross of a Private Network

The routes exchanged between two PEs through MP-BGP are VPNv4 routes. After receiving VPNv4 routes, a PE processes the routes as follows:
l
The PE checks whether the next hop of a route is reachable. If the next hop is unreachable, the route is discarded. The PE discards the routes that do not pass the filtering of the BGP routing policy.
Then the PE matches the remaining routes with the import targets of VPN instances on the PE. The matching process is called route-cross of private networks. The PE matches the VPNv4 routes with local VPN instances without selecting the optimal routes and checking whether the tunnels exist. For a route from the local CE of different VPNs, if the next hop is reachable or can be iterated, the PE also matches the route with the import targets of local VPN instances. The matching process is called local route cross.
NOTE
To correctly forward a packet, a BGP device must find out a directly reachable address, through which the packet can be forwarded to the next hop in the routing table. The route to the directly reachable address is called the dependent route because BGP guides the packet forwarding based on the route. The searching for a dependent route based on the next-hop address is called route iteration.
Issue 01 (2010-08-16)
8-15
Tunnel Iteration
To transmit traffic of private networks across a public network, a tunnel is required to transmit the traffic. After the private cross-routes are generated, route iteration based on destination IPv4 prefixes is performed. The proper tunnels (except for the local cross routes) are searched out. Then the tunnel iteration is performed. The routes are injected into the VPN routing table only after the tunnel iteration succeeds. The process that the routes are iterated to corresponding tunnels is called tunnel iteration. After the tunnel iteration succeeds, the tunnel IDs are reserved for subsequent packet forwarding. A tunnel ID uniquely identifies a tunnel. In VPN packet forwarding, the transmission tunnel is searched out according to the tunnel ID.
Selection Rules of Private Routes

Not all the crossed routes that are processed by tunnel iteration are installed to VPN routing tables. Similarly, not all the routes received from the local CE and the local cross routes are injected into VPN routing tables. For multiple routes to the same destination, choose one route based on the following rules if load balancing is not carried out:
l
If a route from the local CE and a crossed route to the same destination exist at the same time, choose the route received from the local CE. If a local crossed route and a crossed route from other PEs to the same destination exist, choose the local crossed route.
For multiple routes to the same destination, choose one route based on the following rules if load balancing is carried out:
l
Preferentially choose the route from the local CE. When one route from the local CE and multiple crossed routes exist, choose the route from the local CE. Load balancing is performed between the routes from the local CE or between the crossed routes instead of between the routes from the local CE and the crossed routes.
8.2.5 Advertisement of VPNv4 Routes

This topic describes the concepts related to advertisement of VPNv4 routes. The PE equipment advertises the IPv4 routes received from the local CE through MP-BGP to VPNv4 routes of the peer PE. The rules of advertising VPN-IPv4 routes of MP-BGP are the same as that of BGP.
l l l
When multiple valid routes exist, a BGP speaker advertises only the best route to its peer. A BGP speaker advertises only the routes used by itself to its peer. A BGP speaker advertises the routes obtained through EBGP to all the BGP peers, both EBGP peers and IBGP peers. A BGP speaker does not advertise the IBGP routes to its IBGP peers. A BGP speaker advertises the IBGP routes to its EBGP peers when the synchronization between BGP and IGP is not enabled. After a connection is set up, a BGP speaker advertises all the BGP routes to its new peer.
l l
8-16
8.2.6 Route Advertisement of a Basic L3VPN

This topic describes how routes of a L3VPN are advertised by using a basic L3VPN as an example.
NOTE
A basic L3VPN refers to a VPN in which only one carrier exists, the MPLS backbone network is located within an AS, LSPs serve as tunnels, and PEs, Ps, and CEs do not assume multi-roles. (No device assumes the role of both a PE and a CE.)
Introduction
In a basic BGP/MPLS PN, advertisement of VPN routing information involves CEs and PEs. Ps need to maintain the routes of only the backbone network, and they need not know VPN routing information. Generally, PEs maintain the routing information about the VPNs that the PEs access, and they need not maintain all VPN routes. The advertisement of VPN routing information consists of the following parts:
l l l
Route advertisement from the local CE to the ingress PE Route advertisement from the ingress PE to the egress PE Route advertisement from the egress PE to the remote CE
After the whole process of route advertisement, the local CE and the remote CE can set up reachable routes, and VPN routing information can be advertised in the backbone network. The following describes the three parts of the route advertisement.
Route Advertisement from the Local CE to the Ingress PE

After the neighbor or peer relationship is set up between a CE and the directly connected PE, the CE advertises the local routes to the PE. CEs and PEs can run the Routing Information Protocol (RIP), the open shortest path first (OSPF) protocol, or EBGP, or use static routes. The routes advertised by CEs to PEs are standard IPv4 routes regardless of which routing protocol is run. VPN routing and forwarding tables on a PE are isolated from each other and independent of public routing and forwarding tables. After learning routes from a CE, a PE decides to which table the routes should be installed. Static routes and routing protocols cannot enable the PE to make the decision. The decision capability can be realized only through the configuration described as follows.
l
If static routes are used between CEs and PEs, you need to specify VPN instances when you configure the static routes. Generally, static routes are used when CEs are located within a stub VPN, or when CEs are hosts or switches. If CEs are hosts or switches, generally, static routes to the sites to which the CEs belong are configured on the connected PEs, and routing protocols are not required.
NOTE
l l
If a VPN receives the routes outside the VPN or the routes advertised by non-PEs, and then advertises the routes to a PE, the VPN is called a transit VPN. A VPN that receives only the routes within the VPN and the routes advertised by PEs is called a stub VPN.
Issue 01 (2010-08-16)
8-17
Using static routes between PEs and CEs features simple configurations, and can prevent route flapping of CEs from affecting the stability of BGP VPNv4 routes of PEs in the backbone network.
l
If IGP is used between CEs and PEs, each VPN uses a process. Different VPNs use different processes. Hence, you need specify VPN instances when you configure the IGP processes. If a site contains backdoor links, the configuration is complicated. For the detailed configuration, see Extension. In addition, there are some restrictions on the usage of IGP between CEs and PEs. If EBGP is run between CEs and PEs, MP-EBGP peers must be configured in the corresponding BGP VPN instance views. When EBGP is run between PEs and CEs, to ensure that routing information is correctly transmitted, nodes located in different places must be assigned with different AS numbers because BGP detects route loops based on AS numbers. However, different VPN sites may use the same AS number because VPN sites use private AS numbers. The AS number of a transit VPN is globally unique.
Route Advertisement from the Ingress PE to the Egress PE

Route advertisement from the ingress PE to the egress PE consists of the following parts:
l
After learning VPN routes from a CE, a PE adds RDs and VPN targets to these standard IPv4 routes. The VPN-IPv4 routes are thus generated. The ingress PE advertises the MP-BGP Update messages containing VPN-IPv4 routes to the egress PE. The Update messages also contain RDs, VPN targets, and MPLS labels. Before the next-hop PE receives the VPN-IPv4 routes, the routes are first filtered by policybased routing (PBR) and then by BGP routing policies.
After receiving the routes, the egress PE performs route cross, tunnel iteration, and route filtering; then decides whether to inject the routes into the VRF or not. For the routes that are received from other PEs and are added to the VPN routing table, the local PE stores the following information, which is used in subsequent packet forwarding:

Values of MPLS labels contained in MP-BGP Update messages Tunnel IDs generated after tunnel iteration succeeds
Route Advertisement from the Egress PE to the Remote CE

A remote CE can learn routes from an egress PE through static routes, RIP, OSPF, and EBGP. The route advertisement from the egress PE to the remote CE is the same as that from the local CE to the ingress PE. Note that the routes advertised by the egress PE to the remote CE is common IPv4 routes.
Example for VPN Route Advertisement

The following takes Figure 8-13 (BGP runs between CEs and PEs, and the tunnels are LSPs) as an example to describe the advertisement of a route from CE2 to CE1.
8-18
Issue 01 (2010-08-16)
Figure 8-13 Advertisement of a route from CE2 to CE1

CE1 Ingress PE P Egress PE CE2
IGP routing table Import BGP routing table BGP Update VPN routing table
VPN backbone Import
IGP routing table BGP routing table VPN routing table BGP Update
Route cross& tunnel iteration
BGP Update Carrying label,RD, and export RT
Routing table Message
1. 2.
IGP routes are imported into the BGP IPv4 unicast address family of CE2. CE2 advertises an EBGP Update message containing the route to the egress PE. After receiving the message, the egress PE converts the route to a VPN-IPv4 route, and then installs the route to the VPN routing table. If the egress PE has a VPN routing table of another VPN instance, and the import RT of the instance and the export RT of the route are the same, the route is added to the VPN routing table of the instance. At the same time, the egress PE allocates an MPLS label to the route. Then the egress PE adds the label and VPN-IPv4 routing information to the NLRI field and the export target to the extension community attribute field of the MP-IBGP Update message. After that, the egress PE sends the Update message to the ingress PE. After receiving the message, the ingress PE filters the route based on BGP routing policies. If the route fails to pass the filtering, the ingress PE discards the route. If the route passes the filtering, the ingress PE performs the route cross. After the route cross succeeds, the ingress PE performs tunnel iteration based on the destination IPv4 address to find the proper tunnel. If the iteration succeeds, the ingress PE stores the tunnel ID and label, and then adds the route to the VPN routing table of the VPN instance. The ingress PE advertises a BGP Update message containing the route to CE2. The advertised route is a common IPv4 route. After receiving the route, CE2 installs the route to the BGP routing table. CE2 can import the route to the IGP routing table by importing BGP routes to IGP. The preceding process describes the advertisement of a route from CE2 to CE1. To ensure that CE1 and CE2 can communicate, routes need also be advertised from CE1 to CE2. Similar to the preceding process, the advertisement of a route from CE1 to CE2 is not mentioned here.
3.
4.
5. 6.
8.2.7 Packet Forwarding in a Basic L3VPN

This topic describes how L3VPN packets are forwarded by using a basic L3VPN as an example.

NOTE
A basic L3VPN refers to a VPN in which only one carrier exists, the MPLS backbone network is located within an AS, LSPs serve as tunnels, and PEs, Ps, and CEs do not assume multi-roles (No device is a PE and a CE at the same time.)
In a L3VPN backbone network, a P does not know VPN routing information because VPN packets are transmitted between PEs through tunnels. The following takes Figure 8-14 as an example to describe the forwarding of a packet from CE1 to CE2 in the L3VPN. As shown in Figure 8-14, I-L indicates an inner label; O-L indicates an outer label. Figure 8-14 Forwarding of a VPN packet from CE1 to CE2
CE1 Ingress PE P Egress PE CE2
data Push
data
data I-L O-L1
data I-L O-L1
data I-L O-L2
data I-L O-L2
data Pop
data
Out-Label Switch
1. 2.
CE1 sends a VPN packet. After receiving the packet on the interface bound with a VPN instance, the ingress PE processes the packet as follows:
l
Searching for the corresponding VPN forwarding table based on the RD of the VPN instance Matching the destination IPv4 prefix and searching for the corresponding tunnel ID Searching out the tunnel based on the tunnel ID and labeling the packet with I-L Sending the packet through the tunnel and labeling the packet with O-L1 Then the packet with double MPLS labels is transmitted across the backbone network. Each P in the backbone network switches the outer label of the packet.
l l l l
3.
After receiving the packet with double labels, the egress PE delivers the packet to MPLS for processing. MPLS strips off the outer label. In this example, the remaining outer label is O-L2. At this time, the egress PE can identify the inner label. Finding the label is at the bottom of the label stack, the egress PE strips off the inner label. The egress PE sends the packet to CE2. At this time, the packet is a pure IP packet. The packet, thus, is successfully transmitted from CE1 to CE2. CE2 transmits the packet to the destination according to the IP forwarding process.
4. 5.
8.2.8 IP DSCP Overview

In a Diff-Serv network, the differentiated services code point (DSCP) is used to identify QoS priority. To perform simple flow classification on IP packets in an IP network, you can use the DSCP labels in the ToS fields of IP packet heads, as shown in Figure 8-15.
Figure 8-15 Structure of the IPv4 packet head

IPV4 packet head Version ToS Length 1 Byte Len ID Offset TTL Proto FCS IP-SA IP-DA Data
7 6
RFC2474
DSCP
Not Used
If you use the first six bits, that is, IP precedence, in the type of service (ToS) byte in an IP packet head to identify the packet, you can classify all packets into 64 types. After packets are classified, other QoS features can be used for different classes. In this way, the class-based congestion management and flow shaping are implemented. When packets are classified at the edge of a network, DSCP labels are normally added to the packets. Then, the packets can be classified inside the network according to the DSCP labels. On the basis of the priority, queuing technologies, such as WFQ and CBWFQ, process the packets in different ways. A downstream network can either use the classification of an upstream network or re-classify data packets according to its own standards. After packets are classified and labeled at the edge of a network, differentiated services are provided according to labels on the intermediate nodes of the network.
8.2.9 Introduction to DHCP Relay

On an IP-oriented 3G network, after a base station (running the DHCP client) is powered on, the IP address can be automatically obtained from the DHCP server (usually a component of the base station controller) through the DHCP protocol. The PTN equipment on a mobile carrier network can transmit DHCP packets between a base station and a base station controller.
Application of DHCP Relay

At the early stage, the DHCP protocol is applicable to only the situation where the DHCP client and server are at the same network section. Hence, to perform dynamic host configuration, a DHCP server must be configured at each network section. This costs a lot. Through DHCP relay, DHCP client packets can be sent to DHCP servers at other network sections, or DHCP server packets can be transparently transmitted to DHCP clients at other network sections. Finally, DHCP clients obtain legal IP addresses. This reduces costs and is easy for centralized management. As shown in Figure 8-16, after being powered on, the base station must automatically obtain the IP address through DHCP. The PTN equipment on the transmission line between the base station and the base station controller transmits DHCP packets between the base station and the base station controller to complete DHCP packet exchange.
Issue 01 (2010-08-16)
8-21
Figure 8-16 Application of DHCP relay
Carrier A
NodeB 2
NodeB 1 FE/GE
DHCP server A
PSN
PTN A
PTN B
FE/GE
NodeB 3
NodeB 4
DHCP server B
Carrier B
NOTE
As shown in Figure 8-16, carrier A and carrier B share the same bearer network, but networks of different carriers must be isolated. The DHCP relay functions on networks of two carriers are performed independently but the processes are the same.
Application Scenarios of DHCP Relay

As shown in Figure 8-16, the application scenarios of the DHCP relay of the PTN equipment are as follows:
l
As shown in Figure 8-17, the bearer network between the PTN equipment is a Layer 2 network. Figure 8-17 Application scenario of DHCP relay on a Layer 2 network
NodeB 1 (DHCP Client)
FE L2VPN FE/GE
FE NodeB 2 (DHCP Client)
PTN A (DHCP Relay)
PTN B
DHCP Server
8-22
Issue 01 (2010-08-16)
The PTN equipment transmits DHCP packets through L2VPN services. The equipment attaches labels to only client request packets or server reply packets and then forwards the packets in MPLS mode, but the equipment does not identifies DHCP packets.
l
As shown in Figure 8-18Figure 8-19, the bearer network between the PTN equipment is a Layer 3 network. Figure 8-18 Application scenario of DHCP relay on a Layer 3 network
E1/FE NodeB 1 (DHCP Client) E1/FE PTN A (DHCP Relay) NodeB 2 (DHCP Client)
FE/GE L3VPN
DHCP Server
PTN B
Figure 8-19 Application scenario of DHCP relay on a Layer 3 network
NodeB 1 (DHCP Client) FE
FE FE/GE L3VPN
DHCP Server
PTN A (DHCP Relay) NodeB 2 (DHCP Client)
PTN B
In this scenario, the following DHCP relay modes are available:
DHCP relay based on VRFs: The equipment is configured and then enabled with the DHCP relay function. In this case, the equipment identifies and processes the DHCP request packets from all NodeBs. DHCP relay based on interfaces: The interfaces on the equipment where NodeB services are accessed are configured and then enabled with the DHCP relay function. In this case, communication between each NodeB connected to the equipment through each interface and the DHCP server can be controlled in an accurate manner.
NOTE
If a NodeB must communicate with a specific DHCP server, you can adopt the latter mode, DHCP relay based on interfaces.
Issue 01 (2010-08-16)
8-23
8.2.10 Principle of DHCP Relay

This section describes how the PTN equipment implements relay of DHCP packets between a mobile network base station (running the DHCP client) and a DHCP server (usually a component of a base station controller) in two DHCP relay modes. DHCP relay can implement relay of DHCP packets through an L2VPN or L3VPN network. Before learning the two modes of DHCP relay, you must understand the DHCP packet format, which helps you understand the DHCP relay principle.
DHCP Packet Format

DHCP is a protocol based on IP/UDP. Figure 8-20 shows the DHCP packet structure.
NOTE
As shown in Figure 8-20, numbers in the brackets indicate the length of each field. The unit is byte.
Figure 8-20 DHCP packet format
Table 8-1 lists each field in a DHCP packet. Table 8-1 Description of each field in a DHCP packet Field OP Length 1 byte Meaning Indicates the packet type:
l l
1: client request packet 2: server response packet

Issue 01 (2010-08-16)
8-24
Field Hardware Type
Length 1 byte
Meaning Indicates the hardware address type:

l l
1: Ethernet 17: HDLC
Hardware Length Hops
1 byte 1 byte
Indicates the length of the hardware address. The unit is byte. For Ethernet, the value of this field is 6. Indicates the number of DHCP relays that the current DHCP packets traverse. This filed is set to 0 on the client. Each time when the packets traverse a DHCP relay, the value of this field is increased by 1. This field is used to restrict the number of DHCP relays that the DHCP packets traverse. Sets to a random value. Hence, the response packets of the server match the request packets of the user. Indicates the time that elapses after the client starts the DHCP request. The unit is second. Indicates a label field in DHCP. The format is:
Transaction ID Seconds Flags
4 bytes 2 bytes 2 bytes
. Only the most significant bit of this field is meaningful, and other bits are set to 0. The most left bit is the broadcast response label bit, and the values of this bit are as follows:
l
0: The client requires that the server unicast response packets. 1: The client requires that the server broadcast response packets.
Client IP Address (ciaddr)
4 bytes
Indicates the IP address of the client. The IP address can be an IP address assigned by the server to the client or an existing IP address of the client. In the initialization state, the client does not have an IP address. In this case, the value of this field is 0.0.0.0. Indicates the IP address assigned by the server to the client. When performing a DHCP response, the server fills the IP address assigned to the client into this field. Indicates the IP address of the server.
Your (Client) IP Address (yiaddr) Server IP Address (siaddr)
4 bytes
4 bytes
Issue 01 (2010-08-16)
8-25
Field Relay Agent IP Address (giaddr)
Length 4 bytes
Meaning Indicates the IP address of the first DHCP relay. When the client sends a DHCP request, if the server and client are not on the same network, the first DHCP relay fills its IP address into this field during forwarding of this DHCP request packet. The server determines the network section address according to this field, and then selects the address pool for assigning addresses to users. The server also uses this field to send a response packet to this DHCP relay, and forwards the packet to the client through a DHCP relay.
NOTE If the packet traverses more than one DHCP relay before reaching the DHCP server, this field of a DHCP relay behind the first DHCP relay does not change and only the number of hops is increased by 1.
Client Hardware Address (chaddr)
16 bytes
Indicates the MAC address of the client. This field must be consistent with the hardware type and hardware length fields. When sending a DHCP request, the client fills its hardware address into this field. For example, in the case of Ethernet, if the hardware type and hardware length are 1 and 6 respectively, this field must be filled in with a 6-byte Ethernet MAC address. Indicates the name of the server whose configuration information is obtained by the client. This field is filled in by the DHCP server and it is optional. If this field is filled in, it must be a character string ended with 0. Indicates the name of the start configuration file of the client. This field is filled in by the DHCP server and it is optional. If this field is filled in, it must be a character string ended with 0. Indicates the option field of DHCP, and it contains at least 312 bytes. This field contains the configuration information assigned by the server to the client, such as the IP address of a gateway NE, IP address of a DNS server, and valid leasing period when the client can use the IP address.
Server Host Name
64 bytes
File Name
128 bytes
Options
Variable
Processing Flow of L2VPN DHCP Relay of the PTN Equipment

As shown in Figure 8-21, the equipment attaches labels to only client request packets or reply packets of the server and then forwards them in MPLS mode, but the equipment does not identifies DHCP packets. Through an L2VPN, the PTN equipment sends the DHCP request packets from NodeB to the server, and sends the DHCP response packets from the server to NodeB.
8-26
Issue 01 (2010-08-16)
Figure 8-21 L2VPN DHCP relay mode

FE L2VPN NodeB IP ETH PTN 1 PTN 2 IP ETH
DHCP Server
FE/GE
The processing flow of L2VPN DHCP relay is as follows: 1. 2. The PTN equipment receives DHCP packets from the client or server through a physical port. The PTN equipment detects that the port through which the packets are received is a Layer 2 port, the PTN equipment performs Layer 2 forwarding for the DHCP packets without identifying them.
Processing Flow of L3VPN DHCP Relay of the PTN Equipment

On an L3VPN network, the PTN equipment or an interface on the PTN must be enabled with the DHCP relay function to relay the DHCP packets. The first port (generally the first UNI port connected to the DHCP client) that processes the DHCP request packets is considered as the DHCP gateway port. Only the gateway port needs to identify and process the DHCP request packets and reply packets. L3VPN DHCP relay has two service transmission scenarios.is used to transmit DHCP packets in Ethernet services. Figure 8-23 shows the FE service scenario.
l
For details on the IPoE service scenario, see Figure 8-22. Figure 8-22 IPoE service scenario
E1 NodeB IP ML-PPP E1 FE/GE L3VPN IP PTN 1 PTN 2 ETH
DHCP Server
For details on the FE service scenario, see Figure 8-23.
Figure 8-23 FE service scenario

FE NodeB IP ETH PTN 1 PTN 2 FE/GE L3VPN IP ETH
DHCP Server
Issue 01 (2010-08-16)
8-27
The transmission scenarios shown in Figure 8-22 and Figure 8-23 are considered as examples. The processing flows for L3VPN DHCP relay of the equipment as follows:
l
The processing procedure of DHCP relay based on VPN routing and forwarding tables (VRFs) is as follows: 1. 2. When PTN A, which is enabled with DHCP relay, receives DHCP request packets from a certain logical port of NodeB. PTN A determines whether the number of relays that the current DHCP packets traverse exceeds the limit. If yes, the packets are discarded. Otherwise, the number of relays is added with 1. PTN A selects the IP address of the server as the destination IP address, and sets the IP address of the packet egress port as the source IP address.
NOTE
3.
When the IP address of the server is selected as the destination IP address, the following modes are available:
l l
Sharing mode: The server is selected according to the sharing algorithm. Broadcast mode: The packets are sent to each server in the VRF.
4. 5.
PTN A performs link-layer encapsulation on the packets, performs routing based on the destination IP address, and sends the packets. After receiving the request packets, the DHCP server sends response packets to the client. These response packets carry the information about the IP address distributed to the client. PTN A receives the response packets and sends the packets to NodeB after performing IP encapsulation on them. On PTN A, the UNI interface through which PTN A is connected to a NodeB is enabled with DHCP relay, and the IP address of the corresponding server is set at the interface. After the DHCP request packets reach PTN A, the IP address of the server set at the interface is considered as the destination IP address. PTN A performs link-layer encapsulation (such as ETH encapsulation) and routing based on the destination IP address. Then, PTN A sends the packets to the server.
NOTE
6.
l
The processing procedure of DHCP relay based on interfaces is as follows: 1. 2. 3.
After the DHCP server receives the request packets, the remaining processing procedure is the same as that in the case of DHCP relay based on VRFs.
8.3 Application of the L3VPN

L3VPN has three application scenarios, which are intranet VPN, extranet VPN, and Hub & Spoke.
Intranet VPN
In the simplest intranet, all the users in a VPN form a closed user group. The users within the group can transmit packets between each other; however, the users cannot communicate with users outside the VPN. This networking mode is called an intranet VPN. The sites within a VPN generally belong to the same organization.
In this networking mode, each VPN must be allocated a VPN target as the export target and import target. In addition, the VPN target cannot be used by other VPNs. Figure 8-24 Networking diagram of an intranet VPN
VPN1 VPN1 Import: 100:1 Export: 100:1 Backbone VPN2 Import: 200:1 Export: 200:1 VPN2
CE
Site1
CE
Site3
VPN2
PE VPN2 Import: 200:1 Export: 200:1
PE VPN1 Import: 100:1 Export: 100:1
VPN1
CE
Site2
CE
Site4
As shown in Figure 8-24, PEs allocate the VPN target of 100:1 to VPN1 and the target of 200:1 to VPN2. The two sites in VPN1 can access each other. The two sites in VPN2 can also access each other. The sites in VPN1 and those in VPN2 cannot communicate.
Extranet VPN
If a VPN user needs to access some sites of another VPN, the extranet networking mode can be used. In extranet mode, if a VPN needs to access a shared site, the export target of the VPN must be contained in the import target of the VPN instance on the shared site; the import target of the VPN must be contained in the export target of the VPN instance on the shared site.
Issue 01 (2010-08-16)
8-29
Figure 8-25 Networking diagram of an extranet

Site1
CE
VPN1 Import: 100:1 Export: 100:1 VPN1 PE1

Site3
VPN1
PE2
PE3
CE VPN1 Import: 100:1, 200:1 Export: 100:1, 200:1
VPN2 CE
Site2
VPN2 Import: 200:1 Export: 200:1
As shown in Figure 8-25, VPN1 and VPN2 can access Site3 of VPN1.
l l l
PE3 can receive the VPN-IPv4 routes advertised by PE1 and PE2. PE1 and PE2 can receive the VPN-IPv4 routes advertised by PE3. Thus, Site1 and Site3 of VPN1 can access each other; Site2 of VPN2 and Site3 of VPN1 can access each other. PE3 does not advertise the VPN-IPv4 routes from PE1 to PE2 and does not advertise the VPN-IPv4 routes from PE2 to PE1. Therefore, Site1 of VPN1 and Site2 of VPN2 cannot access each other.
Hub & Spoke

In a Hub&Spoke networking model, all users access a center device of access control. The site where the access control device is located is called Hub site; other sites are called Spoke sites. On the side of the Hub site, a device that accesses the VPN backbone network is called HubCE; on the side of spoke sites, a device that accesses the VPN backbone network is called SpokeCE. On the side of the VPN backbone network, a device that accesses the Hub site is called HubPE; a device that accesses Spoke sites is called Spoke-PE. A Spoke site advertises routes to the Hub site; then the Hub site advertises the routes to other Spoke sites. No direct route exists between the Spoke sites. Communications between all Spoke sites are controlled by the Hub site. In networking model of Hub&Spoke, two VPN targets are configured to stand for Hub and Spoke respectively. The configuration of a VPN target on a PE must comply with the following rules:
l
The export target and the import target of the Spoke-PE in the Spoke site are Spoke and Hub respectively. A Hub-PE requires two interfaces or sub-interfaces. One interface or sub-interface receives the routes from Spoke-PEs, and the import target of the VPN instance on the interface is
8-30
Spoke. The other interface or sub-interface advertises the routes to Spoke-PEs, and the export target of the VPN instance on the interface is Hub. Figure 8-26 Route advertisement from Site2 to Site1 in Hub&Spoke networking model
VPN1 7 CE 6 Spoke-PE Hub-PE Spoke-PE Hub-CE
Site1
5 VPN1 4
Site3
Spoke-CE VPN1 CE 2 1 3
Site2
As shown in Figure 8-26, communications between Spoke sites are controlled by the Hub site. The lines with arrowheads show the process of advertising a route from Site2 to Site1.
l l l
The Hub-PE can receive the VPN-IPv4 routes advertised by all the Spoke-PEs. All the Spoke-PEs can receive the VPN-IPv4 routes advertised by the Hub-PE. The Hub-PEs advertise the routes from the Spoke-PEs to the spoke-CE, and advertise the routes from the Hub-CE to all the Spoke-PEs. The Spoke sites, therefore, can access each other through the Hub site. The import target of any Spoke-PE is not the same as the export targets of other SpokePEs. Therefore, any two Spoke-PEs do not directly advertise VPN-IPv4 routes to each other. The Spoke sites cannot directly access each other.
Figure 8-27 shows the transmission path for data communication between Site 1 and Site 2 in Figure 8-26. (The direction for data transmission is indicated by arrowheads of lines in the figure.).
Issue 01 (2010-08-16)
8-31
Figure 8-27 Path of transmitting customer traffic from Site1 to Site2

VPN1 Spoke-PE 3 2 Spoke-PE 4 Hub-PE Hub-CE VPN1
Site3
1 CE
Site1
Spoke-CE VPN1 CE 6 7 5
Site2
8.4 Configuration Flow of L3VPN Services

This section describes the operation tasks for configuring L3VPN services, and relations among these tasks. When configuring or managing L3VPN services, follow the configuration flows. Configure and manage L3VPN services by following the configuration flow shown in Figure 8-28.
8-32
Issue 01 (2010-08-16)
Figure 8-28 L3VPN service configuration flow

Required Optional Create the network Start
Configure LSR ID
Configure the NNI interface Configure the UNI lnterface
Configure the control plane
Configure the tunnel
Configure the L3VPN service
End
Table 8-2 Tasks for configuring the L3VPN service Task 1. Create the network 2. Configure the LSR ID 3. Configure the NNI interface Remarks To create a network, you need to create NEs, configure NE data, and create fibers. Specifies the LSR ID for each NE that a service traverses and the start value of the global label space. Each LSR ID is unique on a network. Set the general attributes and Layer 3 attributes (tunnel enable status and IP address) for interfaces to carry the tunnel carrying.
Issue 01 (2010-08-16)
8-33
Task 4. Configure the UNI interface
Remarks The OptiX PTN 910 supports the following UNI interfaces: Ethernet interface, ML-PPP, xDSL interface, microwave interface, LAG, and VLAN sub-interface. The OptiX PTN 950 supports the following UNI interfaces: Ethernet interface, ML-PPP, xDSL interface, microwave interface, LAG, and VLAN sub-interface. The OptiX PTN 1900 supports the following UNI interfaces: Ethernet interface, ML-PPP, SDH interface, LAG, and VLAN sub-interface. The OptiX PTN 3900 supports the following UNI interfaces: Ethernet interface, SDH interface, LAG, and VLAN sub-interface.
NOTE The equipment can access the IP-over-E1 L3VPN service through ML-PPP on the UNI side.
5. Configure the control plane
Set protocol parameters relevant to the control plane for the tunnel creation.
l
When you create a static MPLS tunnel to carry L3VPN services, you need not configure the parameters relevant to the control plane. When you create a dynamic MPLS tunnel to carry BGP/MPLS services, you need to configure IGP-ISIS protocol parameters.
Configure the protocol relevant to the control plane to implement the protocol of the advertised route on the PE-PE side.
l
Create an MP-BGP instance and the MP-BGP peer.
6. Configure the tunnel
A tunnel transmits the service.

l
If an static MPLS tunnel is required, configure an MPLS tunnel in the per-NE or End to End mode. Specify the tunnel ID, set signaling type to static, name the tunnel, and specify the ingress node, egress node, and transit node. If a dynamic MPLS tunnel is used, you need to set relevant information, for example, the service name and the source and sink of the tunnel, and select the dynamic signaling type.
7. Configure the L3VPN service
Creates an L3VPN service by using the end-to-end function. 1. Configure the basic attributes of the L3VPN service. 2. Configure information about the route target and tunnels. 3. Configure the service access port. 4. Configure the protocols of advertised routes between PEs and CEs.
8.5 L3VPN Operation Tasks

This topic describes the operations tasks of quickly deploying L3VPN services by using the trail management function on the U2000. 8.5.1 Creating the L3VPN Service
This topic describes how to create the L3VPN service. 8.5.2 Deploying the L3VPN Service This topic describes how to deploy the L3VPN configuration data to NEs. 8.5.3 Adjusting the Discrete L3VPN Service This topic describes how to adjust the discrete L3VPN service. 8.5.4 Checking the Correctness of the Service Configuration After configuring a service, you can check the connectivity of the service by using the Test and Check function. 8.5.5 Configuring DHCP Relay This section describes how to deploy the DHCP Relay function for equipment and interfaces.
8.5.1 Creating the L3VPN Service

This topic describes how to create the L3VPN service.
Prerequisite
You must be an NM user with "network operator" authority or higher. The MP-BGP protocol must be configured for the public network. If a dynamic tunnel is used to carry the L3VPN service, the IS-IS protocol must be enabled. The DCN must be disabled on the port of the L3VPN service. Data must be synchronized between the equipment relevant to the service.
Procedure
Step 1 Choose Service > L3VPN Service > Create L3VPN Service from the main menu. Step 2 In the Service Information area, set the basic information of the L3VPN service.
Issue 01 (2010-08-16)
8-35

l
Specify Network Type. Then, the U2000 automatically generates the VRF for each equipment according to the specified network type. By default, the network type is FullMesh. By selecting the Service Template check box, you can create a service quickly and conveniently. Here, only the general procedure for creating a service is described. For details about how to create a template and use the template to create a service, see 4 Configuring a Service Template.
NOTE
You can create a service template according to the requirement of service deployment. For example, you can select the concerned parameters in the template and set the default values of certain parameters. By applying the template in service creation, you can quickly and efficiently create a service. The parameter list contains only the selected parameters and their values.
l
Set VRF Name, RD, and RT. After you add the equipment, RD, and RT are displayed in the parameter list for the equipment on the right.
NOTE
l l
You can enter a value for the VRF ID. Otherwise, the U2000 automatically allocate an ID. In addition, you can enter a value for the VRF ID only on the PTN equipment.
The Service Name Auto Relate Description and Description Auto Relate VRF Description check box is selected by default on the U2000.
Step 3 In the NE List area, add the equipment for creating a service. To select the equipment, you can also right-click in the physical topology and choose Add Node to Service from the shortcut menu. Step 4 Click the Service Topology tab to view the change of the configuration in real time. Now, you can view the topology that is displayed based on the network type and VRF information. Step 5 Set the VRF parameters for each equipment in the parameter list. 1. Configure General. Double-click to expand General. The values of the general attributes RD and RT are automatically set to the values that you set in Step 2 (if those values are set). In addition, you can also change the values of those parameters. Set the IP DSCP, VRF Description, Routing Policy, Label Distribution Policy , Tunnel Binding and Max.Route Count parameters.
NOTE
You can also click
and
to extend and collapse all VRF parameters respectively.
In the case of the static tunnel that is bound, you can press the Delete key to unbind the tunnel. When you set IP DSCP to Yes, the PTN transparently transmits the DSCP of IP packets. When you set IP DSCP to No, the PTN modifies the DSCP of IP packets. You must configure the bandwidth of tunnel when dynamically binding a tunnel.
2.
Configure DHCP Relay. Double-click to expand DHCP Relay. Configure the parameters of Enabled, Server IP Address, Relay Hops, and Selection Policy. If you configure and enable a DHCP relay based on VRFs, you can recognize and process the DHCP request packets that are transmitted from client-side ports.
8-36
Issue 01 (2010-08-16)
3.
Configure SAI. Right click and select Insert Instance to add the service access interface.
You can bind multiple interfaces and set the parameters relevant to the interfaces. In addition, CE Information and QoS of the interfaces are optional. Double-click to expand DHCP Relay. Configure the parameters of Enabled and Server IP Address.
NOTE
You can also click the SAI Configuration tab to add, modify, or delete an SAI or configure the SAI QoS. If you configure and enable a DHCP relay based on ports, you can accurately control the interaction between the equipment connected to each port and the DHCP server.
4.
Configure Route Configuration. Set the basic information, such as the BGP peer. In addition, the Route Aggregation and Route Import parameters are optional. You can select the routing protocol and set relevant parameters according to actual O&M requirements.
NOTE
The private BGP protocol is configured in this step. The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. You must configure the Instance ID for the ISIS and RIP. You must configure the Instance ID and Area No for the OSPF.
5.
Optional: Configure ARP List. Right click and select Insert Instance to add the ARP list.
You can configure the parameters of IP Address and MAC Address. Step 6 Select the Deploy check box and click OK.
NOTE
----End
Postrequisite
After the service is created successful, the service is displayed in the L3VPN service management window.
8.5.2 Deploying the L3VPN Service

This topic describes how to deploy the L3VPN configuration data to NEs.
Prerequisite
l l l
You must be an NM user with "network operator" authority or higher. Data must be synchronized between the equipment relevant to the service. The L3VPN service must be created but not deployed.
Context
After you create the L3VPN service, the service configuration data is saved in the database of the U2000, instead of being applied to NEs, before deployment. In this case, the service is in the Undeployment state and you can deploy such a service to apply the service configuration data to NEs.
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Select the service to be deployed, right-click, and choose Deploy from the shortcut menu.
Step 4 Click Close in the dialog box displayed. ----End
8.5.3 Adjusting the Discrete L3VPN Service

This topic describes how to adjust the discrete L3VPN service.
Prerequisite
l l
You must be an NM user with "network operator" authority or higher. Data must be synchronized between the equipment relevant to the service.
8-38
Issue 01 (2010-08-16)
Context
After the L3VPN network runs for a period, certain discrete VRFs may exist on the network. By using the function of adjusting discrete services, you can add those VRFs to the existing services or directly delete those VRFs. In the Manage VRF Resource list, if the value of the Service Name field is empty, it indicates that the VRF is a discrete VRF.
Procedure
Step 1 Choose Service > L3VPN Service > Manage VRF Resource from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Optional: Convert to service. 1. 2. 3. 1. 2. Select one or more discrete services, right-click, and then choose Convert to Service from the shortcut menu. In the dialog box that is displayed, click Filter and set the filter criteria. Click OK. Then, select a required service in the query result, and then click OK. Select one or more VRF resource, and click Delete. In the dialog box that is displayed, click OK.
Step 4 Optional: Delete the VRF resource.
----End

Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a service and choose Test and Check from the shortcut menu. Step 4 In the dialog box that is displayed, select the trail to be checked. Step 5 Set Diagnosis Option. Set diagnosis parameters based on the requirements of operation and maintenance. The meaning of each option is as follows: 1. 2. 3. 4.
Issue 01 (2010-08-16)
Service Check: list all service configuration parameters. OAM Tool: check the connectivity by performing the ping operation on each layer. Collect Information: view the information about the public route, LDP peer, LDP session, and LSP. Traceroute: location is used to find out the fault position.
8.5.5 Configuring DHCP Relay

This section describes how to deploy the DHCP Relay function for equipment and interfaces.
Prerequisite
l l l l l
You must be an NM user with "NE operator" authority or higher. The MP-BGP protocol must be configured on the public network. If L3VPN services are carried over dynamic tunnels, the IS-IS protocol must be enabled. The DCN function must be disabled for the ports with the L3VPN services. The service-related equipment must synchronize data.
Precautions
NOTE
Configuring the DHCP Relay is optional for configuring a L3VPN service. The parameters related to DHCP Relay are available only when you configure a L3VPN service.
Procedure
Step 1 Choose Service > L3VPN Service > Create L3VPN Service from the Main Menu. Step 2 Configure the DHCP Relay function. You can set the parameters related to DHCP Relay either in a template or in a VRF. l Configure the DHCP Relay function for equipment in the template. 1. Choose Service Template in Service Information.
NOTE
You can create a service template according to the service deployment requirement. For example, you can define (by selecting items) the related parameters and set the default values for certain parameters. When creating a service, you can use the template. In this case, the parameter table lists only the selected parameters and the default values of the parameters. This ensures quick and effective service creation.
2. 3. 4. 5. l 1. 2.
8-40
Click
to display the Select Template dialog box.
Click New to display the Create L3VPN Service Template dialog box. In Create L3VPN Service Template, set Template name. In Parameter Setting, set DHCP Relay. After you set DHCP Relay, click OK. Add the equipment where a service is to be created to NE List, or right-click the equipment in Physical and choose Add NE to Service. Click Details, VRF Configuration is displayed.
Configure the DHCP Relay function for equipment in the VRF table.
3.
In VRF Configuration, select DHCP Relay and set the parameters related to DHCP Relay.
Set the following parameters about DHCP Relay:
Enable: Enable or disable the DHCP Relay function. To enable the DHCP Relay function, select Yes. Service IP Address: Set the IP address of the DHCP server. Relay Hops: Set the relay hops for the DHCP relay server within a range of 1 to 16, the default value is 4. Selection Policy: When the PTN relay equipment selects the server IP address as the DIP (destination IP address), there are two selection policies, that is, Share and Broadcast.

Share: The PTN equipment selects a server by running a sharing algorithm. Broadcast: The PTN equipment broadcasts packets to each server in the VPN routing and forwarding table (VRF).
Deploy the DHCP function for interfaces. 1. 2. 3. Add the equipment where a service is to be created to NE List, or right-click the equipment in Physical and choose Add NE to Service. Click Details, VRF Configuration is displayed. In VRF Configuration, select SAI > Interface > DHCP Relay and set the parameters related to DHCP Relay.
Set the following parameters about DHCP Relay:
Enable: Enable or disable the DHCP Relay function. To enable the DHCP Relay function, select Yes. Service IP Address: Set the IP address of the DHCP server.
----End
8.6 L3VPN Service Monitoring

This topic describes how to monitor the L3VPN service. 8.6.1 Viewing the L3VPN Service Topology A service topology displays the topology structure of L3VPN services. By viewing the service topology, you can learn the topology structure and the running status of the service in real time. 8.6.2 Monitoring Performance of the L3VPN Service
While the L3VPN service is running, abnormal status may occur. By viewing the performance data of the L3VPN service, you may learn the abnormal status in time. In this manner, the maintenance personnel can take timely measures to avoid faults. 8.6.3 Monitoring Alarms of the L3VPN Service By creating a service monitoring template, the maintenance personnel can monitor alarms of services that important to customers, and learn the running status of services in real time, thus ensuring the normal running of the services. 8.6.4 Viewing the Alarms of an L3VPN Service This topic describes how to view the alarms of an L3VPN service. 8.6.5 Diagnosing an L3VPN Service Through the service diagnosis function, the NMS can periodically perform the ping operation. This helps users to learn the connectivity of service links.
8.6.1 Viewing the L3VPN Service Topology

A service topology displays the topology structure of L3VPN services. By viewing the service topology, you can learn the topology structure and the running status of the service in real time.
Prerequisite
l l
You must be an NM user with "NM monitor" authority or higher. The L3VPN service must be created successfully.
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 In the service list, select a service to be viewed. Step 4 View the topology structure of a service. In the service topology, you can learn PE information about the source and sink, and interface information about the connection to the CE. Step 5 View alarm information about a service. If a fault occurs, the corresponding interface and VRF of the PE in the service topology is displayed in red. Step 6 You can perform the following operations in the service topology.
l
In the service topology, select a PE, right-click, and then choose the following menu items from the shortcut menu respectively.

Choose Open NE Explorer, then, the NE Explorer of the equipment is displayed. Choose VRF Details to view the details information of VRF. Choose View Real-Time VRF Performance to view the real-time VRF performance of the service. Choose Alarm > Current Alarm to view the current alarm of the PE. Choose Alarm > History Alarm to view the history alarm of the PE.
8-42

l
In the service topology, select one interface, right-click, and then choose the following menu items from the shortcut menu respectively.
Choose Configure SAI to view or modify the configurations of the service access interface. Choose View Real-Time SAI Performance to view or modify the real-time performance of the service access interface. Choose Fast Diagnosis to diagnose the connectivity of the selected VRF. You can use the VRF Ping or VRF Trace tool in fast diagnosis. Choose Alarm > Current Alarm to view the current alarm of the service access interface. Choose Alarm > History Alarm to view the history alarm of the service access interface.
----End
8.6.2 Monitoring Performance of the L3VPN Service

While the L3VPN service is running, abnormal status may occur. By viewing the performance data of the L3VPN service, you may learn the abnormal status in time. In this manner, the maintenance personnel can take timely measures to avoid faults.
Context
By viewing the performance data, the maintenance personnel can determine whether a service runs in the normal state within a period of time.
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 View the real-time VRF performance of a service. Right-click the NE and choose View RealTime VRF Performance from the shortcut menu in the topology view. Step 4 Create a monitoring instance for a service. For details, refer to the chapter of monitoring instance management in Performance Management System (PMS). Step 5 View the history performance of a service. Right-click a required service and choose Performance > View History Data from the shortcut menu. ----End
8.6.3 Monitoring Alarms of the L3VPN Service

By creating a service monitoring template, the maintenance personnel can monitor alarms of services that important to customers, and learn the running status of services in real time, thus ensuring the normal running of the services.
Procedure
Step 1 Choose Fault > Service Monitoring > Service Monitoring Template from the main menu. Step 2 In the Centralized Monitoring dialog box, expand the All Service branch to view alarm information of all services.
Step 3 Click Select Monitoring Group. Step 4 In the Select Monitoring Group dialog box, right-click and choose Add Monitoring Group from the shortcut menu. Step 5 In the Add Monitoring Group dialog box, enter the name of the monitoring group and click OK. The newly-added monitoring group is displayed in the central monitoring list. Step 6 Select the monitoring group that is added, right-click, and then choose Add Monitoring Service from the shortcut menu. Step 7 In the Add Monitoring Service dialog box, select the L3VPN Service tab and select the service to be added. Then, click Add. Step 8 Click Close. ----End
8.6.4 Viewing the Alarms of an L3VPN Service

This topic describes how to view the alarms of an L3VPN service.
Context
l l l
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click the service with the alarm and choose Alarm > Current Alarm from the shortcut menu, view the current alarms of the service. You can also choose Alarm > History Alarm from the shortcut menu to view the history alarms of the service. Step 4 Select the service alarm in the alarm list and view the detailed alarm information in the details area. ----End
Postrequisite
8.6.5 Diagnosing an L3VPN Service

Through the service diagnosis function, the NMS can periodically perform the ping operation. This helps users to learn the connectivity of service links.
Prerequisite
You must be an NM user with "NM monitor" authority or higher. The services to be diagnosed must be deployed.
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a service and choose Diagnose > Create Test Suit from the shortcut menu. Step 4 In the wizard dialog box, select the link to be diagnosed and click Next. Step 5 Select the test case type. Step 6 Set Test Time 1. 2. Set Period Type and Run Time. Click Add.
NOTE
l l
In the L3VPN Service Management window, right-click in the blank area and choose Diagnose > View Test Strategy from the shortcut menu to view the running policy of test cases. You can add multiple diagnosis times for a period type.
Step 7 Click Finish. ----End
Postrequisite
In daily operation and maintenance, you can do as follows to view the diagnosis result and know the service connectivity: 1. 2. 3. Right-click a service in the L3VPN Service Management window and choose Diagnose > View Test Result from the shortcut menu. In the dialog box that is displayed, view the history data of the service diagnosis result. Determine the service connectivity based on the diagnosis result.
8.7 Managing L3VPN Service Authority

This topic describes how to manage the L3VPN service authority. 8.7.1 Configuring the Rights of a User on L3VPN Services You can configure operation rights on L3VPN services for different users. This enhances the NMS security.
8.7.2 Viewing the Rights of a User on L3VPN Services This topic describes how to view the rights of a user on L3VPN services.
8.7.1 Configuring the Rights of a User on L3VPN Services

You can configure operation rights on L3VPN services for different users. This enhances the NMS security.
Prerequisite
You must be an NM user with "network operator" authority or higher. A user that requires rights allocation must exist.
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Select the required service, right-click, and then choose Confer Service Authority from the shortcut menu. Step 4 In Useable User, select the required user and click User. Step 5 Click OK. ----End to add the user to Selected
8.7.2 Viewing the Rights of a User on L3VPN Services

This topic describes how to view the rights of a user on L3VPN services.
Prerequisite
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service Authority from the main menu. Step 2 In the dialog box that is displayed, select the required user and view its manageable services in the right pane.
NOTE
l l
In the right pane, you can adjust the authorization of a service after selecting it. To be specific, the selected user has the right to a service after you select the service. The selected user has the rights to all VPLS services after you select All Services.

8.8 Example for Configuring the L3VPN Service

This topic describes the configuration example of the L3VPN services, including the intranet VPN and Hub&Spoke VPN services. 8.8.1 Example for Configuring an Intranet VPN Service This topic describes a configuration example of the intranet VPN service. A configuration flow diagram is provided to describe the process of service configuration. The configuration example describes the configuration networking diagram, service planning, and configuration process. 8.8.2 Example for Configuring the Hub&Spoke VPN Service This topic provides an example for configuring the Hub&Spoke VPN service. A configuration flow diagram is provided to describe the process of service configuration. The configuration example describes the configuration networking diagram, service planning, and configuration process.
8.8.1 Example for Configuring an Intranet VPN Service

This topic describes a configuration example of the intranet VPN service. A configuration flow diagram is provided to describe the process of service configuration. The configuration example describes the configuration networking diagram, service planning, and configuration process.
Networking Configuration Diagram

This topic describes the networking diagram of the sites on VPN1 and VPN2.
Requirement and Networking Diagram

Figure 8-29 shows the networking diagram of the intranet VPN services. A service provider provides different L3VPN services for two enterprise users. Three sets of PE equipment exist in this network. Each set of the PE equipment is connected to two sites of different users.The OptiX PTN 3900 is used for PE1, PE2, and PE3. The following shows the connectivity between any two sites.
l l l
The equipment on Site1, Site2, and Site3 can communicate with each other on VPN1. The equipment on Site4, Site5, and Site6 can communicate with each other on VPN2. The equipment on Site1, Site2, or Site3 cannot communicate with the equipment on Site4, Site5, or Site6.
Issue 01 (2010-08-16)
8-47
Figure 8-29 Network of the intranet VPN service

AS: 65420 VPN1
Site2
VPN2
Site5
CE AS: 65410 VPN1 CE

Site1
192.168.1. RD 100:13
Export RT 100:1 Import RT 100:1 RD 100:1 Export RT 100:1 Import RT 100:1
CE 192.168.3. 4 RD 100:2
Export RT 100:2 Import RT 100:2
AS: 65430 VPN1 CE

Site3
PE2 Backbone
RD 100:1 Export RT 100:1 Import RT 100:1
192.168.0.4 192.168.1. 4 CE
Site4
PE1
AS: 100
PE3
192.168.2.4 192.168.0. 2 CE
Site6
VPN2
VPN2
Figure 8-30 shows the NE planning diagram. Figure 8-30 NE planning diagram
1-EG16-1Port-1
192.168.1.2
1-EG16-2Port-2
192.168.3.3
3-EG16-1Port-1
192.168.2.2
3-EG16-2 Port-2
192.168.4.2
VPN1
Site2
VPN2
Site5
CE
CE
VPN1 CE
Site1
VPN1 PE2 CE
Site3
CE
Site4
PE1
Backbone
PE3 CE
Site6
VPN2
VPN2
192.168.0.1
192.168.2.1 192.168.4.1 192.168.2.3
1-EG16-1Port-1 3-EG16-1Port-1 3-EG16-1Port-1 192.168.1.1 192.168.3.1

192.168.3.2
1-EG16-1Port-1
192.168.0.3
1-EG16-2Port-2 3-EG16-2 Port-2 3-EG16-2 Port-2
1-EG16-2 Port-2
8-48
Issue 01 (2010-08-16)
Service Planning
Site1, Site2, and Site3 belong to VPN1, and Site4, Site5, and Site6 belong to VPN2.
Service Planning
In the case of an intranet, all CE sites in the same VPN can communicate with each other. Site1, Site2, and Site3 belong to VPN1, and Site4, Site5, and Site6 belong to VPN2. Therefore, you need to create two BPG/MPLS VPN services. Table 8-3 shows the planning of the parameters for VPN1. Table 8-4 shows the planning of the parameters for VPN2. Table 8-3 VPN1 parameter planning Parameter Service Information Service Name Network Type VRF ID VRF Name RD RT NE List Node Name Description L3VPN-0001 Full-Mesh 1 vrf1 100:1 100:1 PE1: NE(9-1) PE2: NE(9-2) PE3: NE(9-3) Node IP Address/Node ID PE1: 9-1 PE2: 9-2 PE3: 9-3 Tunnel Binding (Static) Tunnel Name PE1: Tunnel-0001 PE2: Tunnel-0002 PE3: Tunnel-0003 SAI Interface Interface Name IP Address/Mask PE1, PE2, PE3: 1-EG16-1 (Port-1) PE1: 192.168.0.1/24 PE2: 192.168.1.2/24 PE3: 192.168.2.3/24 BGP Instance ID AS No.
Issue 01 (2010-08-16) Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.
3 100
8-49
Parameter Router ID
Description PE1: 192.168.0.1 PE2: 192.168.1.2 PE3: 192.168.2.3
Peer
Peer IP Address
PE1: 192.168.0.4 PE2: 192.168.1.3 PE3: 192.168.2.4
Peer AS No.
PE1: 65410 PE2: 65420 PE3: 65430
Table 8-4 VPN2 parameter planning Parameter Service Information Service Name Network Type VRF ID VRF Name RD RT NE List Node Name Description L3VPN-0002 Full-Mesh 2 vrf1 200:1 200:1 PE1: NE(9-1) PE2: NE(9-2) PE3: NE(9-3) Node IP Address/Node ID PE1: 9-1 PE2: 9-2 PE3: 9-3 Tunnel Binding (Static) Tunnel Name PE1: Tunnel-0001 PE2: Tunnel-0002 PE3: Tunnel-0003 SAI Interface Interface Name IP Address/Mask PE1, PE2, PE3: 1-EG16-2 (Port-2) PE1: 192.168.1.1/24 PE2: 192.168.3.3/24 PE3: 192.168.0.3/24 BGP Instance ID 4
8-50
Issue 01 (2010-08-16)
Parameter AS No. Router ID
Description 100 PE1: 192.168.1.1 PE2: 192.168.3.3 PE3: 192.168.0.3
Peer
Peer IP Address
PE1: 192.168.1.4 PE2: 192.168.3.4 PE3: 192.168.0.2
Peer AS No.
PE1: 65410 PE2: 65420 PE3: 65430
This topic describes how to configure the intranet VPN services described in the configuration example.
Prerequisite
You must be an NM user with "network operator" authority or higher. You must learn about the networking requirements and service planning described in the example. The network must be created.
Procedure
Step 1 Set LSR IDs for NEs. 1. 2. In the NE Explorer, select PE1 and choose Configuration > MPLS Management > Basic Configuration from the Function Tree. Set the parameters, such as LSR ID and Start of Global Label Space, for the NE. Click Apply. Parameter LSR ID Start of Global Label Space Example Value PE1: 1.1.1.1 0 Principle for Value Selection The LSR ID must be unique in the network. The minimum value of the ingress and egress labels of a unicast tunnel.
3.
In the NE Explorer, select PE2 and PE3. To set the parameters, such as LSR ID, for PE2 and PE3, see the preceding two steps.
Issue 01 (2010-08-16)
Parameter LSR ID
Example Value PE2: 1.1.1.2 PE3: 1.1.1.3
Principle for Value Selection The LSR ID must be unique in the network. The minimum value of the ingress and egress labels of a unicast tunnel.
Step 2 Configure network-side interfaces for PE1, PE2, and PE3. 1. 2. In the NE Explorer, select PE1 and choose Configuration > Interface Management > Ethernet Interface from the Function Tree. Then, configure network-side interfaces. On the General Attributes tab page, select 3-EG16-1(Port-1) and 3-EG16-2(Port-2), and set Port Mode to Layer 3. Set the parameters as required. Then, click Apply. Parameter Enable Port Port Mode Working Mode Example Value Enabled Layer 3 Auto-Negotiation Principle for Value Selection Enable the port to carry a tunnel. The port carries a tunnel. Set the working modes of the local port and opposite port as the same. Set this parameter according to the length of data packets. All the received data packets that contain more bytes than the maximum frame length are discarded.
Max Frame Length(byte)
1620
3.
On the Layer 3 Attributes tab page, select 3-EG16-1(Port-1) and 3-EG16-2(Port-2), and set Enable Tunnel to Enabled and Specify IP Address to Manually. Set IP Address and IP Mask. Then, click Apply. Parameter Enable Tunnel Example Value Enabled Principle for Value Selection Set this parameter according to network planning. The maximum reserved bandwidth should not exceed the physical bandwidth of the bearer port.
Issue 01 (2010-08-16)
Max Reserved Bandwidth (Kbit/s)
102400
8-52
Parameter TE Measure
Example Value 10
Principle for Value Selection You can intervene in the route selection by adjusting the TE measurement of the link. The smaller the value of the TE measurement, the higher the priority of the link. Manually indicates that you can set the IP address of the port. Set this parameter according to network planning.
Specify IP Address
Manually
IP Address
3-EG16-1(Port-1): 192.168.2.1 3-EG16-2(port-2): 192.168.3.1
IP Mask
255.255.255.0
Set this parameter according to network planning.
4.
In the NE Explorer, select PE2. To set the attributes of the 3-EG16-1(Port-1) and 3-EG16-2 (Port-2) interfaces for PE2, see Step 2.1 to Step 2.3. Set relevant parameters as follows: The settings of the PE2-3-EG16-1(Port-1) port are the same as those of the PE1-3-EG16-1 (Port-1) port. The IP address is 192.168.2.2. The settings of the PE2-3-EG16-2(Port-2) port are the same as those of the PE1-3-EG16-1 (Port-1) port. The IP address is 192.168.4.2.
5.
In the NE Explorer, select PE3. To set the attributes of the 3-EG16-1(Port-1) and 3-EG16-2 (Port-2) interfaces for PE3, see Step 2.1 to Step 2.3. Set relevant parameters as follows: The settings of the PE3-3-EG16-1(Port-1) port are the same as those of the PE1-3-EG16-1 (Port-1) port. The IP address is 192.168.4.1. The settings of the PE3-3-EG16-2(Port-2) port are the same as those of the PE1-3-EG16-1 (Port-1) port. The IP address is 192.168.3.2.
Step 3 Configure user-side interfaces for PE1, PE2, and PE3. 1. In the NE Explorer, select PE1. To set the attributes of the 1-EG16-1(Port-1) and 1-EG16-2 (Port-2) interfaces for PE3, see Step 2.1 to Step 2.3. Set relevant parameters as follows: The basic attributes of the PE1-1-EG16-1(Port-1) port are the same as those of the PE1-3EG16-1(Port-1) port. Specify IP Address of the layer 3 attribute is Unspecified and Enable Tunnel is Disabled.
Issue 01 (2010-08-16)
8-53
The basic attributes of the PE1-1-EG16-2(Port-2) port are the same as those of the PE1-3EG16-1(Port-1) port. Specify IP Address of the layer 3 attribute is Unspecified and Enable Tunnel is Disabled. 2. In the NE Explorer, select PE2. To set the attributes of the 1-EG16-1(Port-1) and 1-EG16-2 (Port-2) interfaces for PE2, see Step 2.1 to Step 2.3. Set relevant parameters as follows: The basic attributes of the PE2-1-EG16-1(Port-1) port are the same as those of the PE1-3EG16-1(Port-1) port. Specify IP Address of the layer 3 attribute is Unspecified and Enable Tunnel is Disabled. The basic attributes of the PE2-1-EG16-2(Port-2) port are the same as those of the PE1-3EG16-1(Port-1) port. Specify IP Address of the layer 3 attribute is Unspecified and Enable Tunnel is Disabled. 3. In the NE Explorer, select PE3. To set the attributes of the 1-EG16-1(Port-1) and 1-EG16-2 (Port-2) interfaces for PE3, see Step 2.1 to Step 2.3. Set relevant parameters as follows: The basic attributes of the PE3-1-EG16-1(Port-1) port are the same as those of the PE1-3EG16-1(Port-1) port. Specify IP Address of the layer 3 attribute is Unspecified and Enable Tunnel is Disabled. The basic attributes of the PE3-1-EG16-2(Port-2) port are the same as those of the PE1-3EG16-1(Port-1) port. Specify IP Address of the layer 3 attribute is Unspecified and Enable Tunnel is Disabled. Step 4 Configure control planes for NEs. 1. 2. In the NE Explorer, select PE1 and choose Configuration > Control Plane Configuration > IGP-ISIS Configuration from the Function Tree. Click the Port Configuration tab and click New. In the dialog box that is displayed, click Add. Select 3-EG16-1(Port-1) and 3-EG16-2(Port-2) and click OK. Parameter Port Example Value 3-EG16-1(Port-1) 3-EG16-2(Port-2) Link Level level-1-2 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. the case of a point-to-point link, if the local router fails to receive any response in a period after transmitting the LSP, the local router considers that the LSP is lost or discarded. To ensure the transmission reliability, the local router transmits the LSP again.
Issue 01 (2010-08-16)
8-54
Parameter Minimum LSP Transmission Interval (ms)
Example Value 30
Principle for Value Selection Set this parameter according to network planning.
3. 4. 5.
Choose Configuration > Control Plane Configuration > MP-BGP Configuration from the Function Tree. Click the MP-BGP Configuration tab. Click New. In the Create MP-BGP Protocol Instance dialog box, set MP-BGP Instance ID to 1 and MP-BGP Instance ID to 100. Click Apply. Click the Peer Configuration tab. Click New. In the Create Peer dialog box, set the parameters. For example, set MP-BGP Instance ID to 1 and AS Number to 100. Set the following parameters to configure PE2 as an MP-BGP peer. Parameter MP-BGP Instance Example Value 1 Principle for Value Selection Set this parameter according to network planning. The Remote IP Address indicates the LSR ID of the remote NE. Set this parameter according to network planning.
Remote IP Address
1.1.1.2
AS Number
100
Set the following parameters to configure PE3 as an MP-BGP peer. Parameter MP-BGP Instance Example Value 1 Principle for Value Selection Set this parameter according to network planning. The Remote IP Address indicates the LSR ID of the remote NE. Set this parameter according to network planning.
Remote IP Address
1.1.1.3
AS Number
100
6.
In the NE Explorer, select PE2. To set the parameters of the control plane for PE2, see the preceding steps.
Issue 01 (2010-08-16)
The IS-IS protocol parameters of the 3-EG16-1(Port-1) and 3-EG16-2(Port-2) ports are the same as those of PE1. The MP-BGP protocol parameters are the same as those of PE1. Set the following parameters to configure PE1 as an MP-BGP peer. Parameter MP-BGP Instance Example Value 1 Principle for Value Selection Set this parameter according to network planning. The Remote IP Address indicates the LSR ID of the remote NE. Set this parameter according to network planning.
Remote IP Address
1.1.1.1
AS Number
100
Set the following parameters to configure PE3 as an MP-BGP peer. Parameter MP-BGP Instance Example Value 1 Principle for Value Selection Set this parameter according to network planning. The Remote IP Address indicates the LSR ID of the remote NE. Set this parameter according to network planning.
Remote IP Address
1.1.1.3
AS Number
100
7.
In the NE Explorer, select PE3. To set the parameters of the control plane for PE3, see the preceding steps. The IS-IS protocol parameters of the 3-EG16-1(Port-1) and 3-EG16-2(Port-2) ports are the same as those of PE1. The MP-BGP protocol parameters are the same as those of PE1. Set the following parameters to configure PE1 as an MP-BGP peer.
8-56
Issue 01 (2010-08-16)
Parameter MP-BGP Instance
Example Value 1
Principle for Value Selection Set this parameter according to network planning. The Remote IP Address indicates the LSR ID of the remote NE. Set this parameter according to network planning.
Remote IP Address
1.1.1.1
AS Number
100
Set the following parameters to configure PE2 as an MP-BGP peer. Parameter MP-BGP Instance Example Value 1 Principle for Value Selection Set this parameter according to network planning. The remote IP address is the LSR ID of the remote NE. Set this parameter according to network planning.
Remote IP Address AS Number
1.1.1.2 100
Step 5 Create dynamic tunnels. 1. 2. Choose Service > Tunnel > Create Tunnel from the main menu. Set the basic information about a tunnel.
Issue 01 (2010-08-16)
8-57
Protocol Type
MPLS
Signaling Type
RSVP TE
Selected
3.
Configure the equipment list, double-click the equipment in the physical topology, and select the source and sink equipment. Parameter NE Role Example Value PE1: Ingress PE2: Egress Principle for Value Selection An ingress is the incoming node of a network. In this example, NE1 is an ingress node. An egress is the outgoing node of a network. In this example, NE3 is an egress node. Deploy Selected Select this check box when you need to save the tunnel on the U2000 and meanwhile deploy the tunnel to NEs.
4.
Click Advanced and configure the details of tunnel management. Table 8-5 Basic parameters Parameter Tunnel ID Example Value Forward tunnel: 1 Reverse tunnel: 2 Principle for Value Selection Set this parameter according to network planning.
8-58
Issue 01 (2010-08-16)
Table 8-6 Affinity object parameters Parameter Enable Affinity Example Value Forward and reverse tunnels: Yes Principle for Value Selection After you select Enable Affinity, when the active tunnel is faulty, the links with the same route color are preferred during rerouting. The forward and reverse tunnels are set to the same value. The forward and reverse tunnels are set to the same value.
Color
Forward and reverse tunnels: 0 Forward and reverse tunnels: 0
Mask
Table 8-7 Parameters of explicit hops information object Parameter IP Address Example Value Forward tunnel: 192.168.2.2 Reverse tunnel: 192.168.2.1 Hop Type Forward and reverse tunnels: Include Strict When this parameter is set to Include Strict, the tunnel is created strictly in the sequence of the set IP addresses. Principle for Value Selection Set the IP address passed by a tunnel.
Table 8-8 FRR attribute parameters Parameter Enable FRR FRR.BW.Type Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: Facility Principle for Value Selection Select this parameter to enable the FRR function. Currently, only facility is supported. In this mode, a protection tunnel can protect multiple LSPs.
Issue 01 (2010-08-16)
8-59
Example Value Forward and reverse tunnels: Node Protection
Principle for Value Selection The bypass tunnel that a PLR selects is required to protect the adjacent downstream node of the PLR and the link between the adjacent downstream node and the PLR. Select this parameter to enable the FRR bandwidth protection. Set this parameter according to network planning.
Enable FRR.BW.Protect
Forward and reverse tunnels: Yes Forward and reverse tunnels: 10000
FRR Bandwidth(Kbit/s)
Table 8-9 QoS parameters Parameter LSP Type Level Example Value Forward and reverse tunnels: E-LSP Forward and reverse tunnels: 4 Principle for Value Selection Currently, this parameter can be set to E-LSP only. Set this parameter according to network planning.
Table 8-10 Setup attribute parameters Parameter Enable Rerouter Setup Priority Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: 7 Principle for Value Selection Currently, this parameter can be set to E-LSP only. Setup priority is specified for an MPLS tunnel during creation. "0" indicates the highest priority. In the case insufficiency of resources, the MPLS tunnel of a higher setup priority can preempt the bandwidth of other MPLS tunnels and thus can be created successfully.
8-60
Issue 01 (2010-08-16)
Example Value Forward and reverse tunnels: 0
Principle for Value Selection The hold priority must be higher than the setup priority. 0 indicates the highest priority. After a tunnel with a higher hold priority is established, the resources of this tunnel are less likely to be preempted when the resources of other tunnels are insufficient.
5. 6.
Click OK. The dynamic tunnel is created. To configure the dynamic tunnel between PE1 and PE3, see the preceding steps. Table 8-11 Basic parameters Parameter Tunnel Name Example Value Tunnel-0003 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. This parameter is selected when a reverse tunnel needs to be created.
Protocol Type
MPLS
Signaling Type
RSVP TE
Selected
Issue 01 (2010-08-16)
8-61
Table 8-12 NE list parameters Parameter NE Role Example Value PE1: Ingress PE3: Egress Principle for Value Selection An ingress is the incoming node of a network. In this example, NE1 is an ingress node. An egress is the outgoing node of a network. In this example, NE3 is an egress node. Deploy Selected Select this check box when you need to save the tunnel on the U2000 and meanwhile deploy the tunnel to NEs.
Table 8-13 Basic parameters of advanced attribute Parameter Tunnel ID Example Value Forward tunnel: 3 Reverse tunnel: 4 Principle for Value Selection Set this parameter according to network planning.
Color
Mask
8-62
Issue 01 (2010-08-16)
Table 8-15 Parameters of explicit hops information object Parameter IP Address Example Value Forward tunnel: 192.168.3.2 Reverse tunnel: 192.168.3.1 Hop Type Forward and reverse tunnels: Strictly Include When this parameter is set to Strictly Include, the tunnel is created strictly in the sequence of the set IP addresses. Principle for Value Selection Set the IP address passed by a tunnel.
Table 8-16 Parameters of fast rerouting attribute Parameter Enable FRR FRR Type Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: Facility Principle for Value Selection Select this parameter to enable the FRR function. Currently, only facility is supported. In this mode, a protection tunnel can protect multiple LSPs. The bypass tunnel that a PLR selects is required to protect the adjacent downstream node of the PLR and the link between the adjacent downstream node and the PLR. Select this parameter to enable the FRR bandwidth protection. Set this parameter according to network planning.
FRR Protect Type
Forward and reverse tunnels: Node Protection
FRR Bandwidth
Issue 01 (2010-08-16)
8-63
Table 8-18 Setup attribute parameters Parameter Enable Rerouter Setup Priority Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: 7 Principle for Value Selection Currently, this parameter can be set to E-LSP only. When resources are insufficient, the tunnel with a higher setup priority can preempt the bandwidth resources of other tunnels during establishment based on network planning. The hold priority must be higher than the setup priority. 0 indicates the highest priority. After a tunnel with a higher hold priority is established, the resources of this tunnel are less likely to be preempted when the resources of other tunnels are insufficient. 7. To configure the dynamic tunnel between PE2 and PE3, see the preceding steps. Table 8-19 Basic parameters Parameter Tunnel Name Example Value Tunnel-0005 Principle for Value Selection Set this parameter according to network planning.
Hold Priority
Forward and reverse tunnels: 0
8-64
Issue 01 (2010-08-16)
Parameter Protocol Type
Example Value MPLS
Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. This parameter is selected when a reverse tunnel needs to be created.
Signaling Type
RSVP TE
Selected
Table 8-20 NE list parameters Parameter NE Role Example Value PE2: Ingress PE3: Egress Principle for Value Selection An ingress is the incoming node of a network. In this example, NE1 is an ingress node. An egress is the outgoing node of a network. In this example, NE3 is an egress node. Deploy Selected Select this check box when you need to save the tunnel on the U2000 and meanwhile deploy the tunnel to NEs.
Table 8-21 Basic parameters of advanced attribute Parameter Tunnel ID Example Value Forward tunnel: 5 Reverse tunnel: 6 Principle for Value Selection Set this parameter according to network planning.
Issue 01 (2010-08-16)
8-65
Color
Mask
Table 8-23 Parameters of explicit hops information object Parameter IP Address Example Value Forward tunnel: 192.168.4.1 Reverse tunnel: 192.168.4.2 Hop Type Forward and reverse tunnels: Strictly Include When this parameter is set to Strictly Include, the tunnel is created strictly in the sequence of the set IP addresses. Principle for Value Selection Set the IP address passed by a tunnel.
Table 8-24 Parameters of fast rerouting attribute Parameter Enable FRR FRR Type Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: Facility Principle for Value Selection Select this parameter to enable the FRR function. Currently, only facility is supported. In this mode, a protection tunnel can protect multiple LSPs.
8-66
Issue 01 (2010-08-16)
Principle for Value Selection The bypass tunnel that a PLR selects is required to protect the adjacent downstream node of the PLR and the link between the adjacent downstream node and the PLR. Select this parameter to enable the FRR bandwidth protection. Set this parameter according to network planning.
FRR Bandwidth
Table 8-26 Setup attribute parameters Parameter Enable Rerouter Setup Priority Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: 7 Principle for Value Selection Currently, this parameter can be set to E-LSP only. When resources are insufficient, the tunnel with a higher setup priority can preempt the bandwidth resources of other tunnels during establishment based on network planning.
Issue 01 (2010-08-16)
8-67
Principle for Value Selection The hold priority must be higher than the setup priority. 0 indicates the highest priority. After a tunnel with a higher hold priority is established, the resources of this tunnel are less likely to be preempted when the resources of other tunnels are insufficient.
Step 6 Create VPN1 and VPN2. 1. 2. Choose Service > L3VPN Service > Create L3VPN Service from the main menu. Configure VPN1 service parameters.
Table 8-27 Service information parameters Parameter Service Name Example Value L3VPN-0001 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning.
Network Type
Full-Mesh
8-68
Issue 01 (2010-08-16)
Parameter VRF ID
Example Value 1
Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
VRF Name
vrf1
RD
100: 1
RT
100: 1
Table 8-28 NE list parameters Parameter Node Name Example Value PE1: NE(9-1) PE2: NE(9-2) PE3: NE(9-3) Node IP Address/Node ID PE1: 9-1 PE2: 9-2 PE3: 9-3 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning.
3.
Set the required parameters of PE1, PE2, and PE3 on the VRF configuration tab page at the lower right corner. Table 8-29 PE1 parameters Parameter VRF Name Example Value vrf1 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
8-69
RD
100: 1
Import RT
100: 1
Issue 01 (2010-08-16)
Parameter Export RT
Example Value 100: 1
Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
Tunnel Name
Tunnel-0001 and Tunnel-0003 Per VPN
Label Distribution Policy
Interface Name
1-EG16-1(Port-1)
IP Address/Mask
192.168.0.1/24
Instance ID(BGP)
AS No.
100
Router ID
192.168.0.1
Peer IP Address
192.168.0.4
Peer AS No.
64510
Table 8-30 PE2 parameters Parameter VRF Name Example Value vrf1 Principle for Value Selection Set this parameter according to network planning.
8-70
Issue 01 (2010-08-16)
Parameter RD
Example Value 100:1
Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
Import RT
100: 1
Export RT
100: 1
Tunnel Name
Interface Name
1-EG16-1(Port-1)
IP Address/Mask
192.168.1.2/24
Instance ID(BGP)
AS No.
100
Router ID
192.168.1.2
Peer IP Address
192.168.1.3
Peer AS No.
64520
Issue 01 (2010-08-16)
8-71
Table 8-31 PE3 parameters Parameter VRF Name Example Value vrf1 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
RD
100:1
Import RT
100: 1
Export RT
100: 1
Tunnel Name
Interface Name
1-EG16-1(Port-1)
IP Address/Mask
192.168.2.3/24
Instance ID(BGP)
AS No.
100
Router ID
192.168.2.3
Peer IP Address
192.168.2.4
8-72
Issue 01 (2010-08-16)
Parameter Peer AS No.
Example Value 64530
4. 5.
Click OK. L3VPN-0001 is successfully created. Create VPN2. For relevant parameter configuration, see the preceding steps. Table 8-32 Service information parameters Parameter Service Name Example Value L3VPN-0002 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
Network Type
Full-Mesh
VRF ID
VRF Name
vrf2
RD
200: 1
RT
200: 1
Table 8-33 NE list parameters Parameter Node Name Example Value PE1: NE(9-1) PE2: NE(9-2) PE3: NE(9-3) Principle for Value Selection Set this parameter according to network planning.
Issue 01 (2010-08-16)
8-73
Parameter Node IP Address/Node ID
Example Value PE1: 9-1 PE2: 9-2 PE3: 9-3
Table 8-34 PE1 parameters Parameter VRF Name Example Value vrf1 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. Set this parameter according to network planning.
RD
200:1
Import RT
200: 1
Export RT
200: 1
Tunnel Name
Interface Name
1-EG16-2(Port-2)
IP Address/Mask
192.168.1.1/24
Instance ID(BGP)
AS No.
100
8-74
Issue 01 (2010-08-16)
Parameter Router ID
Example Value 192.168.1.1
Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
Peer IP Address
192.168.1.4
Peer AS No.
64510
Table 8-35 PE2 parameters Parameter VRF Name Example Value vrf1 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
RD
200: 1
Import RT
200: 1
Export RT
200: 1
Tunnel Name
Interface Name
1-EG16-2(Port-2)
IP Address/Mask
192.168.3.3/24
Issue 01 (2010-08-16)
8-75
Parameter Instance ID(BGP)
Example Value 4
Principle for Value Selection The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
AS No.
100
Router ID
192.168.3.3
Peer IP Address
192.168.3.4
Peer AS No.
64520
Table 8-36 PE3 parameters Parameter VRF Name Example Value vrf1 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
RD
200: 1
Import RT
200: 1
Export RT
200: 1
Tunnel Name
8-76
Issue 01 (2010-08-16)
Parameter Interface Name
Example Value 1-EG16-2(Port-2)
Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
IP Address/Mask
192.168.0.3/24
Instance ID(BGP)
AS No.
100
Router ID
192.168.0.3
Peer IP Address
192.168.0.2
Peer AS No.
64530
----End
8.8.2 Example for Configuring the Hub&Spoke VPN Service

This topic provides an example for configuring the Hub&Spoke VPN service. A configuration flow diagram is provided to describe the process of service configuration. The configuration example describes the configuration networking diagram, service planning, and configuration process.
Networking Configuration Diagram

This topic provides the networking diagram of the sites of the Hub&Spoke VPN service.
Requirement and Networking Diagram

Figure 8-31 shows the networking diagram of the Hub&Spoke VPN service. The communication between the Spoke-CE sites is controlled by the central site Hub-CE. Specifically, all the Spoke-CE sites can communicate with site Hub-CE, but the Spoke-CE sites cannot communicate with each other directly, the traffic between the Spoke-CE sites are forwarded by the central site Hub-CE in addition to the Hub-PE sites. Three sets of PE equipment
exist in this network. Each set of the PE equipment is connected to a CE site.Spoke-PE1, SpokePE2, and Hub-PE are OptiX PTN 3900 NEs.The following shows the connectivity between any two sites.
l l l
Site Spoke-CE1 and site Hub-CE can communicate with each other. Site Spoke-CE2 and site Hub-CE can communicate with each other. Site Spoke-CE1 and site Spoke-CE2 cannot communicate with each other directly, the traffic between the Spoke-CE sites are forwarded by the central site Hub-CE in addition to the Hub-PE sites.
Figure 8-31 Networking of the Hub&Spoke VPN service

AS: 65410 Spoke-CE1 Site1 192.168.0.2 AS: 65420 Site2 Spoke-CE2 192.168.0.6 Spoke-PE1 Spoke-PE2
RD 100:1 Export RT 100:1 Import RT 200:1 RD 100:1 Export RT 200:1 Import RT 100:1
VRF-IN VRF-OUT
AS: 65430 Hub-CE
AS: 100 Backbone
Hub-PE
Site3 192.168.0.10
Figure 8-32 shows the NE planning diagram. Figure 8-32 NE planning diagram
1-EG16-1 ( Port -1) 3-EG16-1 ( Port -1)
Spoke-CE1
Site1
192.168.0.1 192.168.1.1 3-EG16-1 ( Port -1) 192.168.1.2 192.168.0.3

VRF-IN
192.168.0.2
Spoke-PE1 Spoke-CE2
Site2 1-EG16-1 ( Port -1) 192.168.0.5
Backbone
Site3
Spoke-PE2
192.168.0.4
Hub-PE
VRF-OUT
192.168.3.7
Hub-CE
1-EG16-1 ( Port -1) 3-EG16-1 ( Port -1) 3-EG16-2 ( Port -2) 192.168.0.9 1-EG16-2 ( Port -2) 192.168.2.1 192.168.2.2 192.168.3.8
Service Planning
Site1 and Site2 are Spoke-CE sites and Site3 is a Hub-CE site.
In the case of the Hub&Spoke networking, the communication between the Spoke-CE sites in the same VPN is controlled by the central site Hub-CE. Specifically, the traffic between the Spoke-CE sites are forwarded by the central site Hub-CE in addition to the Hub-PE sites. Table 8-37 shows the VPN parameter planning. Table 8-37 VPN parameter planning Parameter Service Name Service Name Network Type VRF ID RD Hub RT Spoke RT NE List Node Name Description L3VPN-0001 Hub-Spoke Auto-Assign 100:1 100:1 200:1 Spoke-PE1: NE(9-1) Spoke-PE2: NE(9-2) Hub-PE: NE(9-3) Node IP Address/Node ID Spoke-PE1: 9-1 Spoke-PE2: 9-2 Hub-PE: 9-3 Tunnel Binding(Static) Tunnel Name Spoke-PE1: Tunnel-0001 Spoke-PE2: Tunnel-0003 Hub-PE: Tunnel-0001 and Tunnel-0003 SAI Interface Interface Name Spoke-PE1: 1-EG16-1 (Port-1) Spoke-PE2: 1-EG16-1 (Port-1) Hub-PE3(VRF-IN): 1EG16-1(Port-1) Hub-PE3(VRF-OUT): 1EG16-2(Port-2) IP Address/Mask Spoke-PE1: 192.168.0.1/24 Spoke-PE2: 192.168.0.5/24 Hub-PE(VRF-IN): 192.168.0.9/24 Hub-PE(VRF-OUT): 192.168.3.8/24
Issue 01 (2010-08-16)
8-79
Parameter BGP Instance ID
Description Spoke-PE1: 2 Spoke-PE2: 2 Hub-PE(VRF-IN): 2 Hub-PE(VRF-OUT): 3 AS No. Router ID 100 Spoke-PE1: 192.168.0.1 Spoke-PE2: 192.168.0.5 Hub-PE(VRF-IN): 192.168.0.9 Hub-PE(VRF-OUT): 192.168.3.8
Peer
Spoke-PE1: 192.168.0.2 Spoke-PE2: 192.168.0.4 Hub-PE: 192.168.0.3 and 192.168.3.7
Peer AS No.
Spoke-PE1: 65410 Spoke-PE2: 65420 Hub-PE: 65430
This topic describes how to configure the Hub&Spoke VPN service described in the example.
Prerequisite
You must be an NM user with "network operator" authority or higher. You must learn about the networking requirements and service planning described in the example. The network must be created.
Procedure
Step 1 Specify LSR IDs for NEs. 1. 2. In the NE Explorer, select Spoke-PE1 and choose Configuration > MPLS Management > Basic Management from the Function Tree. Set the parameters, such as LSR ID and Start of Global Label Space, for the NE. Click Apply.
8-80
Issue 01 (2010-08-16)
Parameter LSR ID Start of Global Label Space
Example Value Spoke-PE1: 1.1.1.1 0
Principle for Value Selection The LSR ID must be unique in the network. The minimum value of the ingress and egress labels of a unicast tunnel.
3.
In the NE Explorer, select Spoke-PE2 and Hub-PE. To set the parameters, such as LSR ID, for Spoke-PE2 and Hub-PE, see Step a and Step b. Parameter LSR ID Example Value Spoke-PE2: 1.1.1.2 Hub-PE: 1.1.1.3 Start of Global Label Space 0 Principle for Value Selection The LSR ID must be unique in the network. The minimum value of the ingress and egress labels of a unicast tunnel.
Step 2 Configure NNI ports for Spoke-PE1, Spoke-PE2, and Hub-PE. 1. 2. In the NE Explorer, select Spoke-PE1 and choose Configuration > Interface Management > Ethernet Interface from the Function Tree. Configure the NNI port. On the General Attributes tab page, select 3-EG16-1(Port-1) and set Port Mode to Layer 3. Set parameters as required. Click Apply. Parameter Enable Port Port Mode Working Mode Example Value Enabled Layer 3 Auto-Negotiation Principle for Value Selection Enable the port to carry tunnels. The port in the Layer 3 mode can carry channels. Set the working modes of the local port and opposite port as the same. Set this parameter according to the length of data packets. All the received data packets that contain more bytes than the maximum frame length are discarded.
Max Frame Length(byte)
1620
Issue 01 (2010-08-16)
8-81
3.
On the Layer 3 Attributes tab page, select 3-EG16-1(Port-1), set Enable Tunnel to Enabled and Specify IP Address to Manually, and set IP Address and IP Mask. Click Apply. Parameter Enable Tunnel Example Value Enabled Principle for Value Selection Set this parameter according to network planning. The maximum reserved bandwidth should not exceed the physical bandwidth of the bearer port. You can intervene in the route selection by adjusting the TE measurement of the link. The smaller the value of the TE measurement, the higher the priority of the link. Manually indicates that you can set the IP address of the port. Set this parameter according to network planning. Set this parameter according to network planning.
Max Reserved Bandwidth (Kbit/s)
102400
TE Measurement
10
Specify IP Address
Manually
IP Address
3-EG16-1(Port-1): 192.168.1.1 255.255.255.0
IP Mask
4.
In the NE Explorer, select Spoke-PE2. To configure the attributes of the 3-EG16-1(Port-1) port, see Step Step 2.1 through Step Step 2.3. Set the required parameters as follows: The parameter settings of the Spoke-PE2-3-EG16-1(Port-1) port are the same as the parameter settings of the Spoke-PE1-3-EG16-1(Port-1) port, and the IP address is set to 192.168.2.1.
5.
In the NE Explorer, select Hub-PE. To configure the attributes of the 3-EG16-1(Port-1) and 3-EG16-2(Port-2) ports, see Step Step 2.1 through Step Step 2.3. Parameter Enable Tunnel Example Value Enabled Principle for Value Selection Set this parameter according to network planning.
8-82
Issue 01 (2010-08-16)
Parameter Max Reserved Bandwidth (Kbit/s)
Example Value 102400
Principle for Value Selection The maximum reserved bandwidth should not exceed the physical bandwidth of the bearer port. You can intervene in the route selection by adjusting the TE measurement of the link. The smaller the value of the TE measurement, the higher the priority of the link. Manually indicates that you can set the IP address of the port. Set this parameter according to network planning.
TE Measurement
10
Specify IP Address
Manually
IP Address
Hub-PE-3-EG16-1 (Port-1): 192.168.1.2 Hub-PE-3-EG16-2 (Port-2): 192.168.2.2
IP Mask
255.255.255.0
Step 3 Configure UNI ports for Spoke-PE1, Spoke-PE2, and Hub-PE. 1. In the NE Explorer, select Spoke-PE1. To configure the attributes of the 1-EG16-1(Port-1) port, see Step Step 2.1 through Step Step 2.3. Set the required parameters as follows: The basic attributes of the Spoke-PE1-1-EG16-1(Port-1) port are the same as the basic attributes of the Spoke-PE1-3-EG16-1(Port-1) port, and the Specify IP Address parameter in Layer 3 attributes is set to Unspecified and Enable Tunnel is Enabled. 2. In the NE Explorer, select Spoke-PE2. To configure the attributes of the 1-EG16-1(Port-1) port, see Step Step 2.1 through Step Step 2.3. Set the required parameters as follows: The basic attributes of the Spoke-PE2-1-EG16-1(Port-1) port are the same as the basic attributes of the Spoke-PE1-3-EG16-1(Port-1) port, and the Specify IP Address parameter in Layer 3 attributes is set to Unspecified and Enable Tunnel is Enabled. 3. In the NE Explorer, select Hub-PE. To configure the attributes of the 1-EG16-1(Port-1) port, see Step Step 2.1 through Step Step 2.3. Set the required parameters as follows: The basic attributes of the Hub-PE-1-EG16-1(Port-1) port are the same as the basic attributes of the Spoke-PE1-3-EG16-1(Port-1) port, and the Specify IP Address parameter in Layer 3 attributes is set to Unspecified and Enable Tunnel is Enabled.
Step 4 Configure control planes for NEs. 1. 2. In the NE Explorer, select Spoke-PE1 and choose Configuration > Control Plane Configuration > IGP-ISIS Configuration from the Function Tree. Click the Port Configuration tab and click New. In the dialog box that is displayed, click Add. Select the 3-EG16-1(Port-1) port and click OK. Parameter Port Example Value 3-EG16-1(Port-1) Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. In the case of a point-topoint link, if the local router fails to receive any response in a period after transmitting the LSP, the local router considers that the LSP is lost or discarded. To ensure the transmission reliability, the local router transmits the LSP again. Set this parameter according to network planning.
Link Level
level-1-2
LSP Retransmission Interval(ms)
30
3. 4. 5.
Choose Configuration > Control Plane Configuration > MP-BGP Configuration from the Function Tree. Click the MP-BGP Configuration tab. Click New. In the Create MP-BGP Protocol Instance dialog box, set MP-BGP Instance ID to 1 and AS No. to 100. Click Apply. Click the Peer Configuration tab. Click New. In the Create Peer dialog box, set the parameters. Parameter BGP Instance ID Example Value 1 Principle for Value Selection Set this parameter according to network planning. The Remote IP Address indicates the LSR ID of the remote NE. Set this parameter according to network planning.
Issue 01 (2010-08-16)
Remote IP Address
1.1.1.3
AS No.
100
8-84
6.
In the NE Explorer, select Spoke-PE2. To set the parameters of the control plane for SpokePE2, see the preceding steps. The IS-IS protocol parameters of the 3-EG16-1(Port-1) port are the same as the IS-IS protocol parameters of Spoke-PE1. The MP-BGP protocol parameters are the same as the MP-BGP protocol parameters of Spoke-PE1. Set the following parameters to configure Hub-PE as an MP-BGP peer. Parameter BGP Instance Example Value 1 Principle for Value Selection Set this parameter according to network planning. The Remote IP Address indicates the LSR ID of the remote NE. Set this parameter according to network planning.
Remote IP Address
1.1.1.3
AS No.
100
7.
In the NE Explorer, select Hub-PE. To set the parameters of the control plane for Hub-PE, see the preceding steps. The IS-IS protocol parameters of the 3-EG16-1(Port-1) and 3-EG16-2(Port-2) ports are the same as the IS-IS protocol parameters of Spoke-PE1. The MP-BGP protocol parameters are the same as the MP-BGP protocol parameters of Spoke-PE1. Set the following parameters to configure Spoke-PE1 as an MP-BGP peer. Parameter BGP Instance Example Value 1 Principle for Value Selection Set this parameter according to network planning. The Remote IP Address indicates the LSR ID of the remote NE. Set this parameter according to network planning.
Remote IP Address
1.1.1.1
AS No.
100
Set the following parameters to configure Spoke-PE2 as an MP-BGP peer.

Parameter BGP Instance
Example Value 1
Principle for Value Selection Set this parameter according to network planning. The Remote IP Address indicates the LSR ID of the remote NE. Set this parameter according to network planning.
Remote IP Address
1.1.1.2
AS No.
100
Step 5 Create dynamic tunnels. 1. 2. Choose Service > Tunnel > Create Tunnel from the main menu. Set the basic information about a tunnel.
Issue 01 (2010-08-16)
Protocol Type
MPLS
Signaling Type
RSVP TE
Selected
8-86
3.
Configure the equipment list, double-click the equipment in the physical topology, and select the source and sink equipment. Parameter NE Role Example Value Spoke-PE1: Ingress Hub-PE: Egress Principle for Value Selection Ingress indicates an ingress node. In this example, NE1 is the ingress node. Egress indicates an egress node. In this example, NE3 is the egress node. Deploy Selected Select this check box when you need to save the tunnel on the U2000 and meanwhile deploy the tunnel to the NEs.
4.
Click Advance and configure the details of tunnel management. Table 8-38 General information Parameter Tunnel ID Example Value Forward tunnel: 1 Reverse tunnel: 2 Principle for Value Selection Set this parameter according to network planning.
Table 8-39 Affinity object parameters Parameter Enable Affinity Example Value Forward and reverse tunnels: Yes Principle for Value Selection After you select Enable Affinity, when the active tunnel is faulty, the links with the same route color are preferred during a rerouting. The colors of the forward and reverse tunnels are the same. The masks of the forward and reverse tunnels are the same.
Color
Mask
Issue 01 (2010-08-16)
8-87
Table 8-40 Parameters of the explicit hop information object Parameter IP Address Example Value Forward tunnel: 192.168.2.1 Reverse tunnel: 192.168.1.1 Hop Type Forward and reverse tunnels: Strictly Include When you set Hop Type to Strictly Include, the tunnel strictly follows the sequence of set IP addresses during establishment. Principle for Value Selection Set the IP address passed by a tunnel.
Table 8-41 FRR attributes Parameter Enable FRR FRR Type Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: Facility Principle for Value Selection Select this check box to enable FRR. Only Facility can be selected. In this mode, one bypass tunnel can protect multiple LSPs. It is required that the bypass tunnel selected for a PLR protect the downstream neighboring nodes of the PLR and the links between the PLR and its downstream neighboring nodes. Select this check box to enable FRR bandwidth protection. Set this parameter according to network planning.
FRR Protect Type
Forward and reverse tunnels: Node Protection
Enable FRR BW Protect
FRR Bandwidth
8-88
Issue 01 (2010-08-16)
Table 8-42 QoS configuration parameters Parameter LSP Type Level Example Value Forward and reverse tunnels: E-LSP Forward and reverse tunnels: 4 Principle for Value Selection Currently, you can set LSP Type to only E-LSP. Set this parameter according to network planning.
Table 8-43 Setup attributes Parameter Enable Rerouter Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: 7 Principle for Value Selection Set this parameter according to service planning. Set this parameter according to network planning. When resources are insufficient, the tunnel with a higher setup priority can preempt the bandwidth resources of other tunnels during establishment. The hold priority should be higher than the setup priority. The value 0 indicates the highest priority. After a tunnel with a higher hold priority is established, the resources of this tunnel is less likely to be preempted when the resources of other tunnels are insufficient. 5. 6. Click OK. The dynamic tunnel is created. To configure the dynamic tunnel between Spoke-PE2 and Hub-PE, see the preceding steps.
Setup Priority
Hold Priority
Forward and reverse tunnels: 0
Issue 01 (2010-08-16)
8-89
Table 8-44 General information Parameter Tunnel Name Example Value Tunnel-0003 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Select this check box when you need to create a reverse tunnel.
Protocol Type
MPLS
Signaling Type
RSVP TE
Selected
Table 8-45 NE list Parameter NE Role Example Value Spoke-PE2: Ingress Hub-PE: Egress Principle for Value Selection Ingress indicates an ingress node. In this example, NE1 is the ingress node. Egress indicates an egress node. In this example, NE3 is the egress node. Deploy Selected Select this check box when you need to save the tunnel on the U2000 and meanwhile deploy the tunnel to the NEs.
Table 8-46 Basic information about the advanced attributes Parameter Tunnel ID Example Value Forward tunnel: 3 Reverse tunnel: 4 Principle for Value Selection Set this parameter according to network planning.
8-90
Issue 01 (2010-08-16)
Table 8-47 Affinity object parameters Parameter Enable Affinity Example Value Forward and reverse tunnels: Yes Principle for Value Selection After you select Enable Affinity, when the active tunnel is faulty, the links with the same route color are preferred during a rerouting. The colors of the forward and reverse tunnels are the same. The masks of the forward and reverse tunnels are the same.
Color
Mask
Table 8-48 Parameters of the explicit hop information object Parameter IP Address Example Value Forward tunnel: 192.168.2.1 Reverse tunnel: 192.168.2.2 Hop Type Forward and reverse tunnels: Strictly Include When you set Hop Type to Strictly Include, the tunnel strictly follows the sequence of set IP addresses during establishment. Principle for Value Selection Set the IP address passed by a tunnel.
Table 8-49 FRR attributes Parameter Enable FRR FRR Type Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: Facility Principle for Value Selection Select this check box to enable FRR. Only Facility can be selected. In this mode, one bypass tunnel can protect multiple LSPs.
Issue 01 (2010-08-16)
8-91
Principle for Value Selection It is required that the bypass tunnel selected for a PLR protect the downstream neighboring nodes of the PLR and the links between the PLR and its downstream neighboring nodes. Select this check box to enable FRR bandwidth protection. Set this parameter according to network planning.
Enabled FRR BW Protect
FRR Bandwidth
Table 8-50 QoS configuration parameters Parameter LSP Type Level Example Value Forward and reverse tunnels: E-LSP Forward and reverse tunnels: 4 Principle for Value Selection Currently, you can set LSP Type to only E-LSP. Set this parameter according to network planning.
Table 8-51 Setup attributes Parameter Enable Rerouter Example Value Forward and reverse tunnels: Yes Forward and reverse tunnels: 7 Principle for Value Selection Set this parameter according to service planning. Set this parameter according to network planning. When resources are insufficient, the tunnel with a higher setup priority can preempt the bandwidth resources of other tunnels during establishment.
Setup Priority
8-92
Issue 01 (2010-08-16)
Principle for Value Selection The hold priority should be higher than the setup priority. The value 0 indicates the highest priority. After a tunnel with a higher hold priority is established, the resources of this tunnel is less likely to be preempted when the resources of other tunnels are insufficient.
Step 6 Create VPN services. 1. 2. Choose Service > L3VPN Service > Create L3VPN Service from the main menu. Set the parameters of the BPG/MPLS VPN service. Table 8-52 Service information Parameter Service Name Example Value L3VPN-0001 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
Network Type
Hub-Spoke
VRF ID
VRF Name
VRF-IN
RD
100:1
Hub RT
200:1
Spoke RT
100:1
Issue 01 (2010-08-16)
8-93
Table 8-53 NE list Parameter Node Name Example Value Spoke-PE1: NE(9-1) Spoke-PE2: NE(9-2) Hub-PE: NE(9-3) Node IP Address/Node ID Spoke-PE1: 9-1 Spoke-PE2: 9-2 Hub-PE: 9-3 3. Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning.
Set the required parameters on the VRF Configure tab page in the lower right corner. Table 8-54 Hub-PE parameters Parameter RD Example Value VRF-IN: 100: 1 VRF-OUT: 200: 1 Import RT VRF-IN: 100: 1 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
Export RT
VRF-OUT: 200: 1
Tunnel Name
VRF-IN: Tunnel-0001, Tunnel-0003 Per VPN
Interface Name
VRF-IN: 1-EG16-1 (Port-1) VRF-OUT: 1-EG16-2 (Port-2)
IP Address/Mask
VRF-IN: 192.168.0.9/24 VRF-OUT: 192.168.3.8/24
8-94
Issue 01 (2010-08-16)
Parameter Instance ID(BGP)
Example Value VRF-IN: 2 VRF-OUT: 3
Principle for Value Selection The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
AS No.
VRF-IN: 100 VRF-OUT: 200
Router ID
VRF-IN: 192.168.0.9 VRF-OUT: 192.168.3.8
VRF-IN: 192.168.0.3 VRF-OUT: 192.168.3.7
Peer AS No.
VRF-IN: 65430 VRF-OUT: 65430
Table 8-55 Spoke-PE1 parameters Parameter RD Example Value 100: 1 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
Import RT
200: 1
Export RT
100: 1
Tunnel Name
Tunnel-0001
Per VPN
Interface Name
1-EG16-1(Port-1)
Issue 01 (2010-08-16)
8-95
Parameter IP Address/Mask
Example Value 192.168.0.1/24
Principle for Value Selection Set this parameter according to network planning. The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
Instance ID(BGP)
AS No.
100
Router ID
192.168.0.1
192.168.0.2
Peer AS No.
65410
Table 8-56 Spoke-PE2 parameters Parameter RD Example Value 100: 1 Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
Import RT
200: 1
Export RT
100: 1
Tunnel Name
Tunnel-0003
Per VPN
8-96
Issue 01 (2010-08-16)
Parameter Interface Name
Example Value 1-EG16-1(Port-1)
Principle for Value Selection Set this parameter according to network planning. Set this parameter according to network planning. The ID of BGP instance here cannot be the same as the ID of the MP BGP instance of the control plane. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning. Set this parameter according to network planning.
IP Address/Mask
192.168.0.5/24
Instance ID(BGP)
AS No.
100
Router ID
192.168.0.5
192.168.0.4
Peer AS No.
65420
4.
Click OK. L3VPN-0001 is successfully created..
----End
Issue 01 (2010-08-16)
8-97
9 Configuring Dual-Homing Protection
Configuring Dual-Homing Protection
About This Chapter

The PTN can fast implement dual-homing protection for an E-Line service when a dual-homing node, the AC link of a dual-homing node, or the PW of a network-side service is faulty. This topic describes the concept, application, and configuration method of dual-homing protection. 9.1 Configuration Flow of Dual-Homing Protection This section describes the configuration flow of dual-homing protection with the focuses on each task included in the configuration and details on each task. 9.2 Operation Tasks for Configuring the Dual-Homing Protection The operation tasks for configuring the dual-homing protection include the configuration of ACside cross-equipment link protection group and the configuration of network-side MC-PW APS protection. 9.3 Example of Dual-Homing Protection with 1:1 MC-PW APS and MC-LAG This section provides an example of dual-homing protection with NNI-side 1:1 MC-PW APS and UNI-side MC-LAG with focuses on example description and configuration process.
Issue 01 (2010-08-16)
9-1
9.1 Configuration Flow of Dual-Homing Protection

This section describes the configuration flow of dual-homing protection with the focuses on each task included in the configuration and details on each task.
Prerequisites
You must configure the services to be protected by dual-homing protection.
Configuration Flow
Figure 9-1 shows the configuration flow for dual-homing protection.
NOTE
l l
In the figure, attachment circuit (AC) indicates the access side. In the following description, AC is used to describe the access side. In the figure, MC represents multi-chassis. In the following description, MC is used to describe multi-chassis.
Figure 9-1 Configuration flow for dual-homing protection

Start
Configure AC-side MC protection
Configure MC synchronization protocol communication
AC-side protection scheme?
MC-LMSP Configure MC-LMSP protection groups
MC-LAG MC-PW APS PW redundancy protection MAC address withdrawal
Configure MC-LAG protection
Configure MC-PW APS protection Configure PW redundancy protection Configure the MAC address withdrawal function
Configure networkside protection
Network-side protection scheme?
End
Required
Optional
Configuration Flow
Table 9-1 provides description of each task in the configuration flow for dual-homing protection.
Table 9-1 Description of tasks in the configuration flow for dual-homing protection Configuration Task Configuring ACSide MC Protection Configuring MC Synchronization Communication Remarks By means of MC synchronization communication, dual-homing nodes periodically notify the status of ACside links to each other, and coordinate actions in response to faults. Before configuring MC-LAG or MC-LMSP, you must configure the opposite information about MC synchronization communication on the two dual-homing nodes. Configuring an MC-LAG Protection When configuring MC-LAG protection, you must complete the following configuration tasks in order: 1. Configure SC-LAG protection groups on two dual-homing nodes. 2. Configure MC-LAG protection groups on two dual-homing nodes. Configuring MC-LMSP Protection Group When configuring MC-LMSP protection group, you must complete the following configuration task:
l
Configure MC-LMSP protection groups on two dual-homing nodes.
Issue 01 (2010-08-16)
9-3
Configuration Task Configuring NNI-Side Protection Configuring MC-PW APS Protection
Remarks When configuring MC-PW APS protection, you must complete the following configuration tasks in order: 1. Configure a PW APS protection group on a non-dual-homing node. 2. Configure service to be protected on the protection dual-homing node. 3. Configure an MC-PW APS protection group on the slave dual-homing node. 4. Configure an MC-PW APS protection group on the master dual-homing node. 5. Bundle slave MC-PW APS. If a new MC-PW APS needs to be bound to an existing MC-PW APS, this configuration task is mandatory.
Configuring PW Redundancy Protection
When configuring PW redundancy protection, you must complete the following configuration tasks in order: 1. Configure service to be protected on the protection dual-homing node. 2. Configure a PW redundancy protection group on a non-dualhoming node.
9.2 Operation Tasks for Configuring the Dual-Homing Protection

The operation tasks for configuring the dual-homing protection include the configuration of ACside cross-equipment link protection group and the configuration of network-side MC-PW APS protection. 9.2.1 Configuring the MC-LAG This topic describes the basic concept of the LAG and how to configure the MC-LAG. 9.2.2 Operation Tasks for Configuring MC-PW APS MC-PW APS protection and AC-side MC-LAG protection work together to implement dualhoming protection for E-Line services. This topic describes how to configure the network-side
MC-PW APS protection in the dual-homing protection scenario. Specifically, how to configure the MC-PW APS and bind the slave MC-PW APS.
9.2.1 Configuring the MC-LAG

This topic describes the basic concept of the LAG and how to configure the MC-LAG.
Introduction to the LAG

Link aggregation indicates that a group of Ethernet links are bound to form a logic link, that is, link aggregation group (LAG). This helps to provide higher bandwidth and link reliability. PTN equipment supports LAG protection for UNI Ethernet links. In addition, manual aggregation and static aggregation are supported.
Definition
Link aggregation indicates that a group of physical Ethernet interfaces are bound together to form a logical interface (that is, a LAG). Link aggregation increases bandwidth and provides link protection. As shown in Figure 9-2, a LAG works between adjacent sets of equipment and is irrelevant to the entire network structure. On an Ethernet, a link corresponds to a port, so the link aggregation is also called the port aggregation. Figure 9-2 Link Aggregation Group
Link 1 Link 2 Ethernet Message Link 3 LAG Ethernet Message
Equipment supports two aggregation modes, that is, manual aggregation and static aggregation. There are two service sharing modes for each aggregation mode, that is, loading sharing and non-load sharing. Manual aggregation: In this mode, you need to manually create a LAG and add member links to the LAG. In addition, the link aggregation control protocol (LACP) is not required in this mode. Therefore, when equipment is interconnected with the equipment that does not support LACP, the link aggregation still works. As a result, if a unidirectional fault occurs on a member link (for example, a fiber cut occurs in one direction of an Ethernet optical interface), the transmit end of the cut fiber cannot detect the fault, and the service is affected (in the load sharing mode) or interrupted (in the non-load sharing mode). Static aggregation: In this mode, you need to manually create a LAG and add member links to the LAG. The LACP protocol is required in this mode. The LACP protocol does not change the configuration information. Exchanging LACP packets allows the systems at the two ends of a LAG to negotiate the aggregation instead of fully depending on the configuration of a single end. As a result, the aggregation is controlled in a more accurate and effective manner. Load sharing mode: In this mode, service traffic is available on each member link of the LAG, and the member links share service transmission. To ensure that packets on member links are
in order and that the service traffic is evenly distributed on each member link, on the receive side, the LAG algorithm is used to re-arrange the disordered packets, and the sharing algorithm is used to distribute packets to each link of the LAG based on a certain feature value of the packets (for example, source MAC address or sink MAC address). When LAG members change, or certain links fail, the system automatically reallocates traffic. This brings many benefits of the link aggregation, such as higher bandwidth that is increased in a linear manner. Non-load sharing: There are a maximum of two members in an LAG. One member, which is in the active state, is used as an active link to carry the service traffic. The other member is in the standby state. When the active link is faulty, the system activates the link in the standby state to carry the service traffic.
Purposes and Benefits

LAG works between the MAC sub-layer and the LLC sub-layer and belongs to the data link layer. LAG has the following functions:
l
Improving the link reliability: In a LAG, member links dynamically back up each other. Once a member link is interrupted, another member link takes over its work immediately. The backup process of a LAG is associated with the member links in this LAG, but is not associated with the links outside this LAG. Increasing the link capability: A LAG can provide an economic method of increasing the link transmission rate. When multiple physical links are bound, you can obtain a data link with higher bandwidth, without upgrading the existing equipment. The capacity of a LAG equals the sum of the capacity of all member links. According to a certain algorithm, the aggregation module allocates traffic to different member links, to realize the link-level load sharing. Using LAG without modifying the higher-layer protocol or applications: LAG works at the data link layer, and is irrelevant to the higher-layer protocol and applications.
Networking Application
The equipment supports the LAG application on the UNI side. As shown in Figure 9-3, a LAG is created. In addition , the intra-card LAG and inter-card LAG are supported. The bandwidth for Ethernet services between the adjacent equipment is increased in a linear manner. What's more, link reliability is improved. Figure 9-3 LAG networking
NE Intra-card LAG Ethernet card Ethernet card NE
Ethernet card
Ethernet card
Inter-card LA
9-6
Issue 01 (2010-08-16)
MC-LAG
Multi-chassis link aggregation group (MC-LAG) is an extension of LAG defined in IEEE 802.3. In the case of MC-LAG, the links on multiple NEs are aggregated as one group to increase bandwidth. When one link or one NE in the group is faulty, MC-LAG functions to switch the data flow to other available links in the MC-LAG. This section describes the MC-LAG in aspects of the working principle, application for dual-homing protection, and support of the PTN equipment.
Working Principle of MC-LAG

As shown in Figure 9-4, the services from BTS/NodeB are transported to BSC/RNC over the PTN network. PE1, PE2, and BSC/RNC interoperate with each other to achieve MC-LAG protection for services. Figure 9-4 MC-LAG for dual-homing protection
PE1 MC-LAG LAG1 A PE3 LAG3
BTS/NodeB S PE2 LAG2
BSC/RNC
A S Note:
Active (carrying services) Standby (not carrying services)
MC synchronization communication
LAG1 and LAG2 may have one member link.
The MC-LAG consists of single-chassis (SC) LAGs (LAG1 and LAG2) on PE1 and PE2, MCLAG between PE1 and PE2, and LAG (LAG3) on BSC/RNC. By means of MC synchronization communication of MC-LAG, PE1 and PE2 periodically notify the status of LAG1 and LAG2 to each other, and coordinate actions in response to faults. In addition, when the working status of the AC-side link changes, PE1 and PE2 notify the status change to the NNI-side protection protocol. MC synchronization communication can be shared by all MC-LAG and MC-LMSP between PE1 and PE2. Hence, you need to configure MC synchronization communication tunnel for only one time. To ensure quick switching and to improve reliability of MC-LAG or MC-LMSP, you must set up a direct MC synchronization communication tunnel between PE1 and PE2 and configure protection for the tunnel. The PTN equipment supports non-load-sharing MC-LAG. That is, only either LAG1 or LAG2 carries services and is active. The PTN equipment supports static SC-LAG and manual SC-LAG
in the MC-LAG. The aggregation modes of the SC-LAGs on the two dual-homing nodes and BSC/RNC must be the same. In addition, if the MC-LAG contains more than two member links, the SC-LAG on BSC/RNC must work in load-sharing mode. 1. Static Aggregation In static aggregation mode, the equipment exchanges the LACP protocol packets to select LAG1 or LAG2 to carry services. The selection process is as follows:
l
LAG1, LAG2, and LAG3 exchange protocol packets between each other. Then, LAG1, LAG2, or LAG3 is selected to determine which link (non-load-sharing MC-LAG) or links (load-sharing MC-LAG) in the MC-LAG carry services according to the LAG system priority or system MAC address. The LAG with the highest system priority is preferred. When the system priorities of the LAGs are the same, the LAG with the smallest MAC address is preferred. The system MAC address indicates the system MAC address of the equipment with the LAG.
When an LAG is selected, the LAG chooses one (non-load-sharing LAG) or more (loadsharing LAG) member links to carry services according to the priorities and status of its member ports, and then the LAG negotiates with the opposite end to reach an agreement.
Generally, configure a higher system priority for the SC-LAG on a dual-homing node than that for the SC-LAG on BSC/RNC so that LAG1 or LAG2 with higher bandwidth carries services. PE1 and PE2 notify their available bandwidth to each other by means of MC communication. MC-LAG selects LAG1 or LAG2 with higher available bandwidth to carry services. When the available bandwidth of LAG1 is the same as that of LAG2, LAG1 or LAG2 is selected in the preceding process. 2. Manual Aggregation In manual aggregation mode, LAG1 or LAG2 contains only one member link, and there are the following conditions: A. BSC/RNC supports manual LAG and an SC LAG is configured for interconnection with dual-homing nodes. When configuring system priorities for LAG1 and LAG2, make sure that the dual-homing nodes and BSC/RNC carry services over the same link. To ensure normal switching of MC-LAG in case of a unidirectional fiber cut, configure Ethernet port OAM so that it monitors the working status of LAG member links. In this case, you need to enable Ethernet port OAM (IEEE 802.3ah) for the member links of LAG1 and LAG2, and set Link Trace Protocol to 802.3ah for LAG1 and LAG2. The two dual-homing nodes exchange information by means of MC synchronization communication, and select LAG1 or LAG2 to carry services according to the system priority or MAC address of equipment. The dual-homing nodes select the LAG with a higher priority with preference. When the two LAGs are of the same system priority, the dual-homing nodes select the LAG on the equipment with a smaller MAC address. Then, BSC/RNC selects a link in LAG3 to carry services according to a certain rule. B. BSC/RNC does not support LAG but supports extension of IEEE 802.3ah. In this case, you need to enable Ethernet port OAM (IEEE 802.3ah) and extension of IEEE 802.3ah for the two links in the MC-LAG. For LAG1 and LAG2, set Link Trace Protocol to IEEE 802.3ah, Switch Protocol to extension of IEEE 802.3ah, and Switch Mode to Passive (passive only for an LAG). For BSC/RNC, set the switch mode to active. In this case, BSC/RNC periodically transmits IEEE 802.3ah extension packets over the selected active link and standby link. The packets contain information about the working status of the
links (active or standby). When receiving the IEEE 802.3ah extension packets, the dual-homing nodes select LAG1 or LAG2 to carry service packets. 3. MC-LAG Switching Rule An LAG, static or manual, must be in line with the following switching principles:
l
When LAG1 and LAG2 are in non-load-sharing mode, protection of LAG1 or LAG2 takes place first in case of a link fault. If the member ports of LAG1 or LAG2 are faulty, the services are switched to the LAG on the opposite equipment. When LAG1 and LAG2 are in load-sharing mode, the NEs notify the available bandwidth of LAG1 and LAG2 to each other. Then, either LAG1 or LAG2 with higher available bandwidth is selected to carry services. When the working status of the AC-side LAG changes, PE1 and PE2 notify the status change to the NNI-side protection protocol.
Application of MC-LAG for Dual-Homing Protection and Support for MC-LAG

Table 9-2 lists the details on application of MC-LAG for dual-homing protection. Table 9-2 Application of MC-LAG for dual-homing protection Protected Service E-Line service Protection Scheme 1:1 MC-PW APS and MCLAG 1:1 PW redundancy protection and MC-LAG E-LAN service MAC address withdrawal and MC-LAG Protection Point Dual-homing nodes, AC-side links of dual-homing nodes, and service PWs Dual-homing nodes and ACside links of dual-homing nodes Dual-homing nodes and ACside links of dual-homing nodes
Currently, the PTN equipment supports only non-load-sharing MC-LAG. It is recommended to configure LAGs in the same load-sharing mode on dual-homing nodes, that is, PE1 and PE2. Hence, there are two application scenarios of MC-LAG. In one scenario, the SC-LAGs on dualhoming nodes are in non-load-sharing mode. In the other scenario, the SC LAGs on dual-homing nodes are in load-sharing mode. Table 9-3 andTable 9-4 list the details on how the PTN equipment supports the two application scenarios of MC-LAG.
NOTE
In case of discrepancy between the load-sharing modes on the dual-homing nodes (PE1 and PE2), the available bandwidth of the SC LAGs of the nodes are different. When the services are switched from one SC LAG to the other, service packets may be lost.
Issue 01 (2010-08-16)
9-9
Table 9-3 Support for MC-LAG application scenario I (SC LAGs on dual-homing nodes in nonload-sharing mode) Position of LAG LAG1 on PE1 LAG2 on PE2 Load Sharing Mode Nonloadsharing Nonloadsharing Revertive Mode Revertive or non-revertive Revertive or non-revertive Aggregation Mode Remarks
Manual aggregation or static aggregation

NOTE
l The aggregation
modes of the LAGs on PE1, PE2, and BSC/ RNC must be the same.
l In static aggregation
For details on loadsharing mode, revertive mode, and aggregation mode, see Introduction to the LAG.
mode, the LAG is highly reliable and thus is recommended. In the case of interconnection with the equipment that does not support the LACP protocol, manual aggregation mode is applicable to SC-LAGs in an MCLAG.
MC-LAG
Nonloadsharing
Revertive or non-revertive
Table 9-4 Support for MC-LAG application scenario II (SC LAGs on dual-homing nodes in load-sharing mode) Position of LAG LAG1 on PE1 LAG2 on PE2 MC-LAG Load Sharing Mode Load sharing Load sharing Non-loadsharing Revertive Mode Revertive or non-revertive Aggregation Mode Same as that for application scenario I. Remarks For details on load-sharing mode, revertive mode, and aggregation mode, see Introduction to the LAG.
Configuring the MC-LAG Protection

An MC-LAG can inter-cooperate with NNI-side MC-PW APS or PW redundancy to implement dual-homing protection for E-Line services; an MC-LAG can also inter-cooperate with NNIside MAC address withdrawal technology to implement dual-homing protection for E-LAN
services. This topic describes how to configure MC-LAG protection when the AC-side links are Ethernet links in a dual-homing scenario.
Prerequisite
l
Configuration Networking Diagram

As shown in Figure 9-5, services from BTS/NodeB are transported to BSC/RNC, and PE1, PE2, and BSC/RNC inter-cooperate to implement MC-LAG protection for the services. Figure 9-5 Configuring an MC-LAG in a Dual-Homing Protection Scenario
PE1 MC-LAG LAG1 A PE3 LAG3
BTS/NodeB S PE2 LAG2
BSC/RNC
A S Note:
Active (carrying services) Standby (not carrying services)
MC synchronization communication
LAG1 and LAG2 may have one member link.
Configuration Guide
l
For details on how the PTN equipment supports MC-LAG, see Table 9-3 and Table 9-4 in MC-LAG. If a service on a dual-homing node is configured with protection, the UNI port accessing the service must be configured as the master port in the SC-LAG on the dual-homing node. It is recommended that you set load-sharing modes of the SC-LAGs on dual-homing nodes PE1 and PE2 as the same.
NOTE
If the load-sharing modes are different, the available bandwidths of the two SC-LAGs are different. When services are switched from an SC-LAG to another, packet loss may occur.
l
You must configure SC-LAGs on the two dual-homing nodes and then configure MC-LAG protection groups on the two dual-homing nodes.
Issue 01 (2010-08-16)

l
The aggregation modes of the SC-LAGs on the two dual-homing nodes and BSC/RNC must be the same. Restoration Mode of the MC-LAG protection groups on the two dual-homing nodes must be the same. Reliability of LAGs in static aggregation mode is higher than that of LAGs in manual aggregation mode and thus the static aggregation mode is usually recommended. If MCLAG is based on interconnection with the equipment that does not support the LACP protocol, only the manual aggregation mode is applicable. If the SC-LAG on BSC/RNC contains more than two member links, the load-sharing mode of the SC-LAG on BSC/RNC must be set to load sharing. For convenient management, maintenance, and fault identification, it is recommended to configure AC-side MC-LAG as follows:
Set related parameters for all AC-side MC-LAGs so that all the active links in MC-LAG are on the same dual-homing node. Set related parameters for AC-side MC-LAGs and configure the working PW (that is, Service PW) of NNI-side MC-PW APS so that the active AC-side links and the NNIside working PW are on the same dual-homing node.
Procedure
Step 1 Display the interface where you can create the services to be protected.
l
In the case of a PWE3 service, Choose Service > PWE3 Service > Create PWE3 Service from the main menu. In the case of a VPLS service, Choose Service > VPLS Service > Create VPLS Service from the main menu.
Step 2 Create a PWE3 service and configure the basic information, source NE, and sink NE of the service. Click the Service Topology tab page. Step 3 In the Service Topology view, select two NEs, right-click, and choose ETrunk from the shortcut menu. The Create Cross-Equipment Link Aggregation Management Group dialog box is displayed.
Step 4 On the left NE, configure LAG1, the intra-NE link aggregation group. Click .... The Link Aggregation Group Management window is displayed.
9-12
Issue 01 (2010-08-16)
1. 2.
Select an existing LAG and click OK. Optional: Click New. In the Create Link Aggregation Group dialog box, set relevant attributes and click OK.
Issue 01 (2010-08-16)
9-13
NOTE
l l l l
After you select the Automatically Assign check box, the U2000 automatically assigns the LAG No. Otherwise, you need to manually enter the LAG No. When LAG Type is Static, the link aggregation control protocol (LACP) is running. When LAG Type is Manual, the LACP is not running. Sharing means that each member link of the LAG carries the services at the same time and shares the load together. Non-Sharing indicates that only one member link of the LAG has traffic. After creating a LAG of the static aggregation mode, you can query the Link Aggregation Group Details and Link LACP Packet Statistics of this LAG.
Step 5 On the right NE, configure LAG2, the intra-NE LAG. For details, see descriptions in the preceding step. Step 6 On the left NE, configure the inter-NE synchronization communication between the two NEs. Click .... The Synchronization Protocol Management window is displayed. 1. 2. Select an existing inter-NE protocol channel and click OK. Optional: Click New. In the Create Cross-Equipment Synchronization Protocol dialog box, set relevant attributes and click OK.
9-14
Step 7 On the right NE, configure the inter-NE synchronization communication between the two NEs. For details, see descriptions in the preceding step. Step 8 Set relevant attributes and click OK. A dialog box is displayed indicating that the operation is successful. Step 9 Click Close. ----End
9.2.2 Operation Tasks for Configuring MC-PW APS

MC-PW APS protection and AC-side MC-LAG protection work together to implement dualhoming protection for E-Line services. This topic describes how to configure the network-side MC-PW APS protection in the dual-homing protection scenario. Specifically, how to configure the MC-PW APS and bind the slave MC-PW APS.
Configuring MC-PW APS

This topic describes how to configure the network-side MC-PW APS and bind the slave MCPW APS for dual-homing nodes and non-dual-homing nodes in the dual-homing protection scenario.
Prerequisite
l l
You must be an NM user with "network operator" authority or higher. The MPLS tunnel that carries the PW must be created. For how to create a tunnel, see 3.3.1 Creating a Tunnel. All equipment resources, including logical ports, QoS, and PW templates, must be available.
Networking Diagram
As shown in Figure 9-6, the services from BTS/NodeB are transported to BSC/RNC through the PTN network. The MC-PW APS consists of the PW APS protection group on PE3 and MCPW APS protection groups on PE1 and PE2.
Issue 01 (2010-08-16)
9-15
Figure 9-6 Networking diagram of MC-PW APS for dual-homing protection

MC protection MC-PW PE1 APS AC side
1:1 PW APS AC side PE3
BSC/RNC BTS/NodeB
P
PE2
W P
Working Protection
DNI-PW MC synchronization communication
MC-PW APS MC-PW APS protection involves the working PW, protection PW, and DNI-PW. In the case of PW APS, PW OAM functions to detect the status of the working PW, protection PW and DNIPW. When PE equipment detects a fault on the working PW, the PE equipment at both ends performs PW APS protection switching by exchanging the APS protocol. Then, the services on the working PW are switched to the protection PW. In this manner, the services are protected. The APS protocol is transported over the protection PW. After dual-homing protection switching occurs in case of certain faults, the DNI-PW in MC-PW APS carries service packets. In addition, the DNI-PW is also used for MC communication of status information between dual-homing nodes. MC-PW ASP achieves MC status communication over DNI-PW so that PE1 and PE2 perform coordinated switching. Binding a Slave MC-PW APS If the working PWs, protection PWs, and DNI-PWs of multiple MC-PW APS to be created share the same source and sink with the working PW, protection PW, and DNI-PW of an MC-PW APS, you can bind these multiple MC-PW APS to be created to the MC-PW APS (master MCPW APS). Then, the protection switching is performed for all the slave MC-PW APS according to the PW status of the master MC-PW APS. These PWs are considered as being in one MCPW APS for synchronous detection and switching. In this manner, the switching time is reduced, and the OAM resources and APS resources are saved. Currently, the PTN supports the revertive and non-revertive dual-ended 1:1 PW APS protection.
Procedure
Step 1 Choose Service > PWE3 Service > Create PWE3 Service from the main menu. Step 2 Create an E-Line service and configure information relevant to the service. For how to configure a test group, see 6.4.2 Creating an ETH Service. Step 3 Configure the MC-PW APS protection and slave MC-PW APS protection.
1. 2. 3.
In the case of the general attributes of the service, set Protection Type to PW APS protection. On the Node List tab page, select Single source and dual sink or Dual source and single sink and configure the corresponding source and sink NEs. In the PW pane. Configure the working PW, protection PW, and DNI-PW.
4. 5. 6.
Click Advanced. In the lower right portion, a pane is displayed. Optional: Click the Advanced Attributes tab. Configure advanced PW attributes. Click the Protection Parameter tab. Select a protection type.
l l
If you set Protection Type to Protection group, the master MC-PW APS protection is created. If you set Protection Type to Slave protection pair, the slave MC-PW APS protection is created. You need to set ID of the master MC-PW APS protection group that the slave MC-PW APS protection is bound with.
NOTE
You must configure the protection types for the NEs that are involved in the dual-homing protection. You must configure the master MC-PW APS protection group before binding a slave MC-PW APS protection group. The working PW, protection PW, and DNI-PW of a slave MC-PW APS protection group and those of the master MC-PW APS protection group must share the same sources, sinks, and physical trails. If the physical trails are different, a switching may be performed on the PW in the slave MC-PW APS protection group that is normal due to the faulty PW of the master MC-PW APS protection group.
Step 4 After a service is successfully created, you need to configure the PW OAM for the service. For how to configure a test group, see 6.5.2 Configuring PW OAM. ----End
9.3 Example of Dual-Homing Protection with 1:1 MC-PW APS and MC-LAG
This section provides an example of dual-homing protection with NNI-side 1:1 MC-PW APS and UNI-side MC-LAG with focuses on example description and configuration process. 9.3.1 Example Description This section describes an example of dual-homing protection with NNI-site 1:1 MC-PW APS and AC-side MC-LAG, and focus on the function requirement, networking diagram, and parameter planning.
9.3.2 Configuration Process This topic describes how to configure 1:1 MC-PW APS and MC-LAG dual-homing protection for E-Line services through an example.
9.3.1 Example Description

This section describes an example of dual-homing protection with NNI-site 1:1 MC-PW APS and AC-side MC-LAG, and focus on the function requirement, networking diagram, and parameter planning.
Function Requirement and Networking Diagram

An E-Line service from NodeB needs to be transported to RNC over the PTN network. NodeB carries services over FE interfaces and RNC carries services over an SC-LAG. Dual-homing protection must be provided on the RNC side for the services from NodeB. As shown in Figure 9-7, the OptiX PTN 950 is deployed on PE3, which accesses the E-Line services from NodeB through FE interfaces. To provide dual-homing protection for the services on the RNC side, PE1, PE2, and RNC are connected in dual-homing mode. The equipment that supports PW APS and MC-LAG is deployed on PE1 and PE2, each of which accesses E-Line services through an LAG. Figure 9-7 Networking diagram for the dual-homing protection with 1:1 MC-PW APS and MCLAG
MC-PW MC-LAG APS PE1 LAG1 LAG3 W A
BTS/NodeB
1:1 PW APS PE3
BTS/NodeB
P PE2
S LAG2
BSC/RNC
W P
Working Protection Active (carrying services) Standby (not carrying services)
A S
DNI-PW MC synchronization communication Service flow
Parameter Planning
Table 9-5 lists the parameter planning for the PWs of NNI-side MC-PW APS.
9-18
Issue 01 (2010-08-16)
Table 9-5 Parameter planning for the PWs of NNI-side MC-PW APS (dual-homing protection with 1:1 MC-PW APS and MC-LAG in the example) Parameter PW ID PW Type Direction Opposite LSR ID of PE1 Opposite LSR ID of PE2 Opposite LSR ID of PE3 Signaling Type PW ingress label PE1 PW egress label on PE1 PW ingress label on PE2 PW egress label on PE2 PW ingress label on PE3 PW egress label on PE3 Tunnel selection mode Tunnel Type Tunnel (tunnel ID) 1 10 20 20 10 Bidirectional(PE3<>PE1) 10.0.0.3 10.0.0.1 MC-PW APS PW PW 1 10 PW 2 20 Ethernet Bidirectional(PE3<>PE2) 10.0.0.3 10.0.0.2 Static 30 40 40 30 Manually MPLS 2 3 50 60 60 50 Bidirectional(PE1<>PE2) 10.0.0.2 10.0.0.1 DNI-PW 3 30
Table 9-6 lists the parameter planning for the NNI-side MC-PW APS.
Issue 01 (2010-08-16)
9-19
Table 9-6 Parameter planning for NNI-side MC-PW APS (dual-homing protection with 1:1 MC-PW APS and MC-LAG in the example) Parameter Protection binding relation Protection Type Protection Group ID Peer Protection Group ID Working PW name (PW ID) Protection PW name (PW ID) DNI-PW name (PW ID) Role Enable APS Protection Mode Switching Mode Revertive Mode Switching Restoration time Switching Delay Time PE3 Master PW APS protection group Protection group 30 PE2 Master MC-PW APS protection group Protection group 20 10 PE1 Master MC-PW APS protection group Protection group 10 20
PW 1(10)
PW 1(10)
PW 2(20)
PW 2(20)
DNI-PW 3(30)
DNI-PW 3(30)
DNI Enabled 1:1 Dual-End Switching Revertive Mode 1
Protection Enabled 1:1 Dual-End Switching Revertive Mode 1
Working Enabled 1:1 Dual-End Switching Revertive Mode 1
4. Parameter Planning for AC-Side (RNC-Side) MC-LAG Table 9-7 lists the parameter planning for MC synchronization communication of AC-side (RNC-side).
9-20
Issue 01 (2010-08-16)
Table 9-7 Parameter planning for MC synchronization communication (dual-homing protection with 1:1 MC-PW APS and MC-LAG in the example) NE LSR ID Protocol Channel ID 10 10 Peer Device IP 10.0.0.2 10.0.0.1 Hello Packet Sending (s) 1 Timeout Times 3
PE1 PE2
10.0.0.1 10.0.0.2
Table 9-8 lists the parameter planning for the AC-side (RNC-side) MC-LAG. Table 9-8 Parameters for LAG1 on PE1 and LAG2 on PE2 (dual-homing protection with 1:1 MC-PW APS and MC-LAG in the example) Parameter LAG No. LAG Name LAG Type Load Sharing Load Sharing Hash Algorithm System Priority Master port [Port Priority] Slave port 1 [Port Priority] Slave port 2 [Port Priority] 100 1-EG16-10 (port-10) [10] 1-EG16-11 (port-11) [11] 1-EG16-12 (port-12) [12] LAG1 1 LAG1 Static Sharing Automatic 200 2-EG16-10 (port-10) [10] 2-EG16-11 (port-11) [11] 2-EG16-12 (port-12) [12] LAG2 2 LAG2
Table 9-9 lists the parameters for the MC-LAG protection groups on PE1 and PE2. Table 9-9 Parameters for the MC-LAG protection groups on PE1 and PE2 (dual-homing protection with 1:1 MC-PW APS and MC-LAG in the example) Parameter NE Link Aggregation Group ID Cooperative Channel ID
Issue 01 (2010-08-16)
Left Equipment PE1 1 10
Right Equipment PE2 2 10

9-21
Parameter Load Grouping Type Restoration Mode
Left Equipment
Right Equipment
Non-load-sharing Restoration Mode

This topic describes how to configure 1:1 MC-PW APS and MC-LAG dual-homing protection for E-Line services through an example.
Prerequisite
l
Procedure
Step 1 Choose Service > PWE3 Service > Create PWE3 Service from the main menu. Step 2 Create an E-Line service and configure information relevant to the service. Step 3 Configure the network-side MC-PW APS protection. 1. 2. In the case of the general attributes of the service, set Protection Type to PW APS protection. In the Node List area, select Single source and dual sink. Configure a non-dual-homing node PE3 and two active dual-homing nodes PE1 and PE2. In the normal state, PE1 receives and transmits services and PE2 provides dual-homing protection for PE1. In the PW area. Configure general PW parameters according to the service planning.
3.
4. 5. 6.
Click Advanced. In the lower right portion, a pane is displayed. Click the Advanced PW Attribute tab. Set PW Type to Ethernet and Control Word to Used first. Click the Protection Parameter tab. Configure parameters for dual-homing protection according to the service planning.
Step 4 Configure the AC-side MC-LAG protection.

1.
Click the Service Topology tab. In the service topology, select PE1 and PE2, right-click, and choose E-Trunk from the shortcut menu. The Create Cross-Equipment Link Aggregation Management Group window is displayed.
2.
Configure the peer ends for inter-NE synchronization communication on both PE1 and PE2. On PE1, set Cooperative Channel ID and click .... The Synchronization Protocol Management window is displayed. Click New. In the Create Cross-Equipment Synchronization Protocol dialog box, set relevant attributes and click OK.
3.
4. 5. 6.
Click OK. A dialog box is displayed indicating that the operation is successful. Click Close. On PE2, configure the inter-NE synchronization communication between PE1 and PE2. For details, see Step 4.2 to Step 4.4. Configure intra-NE LAG1 for PE1 and intra-NE LAG2 for PE2. On PE1, set Link Aggregation Group ID and click .... The Link Aggregation Group Management window is displayed. Click New. In the Create Link Aggregation Group dialog box, set relevant attributes and click OK.
7.
Issue 01 (2010-08-16)
9-23
NOTE
l l l l
After you select the Automatically Assign check box, the U2000 automatically assigns the LAG No. Otherwise, you need to manually enter the LAG No. When LAG Type is Static, the link aggregation control protocol (LACP) is running. When LAG Type is Manual, the LACP is not running. Sharing means that each member link of the LAG carries the services at the same time and shares the load together. Non-Sharing indicates that only one member link of the LAG has traffic. After creating a LAG of the static aggregation mode, you can query the Link Aggregation Group Details and Link LACP Packet Statistics of this LAG.
8. 9.
Click OK. A dialog box is displayed indicating that the operation is successful. Click Close. On PE2, configure LAG2, the intra-NE LAG. For details, see Step 4.6 to Step 4.8.
10. After configuring the inter-NE synchronization communication and intra-NE LAGs for PE1 and PE2, configure other parameters. 11. Click OK. A dialog box is displayed indicating that the operation is successful. Click Close.
Step 5 Click OK to complete the creation of the E-Line service and apply the configuration of dualhoming protection. Step 6 Configure the PW OAM detection mechanism for a service. 1. 2. 3. 4. 5. 6. 7. Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Click Filter. In the dialog box that is displayed, set the filter criteria, and click OK. The NMS displays the PWE3 services that meet the filter criteria, select a service to be configured with the PW OAM. Click the PW tab. Then, click the Basic tab. Select one PW and click PW OAM. A dialog box is displayed. Configure the PW OAM. Set the OAM status as Enabled. Click OK. The configuration is applied to NEs and the current dialog box is closed. Complete the configuration of PW OAM.
----End
Issue 01 (2010-08-16)
9-25
10 Configuring VRRP
10
About This Chapter
Configuring VRRP
PTN equipment can achieve dual-homing protection for Layer 3 services by using VRRP. This chapter describes the concepts, application, and configuration method of VRRP. 10.1 Overview of VRRP The VRRP protocol is an error tolerance protocol. The VRRP protocol is used to group several routing devices as one virtual router. The VRRP feature adopts a certain mechanism to switch services to other routing devices when the next-hop routing device of an NE is faulty. In this manner, continuous and reliable communication is guaranteed. 10.2 Configuration Flow for VRRP This section describes the configuration flow for VRRP, with focuses on the configuration tasks included in the configuration of VRRP and the details on each configuration task. 10.3 Operation Tasks of Configuring VRRP This section describes the operation tasks of configuring VRRP, which include configuring VRRP VR information and configuring VRRP VR tracking. 10.4 Testing VRRP After configuring VRRP, you need to test whether the VRRP is working normally. This section describes how to test VRRP. 10.5 Configuration Case of VRRP This section describes a configuration case of VRRP, involving a configuration network diagram, service planning, and configuration process.
Issue 01 (2010-08-16)
10-1
10 Configuring VRRP
10.1 Overview of VRRP

The VRRP protocol is an error tolerance protocol. The VRRP protocol is used to group several routing devices as one virtual router. The VRRP feature adopts a certain mechanism to switch services to other routing devices when the next-hop routing device of an NE is faulty. In this manner, continuous and reliable communication is guaranteed. With development of the Internet, people require more reliable networks. A LAN user expects contact with external networks at any time. In normal cases, all NEs on a LAN are configured with the same default route, which leads to an egress gateway NE. In this manner, the NEs can communicate with external networks. When the egress gateway NE is faulty, communication between the NEs and external networks is interrupted. The VRRP protocol, put forward by the Internet Engineering Task Force (IETF), aims to ensure reliability in the situation where NEs on a LAN communicate with external networks. As shown in Figure 10-1, two OptiX PTN 1900/3900 are configured as a VRRP backup group, which is a virtual router (containing a master device and a backup device). An RNC needs to know only the IP address of the virtual router device so as to communicate with external networks. At this time, the master device is responsible for forwarding services. When the master device is faulty, services on the master device are switched to the backup device. In this manner, continuous and reliable services are guaranteed Figure 10-1 VRRP networking
Master
E-Line/E-LAN
Peer BFD
E-Line/E-LAN Backup OptiX PTN 3900/ OptiX PTN 1900
AR P pa Ac ck tiv et el ink s Lin kB FD FD kB Lin ink yl db tan S kts ac Pp AR
VRRP
OptiX PTN 910/950
NodeB
RNC
The VRRP protocol enables communication between a master device and a backup device through an independent channel between them. When the master device is working normally, it sends a VRRP multicast packet to the backup device at certain intervals (Advertisement_Interval) to notify the backup device of its normal state. If the backup device does not receive the VRRP packet from the master device after a period of time (Master_Down_Interval), the backup device becomes the master device. Then, the new master device sends an ARP packet to an RNC to update ARP table entries. Therefore, services are switched to the new master device. In addition, the VRRP protocol can be bundled with the BFD detection mechanism. Faults can be detected through BFD sessions, and therefore VRRP quick switching is implemented.
10 Configuring VRRP
10.2 Configuration Flow for VRRP

This section describes the configuration flow for VRRP, with focuses on the configuration tasks included in the configuration of VRRP and the details on each configuration task.
10.3 Operation Tasks of Configuring VRRP

This section describes the operation tasks of configuring VRRP, which include configuring VRRP VR information and configuring VRRP VR tracking. 10.3.1 Configuring and Deploying an L3VPN Service An L3VPN service must be configured before VRRP is configured. This section mainly describes how to configure and deploy an L3VPN service. 10.3.2 Configuring VRRP VR Information This section describes how to create a VRRP VR. The configuration of a VRRP VR involves setting the VR ID, VR IP address, VRRP priority, VRRP authentication mode, function of periodically transmitting ARP packets, VRRP preemption mode, and VRRP delay 10.3.3 Configuring Information About Objects Under Tracking of a VRRP VR This section describes how to configure tracked peer BFD, tracked link BFD, and objects under tracking of the VR source and VR sink.
10.3.1 Configuring and Deploying an L3VPN Service

An L3VPN service must be configured before VRRP is configured. This section mainly describes how to configure and deploy an L3VPN service.
Prerequisite
l
Context
NOTE
When configuring basic VRRP information, you must take the following precautions:
l l l
VRRP can be configured only at a Layer 3 interface and the IP address of the interface must be available. A maximum of 512 VRs can be configured for one set of equipment. A maximum of four VRRP VRs can be configured at a Layer 3 interface.
Procedure
Step 1 Configure an L3VPN service. If no L3VPN service is configured, perform Step 1.1 to create an L3VPN service. If L3VPN services are configured, perform Step 1.2 to select an L3VPN service. 1. Choose Service > L3VPN Service > Manage L3VPN Service from the Main Menu. Then, the Manage L3VPN Service tab page is displayed. In this tab page, click Create to display the Create L3VPN Service tab page. Then, set Service Information and select a node from Node List. Then, click Details to set General and SAI for VRF.
Issue 01 (2010-08-16)
10 Configuring VRRP
NOTE
l l l l
Service Name: It is set according to service planning. VRF ID: It is automatically assigned or set according to service planning. Interface Name: In the case of an Ethernet Layer 3 interface, the IP address of the interface can be set by using only VRF. IP Address/Mask: It is set according to service planning. IP addresses of all service access interfaces must be set in the same network segment.
2.
If L3VPN services have already been created, quickly select a created L3VPN service by setting Set Filter Criteria.
Step 2 Deploy an L3VPN service. Right-click a configured L3VPN service, and then choose Deploy. In this case, you can configure VRRP only after successfully deploying the L3VPN service.
10-4
Issue 01 (2010-08-16)
10 Configuring VRRP
----End
10.3.2 Configuring VRRP VR Information

This section describes how to create a VRRP VR. The configuration of a VRRP VR involves setting the VR ID, VR IP address, VRRP priority, VRRP authentication mode, function of periodically transmitting ARP packets, VRRP preemption mode, and VRRP delay
Prerequisite
l l
You must be an NM user with "NE operator" authority or higher. You must configure an L3VPN service.
Procedure
Step 1 Configure VRRP VR information. Choose Service > L3VPN Service > Manage L3VPN Service from the Main Menu. Right-click a created and deployed L3VPN service, and then choose Configure VRRP to display the VRRP-Based Detection Configuration Management pane. In this pane, click Create to display the Create VRRP dialog box. Then, configure the associated parameters in the dialog box. For details on the parameters for basic VRRP VR information, see Table 1.
Step 2 Configure advanced VRRP VR information. Click Advanced to display the Advanced VRRP Configuration dialog box. For details on the parameters for advanced VRRP VR information, see Table 2.
Issue 01 (2010-08-16)
10-5
10 Configuring VRRP
----End
10.3.3 Configuring Information About Objects Under Tracking of a VRRP VR

This section describes how to configure tracked peer BFD, tracked link BFD, and objects under tracking of the VR source and VR sink.
Prerequisite
l l
You must be an NM user with "NE operator" authority or higher. The configuration of VRRP VR information must be complete.
Procedure
Step 1 In the Create VRRP dialog box, click Next to go to Step 2: Configure the information about the VRRP VR monitoring. Step 2 Optional: Configure tracked peer BFD. Select Tracked Peer BFD and then click Configure to configure a tracked peer BFD session for testing the link between the master and backup. Step 3 Configure tracked link BFD. In Tracked Link BFD, configure Link BFD Path and Link BFD. Step 4 Optional: Configure objects under tacking of the VR source and VR sink.
10-6
Issue 01 (2010-08-16)
10 Configuring VRRP
NOTE
The objects under tracking of the VR source and VR sink are as follows:
l l l
BFD Session: You can specify a BFD session under tracking of the VR source and VR sink. Interface: You can specify an interface under tracking of the VR source and VR sink. OAM: You can specify an Ethernet OAM interface under tracking of the VR source and VR sink.
l l
PRI Change: You can increase or reduce the equipment priority by setting this parameter. Value: You can set the change of equipment priority, and the value range is 1 to 255.
----End
10.4 Testing VRRP

After configuring VRRP, you need to test whether the VRRP is working normally. This section describes how to test VRRP.
Prerequisite
l l
You must be an NM user with "NE operator" authority or higher. You must complete the configuration of basic VRRP VR information.
Context
When testing whether VRRP is working normally by using the VIP ping function, you need to test the following items:
l l
Working situation of the master on the VR. Whether a VIP address can be used as a default gateway IP address for communication with the outside.
NOTE
VIP ping may cause ICMP attacks to a VR. Therefore, you need to disable the VIP ping function each time after testing VRRP. This prevents a VR from being attacked by ICMP packets.
Issue 01 (2010-08-16)
10-7
10 Configuring VRRP
Procedure
Step 1 Enable the VIP ping function. Choose Service > L3VPN Service > Manage L3VPN Service from the Main Menu. In the displayed Create VRRP dialog box, select Step 1:Configure VRRP VR Information. Then, click Advanced to display the Advanced VRRP Configuration dialog box. Set VIP ping to None, Master or Both.
NOTE
l l
Master: indicates that VIP ping can be performed when the VRRP status machine is in master state. Both: indicates that VIP ping can be performed when the VRRP status machine is in any state.
Step 2 On the opposite equipment, ping the VR IP address. ----End
10.5 Configuration Case of VRRP

This section describes a configuration case of VRRP, involving a configuration network diagram, service planning, and configuration process. 10.5.1 Example Description This section describes the requirements, network diagram, and service planning of VRRP. 10.5.2 Configuration Process This section describes the configuration process of a configuration case of VRRP.
10.5.1 Example Description

This section describes the requirements, network diagram, and service planning of VRRP.
Requirements and Network Diagram

As shown in Figure 10-2, NE1 and NE2 form a VRRP VR to protect the RNC. The requirements of VRRP are as follows:
l l
NE1 works as the master of the VRRP VR. When NE1 is faulty, NE2 becomes the master. BFD sessions need to be configured at interfaces on NE1 and NE2 to monitor both NE1 and link NE1-RNC-NE2. Therefore, when NE1 is faulty or link NE1-RNC is faulty, the master/backup switching is performed within one second. After NE1 is restored, it becomes the master within 20 seconds. Preemption is enabled for NE1. That is, NE1 preempts NE2 5 seconds after NE1 is restored. To avoid attacks on the network, you must configure VRRP packet authentication.
10-8
Issue 01 (2010-08-16)
10 Configuring VRRP
Figure 10-2 Network with VRRP for an RNC

Master NE1
5-EG16-1 VR IP:10.1.1.1
5-EG16-2
VRRP
Peer BFD
Link BFD
5-EG16-2
NodeB
RNC
5-EG16-1
NE2 Backup OptiX PTN 910/950

NOTE
OptiX PTN 3900 OptiX PTN 1900
Service configuration on the OptiX PTN 3900-8 is the same as that on the OptiX PTN 3900, except for the slots for service boards. For details on service configuration on the OptiX PTN 3900-8, see this example about service configuration on the OptiX PTN 3900.
Service Planning
To implement VRRP, you must configure VRRP VR information and information about objects under tracking of a VRRP VR. Table 10-1, Table 10-2, and Table 10-3 show the planning. Table 10-1 Planning of VRRP VR information Parameter Source equipment Source interface Sink equipment Sink interface VR Type VR ID VR IP addres Value NE1 5-EG16-1 NE2 5-EG16-1 Management VR 10 10.1.1.1
Table 10-2 Planning of Advanced VRRP VR Information Parameter Whether to Preempt

Issue 01 (2010-08-16)
NE1 Selected
NE2 Selected
10-9
10 Configuring VRRP
Parameter Delay Configuration Priority Advertisement Interval Management VR Interface Management VR ID Enable VRRP Group VIP ping Interface Set MAC Authen type Authen Code
NE1 5s 120 (NE1 as the master) 1s 5-EG16-1 10 Selected None 5-EG16-2 Selected Simple 1
NE2 5s 100 (NE2 as the backup) 1s 5-EG16-1 10 Selected None 5-EG16-2 Selected Simple 1
Table 10-3 Planning of Information About Objects Under Tracking of a VRRP VR Parameter Object under tracking PRI Change Value Object Under Tracking of the VR Sink BFD Session Increase 20 Object Under Tracking of the VR Source BFD Session Increase 10

This section describes the configuration process of a configuration case of VRRP.
Prerequisite
l l
You must be an NM user with "NE operator" authority or higher. You must configure an L3VPN service.
10-10
Issue 01 (2010-08-16)
10 Configuring VRRP
Procedure
Step 1 Configure basic VRRP VR information. Choose Service > L3VPN Service > Manage L3VPN Service from the Main Menu. In the displayed Create VRRP dialog box, select Step 1: Configure VRRP VR information to configure the basic VRRP VR information. Parameter Source equipment Value NE1 Guideline Whether the source equipment is the master or backup is determined by the equipment priority configured. If the priority is high, the source equipment is the master. Otherwise, the source equipment is the backup. Source interface Sink equipment 5-EG16-1 NE2 This parameter indicates a Layer 3 interface. Whether the sink equipment is the master or backup is determined by the equipment priority configured. If the priority is high, the sink equipment is the master. Otherwise, the sink equipment is the backup. Sink interface VR Type 5-EG16-1 Management VR This parameter indicates a Layer 3 interface.
l
Management VR: indicates a management VR group. Service VR: indicates a VR backup group.
VR ID VR IP addres
10 10.1.1.1
The value range is 1 to 255. You can set the VR IP address to the same as the IP address of an interface on an actual router. In this case, the preemption mode of the router is always preemption.
NOTE When both VRRP and static ARP are configured on equipment, you cannot use the mapping IP addresses of static ARP table entries associated with the interfaces on the equipment as the VR IP address. Otherwise, incorrect routes between equipment will be generated, which affects normal service forwarding between NEs.
Issue 01 (2010-08-16)
10-11
10 Configuring VRRP
Step 2 Configure advanced VRRP VR information. Click Advanced to display the Advanced VRRP Configuration dialog box. In the dialog box, configure advanced VRRP VR information. Table 10-4 Planning of Advanced VRRP VR Information Parameter Whether to Preempt NE1 Preemption NE2 Preemption Remarks After the preemption mode of the backup is set to preemption, if the priority of the backup is higher than that of the master, the backup will become the master automatically. If delay is 0, it indicates immediate preemption. In other cases, the backup becomes the master within specified delay. Configuratio n Priority 120 (NE1 as the master) 100 (NE2 as the backup) A greater value indicates a higher priority.
l
Delay
5s
5s
The value 0 indicates that the current master on a VR disables VRRP. The value 255 is reserved for the equipment whose VR IP address is the same as the IP address of an interface.
Advertiseme nt Interval
1s
1s
This parameter indicates the period for the Adver_Timer timer to transmit VRRP advertisement packets. When this period is due, the timer triggers transmission of VRRP advertisement packets. -
Management VR Interface
5-EG16-1
5-EG16-1
10-12
Issue 01 (2010-08-16)
10 Configuring VRRP
Parameter Management VR ID Enable VRRP Group VIP ping
NE1 10 Selected None
NE2 10 Selected None
Remarks VIP ping may cause ICMP attacks to a VR. Therefore, VIP ping is generally disabled. This parameter indicates that the MAC address of the current interface serves as the virtual MAC address of VRRP.
l
Interface Set MAC
5-EG16-2 Selected
5-EG16-2 Unselected
Authen type
Simple
Simple
Disable: indicates that the packets received by the equipment are authentic and legal VRRP packets. Simple: indicates simple character authentication. MD5: indicates MD5 authentication. 0: indicates no authentication. 1: indicates simple text password authentication. 2: indicates MD5 authentication.
Authen Code
Step 3 Configure a tracked BFD session. In the Create VRRP dialog box, click Next to enter Step 2: Configure the information about the VRRP VR monitoring. Select Track more BFD session or interface. Ensure quick VRRP switching by tracking a BFD session.
Issue 01 (2010-08-16)
10-13
10 Configuring VRRP
Table 10-5 Parameters for Tracking More BFD Sessions or Interfaces Parameter Tracking object PRI Change Value Tracking Object of the VR Sink BFD Session Increase 20 Tracking Object of the VR Source BFD Session Increase 10
----End
10-14
Issue 01 (2010-08-16)
11 Composite Service Management
11
Composite Service Management
About This Chapter

This topic describes composite service management. A composite service refers to a service composed of two or more associated services. With composite service management, you can flexibly combine PWE3, VPLS, and L3VPN services, automatically calculate service connection points, and manage different services in a centralized manner. Composite service management applies to the scenarios not supported by single services and meets the requirements of the Metro Ethernet and bear network solutions. 11.1 Composite Service Overview This topic describes the functions, basic concepts, and application scenarios of the composite service. 11.2 Process of Configuring a Composite Service This topic describes the operation tasks related to configuring a composite service and the process relations between these operation tasks. It is recommended that you create and configure a composite service according to the service configuration process. 11.3 Operation Tasks of Composite Services This topic describes the operation tasks of composite services, such as automatically discovering, creating, and deploying composite services. 11.4 Monitoring a Composite Service This topic describes how to monitor a composite service. By monitoring the running and deployment status of a composite service, viewing the topology of the composite service in real time, and obtaining the alarms about this composite service, you can ensure the normal running of the services in this composite service. 11.5 Example for Configuring Composite Services This topic describes the networking modes and configuration methods for composite services with examples.
Issue 01 (2010-08-16)
11-1
11.1 Composite Service Overview

This topic describes the functions, basic concepts, and application scenarios of the composite service. 11.1.1 Composite Service Functions This topic describes the functions of composite service management. 11.1.2 Basic Concepts This topic describes the basic concepts of the composite service in terms of service components and connection points. Before you use the composite service function, you need to know these concepts for smooth configuration. 11.1.3 Application of Composite Services This topic describes the application of composite services. The composite service supports multiple types of service combinations. By monitoring services through the composite service, the NMS can better satisfy the requirements of the Metro Ethernet solution, bear network solution, and other solutions.
11.1.1 Composite Service Functions

This topic describes the functions of composite service management. Composite service management supports the following functions:
l
Automatically discovering composite services With this function, the NMS can automatically discover the services on the current network that meet composite service relations. Requiring only a few operations, this function enables the NMS to quickly load composite services through a two-step wizard for unified management and monitoring.
Creating composite services
Adding services to the composite service and then establishing connection points between services Automatically calculating connection points to simplify configuration operations Providing the navigation paths for creating, modifying, and deleting services to facilitate service management
Monitoring composite services The NMS allows you to perform operations such as querying composite services, viewing the deployment status and alarm status of composite services, and viewing the topology of composite services and their associated services in real time
Deleting composite services The NMS allows you to perform the following operations:
Delete Only Composite Service: In this case, only the composite services are deleted from the NMS. The services associated with these composite services still exist on NEs. Delete Cascaded Service: In this case, the composite services are deleted from the NMS and the services associated with these composite services are deleted from NEs.
11-2
Issue 01 (2010-08-16)
11.1.2 Basic Concepts

This topic describes the basic concepts of the composite service in terms of service components and connection points. Before you use the composite service function, you need to know these concepts for smooth configuration.
Composite Service
The composite service is a combination of associated services. Composite service management is used to support the scenarios that single services cannot support, such as PWE3+PWE3 and PWE3+VPLS, so as to implement complicated service combinations. The services in the composite service are associated with each other through service components and connection points. On the NMS, the management of composite services complies with the following principles:
l
A composite service can contain only basic service information, without service components or connection points. A service belongs to only one composite service. A connection point embodies the association between two services. When you delete a service component, the related connection points are also deleted.
l l l
Service Component
Service components refer to the services to be associated with the composite service. The types of service components include PWE3, and VPLS.
Connection Point
Connection points represent the association relations between service components. Two or more services can be associated with each other through connection points. There are two types of connection points: PW connection points and interface connection points. The details are as follows:
l
Interface connection point: connects the interfaces of service components. Interface connection points are used to support the PWE3+PWE3 composite services. PW connection point: connects the PWs of service components. PW connection points are used to support the PWE3+VPLS composite service.
11.1.3 Application of Composite Services

This topic describes the application of composite services. The composite service supports multiple types of service combinations. By monitoring services through the composite service, the NMS can better satisfy the requirements of the Metro Ethernet solution, bear network solution, and other solutions. The common application scenarios of composite services are as follows.
PWE3+VPLS Composite Services

l
Static VLL+VPLS composite service As shown in Figure 11-1, in the HVPLS, SPE 1 and SPE 2 support VPLS. The VSIs of the SPEs adopt LDP as the signaling protocol of the VPLS.
Issue 01 (2010-08-16)
11-3
In practical networks, such as MAN access networks, if a UPE does not support the dynamic VLL, the UPE needs to access SPEs through the static VLL. A UPE and an SPE generally set up an SVC between each other to create a VLL. Figure 11-1 Networking diagram of the static VLL+VPLS composite service
SPE1
VPLS Network PW
SPE2
VL L
UPE2
UPE1
VL L
CE1
CE2
CE3
CE4
As shown in Figure 11-1, the UPEs add double MPLS labels to the packets sent by the CEs. The outer layer is the static LSP label and is switched when a packet passes through the equipment on the access network. The inner label is the VC label that identifies the VC. The inner label remains unchanged when a packet is transmitted along the LSP. The packets received by the SPEs contain double labels. The outer label, which is a statically-configured public network label, is popped up. The inner label decides which VSI the SVC accesses.
l
Dual-homed static VLL+VPLS composite service To ensure reliable VLL access, the UPE accessing the SPE in dual-homed mode is introduced. In dual-homed mode, if a PW fails, the data traffic is immediately switched to another PW, as shown in Figure 11-2. In VPLS, the bidirectional transmission paths are consistent because the routing information about Layer 2 forwarding is automatically learned through the MAC addresses of the data traffic. If a fault occurs, the VPLS traffic of a UPE is switched to another LSP. The SPE equipment belonging to the VSI deletes the MAC entries of this VSI. After the switchover or the deletion, the MAC entries need to be learned afresh.
11-4
Issue 01 (2010-08-16)
Figure 11-2 Networking diagram of the dual-homed static VLL+VPLS composite service
SPE1
SPE3
UPE1
x
SPE2 SPE4
UPE2
CE1
CE2 LDP Message
As shown in Figure 11-2, if a fault occurs on the LSP between UPE 1 and SPE 1, SPE 1 detects the fault and asks the other SPEs to delete the related MAC addresses by sending LDP messages. The UPEs detect the LSP status through MPLS OAM. If a fault is detected, the traffic switchover is performed. After the switchover, the related VSIs on the SPEs learn the MAC addresses afresh; thus, the traffic can return through the new SPEs. Before other SPEs learn the MAC addresses, traffic must be broadcast. After the fault is removed, the UPE receives double VLL broadcast traffic: one from the SPEs before the switchover, the other from the SPEs after the switchover. The UPE decides which broadcast traffic to be thrown away. After the fault is rectified, the traffic of the UPE is not switched back to the original LSP. This is because the SPE is not triggered to send LDP packets to other SPEs to delete MAC addresses before detecting LSP failures.
PWE3+PWE3
In this application scenario, protection for the services between rings is enhanced. Fibers in each section of a service are protected, so that the service is well protected. For example, a PWE3 service between PE1 and PE4 can be divided into three sections, as shown in Figure 11-3. PW APS protection is configured for the sections from PE1 to PE2 and from PE3 to PE4 and LAG protection is configured for the section from PE2 to PE3. In this way, each fiber has its protection link in each section of the service and thus the protection capability of the PWE3 service is enhanced.
Issue 01 (2010-08-16)
11-5
Figure 11-3 Networking diagram of the PWE3+PWE3 composite service
11.2 Process of Configuring a Composite Service

This topic describes the operation tasks related to configuring a composite service and the process relations between these operation tasks. It is recommended that you create and configure a composite service according to the service configuration process. Figure 11-4 shows the process of configuring a composite service. Figure 11-4 Flowchart of configuring a composite service
Start
Create the composite service
Automatically discover the composite service
Deploy the composite service
View the status of the composite service
View the topology of the composite service Mandatory End Optional
11-6
Issue 01 (2010-08-16)
Table 11-1 Configuration tasks of a composite service Operation 11.3.1 Automaticall y Discovering Composite Services Remarks Combine the services associated with interface connection points or PW connection points into a composite service and discover this composite service on the NMS. Do as follows: 1. Select NEs. You can choose to discover networkwide NEs or specify certain NEs for discovery. 2. Configure the customer policy. Specify the customer of the services to be discovered, so that only the services of this customer can be discovered. 3. Set the service type. Set the type of the composite service to be automatically discovered. 11.3.2 Creating a Composite Service Besides automatically discovering a composite service, you can also create a composite service as required. Do as follows: 1. Configure the basic information about the composite service, such as the name and customer of the composite service. 2. Configure service components. Add the services to be managed, such as PWE3, VPLS services, to the composite service. You can either select existing services or create services as required. 3. Configure connection points between services to combine these services. You can either create connection points or use the NMS to automatically calculate connection points. 11.3.3 Deploying a Composite Service 11.4.1 Viewing the Status of a Composite Service 11.4.2 Viewing the Topology of a Composite Service If you need to deploy the service components associated with a component service to an NE, you can perform this operation.
View the deployment status and alarm status of a composite service.
The topology view displays the topology of services in a visual manner. By viewing the topology of a composite service, you can learn the topology of the composite service and its associated services and the running status of its associated services.
11.3 Operation Tasks of Composite Services

This topic describes the operation tasks of composite services, such as automatically discovering, creating, and deploying composite services.
11.3.1 Automatically Discovering Composite Services This topic describes how to automatically discover composite services. With this function, you can discover composite services on the NMS. The composite service consists of the services that are associated with interface connection points or PW connection points. 11.3.2 Creating a Composite Service This topic describes how to create a composite service. By associating multiple services through connection points, you can create a composite service to support the scenarios not supported by single services. In this manner, you can better satisfy the requirements of the Metro Ethernet and bearer network solutions. 11.3.3 Deploying a Composite Service This topic describes how to deploy a composite service. Deploying a composite service is to deploy the service components associated with the composite service from the NMS to the NE.
11.3.1 Automatically Discovering Composite Services

This topic describes how to automatically discover composite services. With this function, you can discover composite services on the NMS. The composite service consists of the services that are associated with interface connection points or PW connection points.
Prerequisite
IP services must be automatically discovered. For details, see Automatically Discovering IP Services.
Procedure
Step 1 Choose Service > Composite Service > Search for Composite Service from the main menu. Step 2 On the Discovery Policy tab page, set the discovery policy. 1. Specify the equipment range for discovering composite services.
l l
Click the All option button to discover all the NEs on the entire network. Click the Select NE option button, and then click Add. In the dialog box that is displayed, select one or more NEs, and then click OK to discover the specified NEs.
2.
Optional: Specifies the customer of the services to be discovered. Only the services of this customer can be discovered. In this manner, the efficiency of automatic discovery is increased. Click the ... button to the right of the Customer Name field. In the dialog box that is displayed, query customers and select one. Then, click OK. Set the type of the composite services to be discovered, and then click Start.
3.
Step 3 Click the Discovery Result tab. A progress bar is displayed indicating the progress of automatically discovering services. You can view the automatically discovered composite services on the Add Service tab page. After selecting a record and clicking Jump Service, you can access the composite service management user interface for this service. ----End
11.3.2 Creating a Composite Service

This topic describes how to create a composite service. By associating multiple services through connection points, you can create a composite service to support the scenarios not supported by
single services. In this manner, you can better satisfy the requirements of the Metro Ethernet and bearer network solutions.
Procedure
Step 1 Choose Service > Composite Service > Create Composite Service from the main menu. Step 2 In the General area, set Service Name, Customer Name, and Remarks. Step 3 In the Service Component area, click Select to select the related type of service. In the window that is displayed, select one or more services, and then click Select. The selected services are displayed in both the service component list area and the service topology. The selected services must meet the following conditions:
l
PWE3+VPLS

The PWE3 service and VPLS service both have unterminated PWs. The PW IDs of the two PWs are the same. The peer IP address of the unterminated PW of the VPLS service is the local IP address of the unterminated PW of the PWE3 service. The local IP address of the unterminated PW of the VPLS service is the peer IP address of the unterminated PW of the PWE3 service. If the unterminated PWs are static, the outgoing label of the PW for one of the two services is the incoming label of the PW for the other service.
If no eligible services are displayed, you can click Create to create a service. Step 4 In the Connection Point area, configure the connection point for the composite service. The configured connection point is displayed in both the connection point list area and the service topology. The PW connection point is used for the PWE3+VPLS composite service. The interface connection point is used for the PWE3+PWE3 composite service. l Click Auto-Calculate to obtain the connection points automatically calculated by the NMS for the composite service.
NOTE
The PWE3+PWE3 composite service do not support Auto-Calculate.
You can also do as follows to create the required connection points: 1. 2. 3. 4. 5. Click Create to create the required connection point. In the dialog box that is displayed for creating the connection point, set Name or select the Auto-Name check box. Set Type for the composite service. In the information list, click Click OK to close the dialog box. to select the PW or interface.
Step 5 After the configuration, click OK. If the operation is successful, the created composite service is displayed in the service list. ----End
11.3.3 Deploying a Composite Service

This topic describes how to deploy a composite service. Deploying a composite service is to deploy the service components associated with the composite service from the NMS to the NE.
Prerequisite
The composite service to be deployed must exist.
Context
Before a created service is deployed, the configurations of the service are stored in the database of the U2000 instead of being deployed to equipment. The service is in the Undeployed state. After the service is deployed, the configurations of the service can be deployed to equipment.
Procedure
Step 1 Choose Service > Composite Service > Manage Composite Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click the composite service to be deployed and choose Deploy from the shortcut menu. After the composite service is deployed, the deployment status of this composite service changes to Deployed. ----End
11.4 Monitoring a Composite Service

This topic describes how to monitor a composite service. By monitoring the running and deployment status of a composite service, viewing the topology of the composite service in real time, and obtaining the alarms about this composite service, you can ensure the normal running of the services in this composite service. 11.4.1 Viewing the Status of a Composite Service This topic describes how to view the deployment and alarm status of a composite service. 11.4.2 Viewing the Topology of a Composite Service This topic describes how to view the topology of a composite service. The topology view displays the topology of services in a visual manner. By viewing the topology of a composite service, you can learn the topology of the composite service and its associated services and the running status of its associated services.
11.4.1 Viewing the Status of a Composite Service

This topic describes how to view the deployment and alarm status of a composite service.
Procedure
Step 1 Choose Service > Composite Service > Manage Composite Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 In the service list, you can view the deployment status of each composite service. Step 4 Select a composite service and click the Service Component tab. Then, you can view the deployment and alarm status of this composite service in the Deployment Status and Alarm Status columns.
l l l
Step 5 Right-click the service component with the alarm and choose Current Alarm from the shortcut menu. You can view the detailed alarm information of the service in the details area ----End
Postrequisite
Preliminarily determine the possible cause of the alarm based on the detailed alarm information, and then locate the fault position by referencing the handling suggestions.
11.4.2 Viewing the Topology of a Composite Service

This topic describes how to view the topology of a composite service. The topology view displays the topology of services in a visual manner. By viewing the topology of a composite service, you can learn the topology of the composite service and its associated services and the running status of its associated services.
Procedure
Step 1 Choose Service > Composite Service > Manage Composite Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 In the service list, select the composite service to be viewed, and then click the Topology tab. In the topology view, you can view the topology of the composite service. The service components are connected to each other through connection points. Each service component is displayed as a submap. By clicking legend information. on the toolbar of the Main Topology, you can view the
Step 4 You can perform the following operations in the topology view.
l
Right-click a service component and then you can perform the following operations:
Choose Current Alarm from the shortcut menu to check whether the composite service is normal. Choose Details from the shortcut menu to access the service management user interface. Then, you can view the details about this composite service and modify this composite service as required. Choose Open from the shortcut menu to view the topology of this service component. By choose Close, you can collapse the topology structure of the service.
Right-click a connection point and choose Details from the shortcut menu to view the details about this connection point.
----End
11.5 Example for Configuring Composite Services

This topic describes the networking modes and configuration methods for composite services with examples. 11.5.1 Example for Configuring the PWE3+VPLS Composite Service This topic describes the networking application and configuration method of the PWE3+VPLS composite service with an example. 11.5.2 Example for Configuring the PWE3+PWE3 Composite Service This topic describes the networking application and configuration method of the PWE3+PWE3 composite service with an example.
11.5.1 Example for Configuring the PWE3+VPLS Composite Service

This topic describes the networking application and configuration method of the PWE3+VPLS composite service with an example.
Example Description
This topic describes O&M scenarios and networking diagrams. When an Ethernet service is connected to a VPLS service, the two services affect the VLAN service that is transmitted in them. Therefore, the two services need to be combined as a composite service for management. For details, see Figure 11-5.
l l l l
The PWE3 service is transmitted from UPE1 to NPE1. The PWE3 service is transmitted from UPE2 to NPE2. The VPLS service is transmitted from NPE1 to NPE2. The services between UPE1, NPE1, NPE2, and UPE2 are combined as a composite service .
Figure 11-5 Networking diagram of the PWE3+VPLS composite service

UNI for UPE1: 19-ETFC-1 NNI for NPE2: 1-EG16-1 PW PWE3 19-ETFC-1 NPE 1 VPLS NPE 2 UNI for UPE2: 19-ETFC-1 NNI for NPE1: 1-EG16-1 FE PWE3 19-ETFC-1
UPE 1
UPE 2
11-12
Issue 01 (2010-08-16)
Service Planning
This topic describes the service planning of the PWE3+VPLS networking. The configuration roadmap is as follows: 1. 2. Configure PWE3 services Configure on the UPEs and enable the UPEs to access the NPEs through static PWE3. Configure VPLS services Configure bidirectional PWs between the NPEs. On the NPEs, configure unidirectional PWs that point to the UPEs. 3. Configure connection points to combine the PWE3 service and the VPLS service into a composite service.
Plan the following data: Table 11-2 NE parameters NE Interface IP Address LSR ID Opposite LSR ID (Session Configuration for MPLS-LDP ) 3.3.3.9
UPE1 NPE1
19-ETFC-1: 100.1.1.1/24 19-ETFC-1: 100.1.1.2/24 1-EG16-1: 100.1.1.3/24
1.1.1.9 2.2.2.9
NPE2
19-ETFC-1: 100.1.1.4/24 1-EG16-1: 100.1.1.5/24
3.3.3.9
2.2.2.9
UPE2
19-ETFC-1: 100.1.1.6/24
4.4.4.9
Table 11-3 Planning of parameters for configuring the PWE3 service Service Attribute Service Type Service Name Node List
PWE3 Service 1 ETH pwe3_upe1
PWE3 Service 2 ETH pwe3_upe2
Service Attribute Source Unterminat ed > Sink PW PW ID Signaling Type Uplink Label Downlink Label
PWE3 Service 1 UPE1:19-ETFC-1 2.2.2.9
PWE3 Service 2 UPE2:19-ETFC-1 3.3.3.9
100 Static 1001 1002
100 Static 1002 1001
Table 11-4 Planning of parameters for configuring the VPLS service Service Attribute Service Name Network Type VSI Name VSI ID NPE Bidirection al PW Value vpls Full-Mesh-VPLS vsi1 100 NPE 1 and NPE 2 Parameters are set as follows:
l l l
Source NE: NPE 1 Sink NE: NPE 2 PW Type: Dynamic
Unterminat ed PW 1
Parameters are set as follows:

l l l l l
Source NE: NPE 1 Sink NE: UPE 1 PW Type: Static Incoming Label: 1002 Outgoing Label: 1001
11-14
Issue 01 (2010-08-16)
Unterminat ed PW 2

l l l l l
Table 11-5 Planning of parameters for configuring the composite service Service Attribute Service Name Customer Name Service Componen t PW Connection Point 1 Value PWE3+VPLS customer 1 Select the following service components:
l l
VPLS: vpls PWE3: pwe3_upe1 and pwe3_upe2
pwe3_upe1+vpls
l l
Name: connection1 Selected PW 1:

PW ID: 100 Equipment Name: UPE 1 Service Name: pwe3_upe1 Service Type: PWE3 PW ID: 100 Equipment Name: NPE 1 Service Name: vpls Service Type: VPLS
Selected PW 2:

Issue 01 (2010-08-16)
11-15
Service Attribute PW Connection Point 2
Value pwe3_upe2+vpls
l l

Selected PW 2:

This topic describes the configuration process of the PWE3+VPLS composite service. The configuration process of the PWE3+VPLS composite service includes configuring PWE3 services, configuring VPLS services, and configuring the PWE3+VPLS composite service.
Prerequisite
l l l l
You must be an NM user with "NE operator" authority or higher. IP addresses of all interfaces must be set. The parameters of control planes must be set. The dynamic tunnel carried service must created.
Procedure
Step 1 Configure PWE3 services. Configure static PWE3 service 1 on UPE 1 and configure UPE 1 to access NPE 1 through PWE3. Configure static PWE3 service 2 on UPE 2 and configure UPE 2 to access NPE 2 through static PWE3. 1. 2. Choose Service > PWE3 Service > Create PWE3 Service from the main menu. Configure PWE3 services according the following data planning. After the configuration, click OK to make the parameter settings take effect.
11-16
Issue 01 (2010-08-16)
Table 11-6 Planning of parameters for configuring the PWE3 service Service Attribute Service Type Service Name Node List Source Untermina ted > Sink PW PW ID Signaling Type Uplink Label Downlink Label 100 Static 1001 1002 100 Static 1002 1001 UPE1:19-ETFC-1 2.2.2.9 UPE2:19-ETFC-1 3.3.3.9 PWE3 Service 1 ETH pwe3_upe1 PWE3 Service 2 ETH pwe3_upe2
Step 2 Configure VPLS services. Configure bidirectional PWs between the NPEs. On the NPEs, configure unidirectional PWs that point to the UPEs. 1. 2. Choose Service > VPLS Service > Create VPLS Service from the main menu. Configure VPLS services according the following data planning. After the configuration, click OK to make the configured parameters take effect. Table 11-7 Planning of parameters for configuring the VPLS service Service Attribute Service Name Network Type VSI Name VSI ID NPE Value vpls Full-Mesh-VPLS vsi1 100 NPE 1 and NPE 2
Issue 01 (2010-08-16)
11-17
Service Attribute Bidirectio nal PW
Value Parameters are set as follows:

l l l
Source NE: NPE 1 Sink NE: NPE 2 PW Type: Dynamic
Untermina ted PW 1

l l l l l
Untermina ted PW 2

l l l l l
Step 3 Configure the PWE3+VPLS composite service. 1. 2. Choose Service > Composite Service > Create Composite Service from the main menu. Configure basic information about the composite service.
l l
Service Name: PWE3+VPLS Customer Name: customer1 Choose Select > VPLS. On the tab page that is displayed, select vpls. Choose Select > PWE3. On the tab page that is displayed, select pwe3_upe1 and pwe3_upe2.
3.
In the Service Component area, select the created service components.

l l
4.
In the Connection Point area, choose Create > PW, and then configure connection points.
11-18
Issue 01 (2010-08-16)
Service Attribute PW connectio n point 1
Value pwe3_upe1+vpls
l l

Selected PW 2:

PW connectio n point 2
pwe3_upe2+vpls
l l

Selected PW 2:

5.
After the preceding configurations are complete, click OK to complete the creation of the composite service.
----End
Postrequisite
Monitor the composite service in real time on the NMS. In the Composite Service Management service list, select the created composite service. Click the Topology tab to view the topology of the composite service and obtain the alarms in real time.
Issue 01 (2010-08-16)
11-19
11.5.2 Example for Configuring the PWE3+PWE3 Composite Service

This topic describes the networking application and configuration method of the PWE3+PWE3 composite service with an example.
Example Description
This topic describes O&M scenarios and networking diagrams. In this application scenario, protection for the services between rings is enhanced. Fibers in each section of a service are protected, so that the service is well protected. For example, a PWE3 service between PE1 and PE4 can be divided into three sections, as shown in Figure 11-6. PW APS protection is configured for the sections from PE1 to PE2 and from PE3 to PE4 and LAG protection is configured for the section from PE2 to PE3. In this way, each fiber has its protection link in each section of the service and thus the protection capability of the PWE3 service is enhanced. Figure 11-6 Networking diagram of the PWE3+PWE3 composite service
PWE3 Service
1-EG16-1
PWE3 1-EG16-1 Service
LAG
1-EG16-1
1-EG16-1 19-ETFC-1
19-ETFC-1 PE1
Protection PW PE2 Working PW 1-EG16-2
Protection PW Working PW 19-ETFC-1 PE3 PE4 1-EG16-2 1-EG16-2 19-ETFC-2 19-ETFC-3 RNC
1-EG16-2
Node B
Service Planning
This topic describes the service planning of the PWE3+PWE3 networking. Table 11-8 Planning of parameters for configuring the LAG Parameters Attribute LAG Name Revertive Mode Load Sharing Load Sharing Hash Algorithm System Priority Main Port
11-20
PE2 Value LAG1 Revertive Non-Sharing Automatic 0 19-ETFC-1
PE3 Value LAG1 Revertive Non-Sharing Automatic 0 19-ETFC-1

Issue 01 (2010-08-16)
Parameters Attribute Slave Port
PE2 Value 19-ETFC-2 19-ETFC-3
PE3 Value 19-ETFC-2 19-ETFC-3
Table 11-9 Planning of parameters for configuring the PWE3 service Service Attribute Service Name Service Type Protection Type Node List Source Sink PE1: 19-ETFC-1 PE2: 19-ETFC-1 PE3: 19-ETFC-1 PE4: 19-ETFC-1 PWE3 Service 1 pwe3_pe1 ETH PW backup protection PWE3 Service 2 pwe3_pe2 ETH PW backup protection
Table 11-10 Planning of parameters for configuring the composite service Service Attribute Service Name Customer Name Service Componen t Interface Connection Point Value PWE3+PWE3 customer1 PWE3 Service: pwe3_pe1, pwe3_pe2
l l l l
Name: connection1 Type: PWE3+PWE3 Interface Name: 19-ETFC-1 Equipment Name: PE2, PE3
This topic describes how to configure the PWE3+PEW3 composite services.
Prerequisite
You must be an NM user with "NE operator" authority or higher. Port attributes must be configured.
Procedure
Step 1 Configure the LAG. Configure parameters relevant to the LAG on both PE2 and PE3. 1. 2. In the NE Explorer, select the NE and choose Configuration > Interface Management > Link Aggregation Group Management from the Function Tree. Click New, Configure relevant parameters and click OK. Table 11-11 Planning of parameters for configuring the LAG Parameters Attribute LAG Name Revertive Mode Load Sharing Load Sharing Hash Algorithm System Priority Main Port Slave Port PE2 Value LAG1 Revertive Non-Sharing Automatic 0 19-ETFC-1 19-ETFC-2 19-ETFC-3 PE3 Value LAG1 Revertive Non-Sharing Automatic 0 19-ETFC-1 19-ETFC-2 19-ETFC-3
Step 2 Configure PWE3 services. 1. 2. Choose Service > PWE3 Service > Create PWE3 Service from the main menu. Configure PWE3 services according the following data planning. After the configuration, click OK to make the parameter settings take effect. Table 11-12 Planning of parameters for configuring the PWE3 service Service Attribute Service Name Service Type Protection Type
11-22
PWE3 Service 1 pwe3_pe1 ETH PW backup protection
PWE3 Service 2 pwe3_pe2 ETH PW backup protection
Issue 01 (2010-08-16)
Service Attribute Node List Source Sink
PWE3 Service 1
PWE3 Service 2
PE1: 19-ETFC-1 PE2: 19-ETFC-1
PE3: 19-ETFC-1 PE4: 19-ETFC-1
Step 3 Configure the PWE3+PWE3 composite service. 1. 2. Choose Service > Composite Service > Create Composite Service from the main menu. Configure basic information about the composite service.
l l
Service Name: PWE3+PWE3 Customer Name: customer1
3.
In the Service Component area, select the created service components. Choose Select > PWE3. On the tab page that is displayed, select pwe3_pe1 and pwe3_pe2.
4.
In the Connection Point area, choose Create > Interface, and then configure connection points. Service Attribute Interface Connectio n Point Value pwe3+pwe3
l l l l
Name: connection1 Type: PWE3+PWE3 Interface Name: 19-ETFC-1 Equipment Name: PE2, PE3
5.
After the preceding configurations are complete, click OK to complete the creation of the composite service.
----End
Postrequisite
Monitor the composite service in real time on the NMS. In the Composite Service Management service list, select the created composite service. Click the Topology tab to view the topology of the composite service and obtain the alarms in real time.
Issue 01 (2010-08-16)
11-23
12 Modifying Configurations
12
About This Chapter
Modifying Configurations
This topic describes how to modify service configurations, which includes modifying and deleting service configurations. 12.1 Modifying the Basic Information About Services in Batches This topic describes how to modify services in batches. If the basic information about certain existing services needs to be adjusted, you can modify these services. 12.2 Modifying Tunnel Attributes This topic describes how to modify tunnel attributes, which includes modifying and deleting tunnels. 12.3 Modifying PWE3 Attributes This topic describes how to modify PWE3 attributes. When certain existing PWE3 services need to be adjusted, you need to modify the related attributes. 12.4 Modifying VPLS Attributes This topic describes how to modify VPLS attributes. When certain existing VPLS services need to be adjusted, you need to modify the related attributes. 12.5 Modifying the Attributes of a L3VPN Service This topic describes how to modify the attributes of a L3VPN service, which includes modifying, deleting, and undeploying a L3VPN service.
Issue 01 (2010-08-16)
12-1
12.1 Modifying the Basic Information About Services in Batches

This topic describes how to modify services in batches. If the basic information about certain existing services needs to be adjusted, you can modify these services.
Prerequisite
In this example, the modification of the basic information about VPLS services is taken as an example.
l l l
The communication between the NMS and NEs must be normal. You must be an NMS user with NE operator rights or higher. The VPLS services must be created.
Procedure
Step 1 Choose Service > VPLS Service > Create VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click the VPLS services to be modified and choose Details from the shortcut menu. Modify the basic information about the selected services. Parameters that can be modified are Service Name, Customer, Customized Attribute 1, Customized Attribute 2, and Remarks.
NOTE
Parameters that cannot be modified are grayed out.
Step 4 Click OK to return to the main user interface. ----End
12.2 Modifying Tunnel Attributes

This topic describes how to modify tunnel attributes, which includes modifying and deleting tunnels. 12.2.1 Modifying a Tunnel This topic describes how to modify a tunnel. 12.2.2 Deleting a Tunnel This topic describes how to delete a tunnel. 12.2.3 Deleting a tunnel from the network Side This topic describes how to delete a tunnel from the network side. 12.2.4 Undeploying a tunnel This topic describes how to undeploy a tunnel.
12.2.1 Modifying a Tunnel

This topic describes how to modify a tunnel.
Prerequisite
Context
CAUTION
Modifying configurations of a service may interrupt the service running. Exercise caution with this operation.
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Select a tunnel, and then click the related tabs to modify the related parameters.
NOTE
If you need to modify only the basic information about a tunnel, right-click the tunnel and choose Details from the shortcut menu. In the dialog box that is displayed, modify basic information about the tunnel.
Step 4 Click Apply. ----End
12.2.2 Deleting a Tunnel

This topic describes how to delete a tunnel.
Prerequisite
Context
Deleting a tunnel is to delete a configured tunnel from the NMS and equipment at the same time.
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click one or more services and choose Delete from the shortcut menu.
Step 4 In the Confirm dialog box, click Yes. ----End
12.2.3 Deleting a tunnel from the network Side

This topic describes how to delete a tunnel from the network side.
Prerequisite
Context
Deleting a tunnel from the NMS is to delete a tunnel from only the NMS. In this case, the tunnel data configured on the equipment still exists. The deleted tunnel is displayed as a discrete tunnel on the NMS.
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click one or more services and choose Delete from Network Side from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. ----End
12.2.4 Undeploying a tunnel

This topic describes how to undeploy a tunnel.
Prerequisite
Procedure
Step 1 Choose Service > Tunnel > Manage Tunnel from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a service with Deployment Status being Deployed and choose Undeploy from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. After the service is undeployed, the value of Deployment Status changes from Deployed to Undeployed. ----End
Postrequisite
After the service is undeployed, you can redeploy the service. If the service fails to be undeployed, you can modify the service according to the error message, and then undeploy the service again.
12.3 Modifying PWE3 Attributes

This topic describes how to modify PWE3 attributes. When certain existing PWE3 services need to be adjusted, you need to modify the related attributes. 12.3.1 Modifying a PWE3 Service This topic describes how to modify a PWE3 service. When certain existing PWE3 services need to be adjusted, you need to modify the related attributes. 12.3.2 Modifying the Tunnel Carrying PWE3 Services After creating a PWE3 service, you can modify the tunnel that carries a PW online. 12.3.3 Deleting a PWE3 Service This topic describes how to delete a PWE3 service. You can delete a PWE3 service if it is inapplicable, for example, when the network is adjusted. 12.3.4 Deleting a PWE3 Service on the Network Side This topic describes how to delete a PWE3 service from the network side. After a PWE3 service is deleted from the network side, the information about the PWE3 service is deleted from the NMS, the VSI in the PWE3 service changes to a discrete service, but the configurations on the NE side are not affected. 12.3.5 Undeploying a PWE3 Service This topic describes how to undeploy a PWE3 service. Undeploying a PWE3 service is deleting the PWE3 service from the NE side only. The service data still exists on the NMS side, and the service status changes from Deployed to Undeployed.
12.3.1 Modifying a PWE3 Service

This topic describes how to modify a PWE3 service. When certain existing PWE3 services need to be adjusted, you need to modify the related attributes.
Context
CAUTION
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area.
Step 3 Select a PWE3, and then click the related tabs to modify the related parameters.
NOTE
If you need to modify only the basic information about a PWE3, right-click the PWE3 and choose Details from the shortcut menu.
Step 4 Click Apply. ----End
12.3.2 Modifying the Tunnel Carrying PWE3 Services

After creating a PWE3 service, you can modify the tunnel that carries a PW online.
Prerequisite
Context
CAUTION
Modifying the tunnel that carries a PW may interrupt services.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Select a required service and click the PW tab in the lower portion of the window. Step 4 On the PW tab page, select the required PW and modify Forward Tunnel or Reverse Tunnel.
NOTE
l l
When you set the tunnel policy to Static Binding, you can manually select the MPLS/IP tunnel or GRE tunnel to be bound. When you set the tunnel policy to Select Policy, you can manually adjust the policy selection priority.
The only tunnel policy supported by routers is Select policy.
----End
12.3.3 Deleting a PWE3 Service

This topic describes how to delete a PWE3 service. You can delete a PWE3 service if it is inapplicable, for example, when the network is adjusted.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu.
Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click one or more services and choose Delete from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. ----End
12.3.4 Deleting a PWE3 Service on the Network Side

This topic describes how to delete a PWE3 service from the network side. After a PWE3 service is deleted from the network side, the information about the PWE3 service is deleted from the NMS, the VSI in the PWE3 service changes to a discrete service, but the configurations on the NE side are not affected.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click one or more services and choose Delete from Network Side from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. ----End
Postrequisite
After a PWE3 service is deleted from the network side, the information about the PWE3 service is deleted from the NMS and cannot be viewed in PWE3 service management. The PW information related to the PWE3 service, however, can be viewed in discrete service management.
12.3.5 Undeploying a PWE3 Service

This topic describes how to undeploy a PWE3 service. Undeploying a PWE3 service is deleting the PWE3 service from the NE side only. The service data still exists on the NMS side, and the service status changes from Deployed to Undeployed.
Procedure
Step 1 Choose Service > PWE3 Service > Manage PWE3 Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a service with Deployment Status being Deployed and choose Undeploy from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. After the service is undeployed, the value of Deployment Status changes from Deployed to Undeployed. ----End
Postrequisite
12.4 Modifying VPLS Attributes

This topic describes how to modify VPLS attributes. When certain existing VPLS services need to be adjusted, you need to modify the related attributes. 12.4.1 Modifying a VPLS Service This topic describes how to modify a VPLS service. When certain existing VPLS services need to be adjusted, you need to modify the related attributes. 12.4.2 Modifying the Tunnel Carrying VPLS Services After creating a VPLS service, you can modify the tunnel that carries a PW online. 12.4.3 Deleting a VPLS Service This topic describes how to delete a VPLS service. When the created VPLS service is not used any more and you need to adjust the network, you can delete the VPLS service. 12.4.4 Deleting a VPLS Service from the U2000 Side This topic describes how to delete a VPLS service form the U2000 side. After a VPLS service is deleted from the U2000 side, the VPLS service is deleted from the U2000 and the VSI in the VPLS service becomes a discrete service; the configurations on the NE side, however, are not affected. 12.4.5 Undeploying a VPLS Service This topic describes how to undeploy a VPLS service. if a VPLS service is undeployed, it is undeployed only from the NE side and the service data still remains on the NMS side. In addition, the service status changes from Deployed to Undeployed.
12.4.1 Modifying a VPLS Service

This topic describes how to modify a VPLS service. When certain existing VPLS services need to be adjusted, you need to modify the related attributes.
Context
CAUTION
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area.
Step 3 Right-click a service and choose Modify from the shortcut menu. Step 4 Set the related parameters as required. Step 5 Click OK to return to the main user interface. ----End
12.4.2 Modifying the Tunnel Carrying VPLS Services

After creating a VPLS service, you can modify the tunnel that carries a PW online.
Prerequisite
Context
CAUTION
Modifying the tunnel that carries a PW may interrupt services.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Select a required service and click the PW tab in the lower portion of the window. Select the PW to be modified Then, click Details. Step 4 Optional: For the undeployed VPLS service, in the dialog box that is displayed, select a binding type from the Tunnel Binding Type drop-down list.
NOTE
l l
When you set the Tunnel Binding Type to Static binding, you can manually select the MPLS/IP tunnel or GRE tunnel to be bound. When you set the Tunnel Binding Type to Select policy, you can manually adjust the policy selection priority.
The only tunnel policy supported by routers is Select policy.
Step 5 Click the ... button to the right of the Tunnel field, and then select the required tunnel. Step 6 Click OK. ----End
12.4.3 Deleting a VPLS Service

This topic describes how to delete a VPLS service. When the created VPLS service is not used any more and you need to adjust the network, you can delete the VPLS service.
Context
This operation is used to delete the VPLS service configurations from the NMS and NEs.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click one or more services and choose Delete from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. ----End
12.4.4 Deleting a VPLS Service from the U2000 Side

This topic describes how to delete a VPLS service form the U2000 side. After a VPLS service is deleted from the U2000 side, the VPLS service is deleted from the U2000 and the VSI in the VPLS service becomes a discrete service; the configurations on the NE side, however, are not affected.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click one or more services and choose Delete from Network Side from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. ----End
Postrequisite
After a VPLS service is deleted from the network side, the information about the VPLS service is deleted from the U2000 and cannot be viewed in the VPLS service management window. The VSI information related to the VPLS service, however, can be viewed in the VSI resource management window.
12.4.5 Undeploying a VPLS Service

This topic describes how to undeploy a VPLS service. if a VPLS service is undeployed, it is undeployed only from the NE side and the service data still remains on the NMS side. In addition, the service status changes from Deployed to Undeployed.
Context
Only VPLS services are undeployed, whereas the tunnels that bearer the services are not undeployed.
Procedure
Step 1 Choose Service > VPLS Service > Manage VPLS Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a service with Deployment Status being Deployed and choose Undeploy from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. After the service is undeployed, the value of Deployment Status changes from Deployed to Undeployed. ----End
Postrequisite
12.5 Modifying the Attributes of a L3VPN Service

This topic describes how to modify the attributes of a L3VPN service, which includes modifying, deleting, and undeploying a L3VPN service. 12.5.1 Modifying a L3VPN Service This topic describes how to modify a L3VPN service. 12.5.2 Deleting an L3VPN Service This topic describes how to delete an L3VPN service. 12.5.3 Deleting a L3VPN Service from the Network This topic describes how to delete a L3VPN service from a network. Deleting a L3VPN service from a network is to break the association between a VRF and a service. Then, the VRF becomes a discrete VRF. 12.5.4 Undeploying a L3VPN Service This topic describes how to undeploy a L3VPN service. L3VPN services are undeployed from the NE side rather than the NMS side. After a L3VPN service is undeployed from the NE side, the status of the L3VPN service is changed from Deployed to Undeployed.
12.5.1 Modifying a L3VPN Service

This topic describes how to modify a L3VPN service.
Context
CAUTION
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a service and choose Modify from the shortcut menu. Step 4 Set the related parameters as required. Step 5 Click OK to return to the main user interface. ----End
12.5.2 Deleting an L3VPN Service

This topic describes how to delete an L3VPN service.
Prerequisite
The user must be an NMS user with NE operator rights or higher. The L3VPN service must be created.
Context
This operation will delete service configuration data from both the NMS and NEs.
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click one or more services and choose Delete from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. ----End
12.5.3 Deleting a L3VPN Service from the Network

This topic describes how to delete a L3VPN service from a network. Deleting a L3VPN service from a network is to break the association between a VRF and a service. Then, the VRF becomes a discrete VRF.
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click one or more services and choose Delete from Network Side from the shortcut menu.
Step 4 In the Confirm dialog box, click Yes. ----End
Postrequisite
After the L3VPN service is deleted from the network, the service information is deleted from the NMS. Therefore, you cannot view the record in L3VPN service management list. The VRF information to which the service corresponds, however, can be viewed in the discrete service management list.
12.5.4 Undeploying a L3VPN Service

This topic describes how to undeploy a L3VPN service. L3VPN services are undeployed from the NE side rather than the NMS side. After a L3VPN service is undeployed from the NE side, the status of the L3VPN service is changed from Deployed to Undeployed.
Procedure
Step 1 Choose Service > L3VPN Service > Manage L3VPN Service from the main menu. Step 2 In the Set Filter Criteria dialog box, set the filter criteria. Then, click Filter. The services meeting the filter criteria are displayed in the query result area. Step 3 Right-click a service with Deployment Status being Deployed and choose Undeploy from the shortcut menu. Step 4 In the Confirm dialog box, click Yes. After the service is undeployed, the value of Deployment Status changes from Deployed to Undeployed. ----End
Postrequisite
Issue 01 (2010-08-16)
12-13
Index
Index
A
Advertisement of VPNv4 Routes, 8-16
L
Label Allocation of MP-BGP, 8-15
M
MP-BGP, 8-10
P
Packet Forwarding in a Basic L3VPN, 8-19 PW APS protection switching, 6-60
R
Route Advertisement of a Basic BGP/MPLS PN, 8-17
V
VPN Route Selection on PEs, 8-15
Issue 01 (2010-08-16)
i-1

Operation Guide For PTN End-To-End Management: Imanager U2000 Unified Network Management System V100R002C01

Caricato da

Informazioni sul documento

Descrizione originale:

Titolo originale

Copyright

Formati disponibili

Condividi questo documento

Condividi o incorpora il documento

Opzioni di condivisione

Hai trovato utile questo documento?

Questo contenuto è inappropriato?

Copyright:

Formati disponibili

Operation Guide For PTN End-To-End Management: Imanager U2000 Unified Network Management System V100R002C01

Caricato da

Copyright:

Formati disponibili

iManager U2000 Unified Network Management System V100R002C01

Operation Guide for PTN End-to-End Management

HUAWEI TECHNOLOGIES CO., LTD.

Trademarks and Permissions

Huawei Technologies Co., Ltd.

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

iManager U2000 Operation Guide for PTN End-to-End Management

About This Document

About This Document

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

About This Document

iManager U2000 Operation Guide for PTN End-to-End Management

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

iManager U2000 Operation Guide for PTN End-to-End Management

About This Document

Updates in Issue 01 (2010-08-16) Based on Product Version V100R002C01

Updates in Issue 01 (2010-04-15) Based on Product Version V100R002C00

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

iManager U2000 Operation Guide for PTN End-to-End Management

iManager U2000 Operation Guide for PTN End-to-End Management

4 Configuring a Service Template.............................................................................................4-1

5 Viewing a Service Resource.....................................................................................................5-1

6 Managing PWE3 Services.........................................................................................................6-1

iManager U2000 Operation Guide for PTN End-to-End Management

7 Managing VPLS Services..........................................................................................................7-1

8 Managing an L3VPN Service...................................................................................................8-1

iManager U2000 Operation Guide for PTN End-to-End Management

9 Configuring Dual-Homing Protection...................................................................................9-1

11 Composite Service Management.........................................................................................11-1

iManager U2000 Operation Guide for PTN End-to-End Management

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

iManager U2000 Operation Guide for PTN End-to-End Management

iManager U2000 Operation Guide for PTN End-to-End Management

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

iManager U2000 Operation Guide for PTN End-to-End Management

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

iManager U2000 Operation Guide for PTN End-to-End Management

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

iManager U2000 Operation Guide for PTN End-to-End Management

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

iManager U2000 Operation Guide for PTN End-to-End Management

1 Process of Configuring PTN Services

Process of Configuring PTN Services

Add equipment to the NMS Upload/Synchronize data

Discover single services Discover composite services

Configure basic routes Configure control plane

Deploy the service

Optional Configure tunnels

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

1 Process of Configuring PTN Services

iManager U2000 Operation Guide for PTN End-to-End Management

Huawei Proprietary and Confidential Copyright Huawei Technologies Co., Ltd.

iManager U2000 Operation Guide for PTN End-to-End Management

2 Automatically Searching PTN Services

Automatically Searching PTN Services

Data synchronization must be complete on the related equipment.

After the configuration, click Start.

2 Automatically Searching PTN Services
