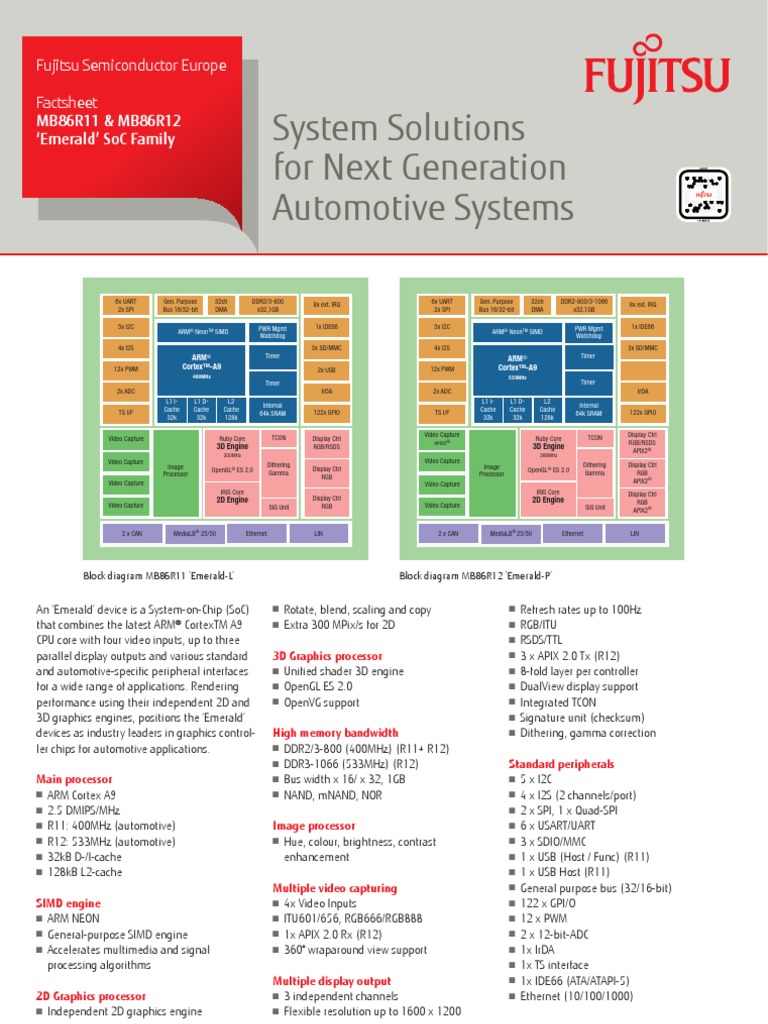

Fujitsu Semiconductor Europe Factsheet MB86R11 & MB86R12 Emerald SoC Family

System Solutions for Next Generation Automotive Systems

32ch DMA DDR2/3-800 x32,1GB PWR Mgmt Watchdog Timer 2x USB Timer IrDA 12x PWM 2x ADC TS I/F Video Capture
APIX2

6x UART 2x SPI 5x I2C 4x I2S 12x PWM 2x ADC TS I/F

Gen. Purpose Bus 16/32-bit

8x ext. IRQ 1x IDE66 3x SD/MMC

6x UART 2x SPI 5x I2C 4x I2S

Gen. Purpose Bus 16/32-bit

32ch DMA

DDR2-800/3-1066 x32,1GB PWR Mgmt Watchdog Timer

8x ext. IRQ 1x IDE66 3x SD/MMC

ARM NeonTM SIMD

ARM NeonTM SIMD

ARM CortexTM-A9
400MHz

ARM CortexTM-A9
533MHz

Timer IrDA L2 Cache 128k Ruby Core

L1 ICache 32k

L1 DCache 32k

L2 Cache 128k Ruby Core

Internal 64k SRAM

122x GPIO

L1 ICache 32k

L1 DCache 32k

Internal 64k SRAM

122x GPIO Display Ctrl RGB/RSDS APIX2 Display Ctrl RGB APIX2 Display Ctrl RGB APIX2 LIN

Video Capture Video Capture Video Capture

TCON

3D Engine
200MHz

Display Ctrl RGB/RSDS Display Ctrl RGB

TCON

3D Engine
266MHz

Image Processor

OpenGL ES 2.0 IRIS Core

Dithering Gamma

Video Capture

Image Processor

OpenGL ES 2.0 IRIS Core

Dithering Gamma

Video Capture

Video Capture

2D Engine
SIG Unit

Display Ctrl RGB

Video Capture

2D Engine
SIG Unit

2 x CAN

MediaLB 25/50

Ethernet

LIN

2 x CAN

MediaLB 25/50

Ethernet

Block diagram MB86R11 Emerald-L

Block diagram MB86R12 Emerald-P

An Emerald device is a System-on-Chip (SoC) that combines the latest ARM CortexTM A9 CPU core with four video inputs, up to three parallel display outputs and various standard and automotive-specic peripheral interfaces for a wide range of applications. Rendering performance using their independent 2D and 3D graphics engines, positions the Emerald devices as industry leaders in graphics controller chips for automotive applications. Main processor ARM Cortex A9 2.5 DMIPS/MHz R11: 400MHz (automotive) R12: 533MHz (automotive) 32kB D-/I-cache 128kB L2-cache SIMD engine ARM NEON General-purpose SIMD engine Accelerates multimedia and signal processing algorithms 2D Graphics processor Independent 2D graphics engine

Rotate, blend, scaling and copy Extra 300 MPix/s for 2D

3D Graphics processor Unied shader 3D engine OpenGL ES 2.0 OpenVG support High memory bandwidth DDR2/3-800 (400MHz) (R11+ R12) DDR3-1066 (533MHz) (R12) Bus width x 16/ x 32, 1GB NAND, mNAND, NOR Image processor Hue, colour, brightness, contrast enhancement

Refresh rates up to 100Hz RGB/ITU RSDS/TTL 3 x APIX 2.0 Tx (R12) 8-fold layer per controller DualView display support Integrated TCON Signature unit (checksum) Dithering, gamma correction

Multiple video capturing 4x Video Inputs ITU601/656, RGB666/RGB888 1x APIX 2.0 Rx (R12) 360 wraparound view support

Multiple display output 3 independent channels Flexible resolution up to 1600 x 1200

Standard peripherals 5 x I2C 4 x I2S (2 channels/port) 2 x SPI, 1 x Quad-SPI 6 x USART/UART 3 x SDIO/MMC 1 x USB (Host / Func) (R11) 1 x USB Host (R11) General purpose bus (32/16-bit) 122 x GPI/O 12 x PWM 2 x 12-bit-ADC 1x IrDA 1x TS interface 1x IDE66 (ATA/ATAPI-5) Ethernet (10/100/1000)

Page 1 of 2

Factsheet Fujitsu MB86R11 & MB86R12 Emerald SoC Family

Automotive I/F 2 x CAN 1 x MediaLB 25/50 APIX 2.0 (R12) Package BGA544, TEGBA544 (R12) 1.0 ball pitch Ta: -40 to +85C (R12: higher with limitations) AEC Q100 Samples MB86R11: Available MB86R12: Available Evaluation board Modular Starter kit CPU Board with the SoC Base-board providing the connectors and interfaces BSP Software Operating system support Linux (including fast boot mechanism) QNX (tbd), Integrity (tbd)
CGI Studio scene composer

CGI Software CGI Studio Scene Composer Modern 2D/3D HMI scene editing for automotive applications

Candera 3D engine Full support of OpenGL 2.0 ES feature set 3D Animation framework OS & application independent Hardware independent

Companion Solutions Automotive system FCR4 Family ARM Cortex R4 series 2D graphics engine Embedded VRAM Safety and security features 6 stepper motor control Standard and automotive I/F (CAN, Ethernet) Automotive Pixel Link (APIX) Indigo family MB88F33x Host I/F via SPI or APIX sideband link Sprite based graphic display controller with APIX Rx I/F Embedded TCON Embedded ash and SRAM Multiple stepper motor controllers ADC, PWM, I2C, GPI/O, UART CGI Studio Player Application development & verication Widget design & verication

Evaluation board

Candera 2D engine Customisable effects on scene graph nodes like shadows and transparency 2D animation effects (scale, rotate and translate) 2D scene composition support Supports interaction with Candera 3D engine

Modular starter kit MB86R11 Emerald-L Starterkit (SK-86R11-01)

All company and product trade marks and registered trade marks used throughout this literature are acknowledged as the property of their respective owners.

gdc_inquiry.fseu@de.fujitsu.com http://emea.fujitsu.com/semiconductor
FSEU-G09-05SEP2011
