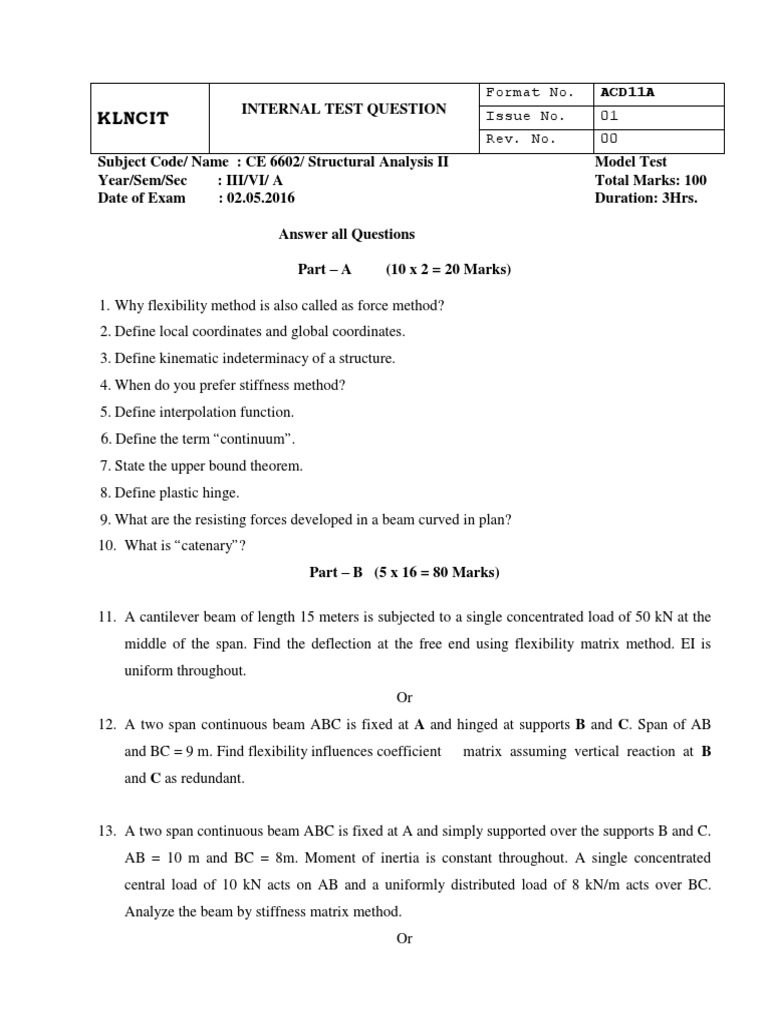

ACD11A
INTERNAL TEST QUESTION Issue No. 01
KLNCIT
Rev. No. 00
Subject Code/ Name : CE 6602/ Structural Analysis II Model Test
Year/Sem/Sec : III/VI/ A Total Marks: 100
Date of Exam : 02.05.2016 Duration: 3Hrs.
11. A cantilever beam of length 15 meters is subjected to a single concentrated load of 50 kN at the
middle of the span. Find the deflection at the free end using flexibility matrix method. EI is
uniform throughout.
Or
12. A two span continuous beam ABC is fixed at A and hinged at supports B and C. Span of AB
and BC = 9 m. Find flexibility influences coefficient matrix assuming vertical reaction at B
and C as redundant.
13. A two span continuous beam ABC is fixed at A and simply supported over the supports B and C.
AB = 10 m and BC = 8m. Moment of inertia is constant throughout. A single concentrated
central load of 10 kN acts on AB and a uniformly distributed load of 8 kN/m acts over BC.
Analyze the beam by stiffness matrix method.
Or
14. A portal frame ABCD with supports A and D are fixed at same level carries a uniformly
distributed load of 8 kN/m on the span AB. Span AB = Span BC = Span CD = 9m. EI is
constant throughout. Analyze the frame by stiffness matrix method.
Or
16. Derive the element stiffness matrix for a 2D beam element using shape functions.
17. Determine the shape factor of a T-section beam of flange dimension 100 x 12 mm and web
dimension 138 x 12mm thick.
Or
18. A portal frame ABCD with hinged feet has stanchions 4 m high and a beam of 6 m span. There
is a horizontal point load of 40 kN at B while the beam carries a point load of 120 kN at mid
span. Using a load factor of 1.75, find the collapse mechanism and calculate the collapse
moment. Assume same plastic moment capacity for all the members.
19. Analyze the beam AB of uniform cross-section curved in plan and in the form of a quadrant of a
circle of radius 5m. The beam is fixed at A and free at B. A point load of 100 kN is acting
vertically downward at B. Find the shear force, bending moment and torsional moment at A.
Or
20. A suspension cable with 200m span and 12m dip is stiffened by a three hinged girder. Two point
loads of 500 kN and 700 kN are placed at the distances of 50 m and 75 m from the left end. Find
shear force and bending moment in the girder at a section 60 m from the left end. Find also
maximum tension and the corresponding slope in the cable.
